Trumpai apie prekę
Prekė: Plėtimo plokštė Gravity. Kategorija: Priedai.
- Gamintojas: DFRobot
- Modelis: DFR0848

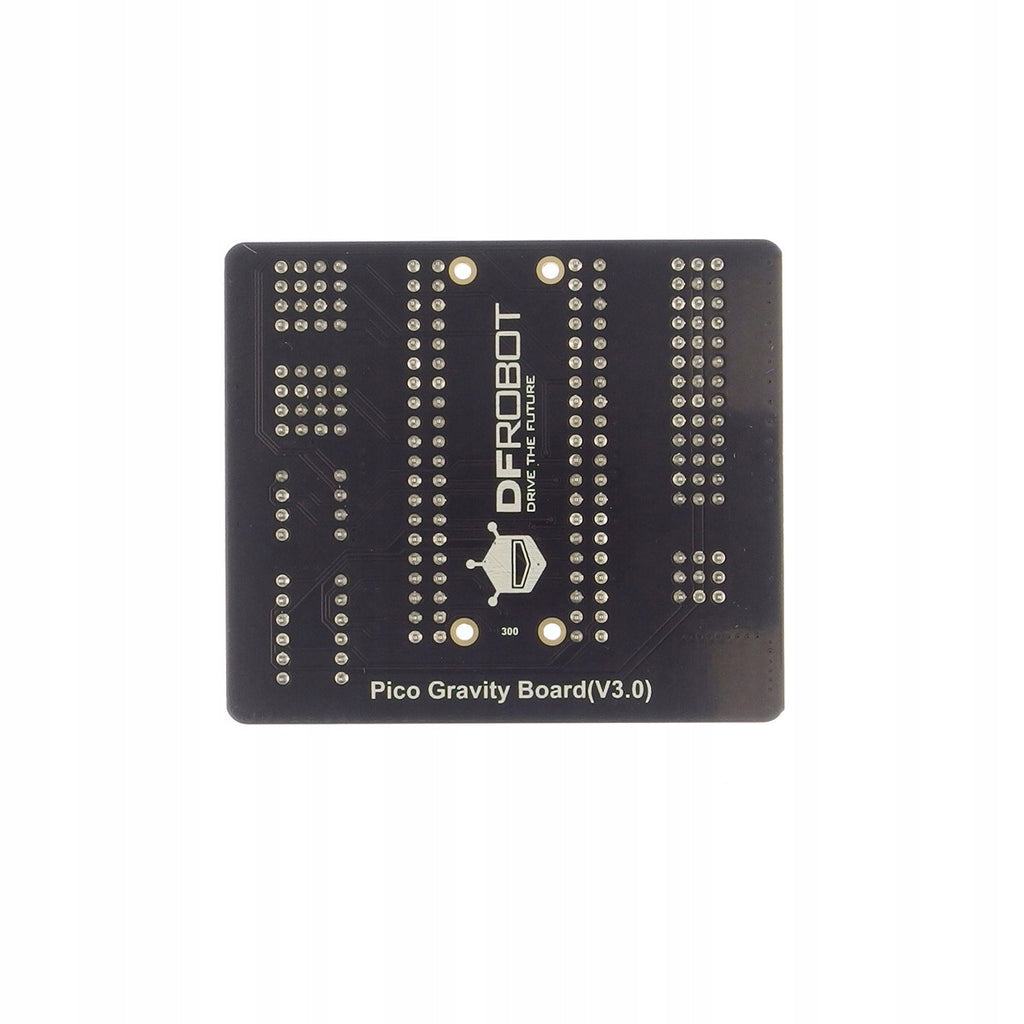

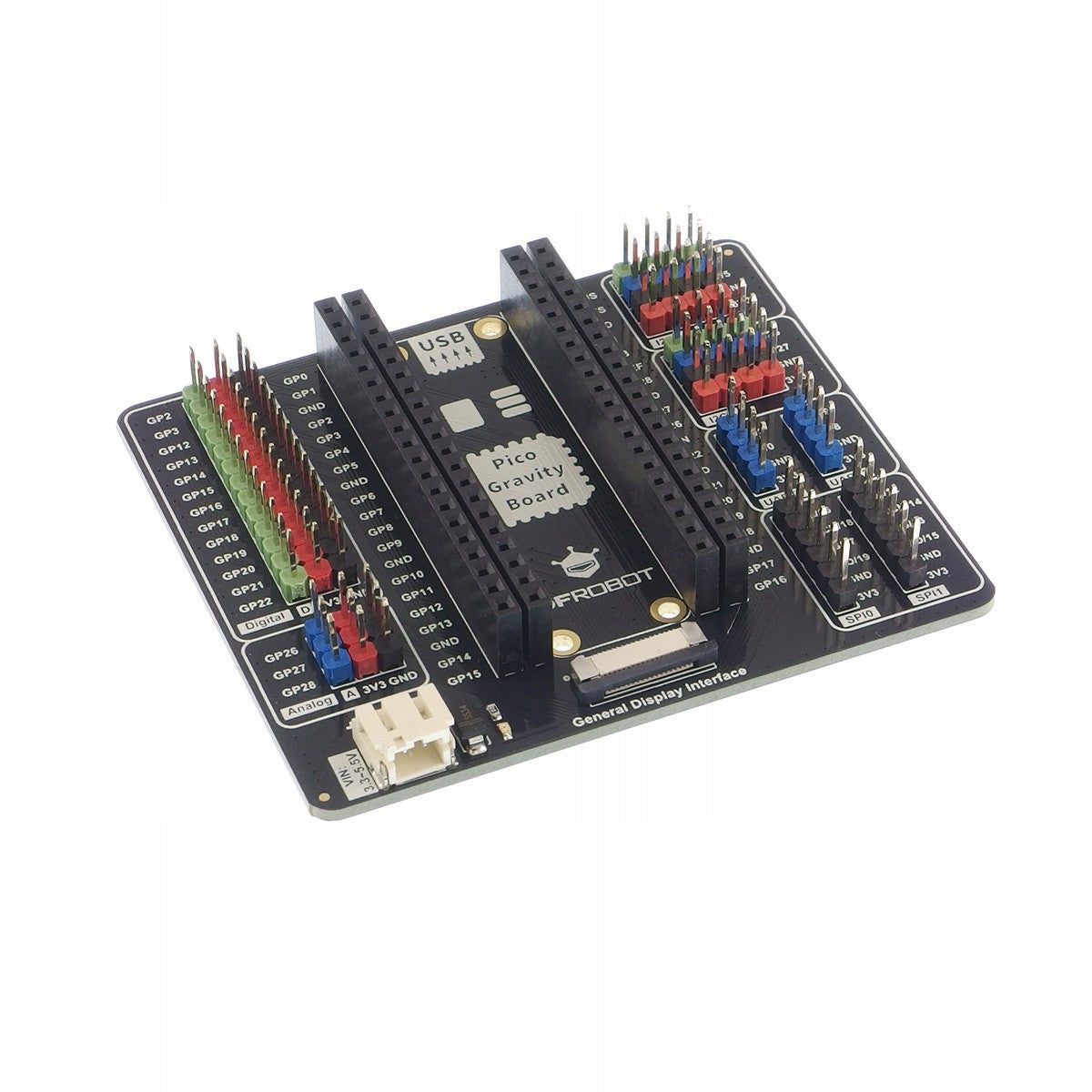

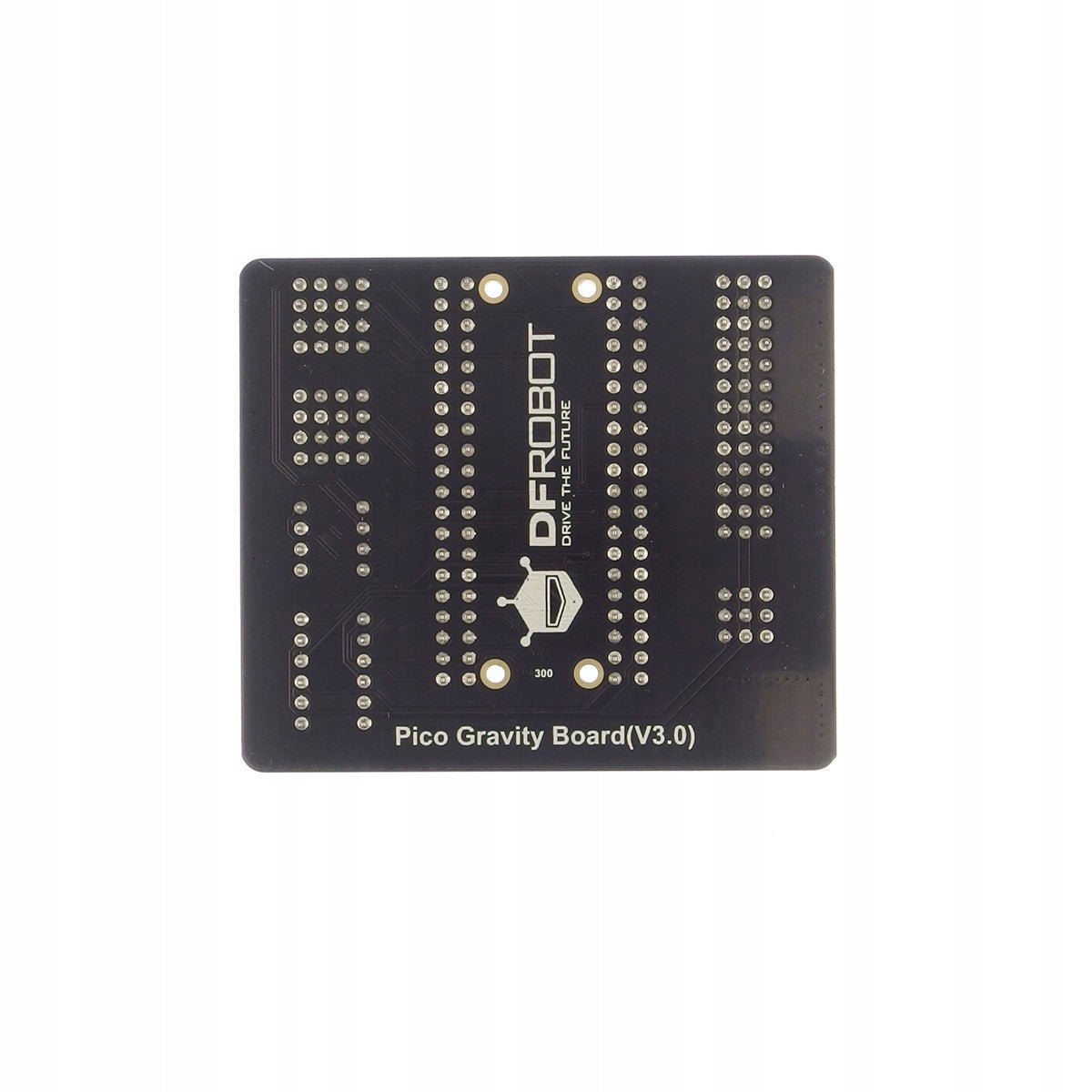

Gravity: Expansion Board - expansion board for Raspberry Pi Pico
Description
Expansion board designed for Raspberry Pi Pico sets. The board has 13 GPIO pins, 3 ADC inputs, UART, I2C and SPI interfaces and a GDI connector. The pins have been color-coded according to the Gravity standard, which makes it much easier to identify inputs and connect sensors. The module is powered by a JST PH connector with voltage from 3,3 to 5,5 V. On the product wiki page there is an instruction manual and examples of use.
Properties
- External power supply: 3,3 to 5,5 V
- 3-pin (colour) connectors, compatible with Gravity
- 13 digital pins
- 3 analog inputs
- UART: 2
- I2C: 2
- SPI: 2
- GDI connector
- Dimensions: 73 x 63 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | DFR0848 |
| Parametry | Manufacturer | DFRobot |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5904422380748 |
| Parametry | Batteries included | no |
