Trumpai apie prekę
Prekė: Plėtimo plokštė Explorer Raspberry Pi Pico. Kategorija: Priedai.
- Gamintojas: Pimoroni
- Modelis: b/d

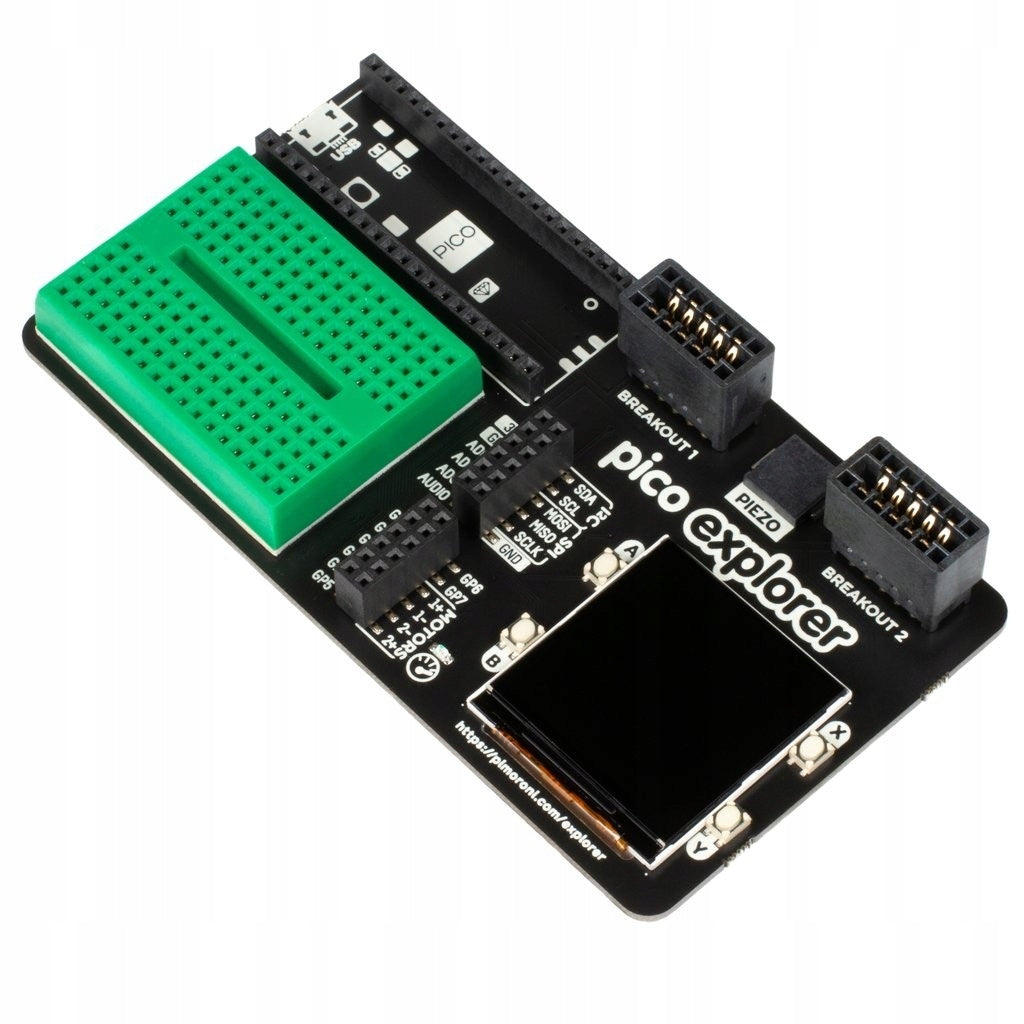

Explorer Base - base plate for Raspberry Pi Pico
Description
Base plate dedicated to projects based on Raspberry Pi Pico. It is equipped with an IPS LCD display with a diagonal of 1,54" and a resolution of 240x240 px. The user has a buzzer, four buttons, a DC motor controller and a mini contact plate to create their own circuits. Connectors with I2C (Garden Breakout dedicated to Pimoroni) and SPI modules as well as GPIO and ADC pins were output on the base plate. The kit is a good option for people starting to learn programming with Raspberry Pi Pico who want to easily create projects without the need for soldering. Documentation along with a library and examples in C/C++ and MicroPython are available in the GitHub repository.
Properties
- Piezoelectric buzzer
- IPS 1,54" LCD screen (240 x 240 px)
- Four buttons
- Two Half-Bridge motor drivers (with LED indicator)
- Easy access to GPIO and ADC pins
- Two Breakout Garden I2C sockets
- Mini contact plate
- Rubber feet
- Compatible with Raspberry Pi Pico
- Dimensions: 117 x 63 x 20 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | b/d |
| Parametry | Manufacturer | Pimoroni |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 0769894017159 |
| Parametry | Batteries included | no |
