Trumpai apie prekę
Prekė: Plėtimo modulis Raspberry Pi Zero / Zero W. Kategorija: Priedai.
- Gamintojas: DFRobot
- Modelis: DFR0604

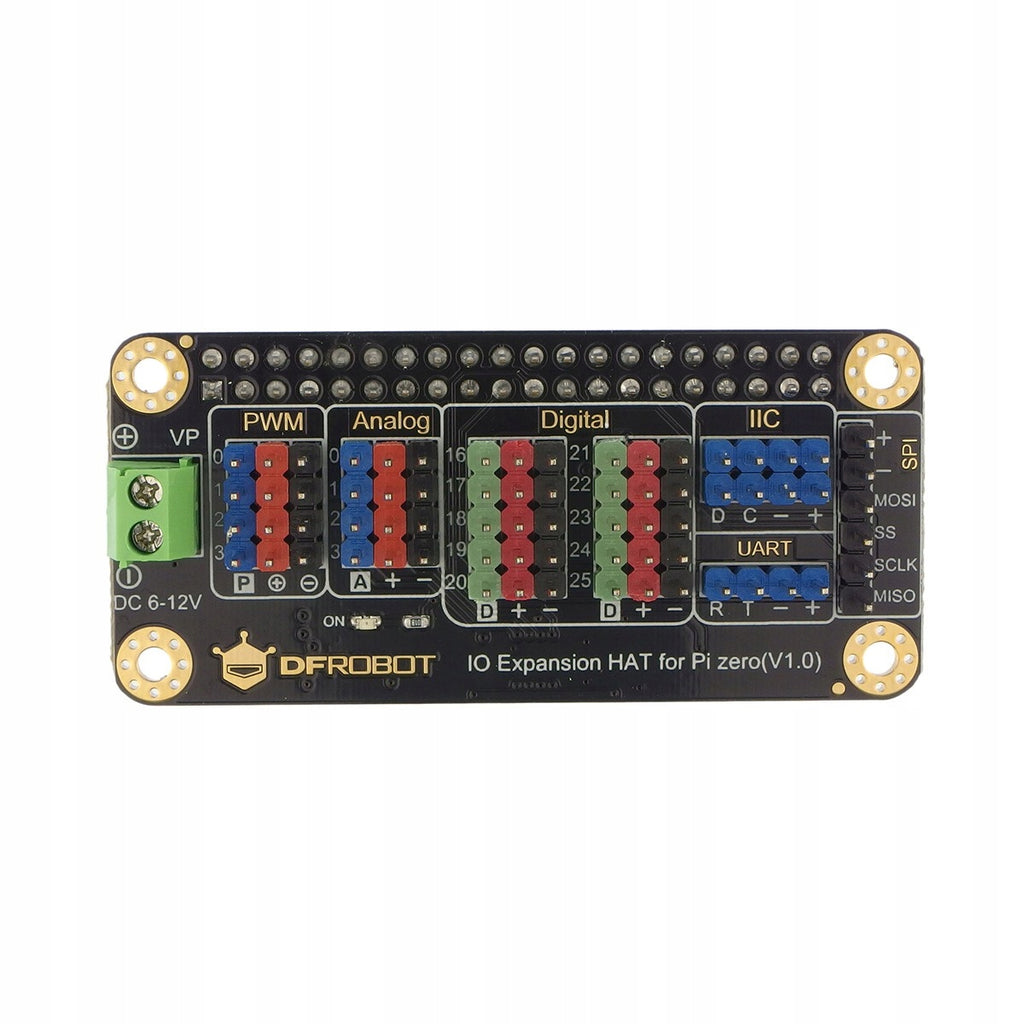

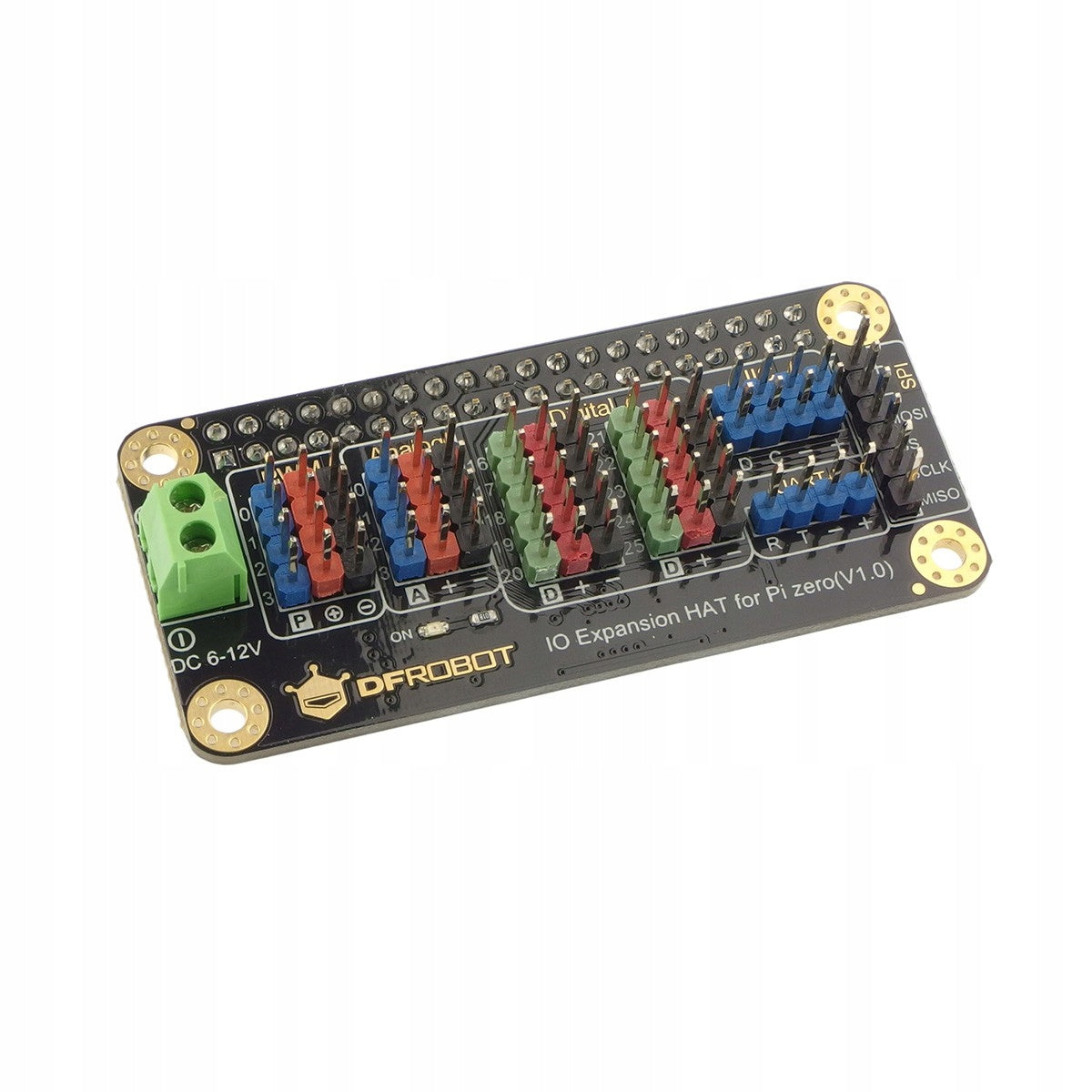

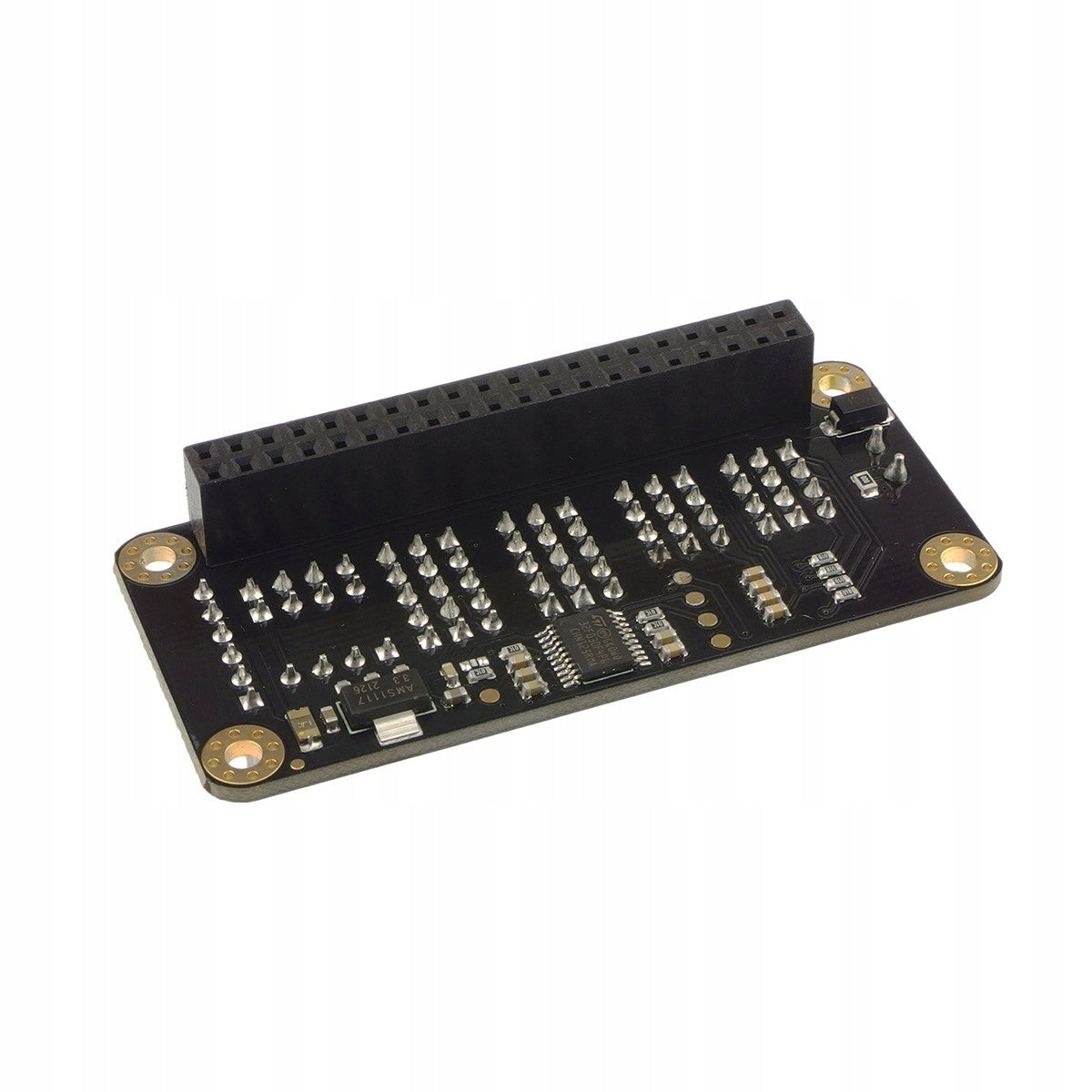

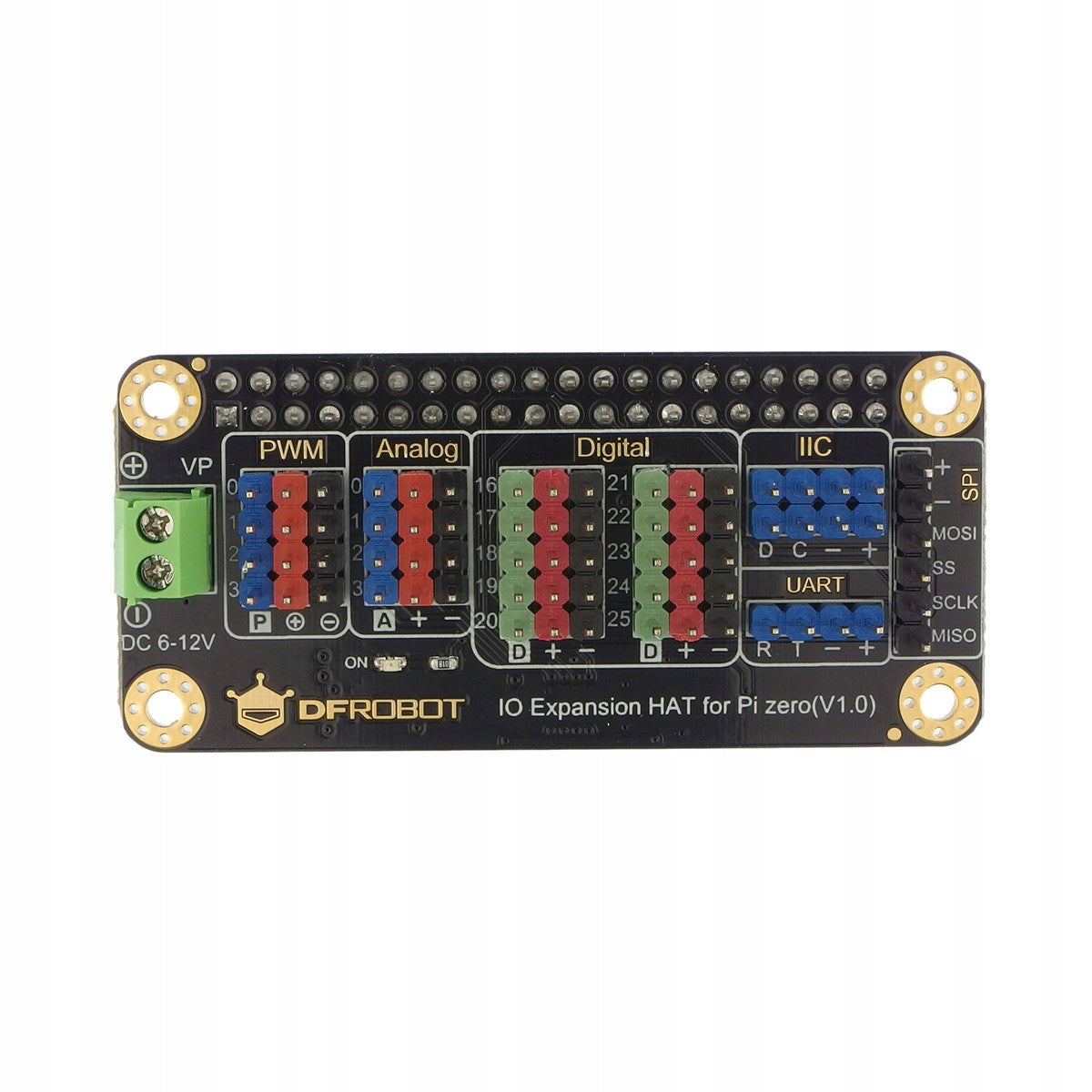

IO Expansion HAT - expansion module for Raspberry Pi Zero / Zero W
Description
The DFRobot IO Expansion HAT module provides additional digital, analog, I2C, PWM, UART and SPI outputs for Raspberry Pi minicomputers. Thanks to its small size, it fits perfectly with the Raspberry Pi Zero and Zero W.
In addition, PWM and analog ports are output by the MCU STM32 module communicating with the Raspberry Pi via the I2C interface. Thanks to the provided libraries, the user is able to conveniently control the PWM output and read analog data.
The module supports 5 V power supply and 3,3 V sensors. PWM ports can be powered externally in the range of 6-12 V or via Raspberry Pi 5 V.
Properties
- Compatible with Raspberry Pi 2/3A+/3B/3B+/4B and B+ and Zero/Zero W
- Built-in MCU STM32 module for 8 channels of 12 bit ADC converter
- Allows you to control multiple servos
- PWM support for external power supply: 6 -12 V
- 22 ports:
- 4 x PWM
- 4 x analog input/output
- 10 x digital input/output
- 1 x SPI
- 2 x I2C
- 1 x UART
- Device address: 0x10
- Power Supply: 5 V
- Dimensions: 65 x 30 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | DFR0604 |
| Parametry | Manufacturer | DFRobot |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5904422379704 |
| Parametry | Batteries included | no |
