Prekė: PCIe M.2 E KEY HAT+ (D) plokštė Raspberry Pi 5, Waveshare. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: PCIE TO M.2 E KEY HAT+ (D) 33828

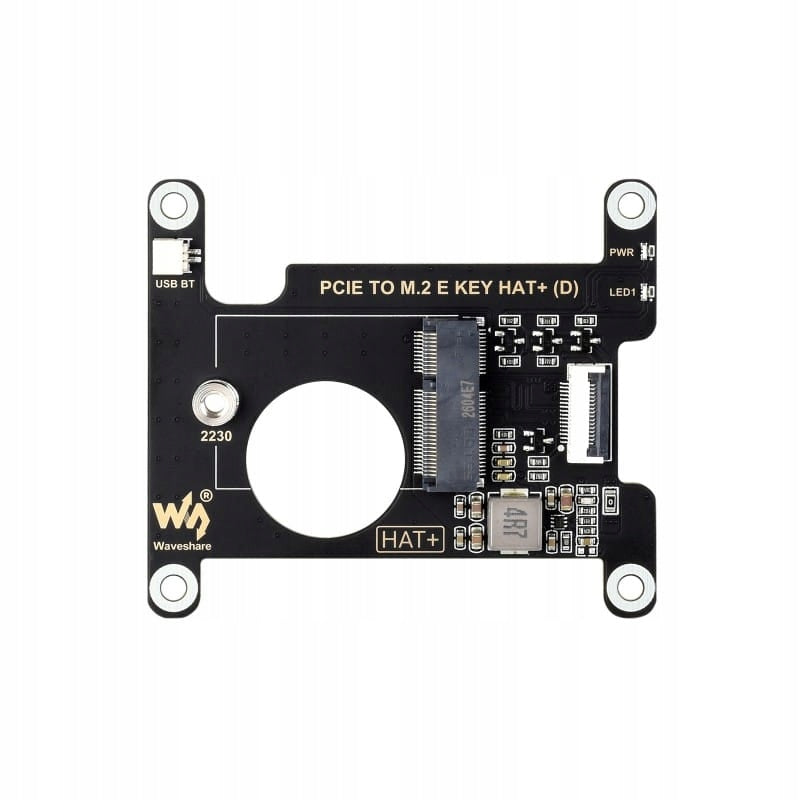

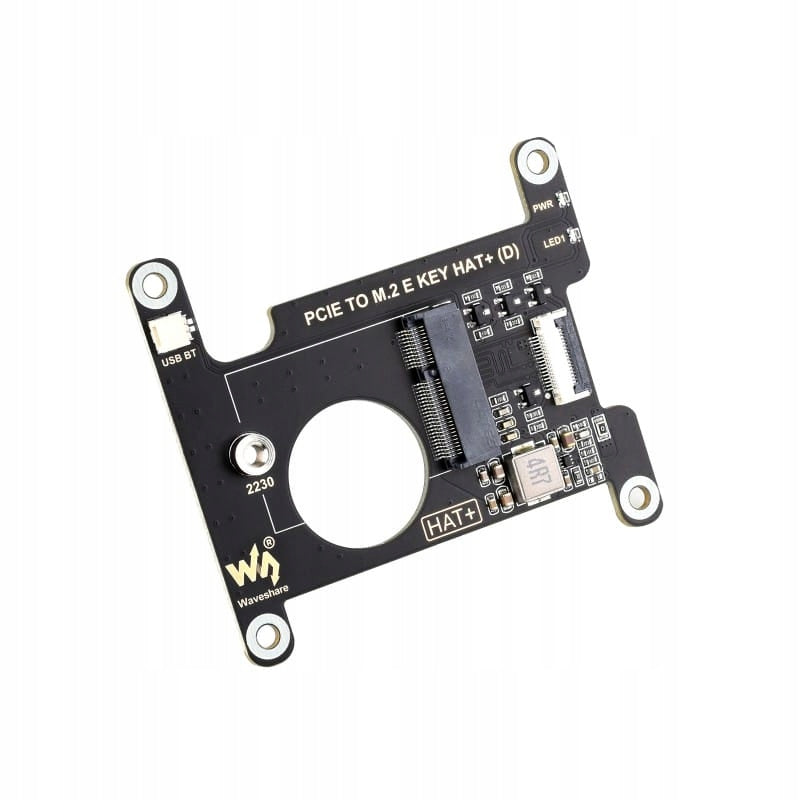

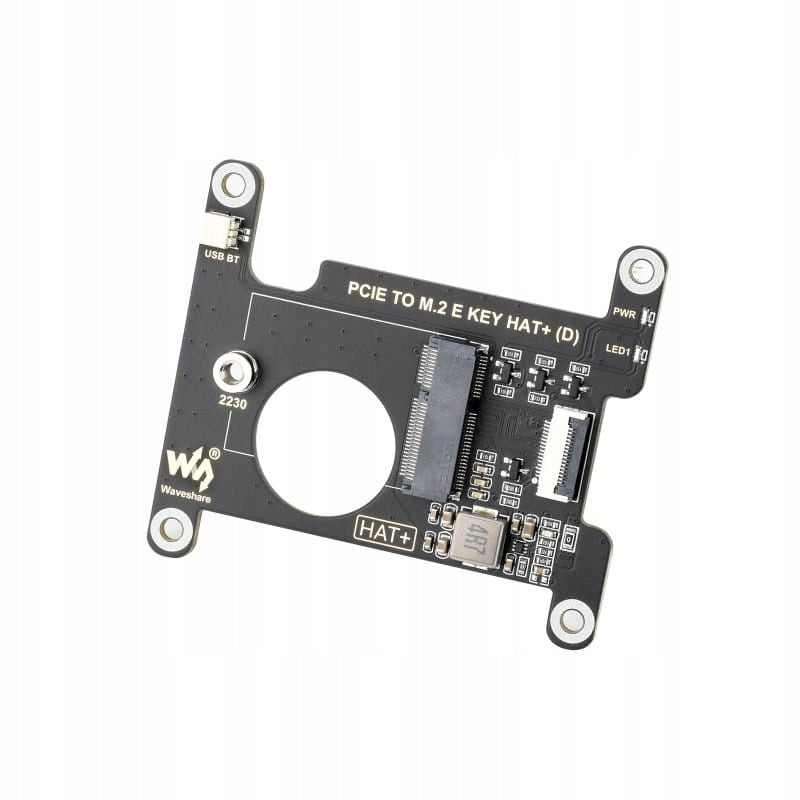

PCIE to M.2 E KEY HAT+ (D) module for Raspberry Pi 5
PCIe expansion board for M.2 E KEY HAT+ (D) is a dedicated module for Raspberry Pi 5 that allows you to connect wireless network cards in the NGFF standard (M.2 E KEY). The adapter connects to the minicomputer via a 16-pin PCIe interface, ensuring stable data transmission and easy expansion of the system with high-speed WiFi and Bluetooth connectivity.
The most important features
- Designed specifically for the Raspberry Pi 5.
- Compatible with NGFF wireless network cards (M.2 E KEY).
- Support for modules in A/E KEY and E KEY formats.
- Connection to the minicomputer via a dedicated 16-pin FPC (PCIe) tape.
- Support for popular modules such as RTL8822CE, AX200, AX210 or BE200.
- Built-in support for Bluetooth connection via dedicated USB cable.
Wide compatibility of modules
The adapter has been adapted to support a variety of network cards in the A/E KEY and E KEY standard, which gives great flexibility in the selection of a communication module tailored to the requirements of the project.
Support for popular WiFi chips
The board works with proven network systems such as RTL8822CE, AX200, AX210 and BE200. The list of compatible modules is gradually expanded.
Bluetooth support via USB
The module allows you to transfer Bluetooth signal to Raspberry Pi. Simply connect the adapter to your minicomputer using the included USB cable. This feature requires a compatible wireless network adapter installed on the board.
Installation
The board is designed in such a way that the installation on the Raspberry Pi 5 runs smoothly. PCIe connector with tape provides efficient and aesthetic integration.
External dimensions
Contents of the set
- PCIE TO M.2 E KEY HAT+ (D)
- USB Type-A to SH1.0 2PIN Adapter Cable
- 16-pin FPC tape (40 mm)
- Set of mounting screws
Note: The kit does not include a minicomputer Raspberry Pi 5 and a network module (WiFi/Bluetooth). These modules must be purchased separately.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | PCIE TO M.2 E KEY HAT+ (D) 33828 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5906358322601 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
