PCI į PCIe 1x adapterio korta KALEA-INFORMATIQUE ASM1083, 32 bitų

Trumpai apie prekę

Prekė: PCI į PCIe 1x adapterio korta KALEA-INFORMATIQUE ASM1083, 32 bitų. Kategorija: Wi-Fi tinklo adapteriai.

• Gamintojas: no brand
• Modelis: 11416597

Product Description

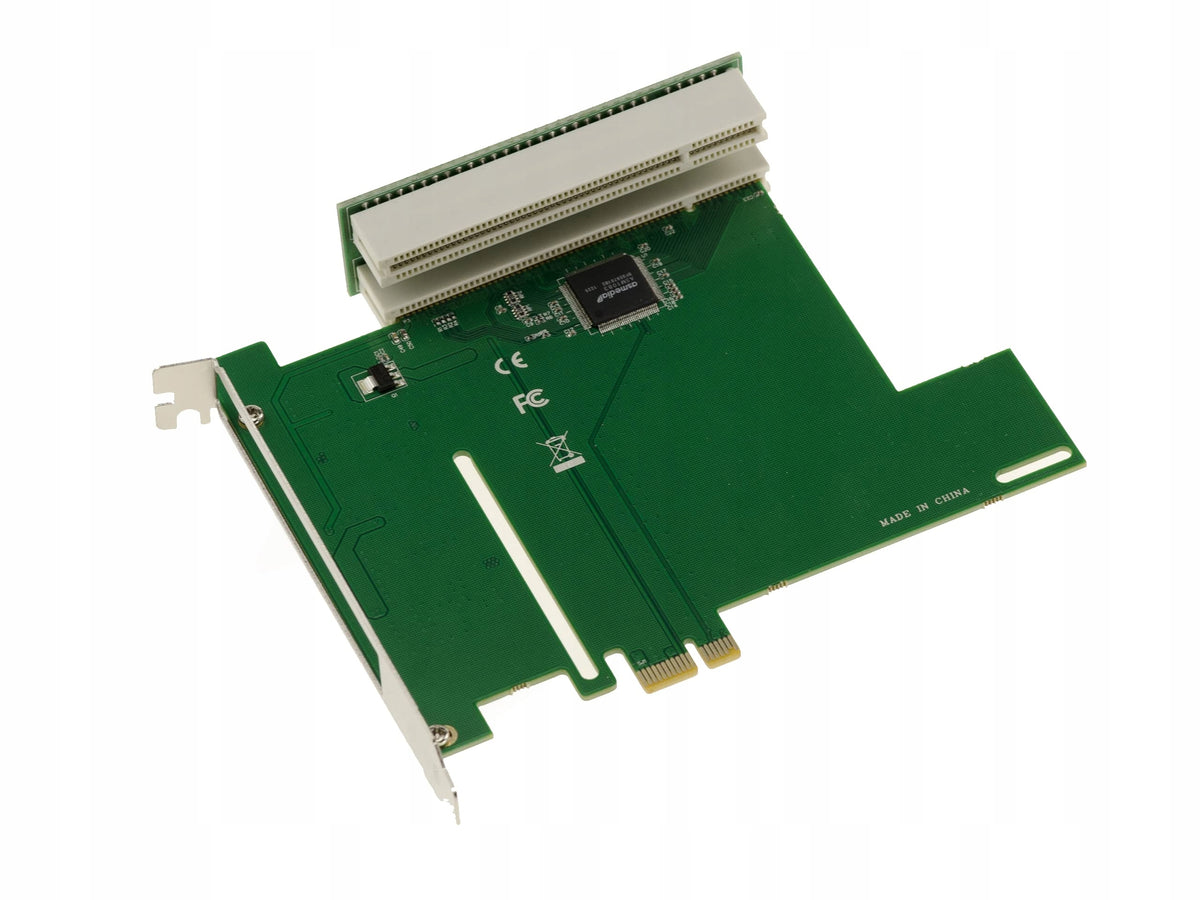

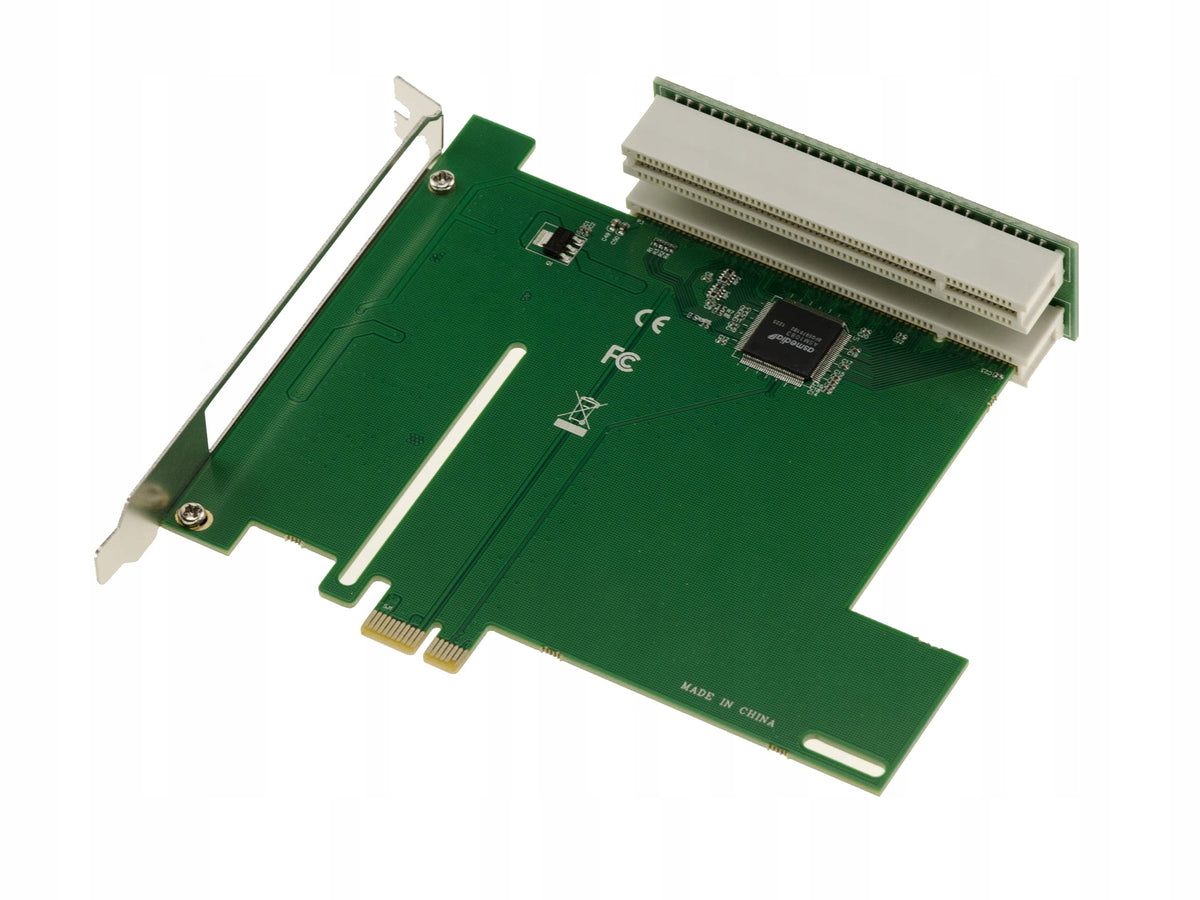

KALEA-INFORMATIQUE PCI to PCIe 1x is a solid bridge card that allows you to use classic PCI cards in modern computers equipped exclusively with PCI-Express slots (1x to 16x). This solution works especially well while maintaining compatibility with older PCI accessories with a voltage of 5V and modernization of computer stations. The card is equipped with the ASM1083 chipset and works with PCI 2.2 buses, offering wide compatibility. The adapter works passively, does not require drivers for the adapter itself – it is recognized by all major operating systems.

• Allows you to install a 32-bit PCI card in the PCI-Express slot (1x to 16x).
• Secures the PCI card when mounted in the enclosure.

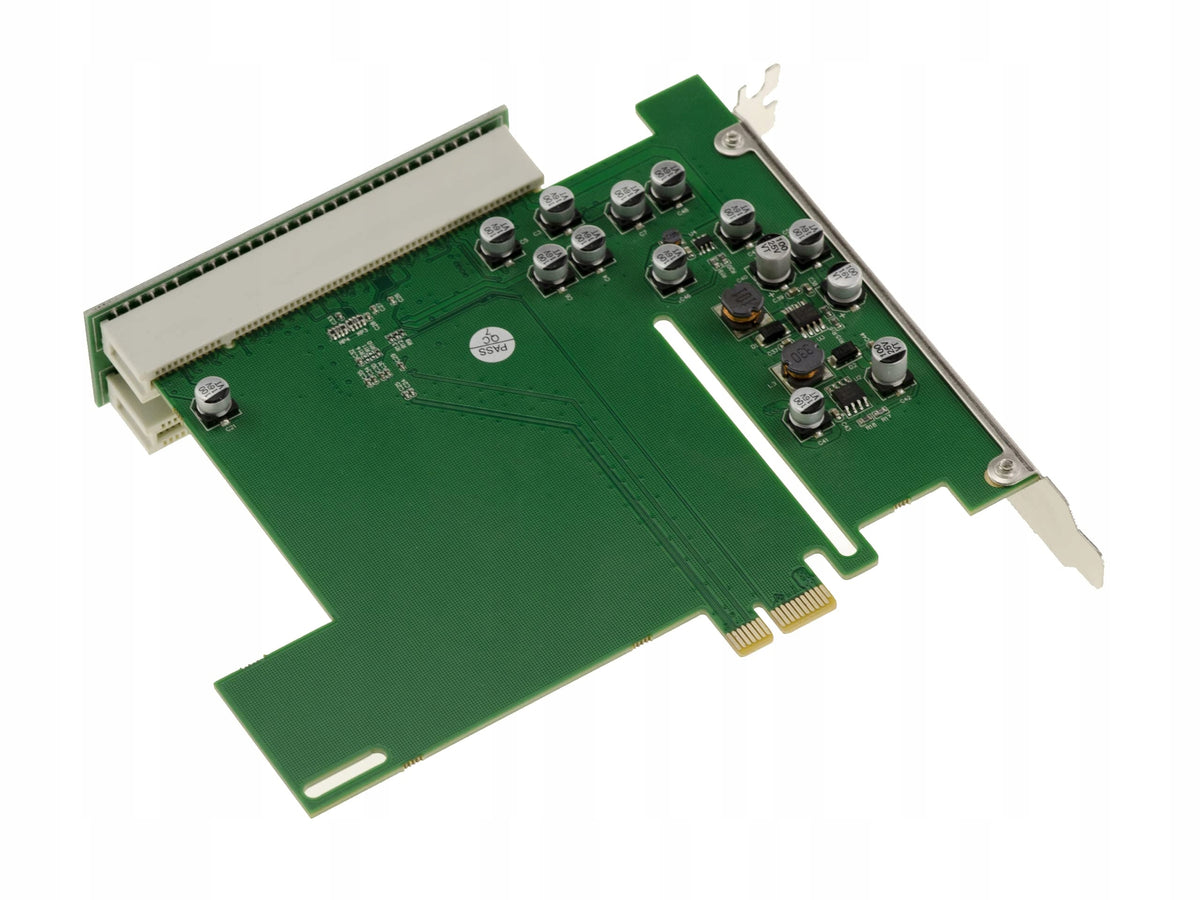

• Large capacitors stabilize the voltage on the PCI card.
• Chipset version: ASM1083, PCI 2.2 compliant.
• No drivers required for the adapter – full passivity.
• Recognized by most operating systems.
• The device is suitable for desktop computers with a PCI-Express socket.
• Designed for use with 32-bit 5V PCI cards.

All PCI-PCIe bridges require the motherboard to support this type of device -- otherwise, the PCI card may not be recognized. It is recommended to check the compatibility of the motherboard with PCI-Express bridges before installation. The product is dedicated for use only with desktop computers.

Technical parameters

• Brand: KALEA-INFORMATIQUE
• Model: PCI to PCIe 1x bridge card with 32-bit PCI card security
• Manufacturer code: 11416597
• Chipset: ASM1083
• Interface: PCI-Express 1x (up to 16x compatibility) to PCI 32-bit 5V
• Compatibility: PCI 2.2 bus
• Purpose: desktop computer
• Package Dimensions: 17 × 12 × 2 cm
• Package Weight: 100 g
• Package Contents: 1 × PCI to PCIe Adapter

Additional information

The device does not require additional power supply or drivers. The adapter is a passive solution, which increases its reliability and safety.

Application

The adapter is recommended for all kinds of applications where it is required to use older PCI cards in modern motherboards equipped only with PCI-Express slots. Examples of applications include support for older sound, measurement, industrial or controllers requiring a PCI bus.
