Trumpai apie prekę
Prekė: Pagrindinė plokštė Raspberry Pi Compute Module. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: CM-IO-POE-BOX-EU

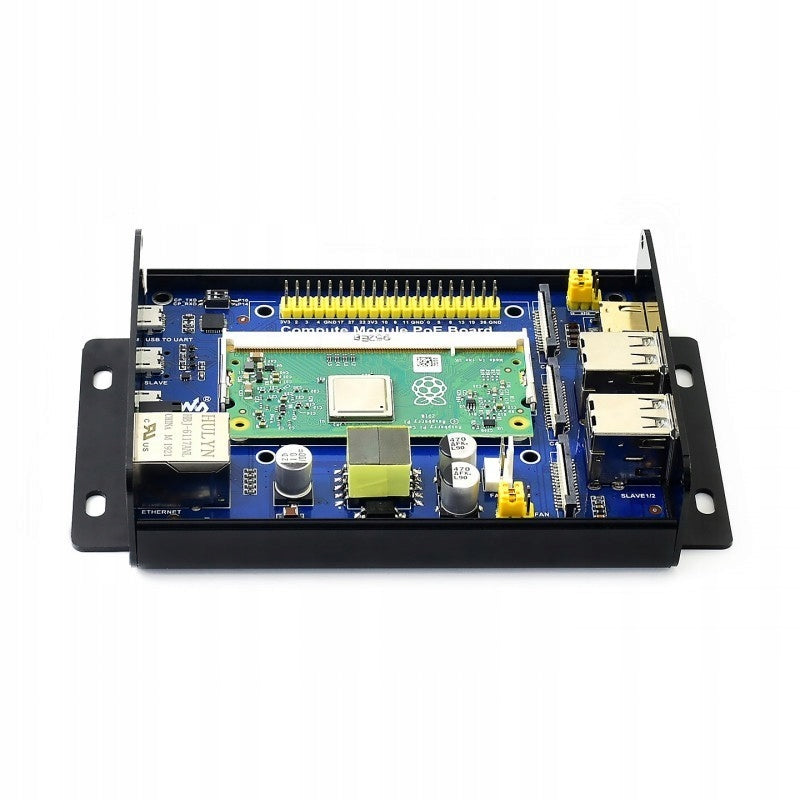

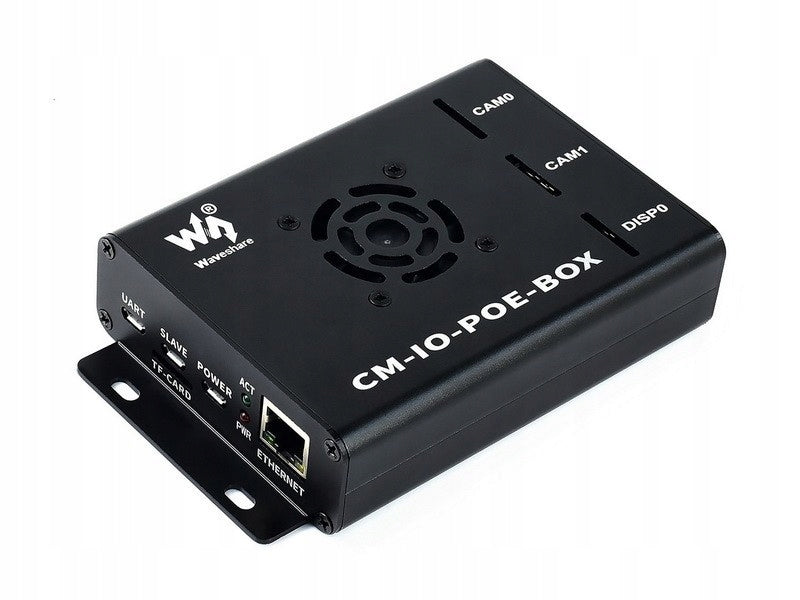

Base board for Raspberry Pi Compute Module
Description
The PoE Compute Module is a set with a base board to which you can connect the Raspberry Pi Compute Module. Thanks to the PoE (Power over Ethernet) function and versatile on-board peripheral interfaces, it will be used in many projects, including final products. The base plate has support for Raspberry Pi CM3/CM3L/CM3+/CM3+L modules. The set is equipped with additional cooling in the form of a fan.
Attention!
The kit does not include the Raspberry Pi Compute Module. It must be purchased separately.
Properties
- Designed for Raspberry Pi CM3/CM3L/CM3+/CM3+L modules
- GPIO 40 pin connector for connecting Raspberry Pi overlays
- 10/100M Ethernet port, with PoE
- 4 x USB ports, allows you to connect more USB devices
- 2 x CSI camera interfaces
- Built-in HDMI/DSI interfaces for connecting displays
- Built-in USB-UART port for serial debugging
- Cooling fan interface, automatic start-up when power on or controlled by IO pins
- Supports isolated SMPS (pulse power supply)
- Power supply: micro USB port/Ethernet PoE port
- PoE power consumption: 37 W to 57 W DC
- PoE output power: 5V 2,5A DC output
- Network standard: PoE 802.3af standard
- Dimensions: 114 × 84,4 mm
- Mounting hole: 3,2 mm
Comes with
- Expansion Board Base Board
- Metal housing
- Permissible operating temperature: 0℃~40℃ (32℉ ~104℉)
- Fan
- Set of mounting screws
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | CM-IO-POE-BOX-EU |
| Parametry | Manufacturer | WaveShare |
| Parametry | EAN (GTIN) | 0614961956476 |
| Parametry | Batteries included | no |
| Parametry | Kind | Expansion board,Case,Power supply |
