Optinis nivelyras South C32, 120 m, IP54

Trumpai apie prekę

Prekė: Optinis nivelyras South C32, 120 m, IP54. Kategorija: Optiniai nivelyrai.

• Gamintojas: South
• Modelis: C32

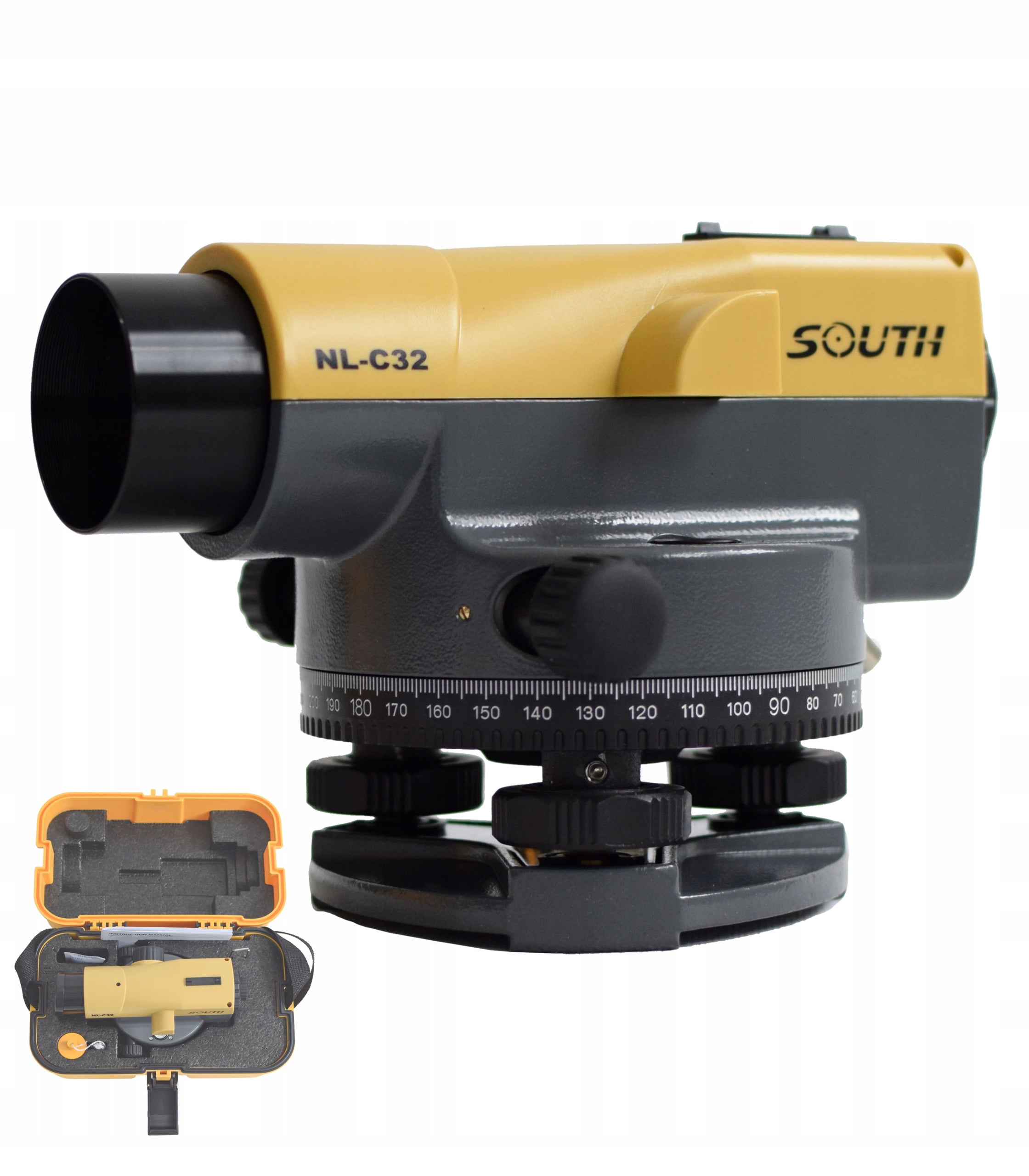

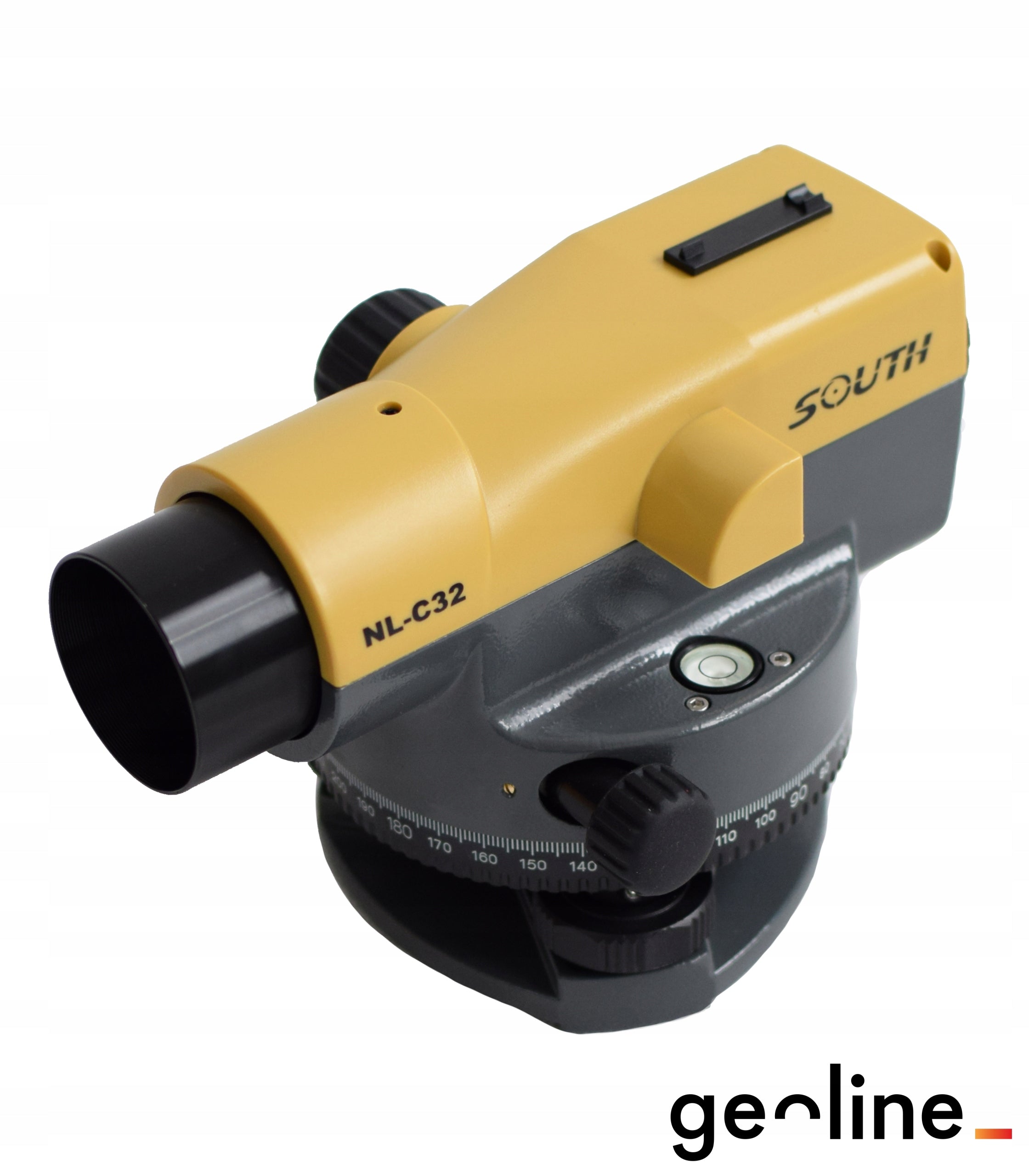

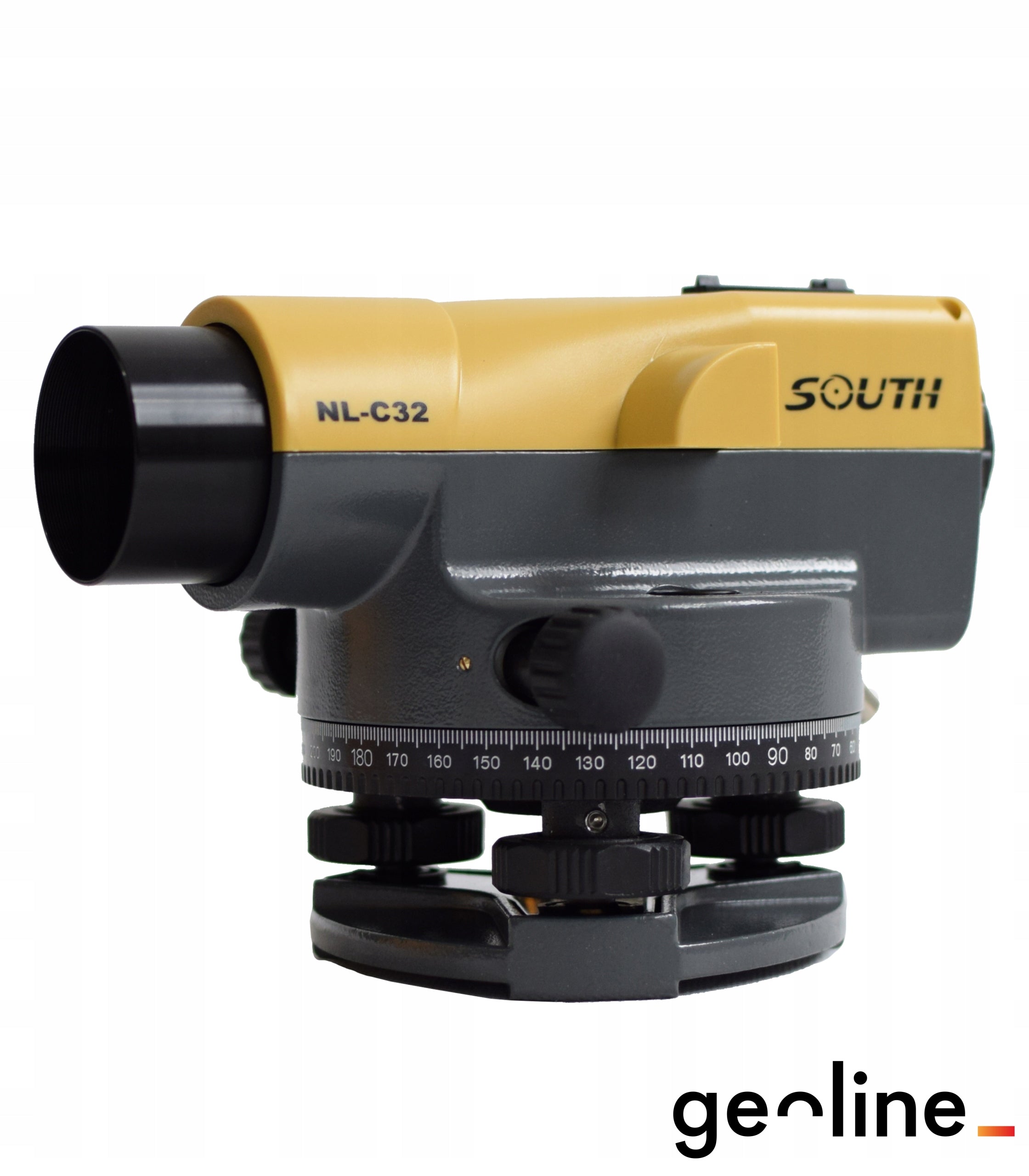

High quality optical leveler brand South model NL-C32.

Sturdy, weather-resistant, perfect for any job

off-road.

Characteristics:

• solid metal housing
• Durable and reliable compensator
• high-quality optics
• compensator lock (during transport in the case, the button at the bottom of the case blocks the compensator's work, which increases its service life)

Equipment ready to work.

Parameters:

• Accuracy at double leveling at 1 km : ±1.0 mm/1km
• Magnification: 32x
• Shortest target: 0,3 m
• Compensator accuracy: ± 0,3"
• Compensator operating range: ± 15'
• Libella Advantage: 8'/2 mm
• Horizontal wheel: 360°
• Multiplication constant: 100
• Addition constant: 0
• Lens diameter: 38 mm
• Field of view: 1°20'
• Leak-proof class: IP54
• Fastening: thread 5/8"

THE SET INCLUDES:

• Optical leveler South NL-C32
• transport box
• Allen and rectification needle
• geodetic division
• instruction manual
• certificate of the instrument
• selected sales document
• warranty card 5 years

Each leveler before sending is checked at the collimation station in our Authorized Service GeoMax.

Calibrate before shipping libella and compensator

Each leveler purchased is accompanied by a Certificate of Instrument Accuracy.
