OBD2 KTM 6 PIN diagnostinis adapteris 16 PIN CAN K-Line ELM327 Vgate

Trumpai apie prekę

Prekė: OBD2 KTM 6 PIN diagnostinis adapteris 16 PIN CAN K-Line ELM327 Vgate. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: 100

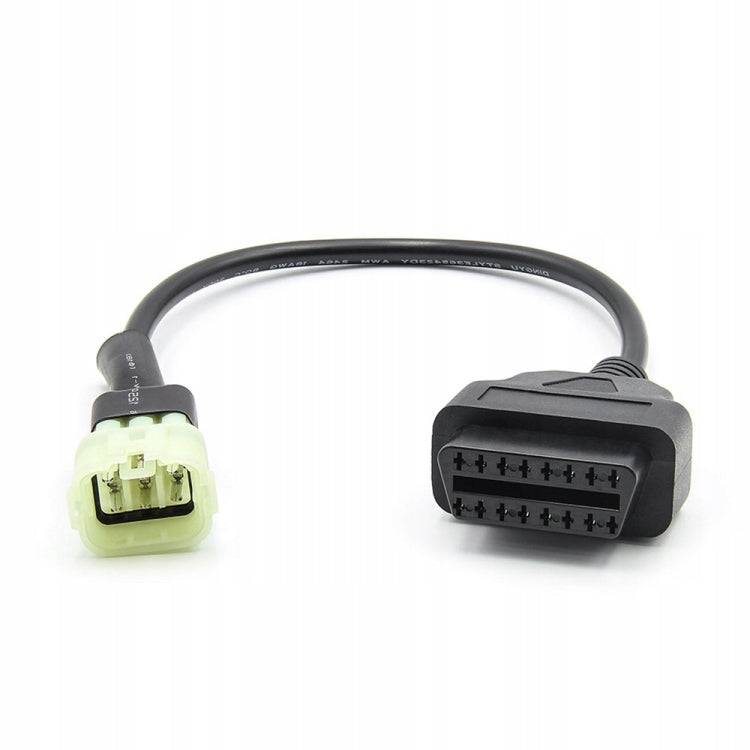

✅ KTM OBD-II 16PIN / 6PIN Adapter – Diagnostic Cable

Professional diagnostic cable for KTM motorcycles.

The best version that supports CAN + K-LINE – works with both older and newer KTM models.

The adapter allows you to quickly and conveniently connect your KTM motorcycle (6PIN connector) to universal OBD2 interfaces and scanners (16PIN connector).

✅Adapter functions:

• real-time preview of detailed engine and sensor parameters (temperature, revolutions, voltage, O2 sensors, etc. )
• Reading and deleting errors (m.in. Check Engine)
• reading the VIN number
• Loading new maps (e.g. in TuneECU)
• cooperation with diagnostic applications on Android/iOS

✅Compatible OBD2 interfaces and scanners:

• ELM327 V1.5
• Vgate iCar 2 / 3 / 4
• other universal OBD2 interfaces
• TuneECU
• Torque Pro

✅ Specification:

Connectors: OBD-II 16PIN (standard) ↔ KTM 6PIN

Protocol support: CAN + K-LINE

Application: KTM motorcycles (older and newer models)

Condition: brand new

🔌 Pin Connection Scheme:

• KTM 1-pin → OBD-II 16-pin (+12V)
• KTM 4-pin → OBD-II 7-pin
• KTM 6-pin → OBD-II 4-pin (mass)

👉 The KTM 6PIN/16PIN adapter is a practical tool that allows you to independently diagnose your motorcycle, save time and money, and have full control over the technical condition of your machine.

✅ Supported KTM motorcycles:

• KTM LC8 990
• KTM RC8 / Adventure 1190 to 2013
• KTM 690 Duke since 2011 (except Duke 4)
• KTM 690 SMC / Enduro
• KTM 690 Supermoto

Pin layout (for self-checking):

• KTM 1-pin → OBD-II 16-pin (+12V)
• KTM 4-pin → OBD-II 7-pin
• KTM 6-pin → OBD-II 4-pin (mass)

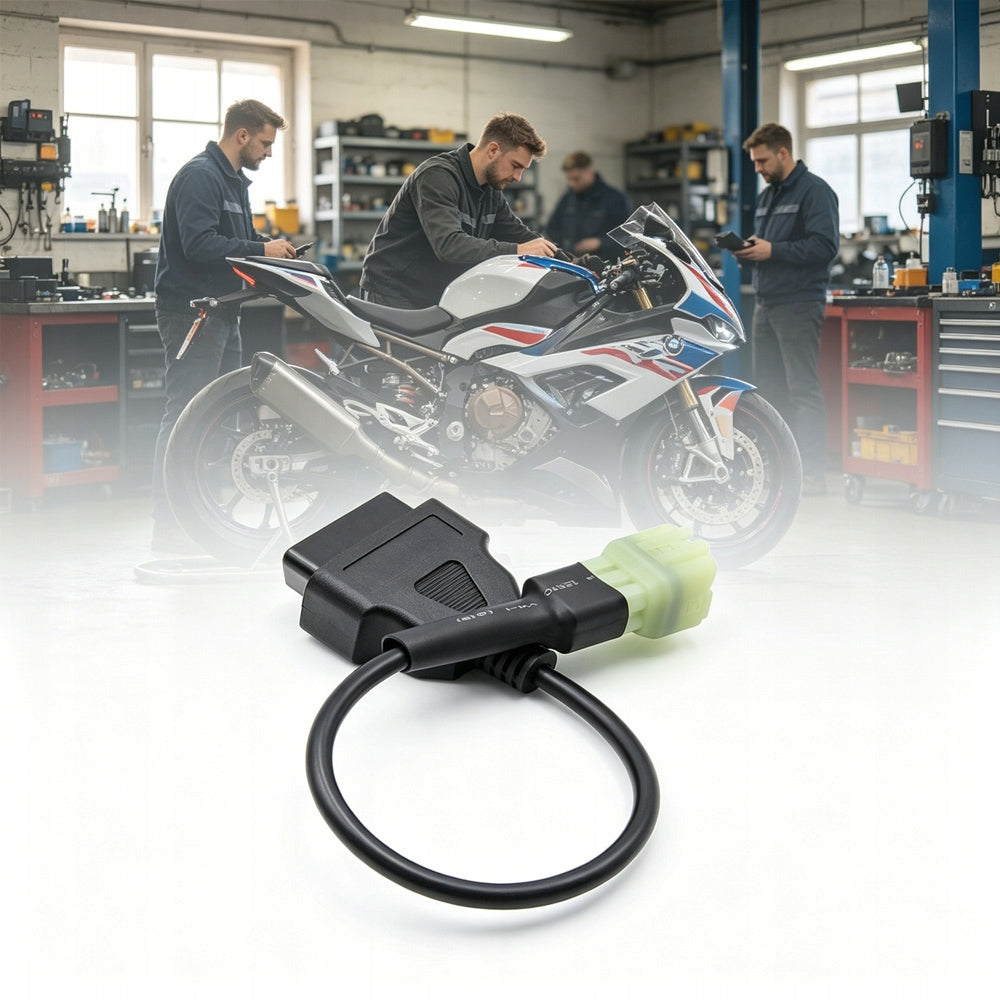

OBD-II 16PIN/6PIN adapter for KTM motorcycles.

Allows you to connect OBD2 interfaces (e.g. ELM327, Vgate iCar) and cooperation with TuneECU and Torque Pro applications.

It supports reading and erasing errors, real-time preview of engine parameters and many other diagnostic functions.

Connecting pins in the plugin visible in the item gallery (1, 4, 6).

• KTM 1-pin => OBD-II 16-pin (+12V)
• KTM 4-pin => OBD-II 7-pin
• KTM 6-pin => OBD-II 4-pin (mass)

⚠ Attention!

The adapter does not fit all KTM motorcycles.

Supports models using the K-Line line (older models).

✅ Supported KTM models:

• KTM LC8 990
• KTM RC8 / Adventure 1190 to 2013
• KTM 690 Duke since 2011 (except Duke 4)
• KTM 690 SMC / Enduro
• KTM 690 Supermoto

The layout of the pins is given in the gallery and description – each user can independently check whether the adapter will fit his motorcycle.
