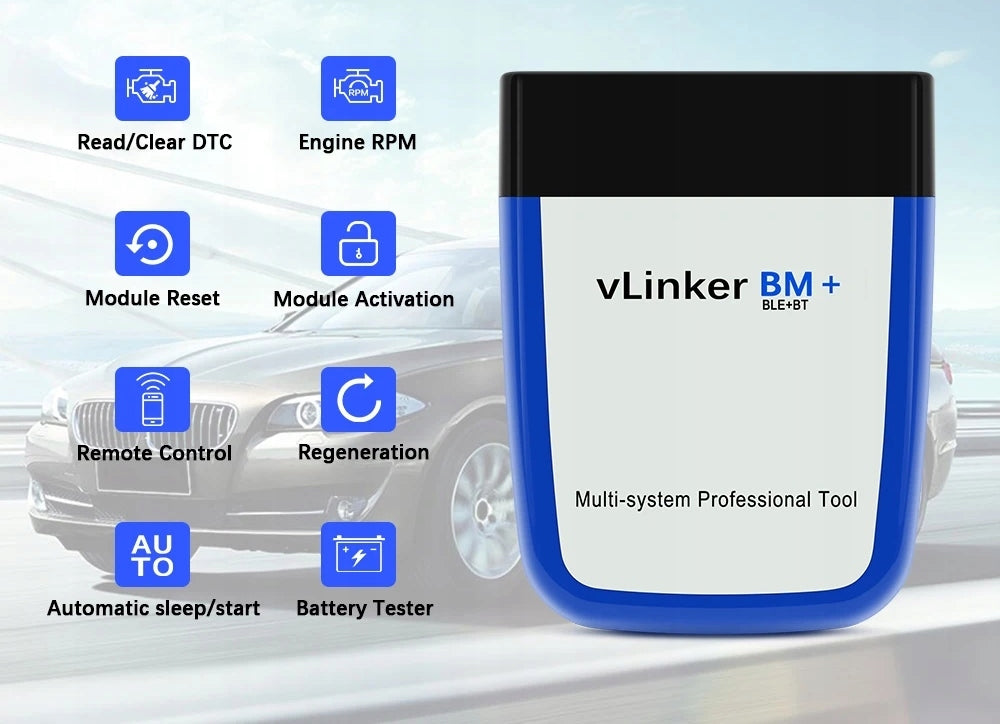

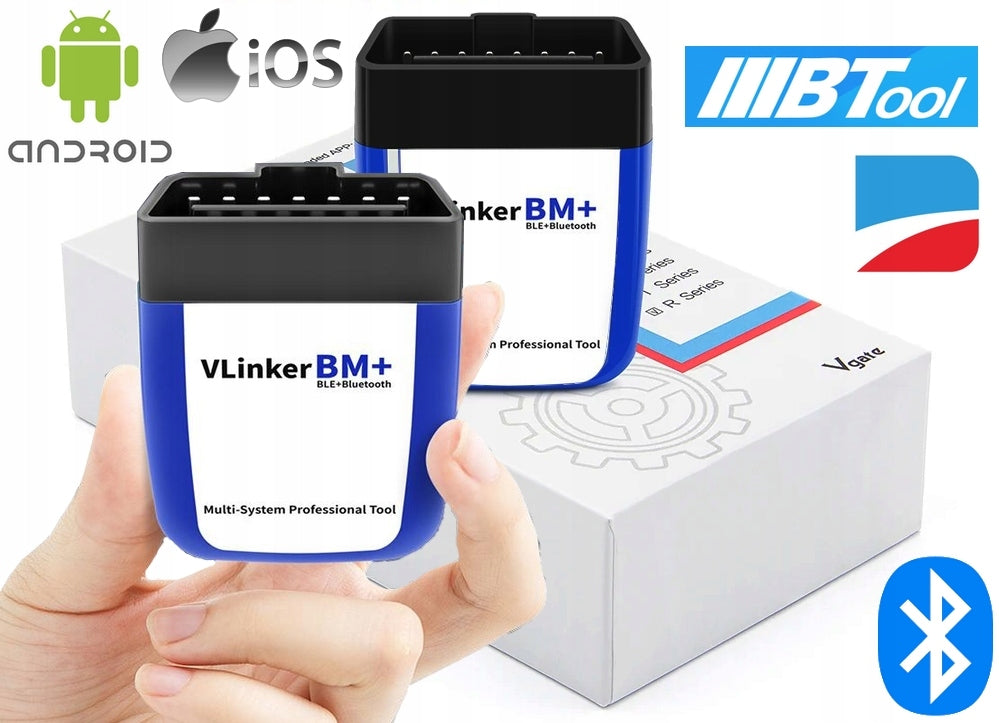

OBD2 adapteris Vgate vLinker BM+ BT 4.0, BMW, iOS

Trumpai apie prekę

Prekė: OBD2 adapteris Vgate vLinker BM+ BT 4.0, BMW, iOS. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Vgate
• Modelis: Vgate vLinker BM+ do BMW Bimmercode

Vgate vLinker BM+ BT4.0 - OBD2 diagnostic interface ELM327

✅ Coding, diagnostics, error removal: The vLinker series devices are advanced interfaces that, together with the appropriate software supporting the brand, offer a very wide range of diagnostic and coding capabilities tailored to your preferences.

✅ Regular updates: The Vgate brand interfaces are among the few on the market that offer regular software updates to offer customers the latest features available, better compatibility with applications, as well as the highest level of security adapted to current standards. This interface will be a good choice for the future.

✅ More than 100 000 satisfied customers in Poland: the most popular diagnostic interface in the country with an extremely strong supportive community. Our clients regularly publish videos, forum posts and articles, as well as constantly exchange information.

✅ Best Application Support: Vgate works with many publishers of dedicated applications to ensure that each subsequent software update is compatible with current and future car models as well as the latest updates to available programs.

✅ Instructions and application in Polish: printed and assembled instructions are located in the middle of the box, while the application can be downloaded from the App Store or Play Store.

✅ Supports BIMMERCODE / BIMMERLINK / BIMMER-TOOL 100%: Our interface fully supports these software. So if the program offers a given option for your car, our device will also not have any problem with its implementation.

✅ Latest Bluetooth LE chip: which is fully compatible with Windows and both Android and iOS phones with Bluetooth version 4.0 / 4.1 / 4.2 / 5.0 / 5.1 / 5.2 / 5.3

✅ Speed and reliability: Much shorter connection time to the car ECU engine controller than most interfaces on the market. The built-in high-quality bluetooth module ensures a stable and stable connection, without interruptions or the risk of data loss.

✅ Fully automatic: The interface turns on automatically when the engine starts and goes into sleep mode 30 minutes after it is turned off, so it can be left in the car socket without having to constantly start.

✅ ELM327 v2.3: Very high level of compatibility with all major OBD2 applications.

❓ What, for example, are we able to program using the vLinker BM+ 4.0 interface and the BIMMERCODE / BIMMERLINK / BIMMER-TOOL application?

✔ automatic switching on of wipers in case of precipitation detection ☔

✔ activation of emergency brake lights

✔ activation of daytime running lights

✔ Welcome Lights activation

✔ automatically folding/unfolding mirrors

✔ duration of alarm

✔ brightness of parking lights

✔ maximum media volume when starting the car

✔ Enabling/disabling auto start/stop

✔ Enabling/disabling brake force notifications

✔ automatic locking of the vehicle door after exceeding a certain speed

✔ automatic closing of windows when closing the car

✔ Enabling/disabling auto start/stop

✔ automatic folding of mirrors

✔ warning at too high speed

✔ cornering lighting

✔ and much more (check the app for details)

⭐ In addition, working with the basic software, it offers standard OBD2 diagnostic functions:

✔Reading and deleting OBD-II errors

✔Deleting the CHECK ENGINE lamp

✔Read error codes waiting when the MIL light is not yet on

✔Reading the error codes recorded that caused the MIL lamp to light

✔Reading general and manufacturer characteristic error codes

✔Preview of frozen frames - FREEZE FRAMES

✔Monitoring engine operating parameters in real time - LIVE DATA

✔Reading parameters online

✔Checking the meaning of error codes

✔Measurement of engine power (HP)

✔Measurement of parameters such as time from 0-100 km/h

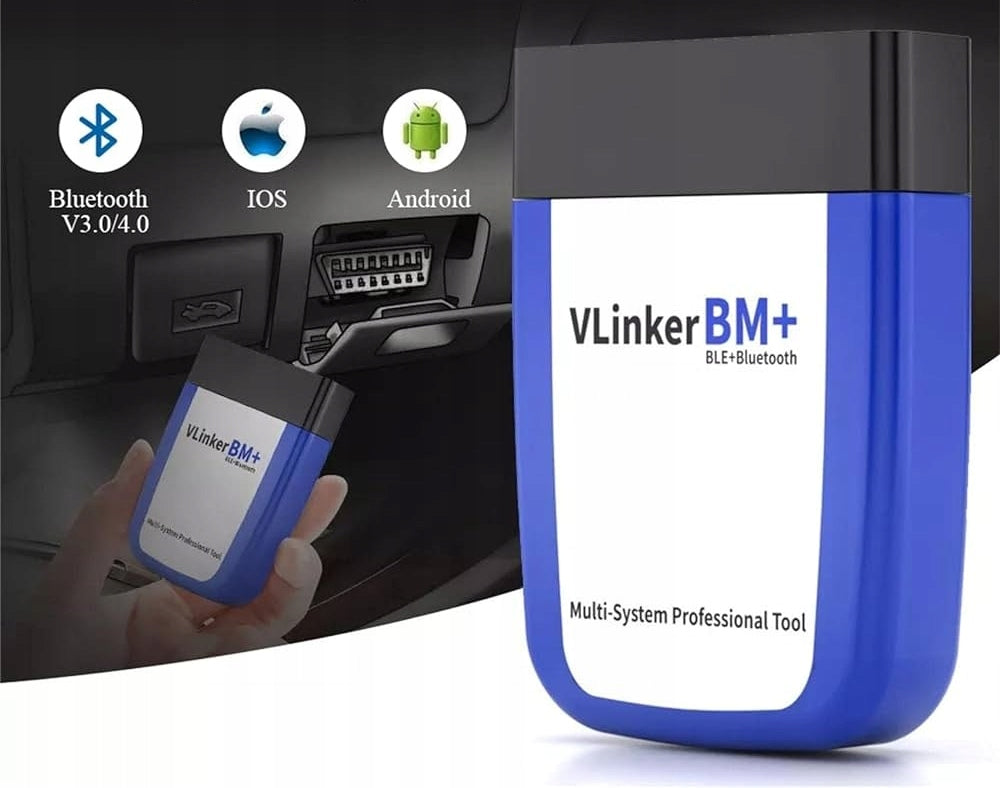

❓ Where is the OBD2 socket?

• It is often under the dashboard on the driver’s side. Find them before you buy.
• Some cars may have OBD2 socket in different shape, please prepare adapter.

⚙ The set includes:

• Diagnostic interface
• Box
• Instruction in Polish

❓ Will the interface work with my phone, laptop or car radio?

✔ The device works with Windows and all phones with Bluetooth (version 3.0, 4.x or 5.0) and the operation system Android or iOS.

✔ Due to Bluetooth compatibility, some Android car radios are not supported.

✔ Supports SW-CAN and MS-CAN protocols – can access these proprietary Ford networks in addition to 5 standard OBD-II protocols.

✔ Byte OBD request up to 1024 bytes, can meet the needs of some special communication.

✔ USART data buffer up to 2000 bytes, transmission speed increased to 500Kbps. Compared to its predecessors, it is faster, more reliable and more functional.

✔ Fully compatible with AT ELM command set (ELM327, ELM329) and ST command set (STN).

⚙ Supported Protocols:

✔ ISO 15765-4 (CAN 250/500 kbps, 11/29 bit)

✔ ISO 14230-4 (Keyword Protocol 2000)

✔ Medium-Speed CAN (MS-CAN) – standard for Ford

✔ SAE J1850 VPW

✔ SAE J1850 PWM

✔ ISO 9141-2

✔ ISO 14230-4

✔ ISO 15765-4 CAN

✔ SAE J2411 Single-Wire CAN (SW-CAN) – standard for GM

✔ All diagnostic protocols for BMW motorcycles

❓ Will the interface work with my car and the BIMMERCODE app?

⚠ The interface has been working with all cars since 2001 up with a petrol engine and since 2004 with a diesel engine.

The BIMMERCODE app supports virtually all BMW and Mini produced from 2008 onwards and the Toyota Supra 2019+, full list below:

• 1 series (2008+)
• Series 2, M2 (2013+)
• Series 2 Active Tourer (2014+)
• Series 2 Gran Tourer (2015+)
• Series 3, M3 (2005+)
• Series 4, M4 (2013+)
• Series 5, M5 (2003+)
• Series 6, M6 (2003+)
• Series 7 (2008+)
• Series 8 (2018+)
• X1 (2009+)
• X2 (2018+)
• X3, X3 M (2010+)
• X4, X4 M (2014+)
• X5, X5 M (2006+)
• X6, X6 M (2008+)
• X7 (2019+)
• Z4 (2009+)
• i3 (2013+)
• i8 (2013+)
• MINI (2006+)
• Toyota Supra (2019+)

❓ What applications does the interface support?

• The interface is dedicated and fully supports BIMMERCODE / BIMMERLINK / BIMMER-TOOL.

⚙ In addition, the interface also works with other applications available on the market such as:

• CarScanner
• SDPROG
• TORQUE
• Piston
• JScan: For Jeep, Chrysler, Dodge
• OPL MONITOR; For Opel vehicles
• OBD Auto Doctor
• DashCommand

The interface will also work with universal applications for diagnostics of all car models in basic functions.

The interface is a universal device and works with almost all models of vehicles with a standard OBD2 connector.

Europe: from 2001 year petrol cars, from 2004 year diesel cars.

Cars equipped with OBDII system have:

• characteristic 16-pin connector,
• two or more oxygen sensors (probe λ),
• should have a sticker informing about exhaust emissions, which is most often placed in most vehicles under the hood or at the radiator. This sticker has information whether the vehicle is OBDII certified.

The mere possession of a characteristic connector by the vehicle is not an indicator of OBDII system operation - all 3 of the above conditions must be met.
