NVMe M.2 diskų adapteris Raspberry Pi 5 KAmodRPi5 PCIe-M.2_v2

Trumpai apie prekę

Prekė: NVMe M.2 diskų adapteris Raspberry Pi 5 KAmodRPi5 PCIe-M.2_v2. Kategorija: Priedai.

• Gamintojas: no brand
• Modelis: 1192860

KAmodRPi5 PCIe-M.2_v2 - NVME M.2 Drive Adapter for Raspberry Pi 5

Description

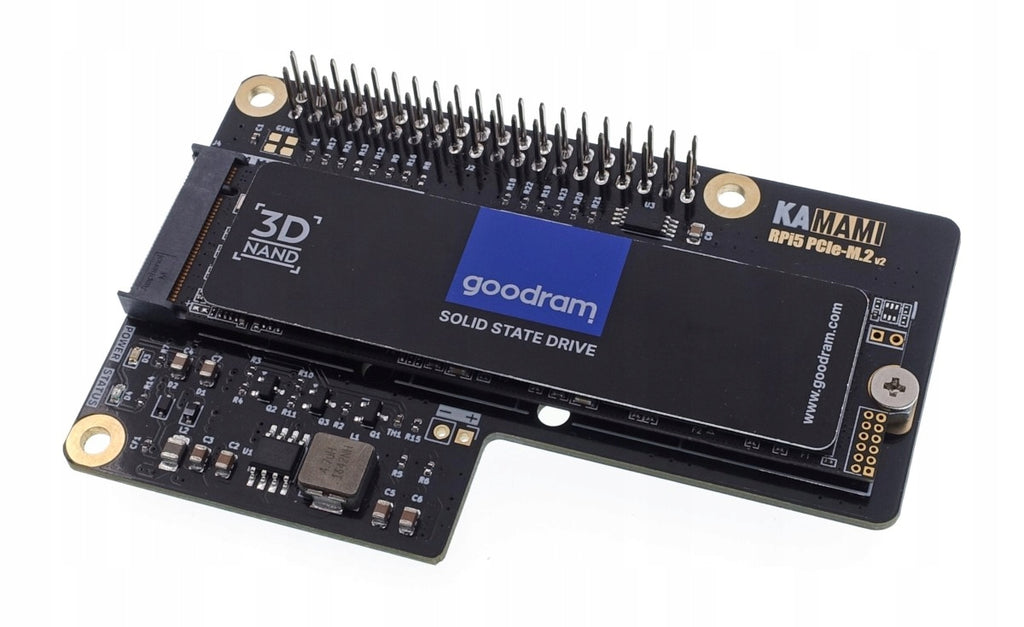

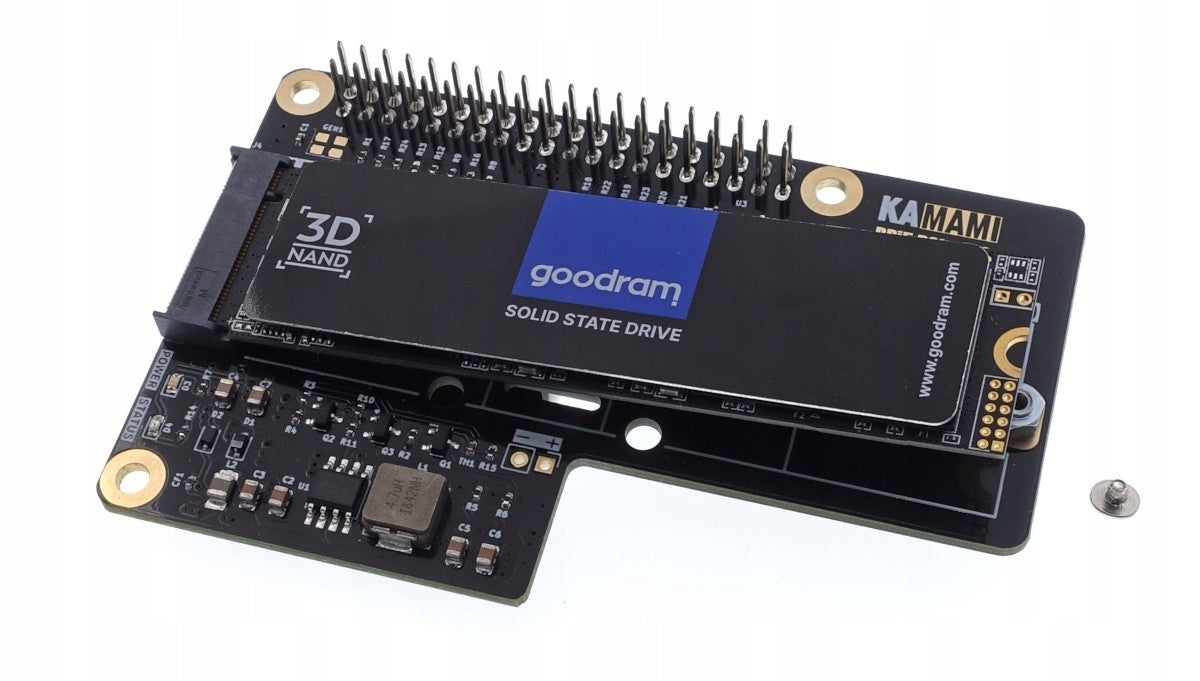

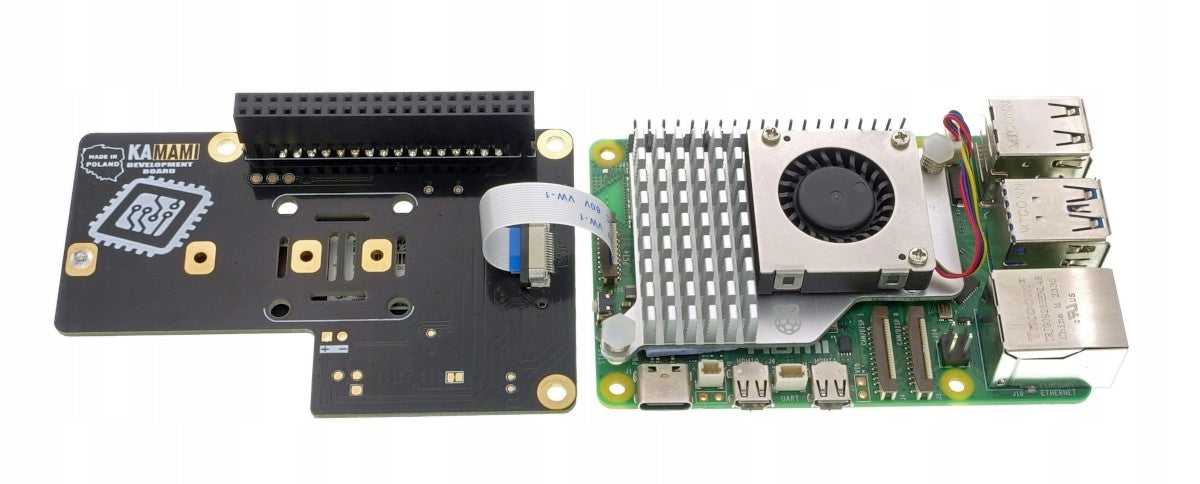

The KAmodRPi5 PCIe-M.2 adapter is a solution that allows you to seamlessly connect your NVME SSD to the M.2 M-KEY connector with your Raspberry Pi 5 computer. Thanks to its universal design, the adapter allows you to mount disks of the popular size 2280, as well as smaller variants: 2260, 2242 and 2230. It is designed to occupy the standard space intended for HAT expansion modules, but at the same time does not limit the possibility of using a heat sink with a fan dedicated to the Raspberry Pi 5. The adapter is easy to mount on the Raspberry Pi 5 and can be connected to it via a 40-pin GPIO connector and FFC 16/0,5 tape (it is also possible to connect only using FFC tape). The adapter draws power directly from the Raspberry Pi 5 computer, so it is recommended to use a power supply for the Raspberry Pi 5 with appropriate parameters - at least 3 A, at 5,1 V. Indicators in the form of LEDs indicating the correct power supply and disk activity allow the user to monitor the operating status.

Properties

• Designed for Raspberry Pi 5
• Connection via FFC tape and GPIO 40 pin connector (only possible via tape)
• Possibility of attaching further HAT modules
• Supported disk formats: 2230, 2242, 2260 or 2280
• M.2 Key M (NGFF) connector
• NVMe protocol support
• PCI Express Gen2 x1 interface (also Gen3 x1 optional)
• LED indicators indicating power status and disk activity
• Power supply with Raspberry Pi (recommended power supply at least 5,1 V 3 A)
• Can be mounted on Raspberry Pi Active Cooler
• Does not block access to other connectors
• Dimensions: 56 x 89 mm

Attention!

Not every NVME M.2 drive is compatible with the Raspberry Pi 5. Tested and working disk models are m.in.:

• Goodram PX500 (256 GB, 2280)
• Samsung 980 (500GB, 2280)
• Samsung PM991a (256GB, 2242)
• Patriot P310 (240GB, 2280)

Comes with

• KAmodRPi5 PCIe-M.2 adapter
• FPC tape - 1 pc.
• Mounting kit:
• Screw M2 - 2 pcs.
• Distance - 1 pc.
• Fastening screw for M.2 disk

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	1192860
Parametry	Manufacturer	no brand
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5906623496952
Parametry	Batteries included	no
