Trumpai apie prekę
Prekė: Nepertraukiamo maitinimo modulis Waveshare Pico-UPS-A-EN 19694. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 19694

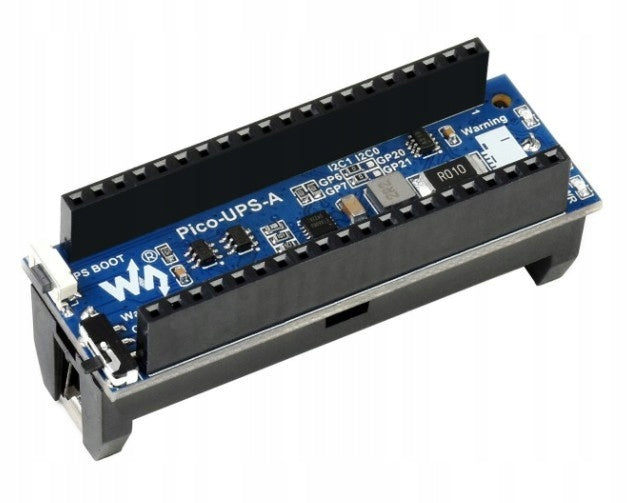

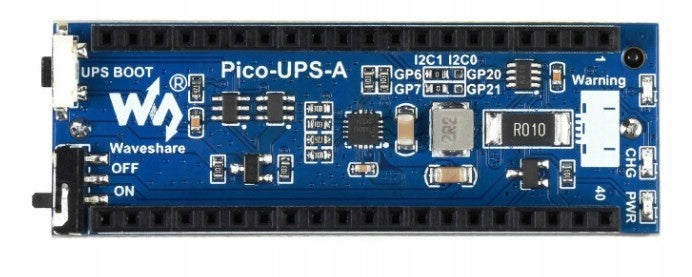

Pico-UPS-A-EN - Uninterruptible UPS module for Raspberry Pi Pico 19694 Waveshare
Description

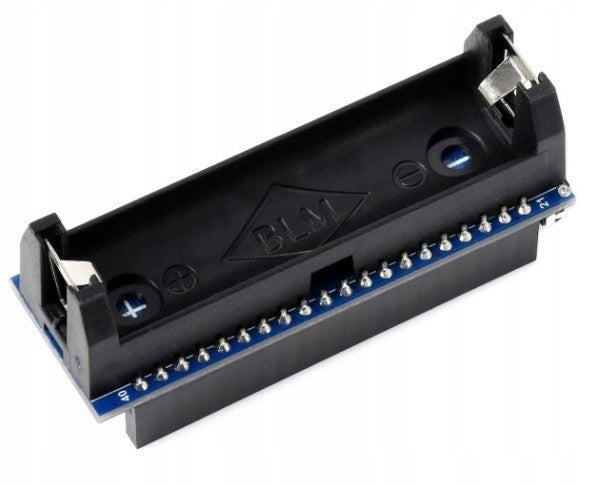

Uninterruptible UPS module designed for Raspberry Pi Pico. The power supply after connecting the battery type 14500 maintains a stable output voltage of 5 V even after power loss, which allows the device to continue operating and safely shut down. The battery charge status is indicated by built-in LEDs, and full monitoring of the battery status is possible thanks to the I2C interface. On the board there is a battery charging circuit and protection against overcharging and discharge, overcurrent, short circuit and reverse polarity. It is connected to the Raspberry Pi Pico via a dedicated connector. The manufacturer has prepared numerous examples in C/C++ and MicroPython. Full documentation is available on the product wiki page.
Attention!
The kit does not include 14500 batteries and Raspberry Pi Pico. They must be purchased separately.
Properties
- Compatible with Raspberry Pi Pico
- I2C interface
- Charging circuit
- Protection against overcharging and discharge, overcurrent, short circuit and reverse polarity
- Output Voltage: 5 V
- Dimensions: 60 x 21 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 19694 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5703377145217 |
| Parametry | Batteries included | no |
