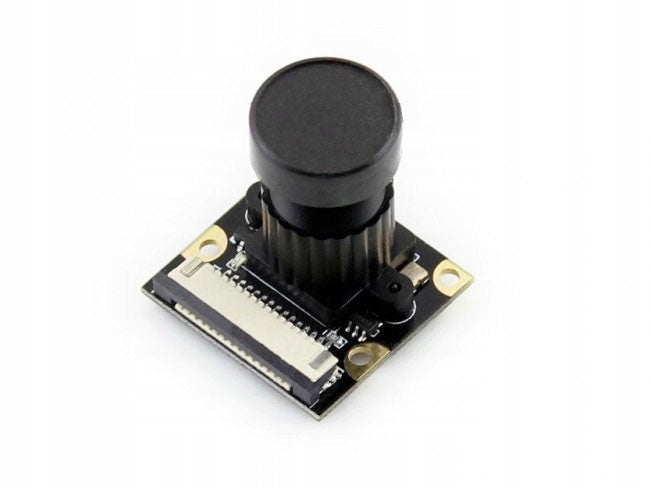

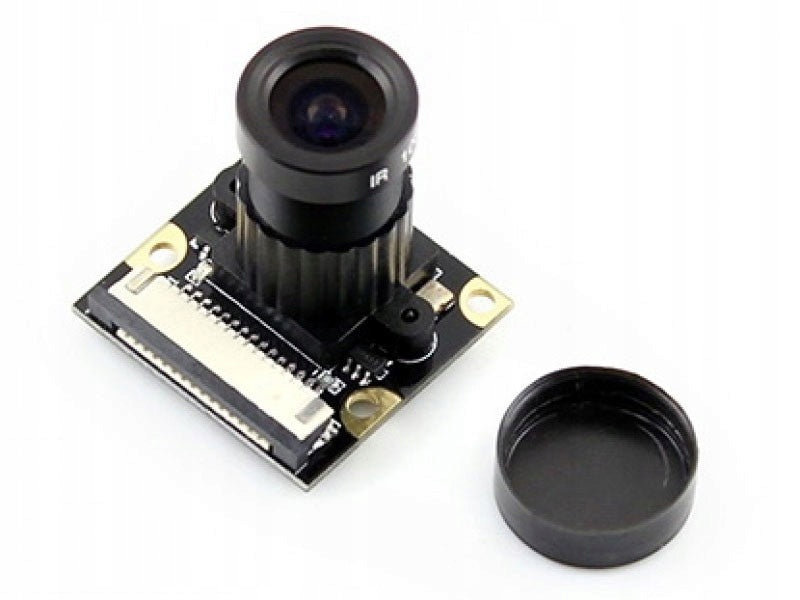

Night Vision HD (F) camera for Raspberry Pi with IR backlight and focus adjustment - Waveshare 10299
Description
5 MPx camera module with OV5647 sensor designed for Raspberry Pi boards equipped with CSI connector. The camera allows you to capture images in 1080p30, 720p60 and 640x480p60/90 resolutions, as well as take photos with a resolution of 2592 x 1944 pixels. The connection is made using the MIPI CSI-2 interface.
The camera is equipped with a 3.6 mm focal length lens and an F2.0 aperture. The viewing angle is about 50°, which corresponds to a narrower field of view and greater proximity to standard cameras. The lens has manual focus adjustment.
The module is equipped with two IR LEDs (850 nm), enabling image recording in the absence of lighting. The camera does not have an IR filter, which allows you to work in night mode, but in daylight conditions it can cause unnatural color reproduction.
Compact dimensions and the possibility of mounting IR backlights allow use in night monitoring systems, security and vision projects.
Properties
- Compatibility: Raspberry Pi with CSI connector (m.in. Raspberry Pi 5, 4B, 3B+, 3A+, Zero, Zero 2W)
- Sensor: OV5647 (CMOS)
- Resolution: 5 MPx (2592 x 1944)
- Video Resolution: 1080p30, 720p60, 640x480p60/90
- Interface: MIPI CSI-2
- Matrix Size: 1/4"
- Aperture: F2.0
- Focal length: 3.6 mm
- Viewing angle: 50°
- Focus Adjustment: Manual
- IR filter: none
- IR backlight: yes (2 LEDs 850 nm)
- Dimensions: 25 x 24 mm
Comes with
- Camera module OV5647
- IR LED backlight modules (2 pcs. )
- FFC 15-pin 16 cm tape
- FFC tape for Raspberry Pi Zero ~15 cm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 10299 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Camera |
| Parametry | EAN (GTIN) | 5906623421602 |
| Parametry | Batteries included | no |
