Prekė: Modulių mini pagrindo plokštė CM4-IO-BASE-Acce A. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 20269
CM4-IO-BASE-Acce A - mini base board for Raspberry Pi CM4 modules + USB HDMI adapter
Description

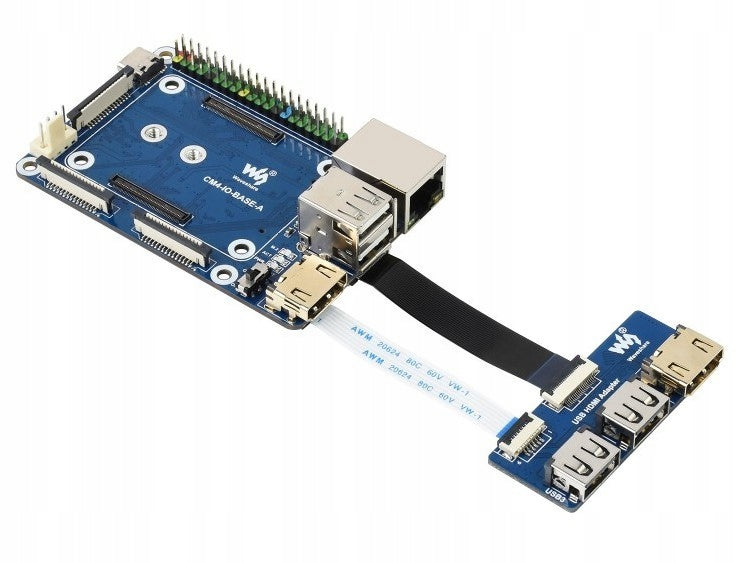

CM4-IO-BASE-A base board dedicated to Raspberry Pi CM4 modules included with USB HDMI to FCC adapter.

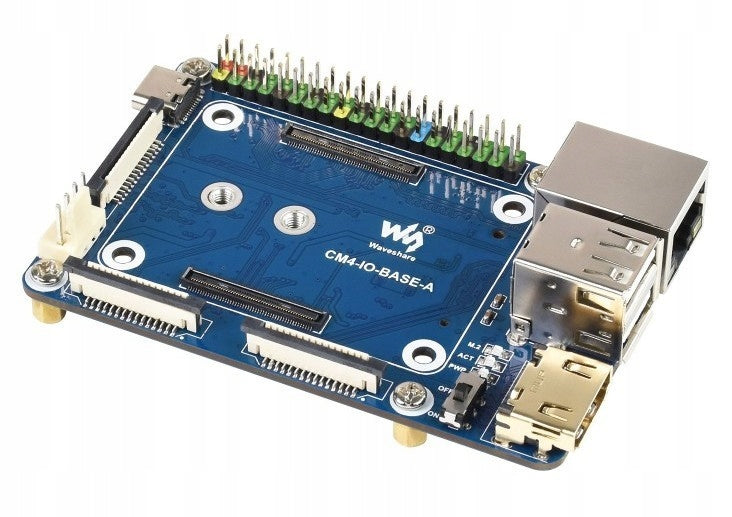

CM4-IO-BASE-A is equipped with special connectors for connecting the module and outputting all interfaces of the CM4 module, including USB, Ethernet, HDMI, DSI, two CSI connectors, 40-Pin GPIO connector compatible with HAT modules. The Mini Base Board is additionally equipped with a microSD card slot. On the bottom of the board there is also an M.2 connector for connecting additional modules or disk and an FFC connector with USB 2.0 and HDMI interface. Full documentation is available on the product wiki page.
Compared to version B, the board does not have an RTC clock, fan controller and battery socket. The 40-pin connector is color-coded, making it easy to connect expansion modules. The board has compact dimensions (85 x 56 mm) corresponding to the size of minicomputers Raspberry Pi 4 model B, so that when connected to the Raspberry Pi CM4 module (not included) it can be a replacement for standard minicomputers Raspberry Pi.

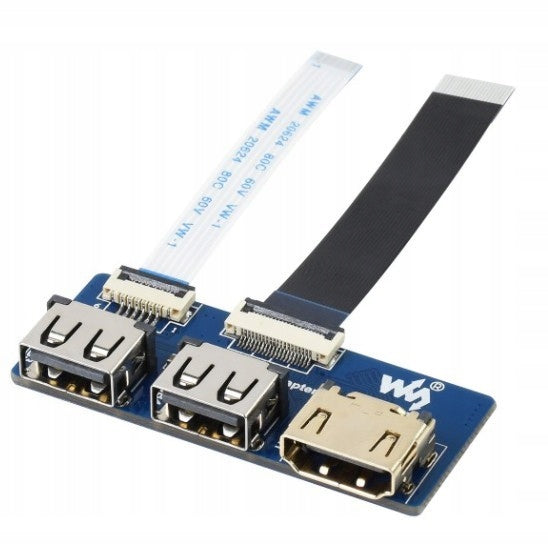

Adapter with USB and HDMI connectors connected via FFC tape. It allows you to add two USB connectors and an HDMI connector to the base plates.
Properties
- CM4 connector: suitable for all variants of the Raspberry Pi CM4 module (not included)
- Standard 40-pin Raspberry Pi HAT connector
- HDMI connector
- 2 x CSI Camera Connector
- DSI Display Connector
- RJ45 Gigabit Ethernet connector
- Built-in USB Hub with 2 USB 2.0 connectors
- USB Type-C connector for power and programming
- microSD card connector
- Power Supply: USB Type-C
- Dimensions: 85 x 56 mm
Comes with
- CM4-IO-BASE-A module
- USB HDMI adapter
- FFC 6-pin raster cable 1.0 60 mm
- FFC cable 20-pin raster 0.5 60 mm
- USB Type-C Cable
- Mounting screw
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 20269 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5906623425839 |
| Parametry | Batteries included | no |
