Modulis Hailo-8 AI M.2, skirtas Raspberry Pi 5 (Waveshare)

Trumpai apie prekę

Prekė: Modulis Hailo-8 AI M.2, skirtas Raspberry Pi 5 (Waveshare). Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: SKU:27841

Applications and potential of artificial intelligence

The use of this AI accelerator with the Hailo-8 processor opens up new possibilities in the field of artificial intelligence. With computing power of up to 26 TOPS, the device is able to efficiently process complex AI tasks in real time. It is ideal for projects that require data analysis, such as security systems, intelligent retail, and industrial automation.

• Solutions for Generative AI on PCs.
• ITS/perimeter security/access control systems.
• Applications in industrial automation.
• Solutions for intelligent retail.

Technical parameters and construction

Based on the Hailo-8 processor, this module provides 26 TOPS processing power. It is designed to work with single-board computers such as the Raspberry Pi 5. The integration takes place via the PCIe 16-pin connector, which guarantees a fast and stable connection. At the same time, the device retains flexibility by maintaining the standard 40-pin GPIO connector, which allows you to connect additional accessories known as HATs. Compatibility with Linux and Windows operating systems further facilitates its implementation in a variety of environments.

Cooling and reliability of operation

The performance of an AI accelerator is closely related to effective heat management, especially during intensive AI computing. This module is designed for optimal heat dissipation. It has reserved vents that allow the installation of an additional cooling fan, and is also compatible with the active cooling available for the Raspberry Pi 5. Additionally, the built-in chip monitoring power and EEPROM memory ensure stability and reliability of the device, which is crucial for long-term applications. The compact size of the module minimizes the space occupied without limiting the possibility of installing a cooling system.

Key features of the module

• Integrated AI accelerator with Hailo-8 M.2 processor.
• Connection to Raspberry Pi 5 via 16-pin PCIe interface.
• Compatible with 40-pin GPIO connector to maintain the functionality of HAT overlays.
• Compact design to optimize space utilization.
• Expandable with cooling system thanks to fan holes.
• Built-in components for stability: chip monitoring power and EEPROM memory.
• Comprehensive applications in the field of artificial intelligence.

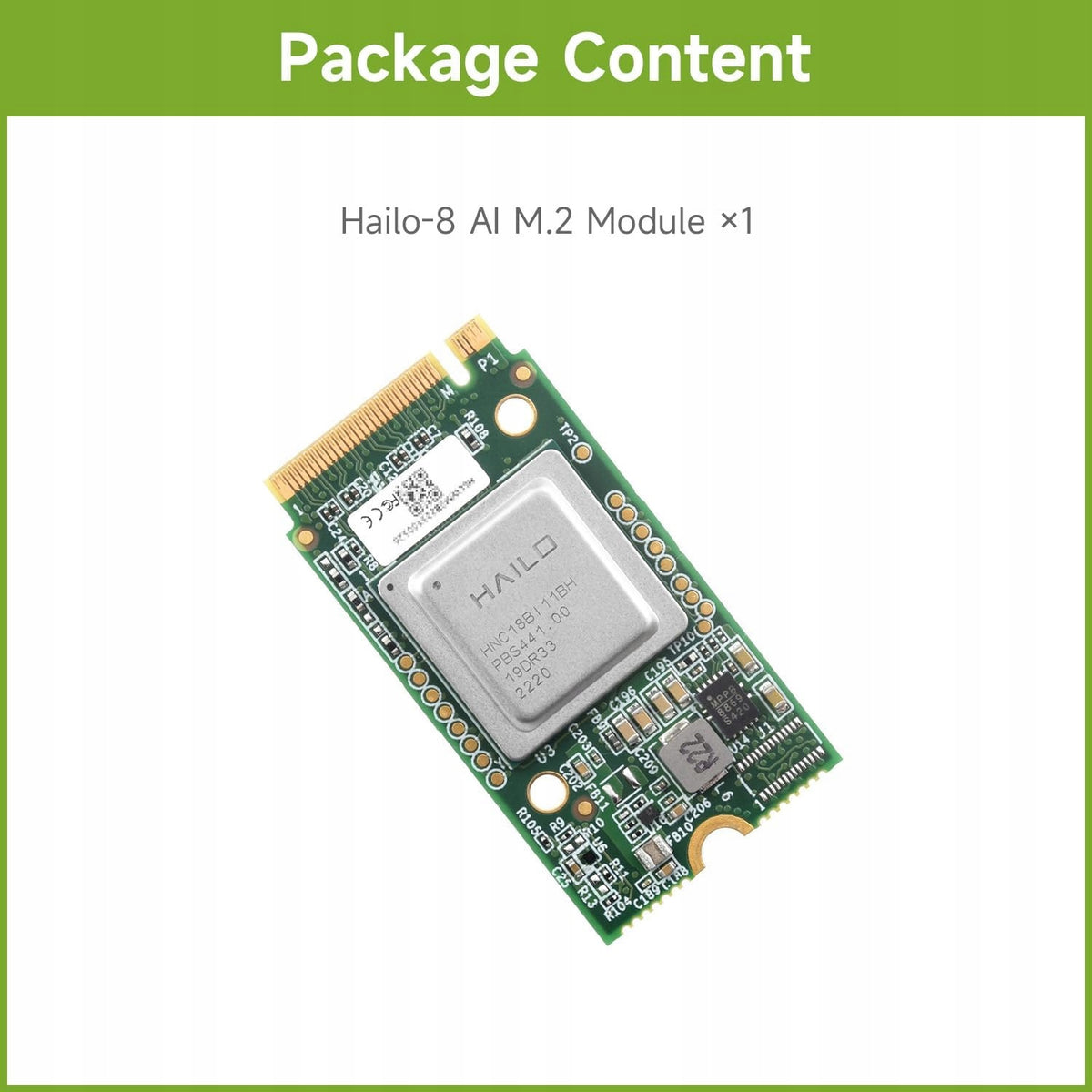

Contents of the set

• AI accelerator M.2 module
• AI Kit

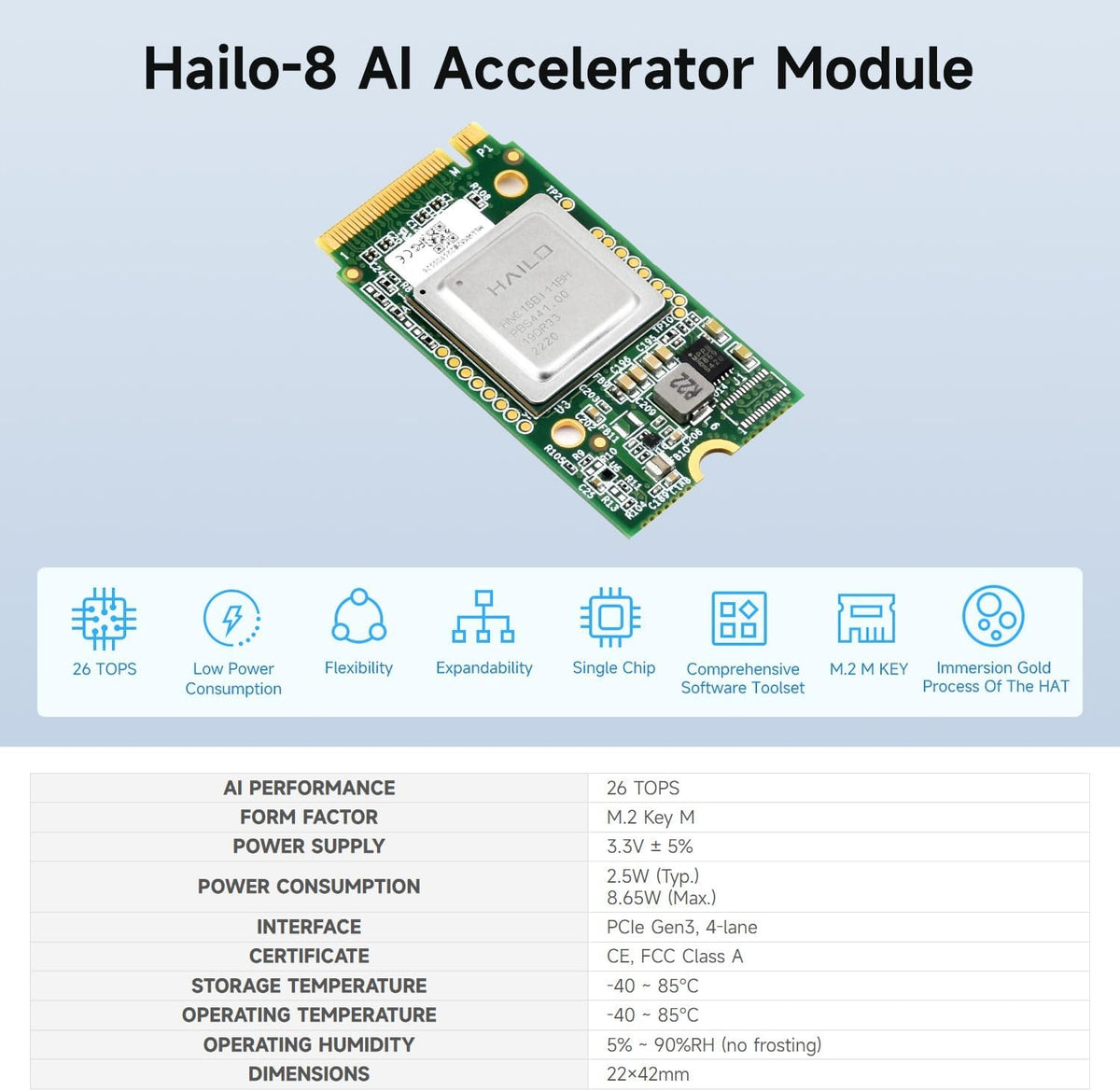

Technical specification

• Compatible devices: Raspberry Pi 5
• Manufacturer: Waveshare
• Model number: Hailo-8
• CPU model manufacturer: Hailo Technologies
• Communication technology: M.2, PCIe
• Brand: Waveshare
• Included components: AI kit, M.2 module

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	SKU:27841
Parametry	Manufacturer	WaveShare
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	8715946580746
Parametry	Batteries included	no
