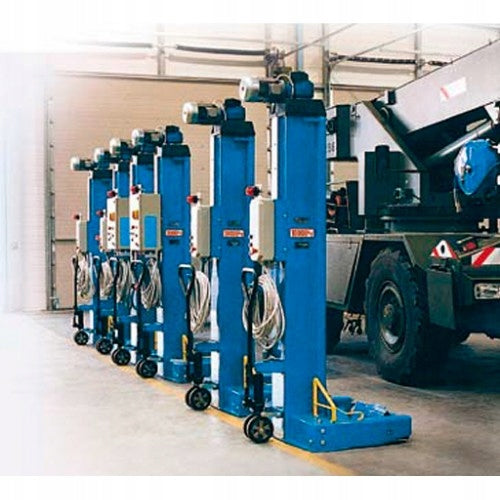

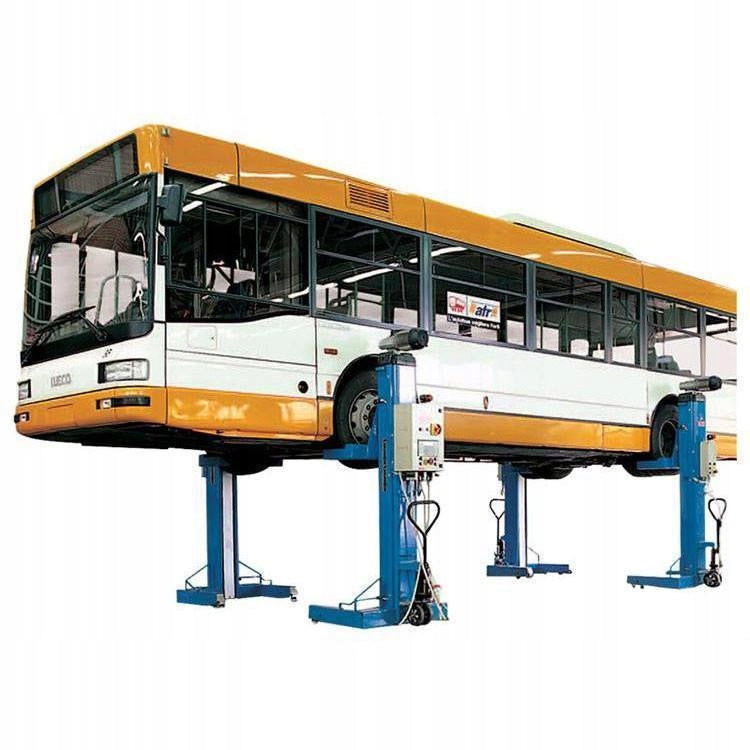

Mobilūs garsiakalbiai RAVAGLIOLI RAV 241 serija

Trumpai apie prekę

Prekė: Mobilūs garsiakalbiai RAVAGLIOLI RAV 241 serija. Kategorija: Keltuvai stulpams.

• Gamintojas: Ravaglioli
• Modelis: RAV241 + VAR240-260

LIFTING CAPACITY 7 TONNES/EACH COLUMN

Description of the device:

In addition, var240-260- or adjustable fork spacing for lifting and smaller vehicles

• electromechanical adjustable columns
• large and solid base for each column
• mechanical lock of fixed height
• self-lubricating, maintenance-free trolley rollers
• Parking phase traffic lights
• control of columns independently or in pairs
• hydraulic valves in case of overload
• safety switch on each column
• thermal protection of engine overload

• The speakers have microprocessor control which ensures full synchronization of the set and safety,
• Lifts have a number of electrical protections m.in. about incorrect connection of columns and about the operation of the lift,
• Supporting rotary pins of turned steel, with main and protective bronze nut,
• Columns with lifting capacity up to 5.500 kg (one column)
• It is possible to retrofit the device with other lifting pads,
• At the time of order, the target number of mobile columns must be specified in order to properly configure the central column,
• The control column has a main control panel containing all control options,
• Large and sturdy bases for maximum stability under load. Transport wheels made of steel,

• Lifting capacity: 4 x 7.000 kg;
• Power supply per column required: 400-415 V / 50-60 Hz, 5 kW - 8,5A
• Engine power: 2,4 kW
• Column height: 2674 mm
• Lifting height: 1760 mm
• Minimum height: 151 mm
• Base dimensions: 602 x 1120 mm
• Maximum tyre diameter: 1200 mm (1600 mm for "L" version)
• Minimum tyre diameter: 900 mm
• Minimum rim diameter: 580 mm
• Lifting time: 135 seconds
• Control column weight: 473 kg
• Weight of subordinated column: 450 kg
