Prekė: Mobiliojo roboto konstravimo rinkinys PicoGo-EU. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 20396

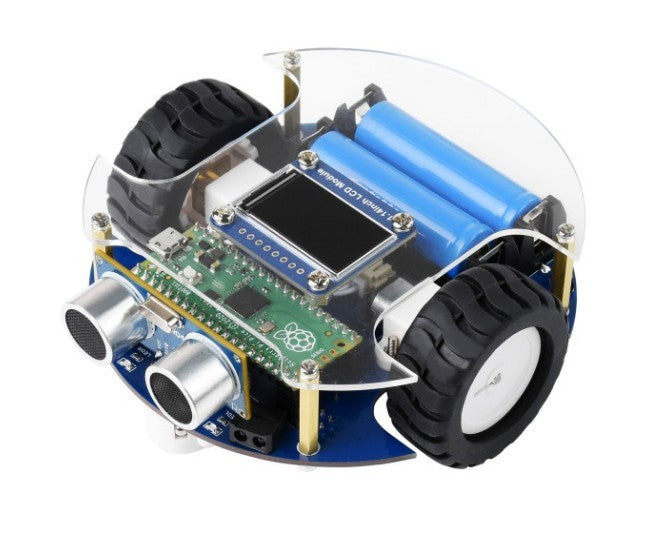

PicoGo-EU - mobile robot building kit based on Raspberry Pi Pico
Description
PicoGo is a set for building a two-wheeled mobile robot based on the Raspberry Pi Pico board. Thanks to the sensors used, it performs all the functions that are needed by novice robotics enthusiasts: following the line, avoiding obstacles or measuring distances. The kit can move both in standalone mode and be remote controlled by mobile app and Bluetooth interface or IR remote control.
Attention!
The kit does not include Raspberry Pi Pico and 14500 batteries. They must be purchased separately.
The running platform consists of a plate (robot base) with motors. It is equipped with line sensors, sensors for avoiding obstacles, RGB LED and a connector for connecting an ultrasonic sensor. On the board there is a two-channel TB6612FNG motor controller and a basket for two 14500 batteries. The base uses two N20 engines with wheels and two support balls to move. In addition, the robot is equipped with a Bluetooth module for communication with mobile devices and an LCD display.
PicoGo is based on Raspberry Pi Pico board with RP2040 microcontroller. can be programmed in microPython. Full documentation with examples of usage are available on the Product Wiki page.
Properties
- Raspberry Pi Pico connector
- Battery protection circuit: overcharge protection, discharge protection, overcurrent protection, short circuit protection, reverse polarity protection
- Charging circuit allows simultaneous programming and debugging
- 5 line sensors

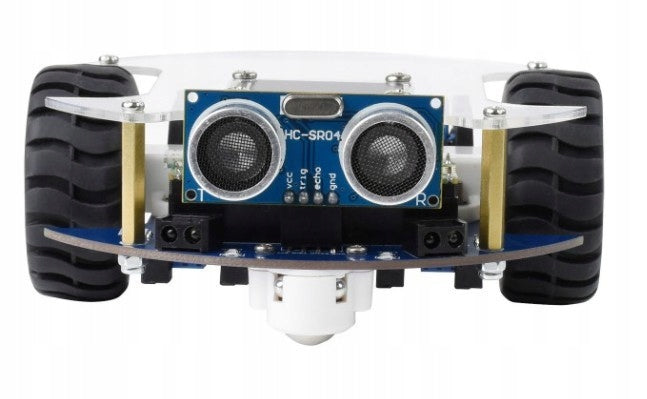

- Ultrasonic sensor
- Color IPS LCD display with a diagonal of 1,14 inches, 240 x 135 pixels, 65 thousand. colors
- Bluetooth module
- Micro N20 motors, with metal transmission
- RGB Color LED
Comes with
- PicoGo base (robot base)
- Acrylic tile
- LCD Display 1,14inch
- Ultrasonic sensor
- 5 V 3 A power supply
- IR remote control
- MicroUSB cable 1,2 m
- Cable 8-pin 5 cm
- Key
- Set of screws
- Screwdriver
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 20396 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5702762416604 |
| Parametry | Batteries included | no |
