Mini kamera FPC 5MP Raspberry Pi

Trumpai apie prekę

Prekė: Mini kamera FPC 5MP Raspberry Pi. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 20869

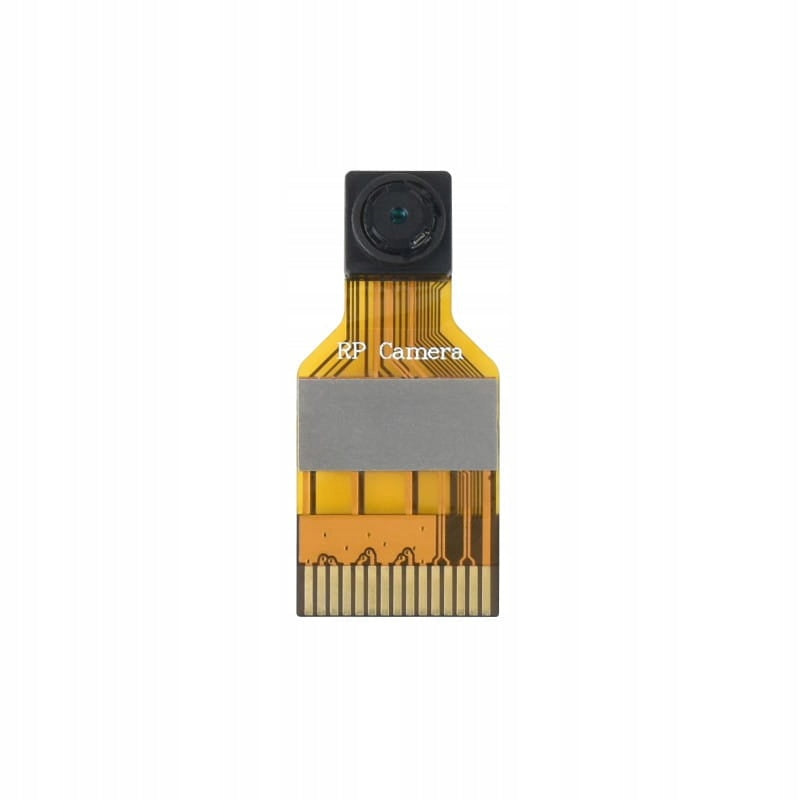

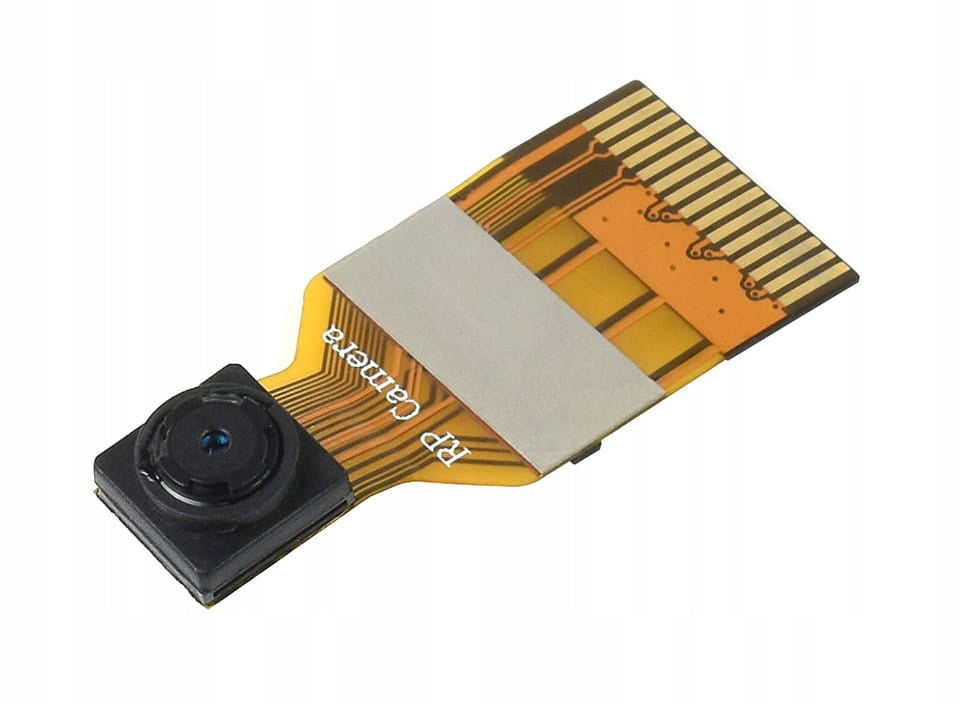

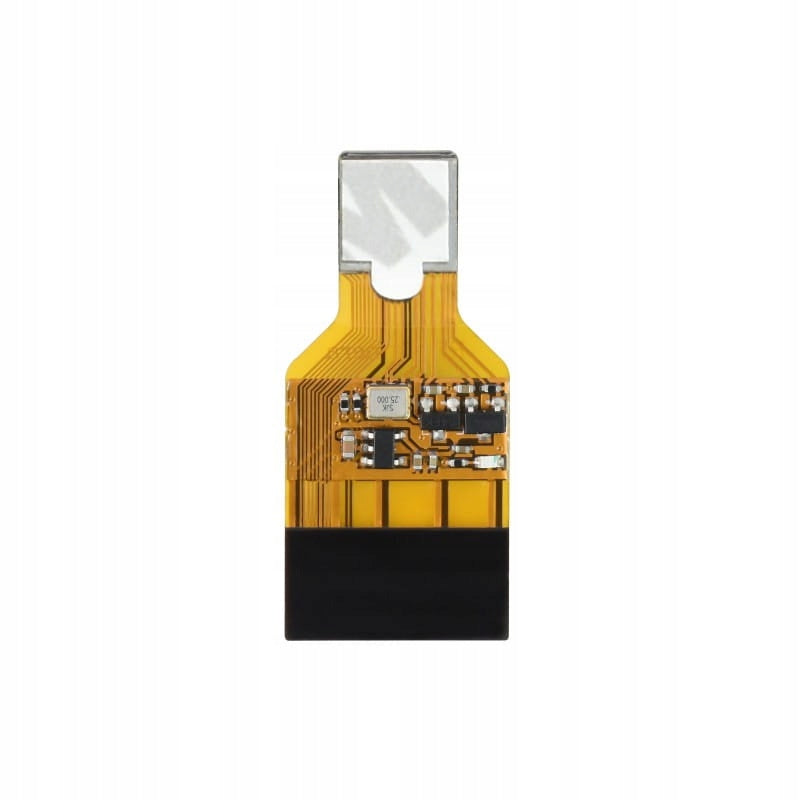

5MP Mini FPC Camera for Raspberry Pi

⭐ Miniature camera module with 5 MP resolution. Allows recording up to 90 fps! Supports Raspberry Pi 4B/3A+/3B+/3B/B+/A+.

✅ Module specification:

• 5MP

  ▶ Sensor OV5647

  ▶ Camera

• 1/4 inch sensor size
• Aperture (f) 2,4
• Focal length (efl) 3,89 mm
• Field of view (fov) 72.9°
• Distortion 1,5%
• Static image resolution 2592 × 1944
• Video recording 30 fps. /S 1920 × 1080 60 kl. /s 1280 × 720 90 kl. /s 60 kl. /s 640 × 480
• Module size 35,00 × 16,00 × 4,52 mm
• Camera size 8,50 × 8,50 x 4,52mm
• Supports Raspberry Pi 4B/3A+/3B+/3B/B+/A+, and CM3/3+/4 (additional adapter card required)

▶ More clear 1080P HD video recording

▶ Example of application:

⭐ Dimensions:

▶ We invite you to our blog for more interesting solutions and articles. We also invite you to like our Facebook page to stay up to date with electronics.

ELTY electronics and you

✅ Set includes:

• FPC 5MP Mini x1 Camera
• Foam seal x1

❗ Raspberry Pi is not included ❗
