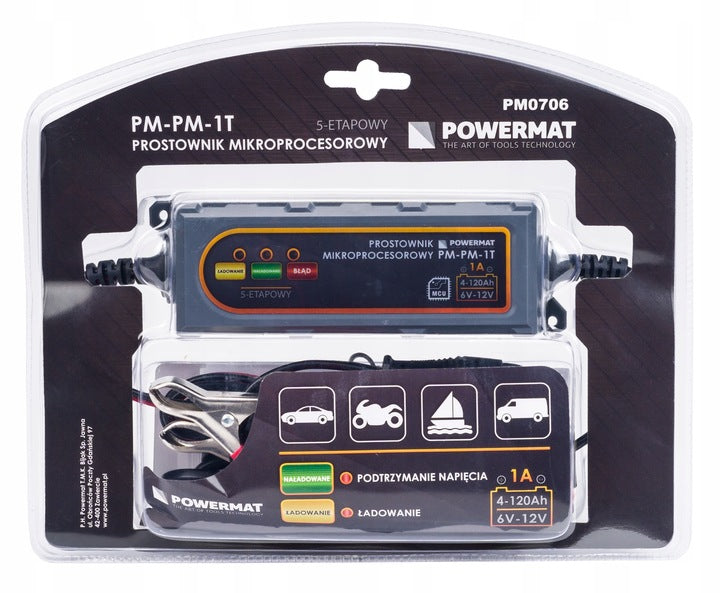

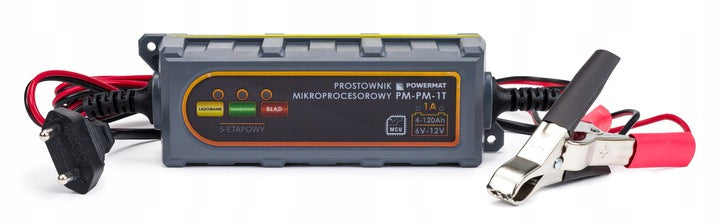

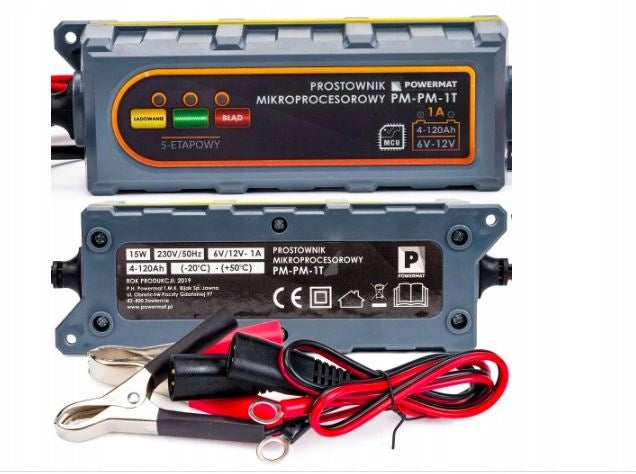

Mikroprocesorinis lygintuvas Powermat PM-PM-1T

Trumpai apie prekę

Prekė: Mikroprocesorinis lygintuvas Powermat PM-PM-1T. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Powermat
• Modelis: PM-PM-1T

POWERMAT PM-PM-1T

TECHNICAL DATA

• Brand: POWERMAT
• model: PM-PM-1T
• Input parameters 230V / 50 Hz
• output parameters 6V - 0,55A / 12V - 1A
• Battery capacity 4Ah - 120Ah
• IP65 grade / waterproof
• supports batteries: VRLA, WET, GEL, EFB, AGM
• net weight: 0,25kg
• length of power cord: 180cm
• length of wires "+" and "-": 200cm

EQUIPMENT

• rectifier
• cable with terminals "-"; "+"
• cable with screw holes "-"; "+"
• INSTRUCTION MANUAL

MICROPROCESSOR CONTROL

Protection against polarity reversal - blocks the transmission of energy to the output wires if the reverse connection of the poles is detected.

Short-circuit protection - energy will be blocked on the output wires.

Overvoltage protection - protection is activated when setting the charging voltage other than the detected parameter.

Battery diagnostic function - rectifier constantly monitors the condition of the battery and can report a charging error in the form of an error code.

Protection against overheating - the rectifier will reduce the charging intensity and even turn off completely if overheating is found. After cooling, the rectifier will automatically resume operation.

5-STEP CHARGING

STEP 1: BATTERY TYPE TEST: analysis of the battery, its state of charge and the correctness of connections between the battery and rectifier.

STEP 2: SLOW CHARGING: charging with decreasing current and constant voltage.

STEP 3: FAST CHARGING: constant current maximum charging.

STEP 4: BATTERY ANALYSIS: analysis of voltage drop and battery performance.

STEP 5: VOLTAGE MAINTENANCE: battery recharge function after loss of voltage below the rated one.

A1537958632)

High-quality automatic and precise microprocessor battery rectifier POWERMAT PM-PM-1T is perfect for professional car services and workshops as well as in home garages. The device can charge with 6V and 12V current.

It has a function of relieving tension. By recharging the battery with low current, you will regain its life and in addition it will be constantly charged to the maximum voltage value.

The kit additionally includes replaceable types of cables for connecting "+" and "-" to the clamp under the clamps and permanently with screws.
