Mikroprocesorinis lygintuvas Dedra DEPM010

Trumpai apie prekę

Prekė: Mikroprocesorinis lygintuvas Dedra DEPM010. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Dedra
• Modelis: DEPM010

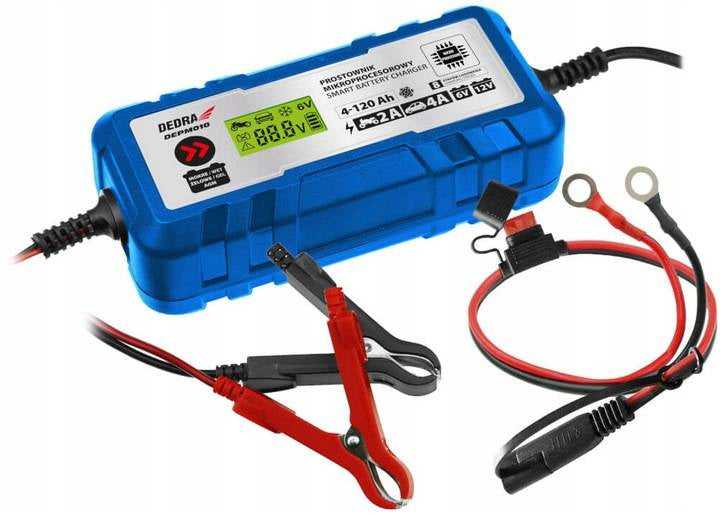

Dedra DEPM010 Microprocessor rectifier 2A/4A LCD, /12V 4-120Ah

The DEP010 rectifier is an electrical device that allows charging lead-acid (wet), gel, AGM batteries with a voltage of 6/12V and an intensity of 4-120Ah, which are used in motorcycles, passenger cars, etc.

Thanks to the microprocessor, the rectifier will carry out battery charging cycles itself, adjusting the operating stages to the condition of the battery. Charging the battery is done in eight steps.

The rectifier cable set is equipped with wheels for use in batteries where access is difficult. Thanks to the quick connector, reconnecting the rectifier is very simple and does not require re-access to the battery poles.

The device is adapted to charge batteries with 6V and 12V current.

• Current Indicator
• LCD display
• Compact housing
• 8 stages of charging

Stages of charging

Charging the battery takes place in eight steps:

• Diagnostics – checking the correctness of the connection with the battery and the degree of battery charge
• Stimulation – checking whether the battery is not damaged and whether it can accept charging current.
• Desulfurization – pulsed charging, which allows the removal of lead sulfate from the battery plates, thanks to which its initial capacity is restored.
• Primary charging – constant current maximum charging until 100% of the battery capacity is reached
• Absorbing – Charging with decreasing current to maintain a constant battery voltage
• Battery analysis – voltage drop analysis
• Final charging – the rectifier charges the battery at a constant current to the maximum voltage values
• Voltage maintenance – function

Safeguards

• Anti-spark protection
• Protection against reverse polarity
• Protection against battery overcharging
• Short-circuit protection
• Overload protection

• Degree of protection:: IP65
• Power supply voltage:: 230V, 50Hz
• Charging power:: 70W
• For batteries with a capacity of: 4-120Ah
• Charging current:: 2A (6V) / 4A (12V)
• Charging voltage:: 6V / 12V

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	DEPM010
Parametry	Brand	Dedra
Parametry	Maximum amperage	4 A
Parametry	Product weight with unit packaging	0.55 kg
Parametry	EAN (GTIN)	5902628711021
Parametry	Batteries included	no
