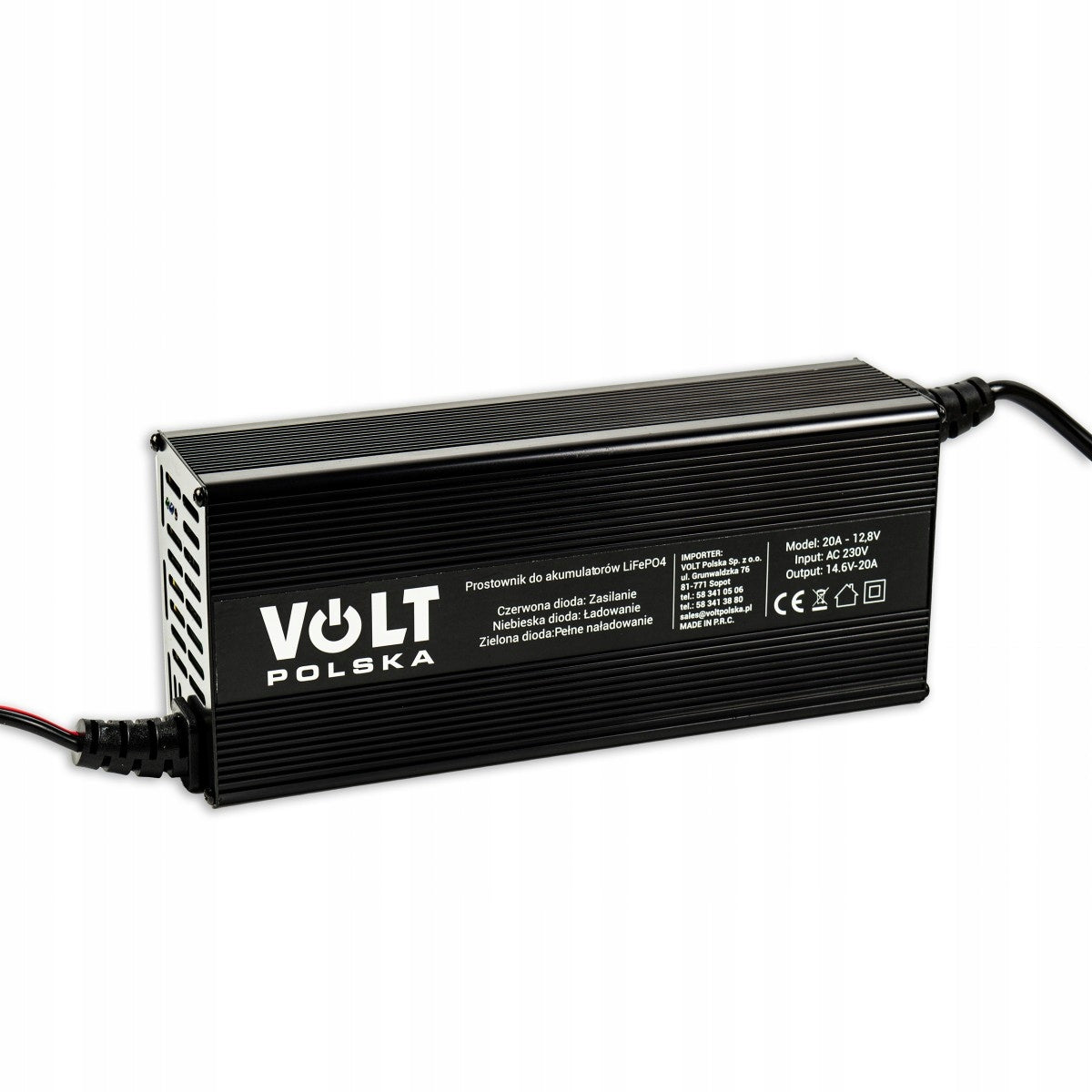

Mikroprocesorinis 20A kroviklis LiFePO4 12V/14,6V akumuliatoriams

Trumpai apie prekę

Prekė: Mikroprocesorinis 20A kroviklis LiFePO4 12V/14,6V akumuliatoriams. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Volt
• Modelis: 6PRLIFE20A

The LiFePO4 20A battery rectifier is designed to charge LiFePO4 batteries.

Lithium iron phosphate batteries) LiFePO4 are characterized by m.in. durability, lots of cycles, low weight. The built-in BMS ensures that the battery is stored without losing its nominal capacity for a long time and controls the charging and discharging processes of the battery.

The LiFePO4 20A rectifier is specifically designed for the chemical composition of the LiFePO4 battery.

• 20A charging current allows you to charge LiFePO4 batteries
• Built-in protection: overvoltage, overcurrent, short-circuit, reverse polarity
• Durable housing
• Compact dimensions

• Emergency power supply systems
• OFF-GRID installations
• Installations in vehicles (camps, foodtrucks)
• Installations in boats

• Producer: Volt Poland
• Model: LiFePO4 20A
• Charging Current: 20A
• Input Voltage: 230VAC
• Output voltage: 14,6V
• Power: 300W
• Input voltage frequency: 50Hz
• Ambient temperature: 20°C to 50°C
• Dimensions: 215x92x56mm
• Weight: 1260g

• Red LED - power supply
• Blue LED - charging
• Green LED - full charge or no charge

High quality of work

Lead-acid batteries will wear out prematurely due to sulphation if they are operating in undercharge mode for a long time (e.g. if the batteries are rarely or never fully charged) or are left in a state of undercharging or complete discharge (e.g. yacht or motorhome during winter). Lithium iron phosphate batteries (LiFePO4 or LFP) do not need to be fully charged. The service life even slightly increases when the batteries are not fully charged. This is the main advantage of LFP batteries compared to lead-acid batteries.

Excellent efficiency

In some applications (off-grid photovoltaic systems), energy efficiency is a key feature. The total energy cycle efficiency (discharge from 100% to 0 and back to 100% charge) of the average lead-acid batteries is 80%. The energy efficiency of LFP batteries is 92%.

The charging process of lead-acid batteries becomes virtually low-efficiency when 80% of the charge is reached. Energy efficiency drops to 50% when a multi-day energy reserve is needed. In contrast, LFP batteries invariably achieve 90% efficiency with low, uniform discharge.

Very long service life

The LiFePO4 battery mounted in a motorhome or boat can work up to 25 years. This is possible due to the fact that these batteries are extremely resistant to deep discharges. With 50% of the discharge cycle that occurs most often in cyclic operation, the battery can withstand up to 2500 of them without a decrease in capacity. Compared to 400 cycles of gel batteries at 80% discharge, the result is impressive. It should also be remembered that the gel or AGM battery cannot be discharged to zero while the LFP battery already does.

Small size and low weight

LiFePO4 batteries save up to 70% of space and up to 70% of weight when storing the same amount of energy. In addition, LFP batteries are the safest solution among lithium-ion batteries.

Infinite flexibility

LiFePO4 batteries charge more easily than lead-acid batteries. The charging voltage may vary from 14 to 16 V (as long as the voltage of each target does not exceed 4,2 V) and the batteries do not need to be fully charged. This allows you to connect several batteries in parallel without worrying about some being less charged than others.

Management of BMS

LiFePO4 batteries require electronic management and target voltage balancing. For this, a BMS system is used to ensure the correct performance characteristics of the battery and not allow the battery to overcharge or discharge too much. LFP batteries should not work without managing the BMS energy system because they can be damaged.

Manufacturer - VOLT Poland

VOLT Poland Sp. z o.o. is a well-known and reliable brand on the emergency power supply market in Poland and Europe.

Thanks to a well-thought-out and dynamic strategy, within a few years VOLT Poland gained a well-deserved reputation on the market. With each step, they work to ensure that their products are best suited to the current needs of customers, additionally supported by professional manufacturer service.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	6PRLIFE20A
Parametry	Brand	Volt
Parametry	Maximum amperage	20 A
Parametry	Product weight with unit packaging	0.71 kg
Parametry	EAN (GTIN)	5904100451289
Parametry	Batteries included	no
