Trumpai apie prekę
Prekė: MikroMod Qwiic dviguba jungčių plokštė. Kategorija: Priedai.
- Gamintojas: Sparkfun
- Modelis: DEV-17724

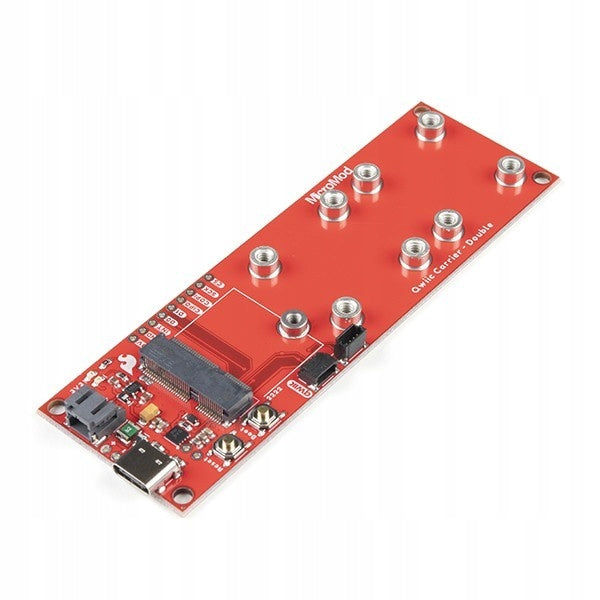

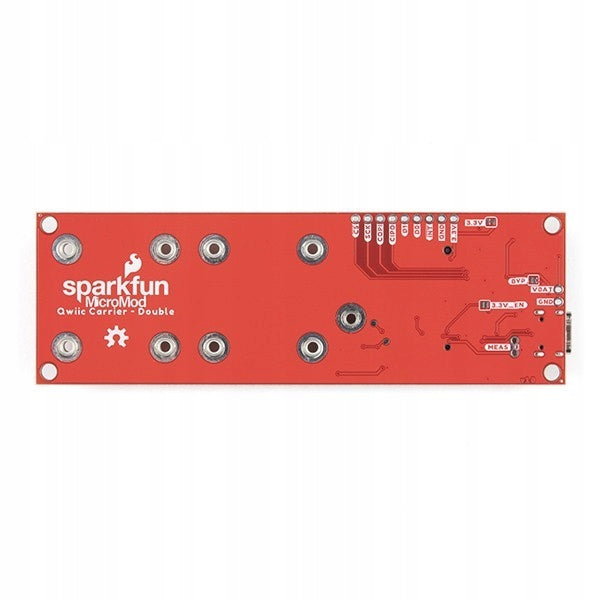

MicroMod Qwiic Carrier Board (Double) - expansion board for MicroMod modules
Description
MicroMod Qwiic Carrier Board is an expansion board designed for MicroMod motherboards. The Qwiic connector and two places for attaching modules from the Qwiic series are equipped. The board features a USB Type-C connector, which can be used for power supply, circuit programming, and communication. The module with microcontroller is connected to the M.2 connector. In addition, the board has Reset and Boot buttons, a charging circuit and a 3,3 V stabilizer. On the product page there is a guide with sample programs that makes it easier to start working with the set.
MicroMod is an ecosystem that connects a main module containing a microcontroller to various peripheral devices through base plates and expansion boards. Using the M.2 standard, MicroMod enables easy replacement of the main modules.
Properties
- M.2 connector
- USB Type-C connector
- Voltage Stabilizer 3,3 V 1A
- Qwiic connector
- Boot and reset buttons
- Charging circuit
- Dimensions: 38 x 112 mm
Comes with
- MicroMod Qwiic Carrier Board
- Screw M2.5x3mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | DEV-17724 |
| Parametry | Manufacturer | Sparkfun |
| Parametry | Kind | Breadboard |
| Parametry | EAN (GTIN) | 5904422370404 |
| Parametry | Batteries included | no |
