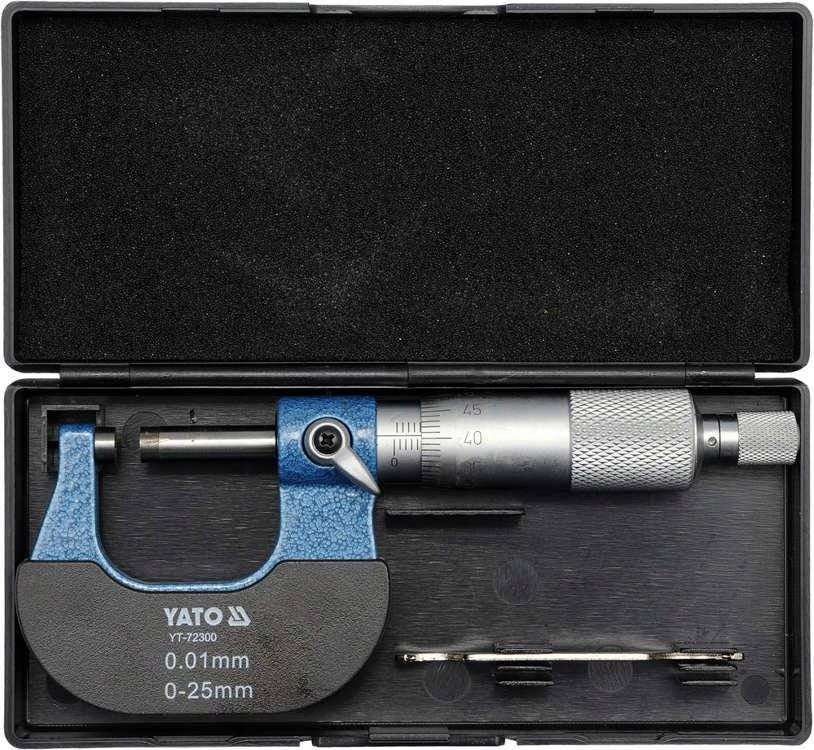

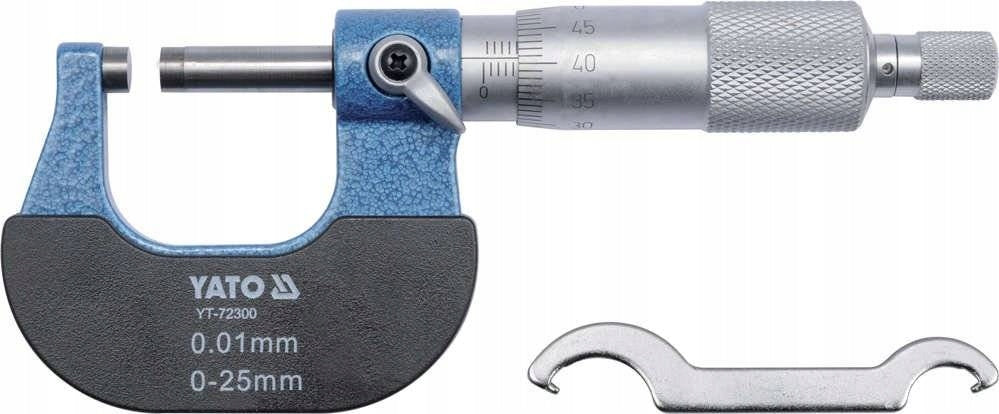

Mikrometras Yato YT-72300 0–25 mm

Trumpai apie prekę

Prekė: Mikrometras Yato YT-72300 0–25 mm. Kategorija: Mikrometrai.

• Gamintojas: Yato
• Modelis: YT-72300

Product code: YT-72300

Yato YT-72300 Micrometer 0 - 25 mm

For precise measurements ranging from 0 to 25 mm

Method of use

Preparation for work:

• Clean the measuring surfaces and guide. Use a cotton cloth for this purpose. Do not use solvents or acids.
• Check the zero position and adjust with the included key if necessary so that the line described “0” on the drum coincides with the horizontal scale line.

Measurement method:

• The drum can be rotated only after unlocking the retaining clamp.
• Extend the measuring surfaces to a distance slightly greater than the measured object.
• Then, turning with the drum, set roughly, and then continue tightening by turning the friction clutch knob.
• Stop tightening when the clutch works, i.e. further rotation of the knob will not cause the drum to rotate.
• Read the measurement result according to the measurement principle shown in the figure.

It is recommended to fix the measured element or micrometer before starting the measurement. This will allow you to achieve the highest measurement accuracy.

It is also recommended to carry out several measurements so as to obtain an arithmetic average of the results.

• Weight: 317 g
• Material: aluminium, carbon steel
• Working temperature : 5°C - 40°C / 41 F - 104 F
• Accuracy: 0,01 mm
• Measuring range: 0 - 25 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Yato
Parametry	Product weight with unit packaging	0.317 kg
Parametry	Manufacturer code	YT-72300
Parametry	EAN (GTIN)	5906083723001
Parametry	Measurement range	0.1–25 mm
Parametry	Measurement accuracy	0.01 +/- mm
Parametry	Packaging status	original
