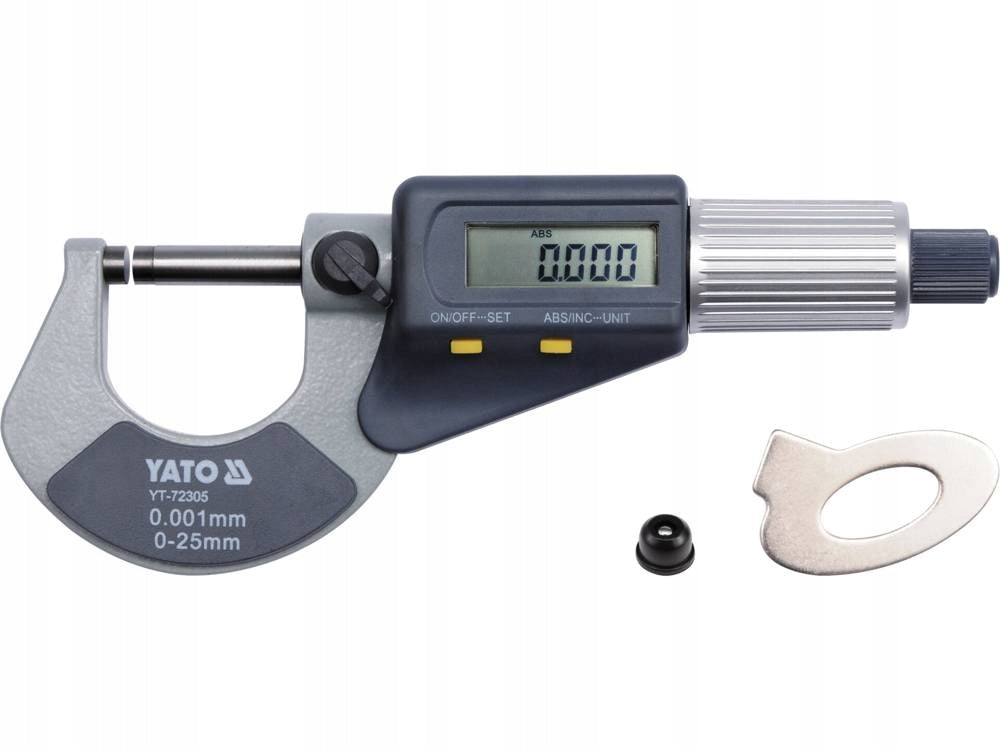

Mikrometras su skaitmeniniu ekranu YATO 0-25 mm

Trumpai apie prekę

Prekė: Mikrometras su skaitmeniniu ekranu YATO 0-25 mm. Kategorija: Mikrometrai.

• Gamintojas: Yato
• Modelis: YT-72305

Preparation for work:

- Clean the measuring surfaces and chain. Use a cotton cloth for this purpose. Do not use solvents or acids.

- Check the zero position for this purpose, contact the measuring surfaces by turning only with the friction clutch knob. Then press and hold for approx. 2 seconds button described ON/OFF•••SET” until the indication is reset.

- Check that all buttons, switches and display work properly. Basic measurement methods:

1. Absolute measurement - Loosen the retaining clamp. -Turn on the device by pressing the "ON" button. Select the measuring unit by pressing and holding for approx. 2 seconds “ABS/INC•••UNIT” button. Each time the measurement result will be alternately displayed in inches or millimeters. The result in inches is described by the “in” symbol visible on the display screen. Press the “ABS/INC•••UNIT” button until the “ABS” symbol appears on the display.

- Expand the measuring surfaces to a distance slightly greater than the measured object. - Then, turning with the stem knob, set roughly, then continue tightening by turning the friction clutch knob. Stop tightening when the clutch works.

- Read the measurement result from the display.

2. The measurement principle corresponds to the one described above, but the relative measurement is used to compare two dimensions.

- When you press the "ABS/INC•••UNIT" button, the indication will be reset and the "INC" symbol will be visible on the display. After re-measuring, you can read the difference in dimensions. The micrometer is equipped with a steel ball in a rubber attachment enabling mounting on the measuring surface of the micrometer. It facilitates the measurement of elements with a small area. After its assumption, reset the indication according to the procedure described above.

Attention! It is recommended to fix the measured element or micrometer before starting the measurement. This will allow you to achieve the highest measurement accuracy. It is also recommended to carry out several measurements so as to obtain an arithmetic average of the results.

Technical data

• Measuring range: 0 - 25 mm
• Resolution: 0,001 mm / 0,00005 inches
• Accuracy: ±0,002 mm / ±0,0001 inch
• Measurement force: 5 - 10 N
• Display: LCD liquid crystal display
• Power consumption: ≤ 35 μA
• Power supply: one 1,55V silver battery, type SR44
• Working temperature: 5OC - 40OC / 41OF - 104OF
• Storage temperature: -20OC ÷ 60OC / -4OF ÷ 140OC
• Humidity effect: irrelevant below 80% relative humidity
• For precise measurements and easy reading from 0 to 25 mm.

Durability, perfection of workmanship, excellent materials, high-quality steel are the technical features of YATO products, whose offer concerns three areas: service, construction and garden. . Exceptional durability and strength predispose YATO to applications wherever it is important to achieve optimal results while saving working time and costs.

In its offer, the company has a wide range of tools that are necessary and reliable for all assembly and repair work. YATO also offers health and safety items and equips gastronomies, among others, with stainless steel pots and containers, high-quality pans and kitchen utensils and refrigeration devices.
