MIG MAG TIG 200A MMA inverterinis suvirinimo aparatas

Trumpai apie prekę

Prekė: MIG MAG TIG 200A MMA inverterinis suvirinimo aparatas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: MIGOMAT DUAL MIG 210 S4 KPW2

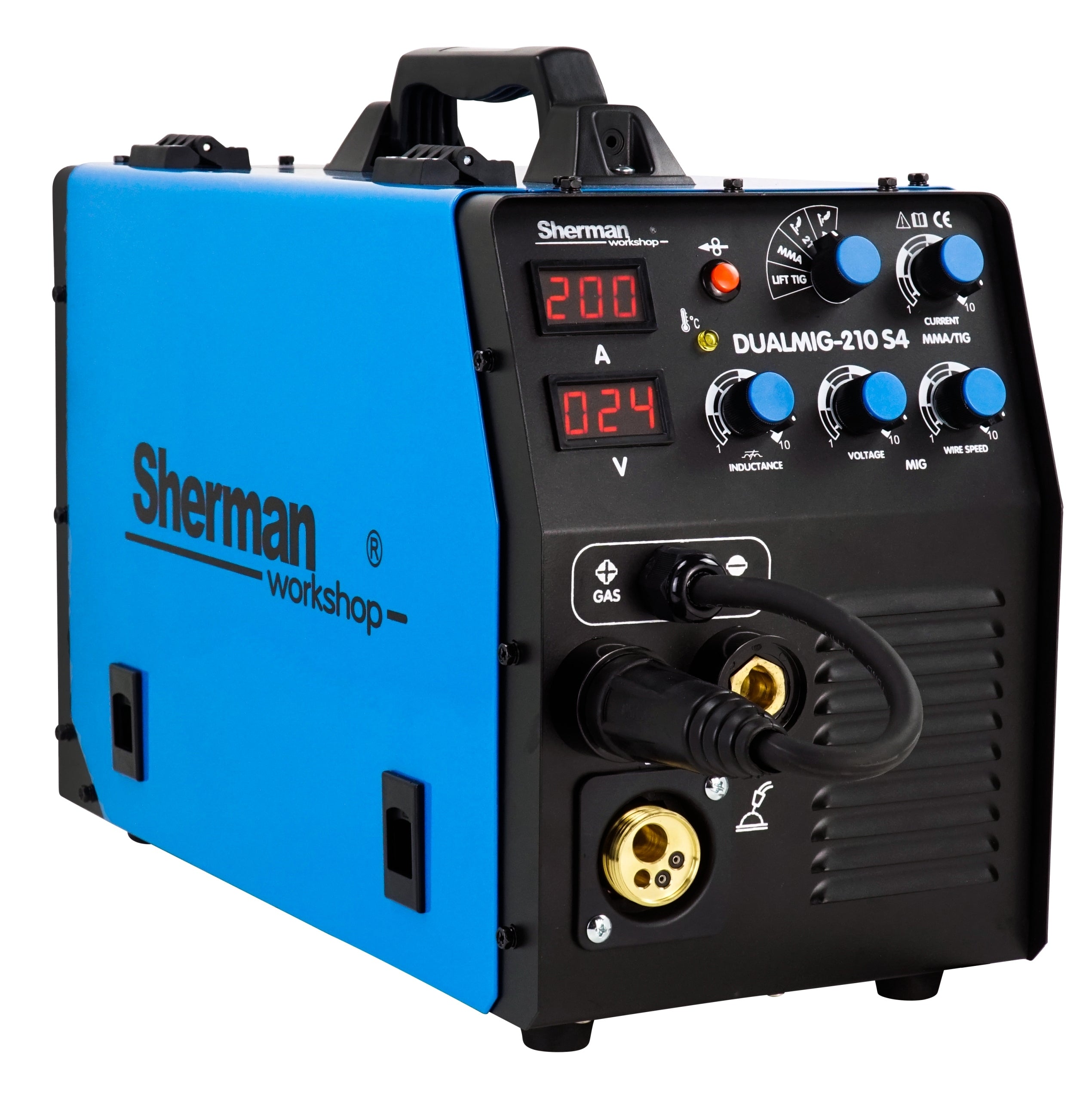

DUALMIG-210 S4 - SMALL, INVERTER SEMI-AUTOMATIC SHERMAN

Semi-automatic welding machine Sherman DUALMIG 210 S4 is used for manual welding of steel and non-ferrous metals. It is powered from a single-phase 230V network. It is a 3in1 device that allows MIG/MAG, MMA and TIG Lift welding.

MAG WELDING KIT – with Ar/CO2 8l cylinder

DUALMIG 210 S4 can also be used for soldering thin galvanized sheets with a thickness of 3mm. Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielding powder wires.

WELDING METHODS: MIG/MAG, FLUX, MMA, TIG Lift

• Supply Voltage: 230V
• Welding current: max. 200A
• Working cycle: 60%
• Smooth regulation of welding current
• Producer: Sherman

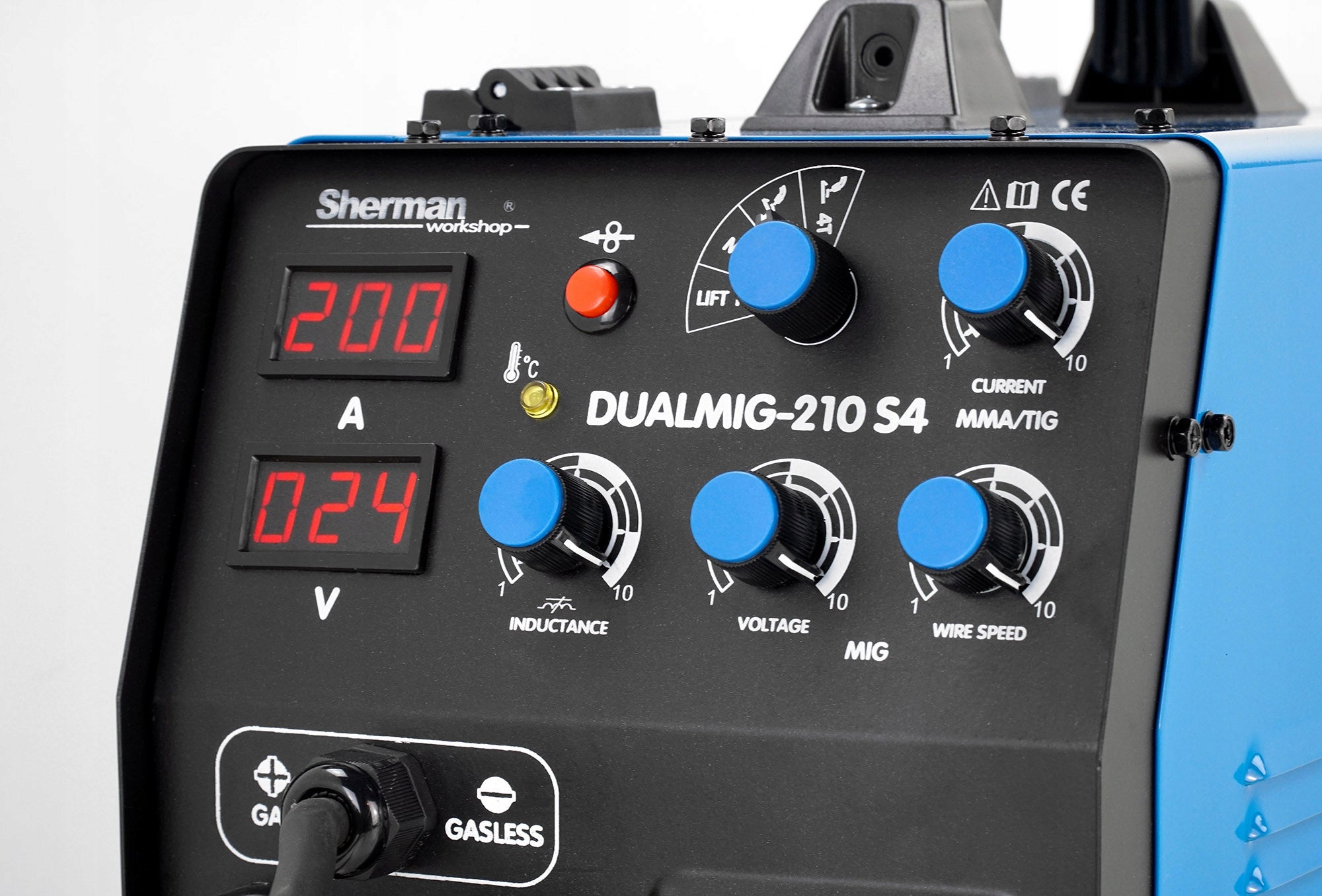

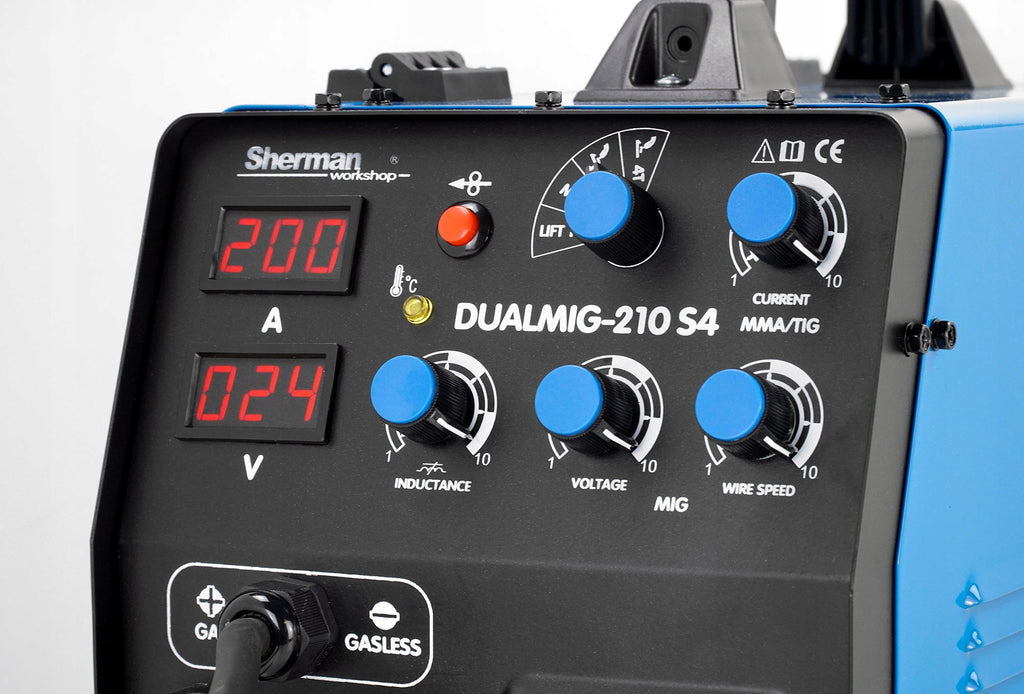

• Easy-to-use control panel
• Clear displays of welding parameters
• Regulation of MIG/MAG welding inductance: Depending on the set parameter value, you can weld the so-called. A soft or more focused arch. In practice, this translates into control of the width of the weld face, fewer welding chips, better parameters when soldering CuSi3.

PROFESSIONAL 2-ROLL WIRE FEEDER

Professional wire feeder with good 2-roll mechanism. Proper transmission ensures smooth wire feeding, and this guarantees good and stable parameters.

The wire feeder roll is made in one of the most commonly used standards today. Thanks to this, you can retrofit the equipment in the future with the rollers needed for welding with different types and diameters of welding wires.

Over the years, Hobby series devices have managed to develop an appropriate reputation among satisfied customers. This series is addressed to DIYers and hobbyists who like to develop their passion after hours. Hobby series devices are characterized by high quality and simplicity of workmanship, which translate into reliable operation of the device and convenient operation.

• Power supply: single-phase, 230V
• Welding methods: MIG, MAG, TIG, FCAW, MMA
• Power: 8.5 KVA
• Protection Rate: IP21
• Dimensions: 450 x 210 x 305mm
• Net weight: 11,5kg

• MIG/MAG welding current: 35 - 200A
• Working cycle: 60% 200A / 100% 120A
• Feeder: 2-roller
• Welding Voltage: Smooth Adjustment
• Wire Feeding: Smooth Adjustment
• Wire Diameter: 0,6 / 0,8mm
• Wire spool weight: 1kg;5kg (D100;D200)
• Polarity change: YES
• Welding Inductance Adjustment: YES

• MMA welding current: 30-180A
• Working cycle: 60% 180A / 100% 120A

• TIG welding current: 30-180A
• Arch Initiation: Lift (by rubbing)
• Working cycle: 60% 180A / 100% 124A

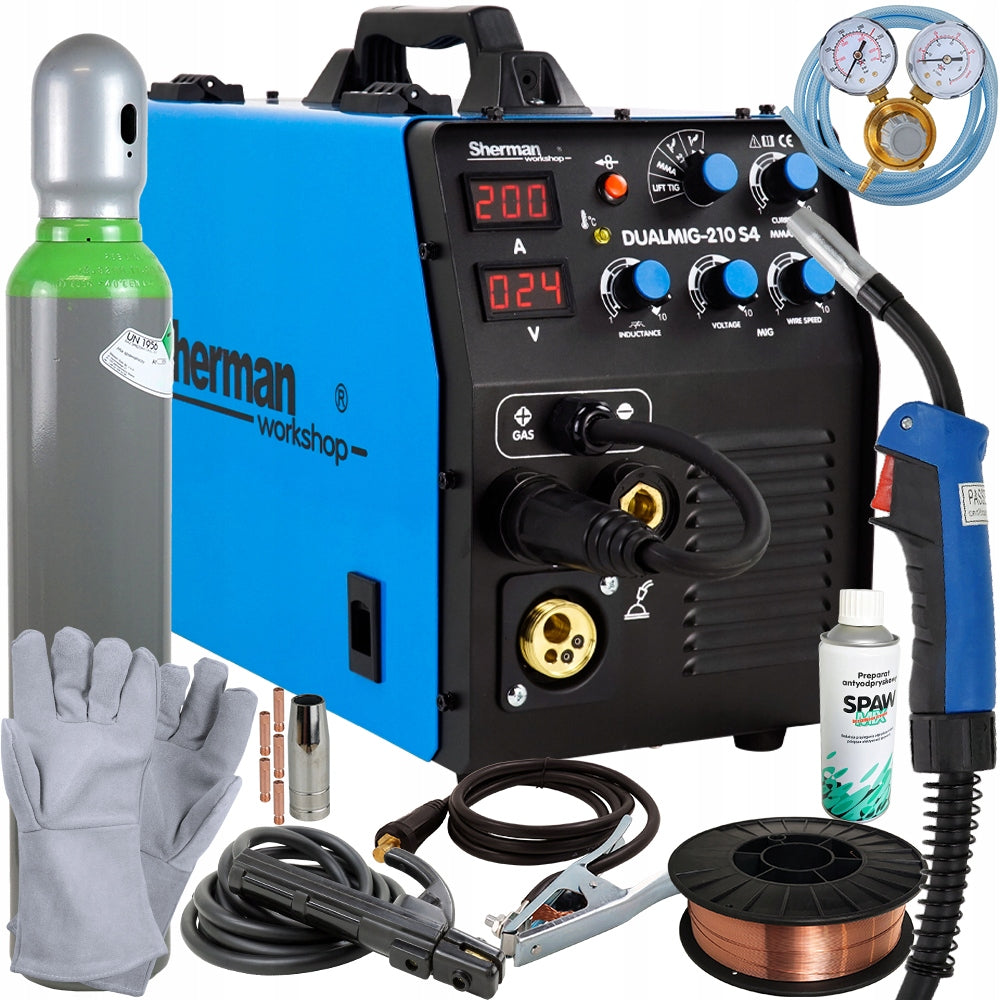

• Sherman DUALMIG-210 S4 welding machine
• Welding torch MIG EURO MB 15 3m
• MMA electrode holder
• Mass cable
• User manual

+ MAG WELDING KIT WITH CYLINDER AR/CO2

• factory new cylinder Ar/CO2 8l - Ar/CO2 – so-called. mixture - the cylinder is certified and has the approvals required by gas sales points,
• reducer gas Ar/CO2 with two clocks,
• wire welding steel SG2 0,8mm x 5kg (D200),
• gas line.

+ WELDING ACCESSORIES

• proven anti-chipping preparation SPAWMIX 400ml,
• welding gloves,
• starter kit of parts for MIG burner (gas nozzle, current tips).

Photo gallery:

Specifications
