MIG/MAG, MMA suvirinimo aparatas Ideal Praktik 30-200 A 230 V

Trumpai apie prekę

Prekė: MIG/MAG, MMA suvirinimo aparatas Ideal Praktik 30-200 A 230 V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Ideal Praktik
• Modelis: Spawarka półautomat spawalniczy 200A

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

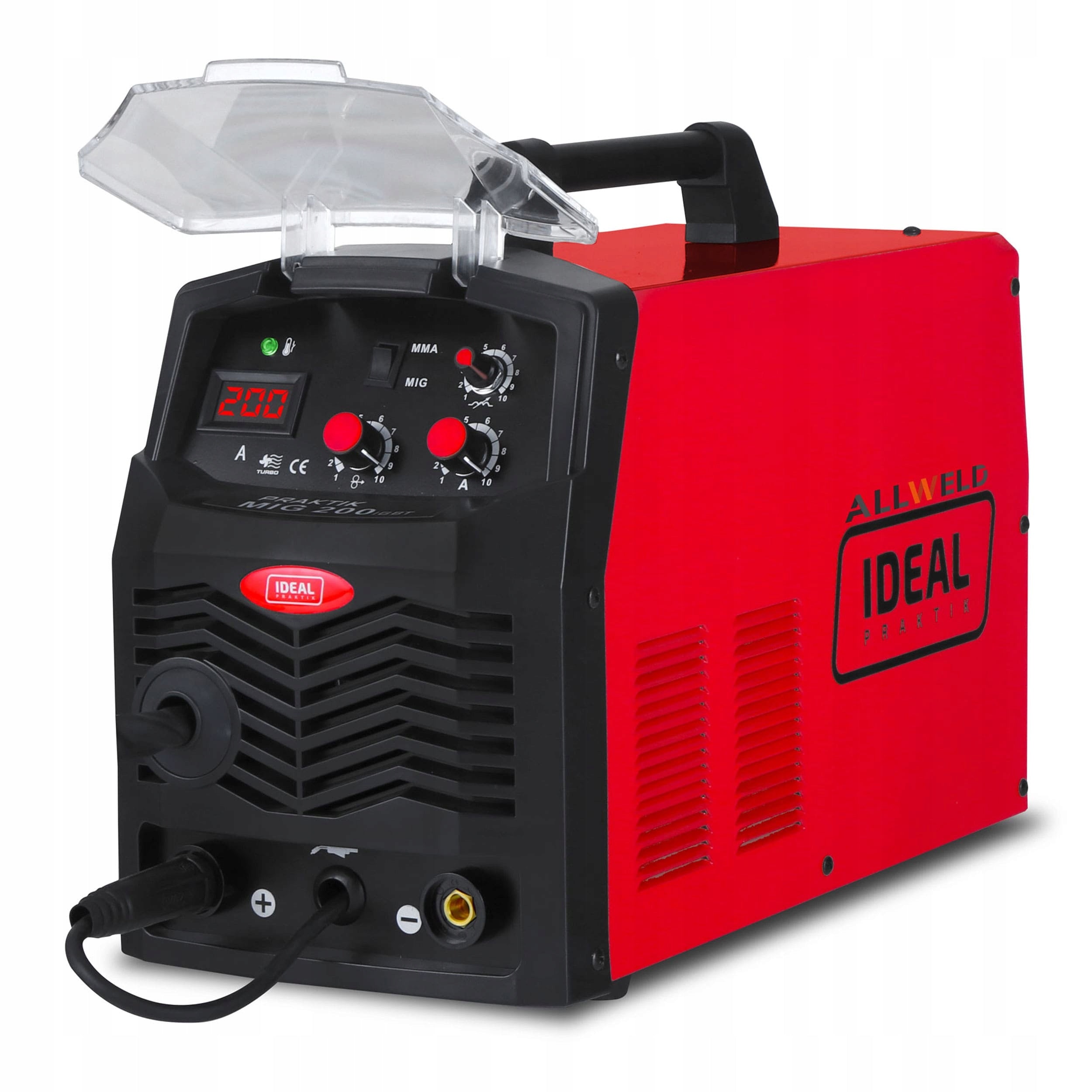

Ideal PRAKTIK MIG 200 is an easy-to-use welding device using the MIG/MAG method adapted to connect low-melting steels, non-melting steels and magnesium, aluminum, nickel, copper and their alloys. The MIG/MAG welding method uses an electric arc produced between the hot melt electrode, which is constantly fed wire, and the welded material. The whole process takes place in the shield of inert or active gases. The most commonly used gases for this purpose are carbon dioxide, helium or argon. The MIG/MAG method allows you to create durable and high-quality welds.

ADVANTAGES OF THE DEVICE:

• It enables welding using the MIG-MAG method of carbon steels, stainless steels.
• Recommended for use in flashing plants and workshops
• Regulation of INDUCTANCE
• SOLDERING function
• Proven and recognized manufacturer on the market
• Single-phase power supply 230V.
• It has a variable polarity.
• Maximum spool with wire: 5 kg.
• Smooth regulation of welding wire feed speed.
• Smooth regulation of welding current and voltage.
• Fan cooling increases the efficiency of the device.
• Professional wire feeder: 2-roll, ensures stable feeding of the binder.
• Overload protection with signalling on the front panel.

The versatility and level of workmanship of the device enable a wide range of applications both in small workshops and in professional construction and assembly works.

The Ideal PRAKTIK MIG 200 welding machine is a welding machine that allows welding using MIG/MAG, MMA (wrapped electrode) and FLUX (powder wire arc welding). The device was built on IGBT transistors ensuring high efficiency and rapid adjustment of current to changes in parameters during welding. The welder allows you to work in long cycles without worrying about overheating or turning off.

The Ideal 200 is operated with three knobs that allow you to adjust: welding current, wire feed speed and inductance. A clear display indicates the current parameters of the welding current. The welder has wheels for easy transport of the device.

INDUCTANCE ADJUSTMENT - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

LUTOSPELING - a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much smaller. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel.

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. The wire itself is filled with flux or a chemical that produces protective gases during welding.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

• Rated supply voltage: 230 V; 50Hz (1ph)
• Current taken from the network: 20 A
• Welding current adjustment range: 30-200 A
• Power at work: 60% 180 A
• Steel wire diameter: 0,6 - 0,8 mm
• Stainless steel wire diameter: 0,6 - 0,8 mm
• Diameter of self-shielding wire: 0,8 - 0,9 mm
• Idle voltage: 56 V
• Power: 5,2 kW
• Degree of protection: IP 21S
• Weight: 14,7 kg

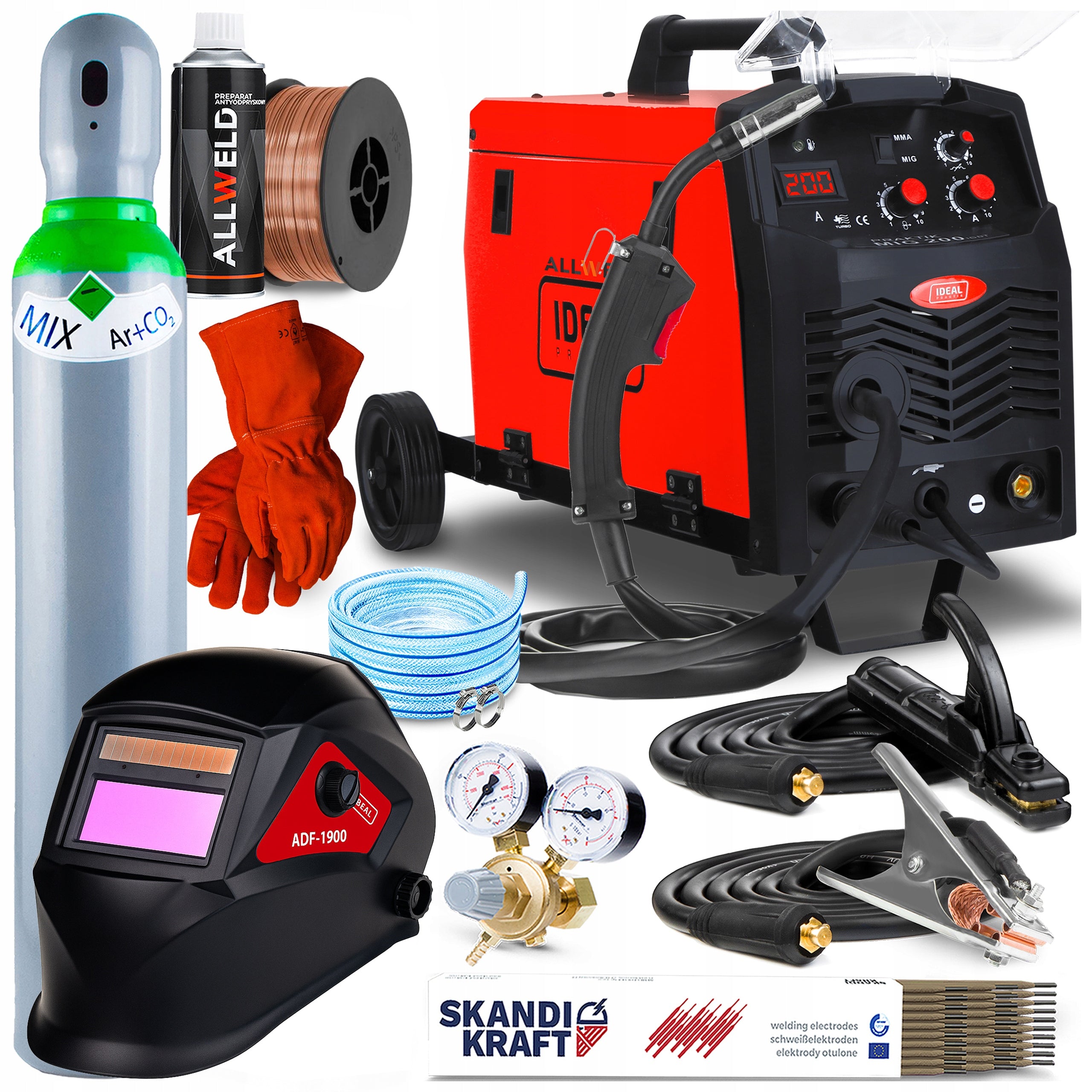

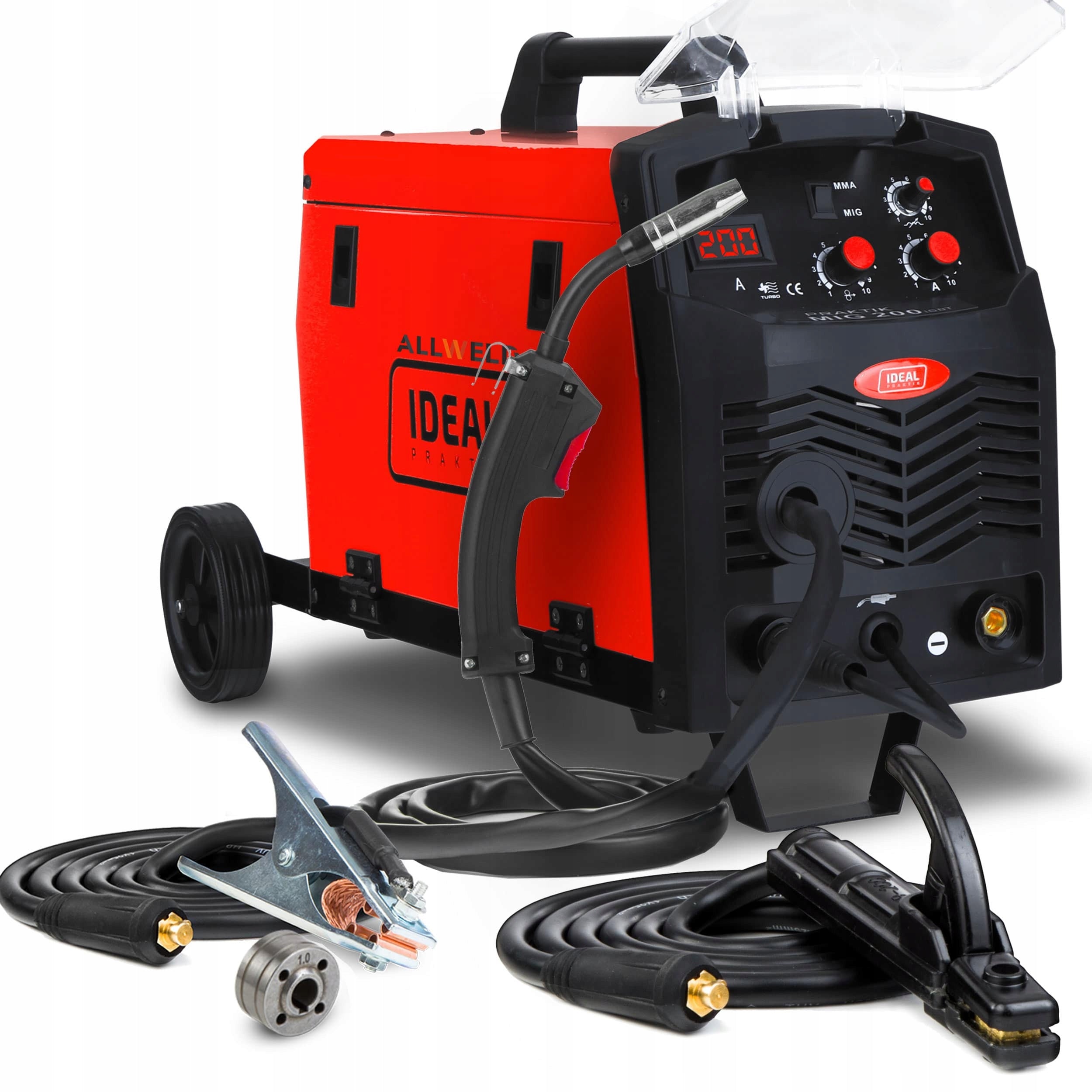

• Welding machine IDEAL PRAKTIK MIG 200 IGBT
• Fixed welding torch MB14 - 2,2m
• Bulk cable - 1,5 m
• User manual in Polish

WELDING ACCESSORIES:

• self-tinting visor Ideal ADF 1900
• Cylinder with gas mixture Argon/CO2
• Cylinder reducer Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 - 1kg
• Anti-chipping preparation ALLWELD
• Electrodes SKANDI KRAFT 1kg - 1pcs
• Gloves welding - 1 pair
• Gas connection hose - 1 pc
• Clamp bands - 2pcs

Automatic self-tinting visor designed for MIG/MAG and MMA welding, with the possibility of turning on the grinding mode.

The blackout range is DIN 4/9–13, with adjustable sensor sensitivity and brightening time (0,1 to 1,0 s). LCD filter in optical class 1/2/1/2 provides good visibility and eye protection.

The visor has 2 sensorsy, a field of view 93×43 mm and an adjustable, 4-arm header for a stable fit. It is powered by a photovoltaic cell supported by a replaceable CR2032 battery.

Compliant with EN 175:1997+A1:1998 and EN 379:2003+A1:2009. Weight approx. 450 g.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Ideal Praktik
Parametry	Power consumption	6.5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,6-0,8
Parametry	Device weight	14.7 kg
Parametry	Welding range	30–200 A
Parametry	Welding cable length	220 cm
Parametry	Product weight with unit packaging	30 kg
Parametry	Manufacturer code	Spawarka półautomat spawalniczy 200A
Parametry	EAN (GTIN)	5904624001724
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,welding mask included,infinitely adjustable welding current,LCD display
