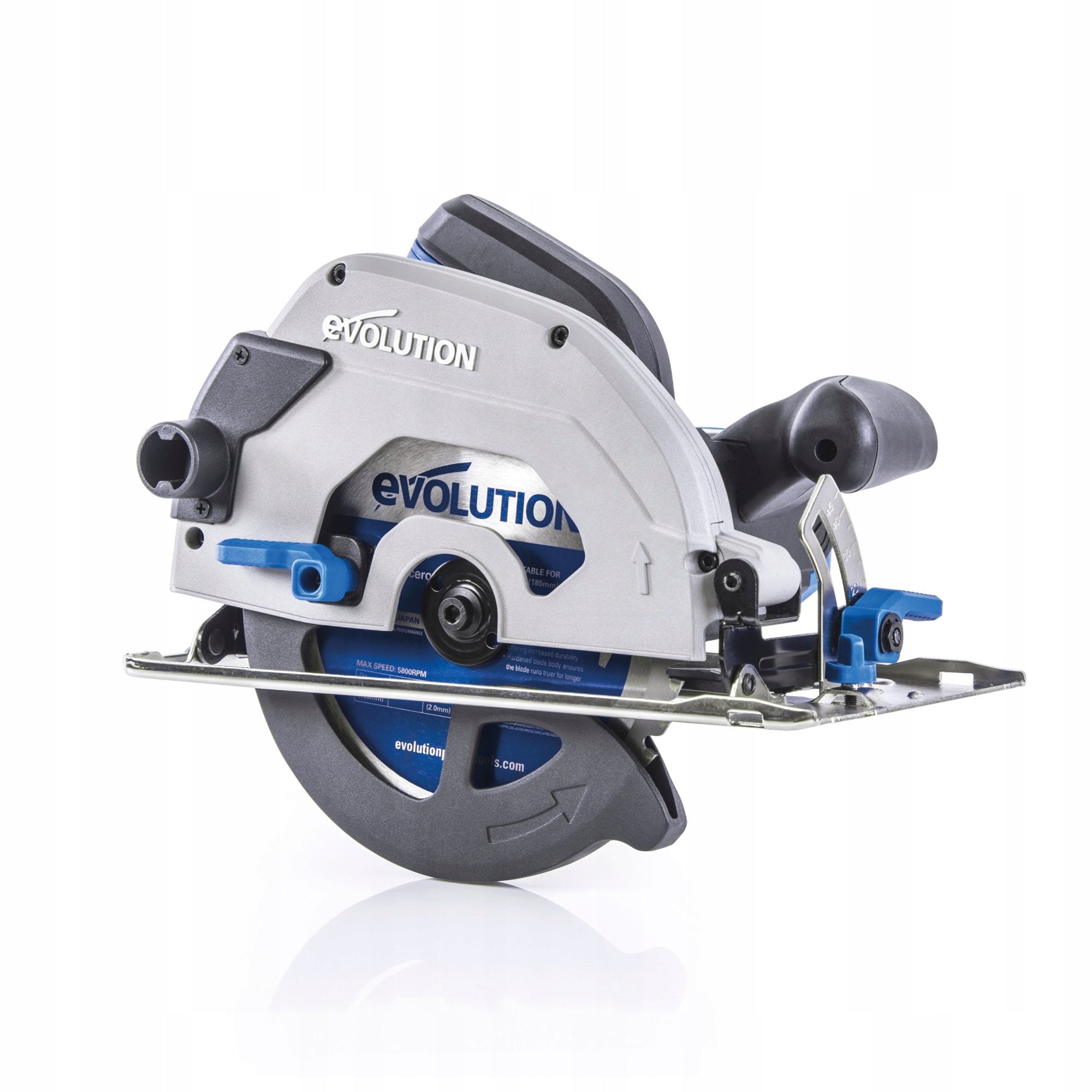

Metalo pjūklas Evolution S185CCSL su TCT disku

Trumpai apie prekę

Prekė: Metalo pjūklas Evolution S185CCSL su TCT disku. Kategorija: Diskiniai pjūklai.

• Gamintojas: Evolution
• Modelis: S185CCSL

The EVOLUTION S185CCSL saw offers the possibility of cutting profiles and sheets of materials such as:

- steel,

- stainless steel,

- aluminium,

- wood,

- plastics.

Materials outside the steel can be cut using an additional cutting disc, designed for the appropriate material

The device ensures obtaining a very good quality surface after cutting, free from burns and burrs. During cutting, almost no sparks appear, which makes the process itself safe. The design of the saw allows the head to tilt at an angle of 45 melts. The device also offers the ability to adjust the depth of the cut.

An overload switch was installed in the S185CCL saw, and the device was equipped with a system that catches filings generated during cutting.

The powerful motor and high-quality workmanship ensure optimal performance and comfort.

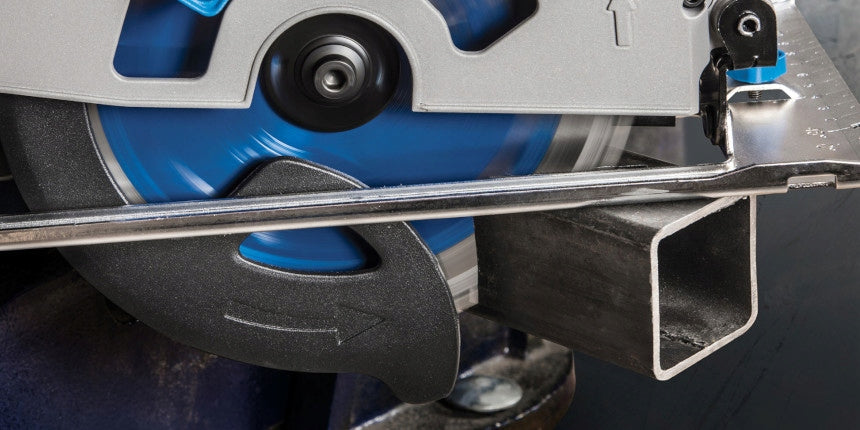

The saw allows cutting sheets up to 8mm thick and steel profiles with walls up to 3mm thick.

Fully mobile, equipped with a powerful 1600W motor ensures precision, speed and almost complete lack of sparks during cutting. The special "dry cut" technology ensures that the cut material will not be heated and immediately after the cutting process, the material can be further processed.

Specification

• Model: S185CCSL
• Engine power: 1600 W
• Power supply voltage: 230 - 240 V
• Rotary speed (no load): 3700 rpm /min
• Maximum wall thickness of the cut profile: 3 mm
• Maximum cutting capacity at 0°: 64 mm
• Maximum cutting capacity 45°: 35 mm
• Maximum thickness of cut sheet metal (soft steel): 8 mm
• Weight of the device: 5,2 kg
• Noise level (at load): 104 dB(A)
• Noise level (no load): 93 dB(A)
• Vibration level (at load): 3,75 m/s²
• Diameter of the disc: 185 mm
• Diameter of disc mounting hole: 20 mm
• Disc thickness: 2 mm
• Number of teeth: 36 of
• Transport case: YES

The set includes

1 x Evolution S185CCSL saw,

1 x Evolution 180mm TCT 36z blade for cutting steel,

1 x Side guide,

1 x Allen Wrench,

1 x User Manual
