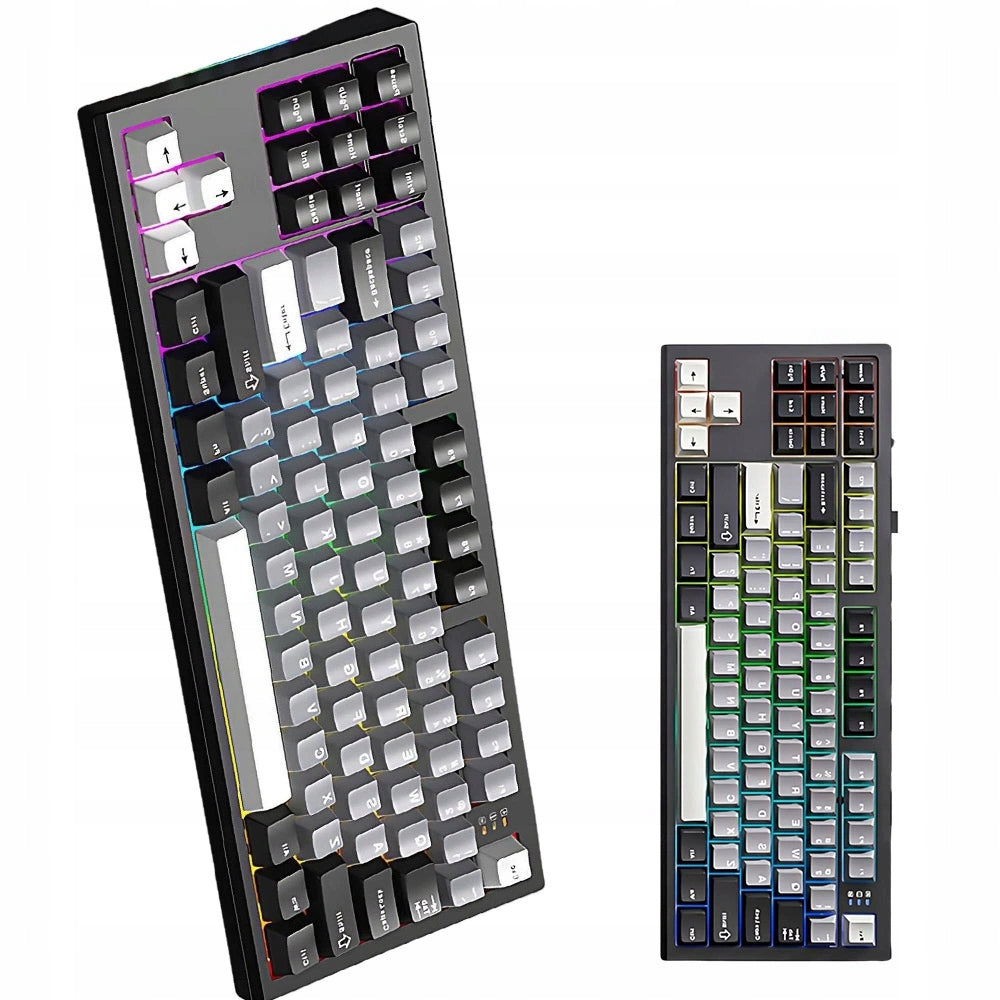

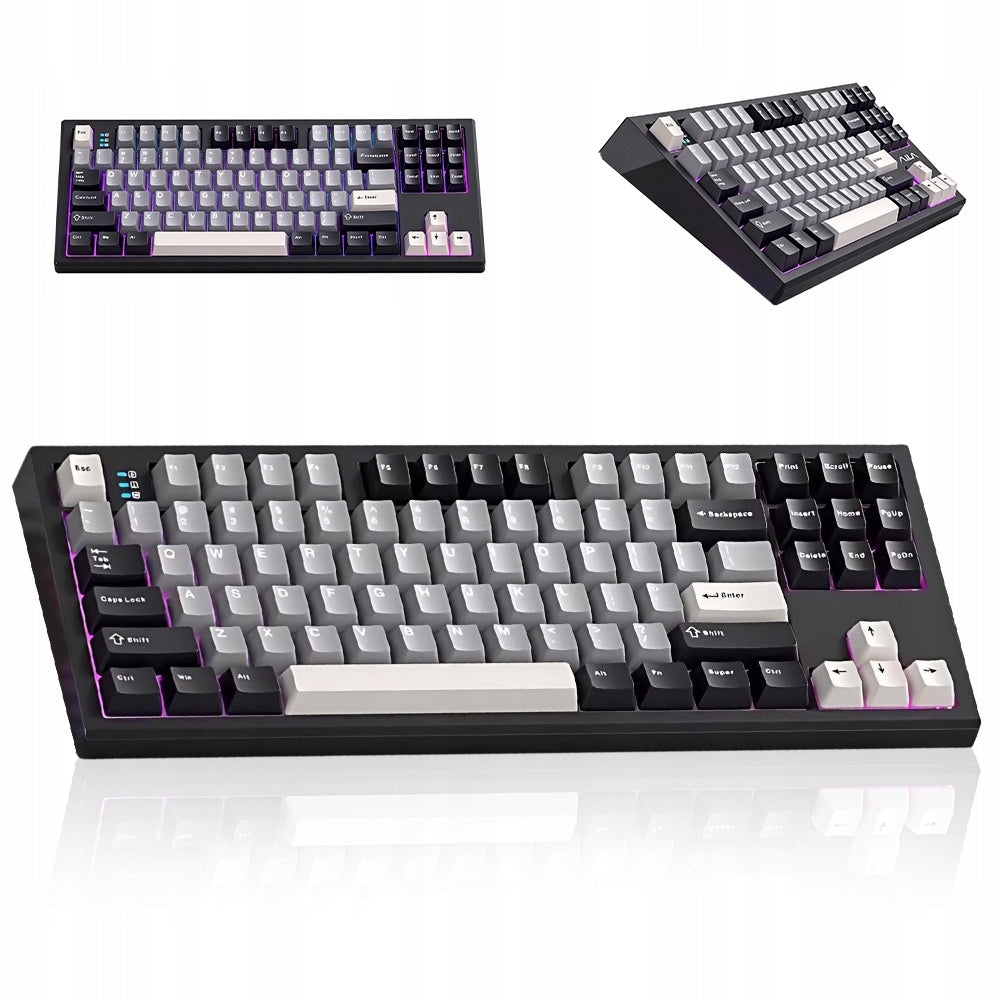

Mechaninė belaide LED klaviatūra žaidimams, juoda, USB, 2.4G, Bluetooth

Trumpai apie prekę

Prekė: Mechaninė belaide LED klaviatūra žaidimams, juoda, USB, 2.4G, Bluetooth. Kategorija: Belaidžiai.

• Gamintojas: no brand
• Modelis: KLAWIATURA MECHANICZNA 2.4G USB
• Spalva: black

WIRED GAMING KEYBOARD MECHANICALLY BACKLIT FOR LED GAMERS

Compact layout 87 keys|Bluetooth 5.0|USB|12,4G

Two-tone injection-molded PBT keys

Top cover

Switch assembly

Positioning plate with grooves

Sandwich foam insole

IXPE Foam Cushion

PCB board

Base foam

Silicone pad

Side Light Strip Housing

Two-stage adjustable feet

Single key printed circuit board

The circuit board and positioning plate have a special design with holes, integrated into the gasket, which provides a soft, resilient tactile experience. Single holes in the keys provide greater consistency in the feel of pressing the keys.

Transparent PC positioning plate

The transparent positioning plate with grooves provides a noticeable feedback, while guaranteeing a clean and pleasant sound quality.

Two-color injection-molded PBT keys.

Smooth to the touch, durable.

Original keys: classic OEM height, unlit characters engraved on the side.

Backlit keys: minimalistic appearance, backlit characters.

About 6 million RGB color lighting effects

Stylish downward-facing light setting

It has multiple adjustable lighting modes, and the side effects maximize the visual effect, creating an immersive ambient atmosphere, especially glamorous at night.

Supports connectivity in three modes

Supports connectivity to multiple systems

Three connection modes – wired USB-C, wireless 2,4 GHz and Bluetooth – adapt to different scenarios, allowing for seamless switching.

Built-in large battery eliminates range concerns

Powerful battery with a capacity of 8000 mAh

With a 8000mAh battery with intelligent power management technology, you don’t have to worry about range and can enjoy uninterrupted gameplay.

Product specification

Model: S87 Pro

Product weight: approx. 1018 g (without cables/receiver)

ok. 1067 g (with cables/receiver)

Battery Capacity: 8000mAh Lithium Battery

Rated voltage: 3,7 V DC (4,2 V when fully charged)

Rated current: approx. 160 mA at 3,7 V (default light effect) approx. 45 mA (backlight off) at 3,7 V

Product Dimensions: 366,10 x 138,51 x 41,94+0,1 mm

Operating Modes: USB-C/2,4G/Bluetooth Wired Connection in Triple Mode

Positioning plate: positioning plate with grooves

Key Material: PBT Material

Charging Interface: USB-C port

System compatibility

Wired mode/2,4G: ALL Windows operating systems (WINXP, WIN7, WIN8, WIN10). (On Win95, Win98 systems, drivers may be required to be installed.) Bluetooth Mode: Windows 8, Windows 10 and later. Bluetooth mode: MAC computers, Android phones or tablets, iOS phones or tablets equipped with Bluetooth BLE 4.0, BLE 5.0 or later.

Knob Operation Instructions

This keyboard features a 1.14-inch TFT display in the upper right corner, offering versatile driver customization functionality. The knob and buttons in the upper right corner work in conjunction with the TFT screen: rotate the knob to navigate the menu, and short-press to confirm a selection or return to the previous menu level. The keyboard's TFT screen displays both time and calendar information. If the power switch on the base is off upon delivery or during normal use, turn it on and calibrate the time and calendar using the driver. The keyboard's TFT screen displays the battery level, making the charging status and remaining power easily visible.

2.4G Connection

Slide the switch in the upper right corner to the left = 2.4G mode. Pressing FN + `~ displays the message "2.4G reconnecting." Holding FN + `~ for 5 seconds displays the message "2.4G pairing." Inserting the receiver displays the message "2.4G pairing successful," indicating successful pairing. Note: When connecting via 2.4G, search for the device before inserting the receiver. Factory default pairing is pre-configured. The corresponding icons in the TFT screen's main menu will also be highlighted.

Bluetooth Connection

Slide the mode switch in the upper right corner to the right = Bluetooth BLE5.1 mode, allowing connection to 3 devices:

1. (FN+1) = Bluetooth 1 (device name "AULA-S87 Pro-1") Pressing (FN+1) displays the message "BT1 reconnecting." Pressing and holding (FN+1) displays the message "BT1 pairing." Successful connection: the screen displays the message "BT1 pairing successful." The corresponding icon in the TFT main menu will also be highlighted. Switch between Bluetooth 1/2/3 using the keyboard shortcut (FN+1/2/3) = Bluetooth 1/2/3 (device names: AULA-S87Pro-1/AULA-S87Pro-2/AULA-S87Pro-3")

Lighting Effects Adjustment

Scroll to the "Lighting Effects" mode on the TFT screen to switch between 19 RGB lighting modes and off (20 modes total): - Flow (default) - Peak and Valley - On the Edge - Two Birds One Stone - Waving Diffusion - Endless Stream - Layered Peaks - Gentle Rain - Shuttle Mode - Static Constant Light - Single Point Lighting Single Off, Starry Sky, Snowfall, Burning Flowers, Dynamic Breathing, Spectrum Cycle, Cascading Rainbow, Colorful Spectrum, Off.

Scroll to the "Light Color" mode on the TFT screen to switch between RGB, Red, Orange, Yellow, Green, Cyan, Blue, Purple, and White.

Scroll to the "Light Brightness" mode on the TFT screen to switch between 5 brightness levels, each with a 20% increment. Rotate the knob to the right to increase brightness (+), to the left to decrease brightness (-).

Scroll to the "Light Speed" mode on the TFT screen to switch between 5 speed levels, each corresponding to a 20% increment. Rotating the knob to the right increases the light speed (+), and rotating to the left decreases the light speed (-).

Scroll to the "Volume Adjustment" mode on the TFT screen. Rotating to the right increases the volume, and rotating to the left decreases the volume. The corresponding volume level icon will flash.

Scroll to the "Language Selection" mode on the TFT screen to switch between Chinese and English.

Scroll to the "Custom Images" option on the TFT screen; custom images can be set using the driver.

Scroll Wheel Adjustment

Dual-mode scroll wheel function (indicated by three flashes of the indicator light): Press the Fn key + scroll wheel button to switch between screen adjustment and volume adjustment. Press the Fn key + ESC to restore default settings (scroll wheel adjusts the screen). Press the Fn key + scroll wheel button again to activate volume adjustment and return to the main screen.

Contents:

Mechanical keyboard S87 PRO black
