Maitinimo sistema BCS-IP8GB/RACK5U su PoE, 8 kameroms ir DVR

Trumpai apie prekę

Prekė: Maitinimo sistema BCS-IP8GB/RACK5U su PoE, 8 kameroms ir DVR. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 5904890706200

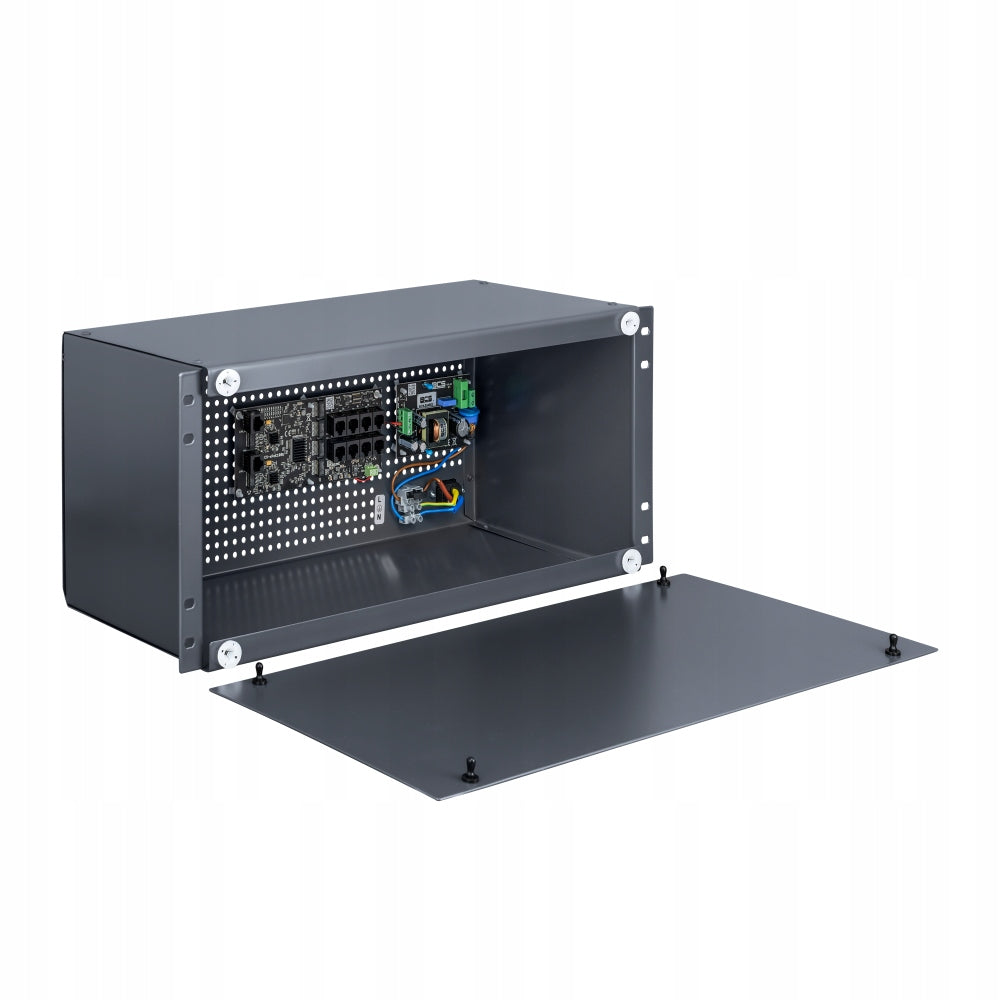

The BCS-IP8Gb/RACK5U system by BCS is designed for buffer power supply of 8 IP cameras. The power supply system is enclosed in a BCS-RACK5U housing designed for installation in the RACK 19" cabinet. It has protection in the form of built-in electronic fuses (Long Range mode). BCS-IP8Gb/RACK5U can also be used to power recorders and other devices downloading 12V +/- 5% DC.

CHARACTERISTIC

• Buffer power supply max. 96W,
• Unmanaged PoE switch,
• 8 x PASSIVE 10/100 Mbit ,
• 2 x Uplink 1000 Mbit,
• Housing: BCS-RACK5U 19",
• Dimensions: 440 x 220 x 180 mm.

SPECIFICATIONS LAN PORTS Number of ports 10x RJ45 Type of ports 8 x PoE10/100Mbps

2 x Gigabit UpLink LAN Port Features 1 ... LAN 8 PoE OUTPUT -for PoE PASSIVE receivers (up to 40W) and 802.3af (up to 15,4W),802.3at (up to 30W) LAN G1, LAN G2 UPLINK Gigabit (without PoE power) LAN port security 1 ... LAN 8,Vin Surge Protection LAN Port Protection 1 ... LAN 8 Short Circuit Protection 0,75 A with Auto Back Power Control PoE Switch ON/OFF -Items 1 ... 8 (LAN 1 ... LAN 8)

PoE OFF on port - switch in OFF position

PoE ATTACHED on port - switch in ON position POWER SUPPLY PoE output voltage 48 VDC +/- 2% Power consumption 96 W Input voltage 190 ~ 260 VAC, 50 Hz Power supply input protection Fuse fuse immediate 3,15A Power supply output protection Electronic overload protection level 3 A

Electronic short-circuit protection (power supply restart may be required after short-circuiting)

Surge protection LED_AC operating signal (yellow) - presence of mains voltage

LED1 (blue) - presence of output voltage

LEDs in LAN connectors 1 ... LAN 5 - presence of PoE power supply on the port Housing design Housing BCS-RACK5U

Housing material BODY - steel sheet 0,8 mm painted in colour

Housing material COVER - 2 mm aluminium sheet painted in graphite (RAL 7024)

System opening 4,8 mm in pitch 10,8 mm Mounting Cabinet RACK 19", screws M6 (included) GENERAL Operating temperature -10 ~ +40°C Protection class IP20 Weight 3.2 kg Dimensions 440 x 220 x 180 mm

7938

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	BCS
Parametry	Product weight with unit packaging	3.2 kg
Parametry	Number of ports	8
Parametry	EAN (GTIN)	5904890706200
Parametry	Manufacturer code	5904890706200
