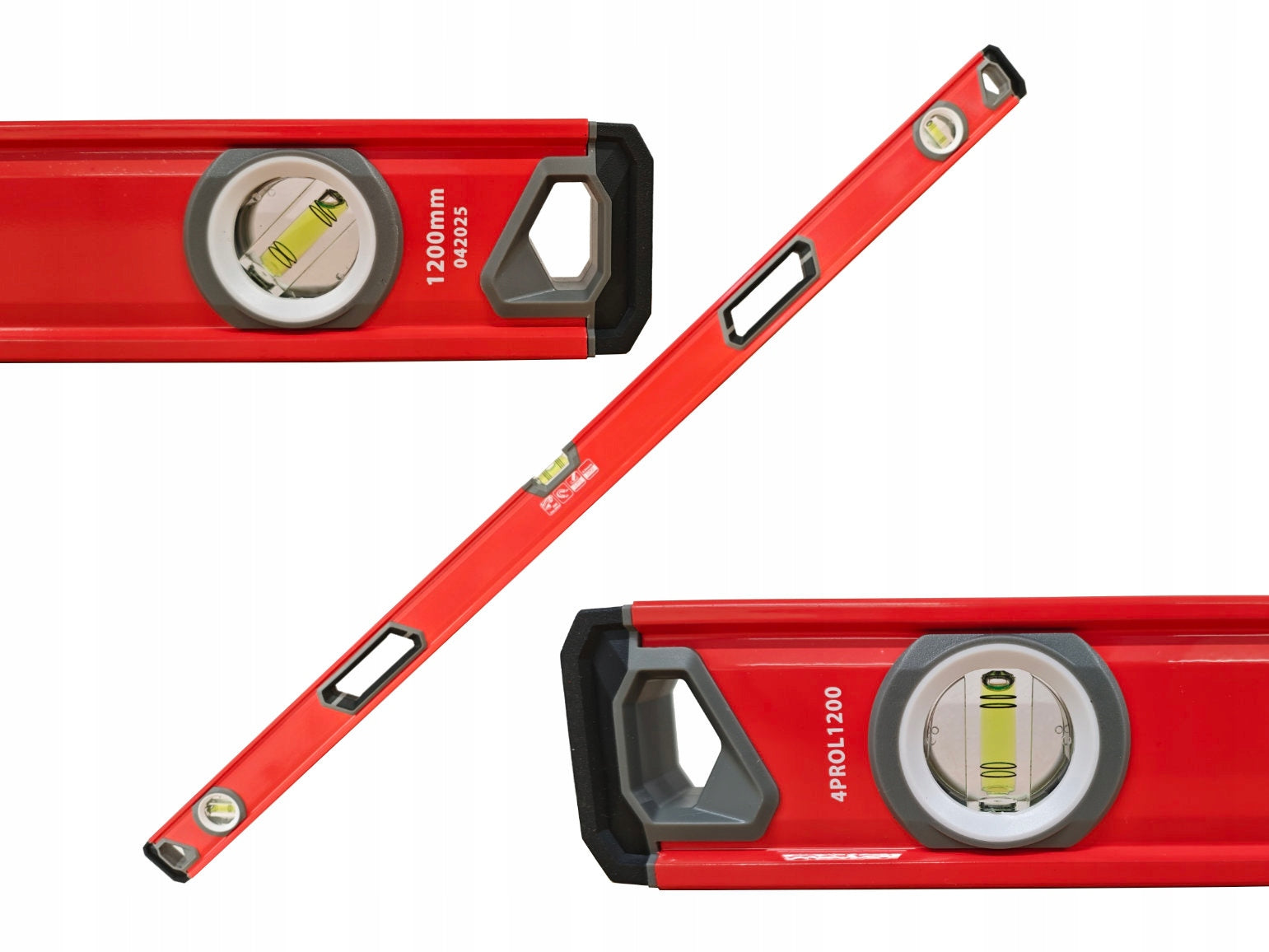

Magnetinis aliuminis gulsčiukas 4PRO 120cm, 3 libelės, rankenos

Trumpai apie prekę

Prekė: Magnetinis aliuminis gulsčiukas 4PRO 120cm, 3 libelės, rankenos. Kategorija: Gulsčiukai.

• Gamintojas: 4PRO
• Modelis: 4PROL1200
• Ilgis: 1.2 m

The 4PRO level is a precision measuring tool made of aluminum, designed for professionals in the construction, carpentry, and installation industries. Thanks to its high accuracy of ±0,5 mm/m and milled magnetic base, it guarantees fast and reliable reading in all conditions.

• Precision of 0,5 mm/m (0,029°) guarantees reliable and accurate results for a variety of measurement tasks
• The frame is made of durable aluminum profile. Its upper and lower surfaces are precisely milled, which ensures perfect contact with the measured plane and maximizes accuracy.

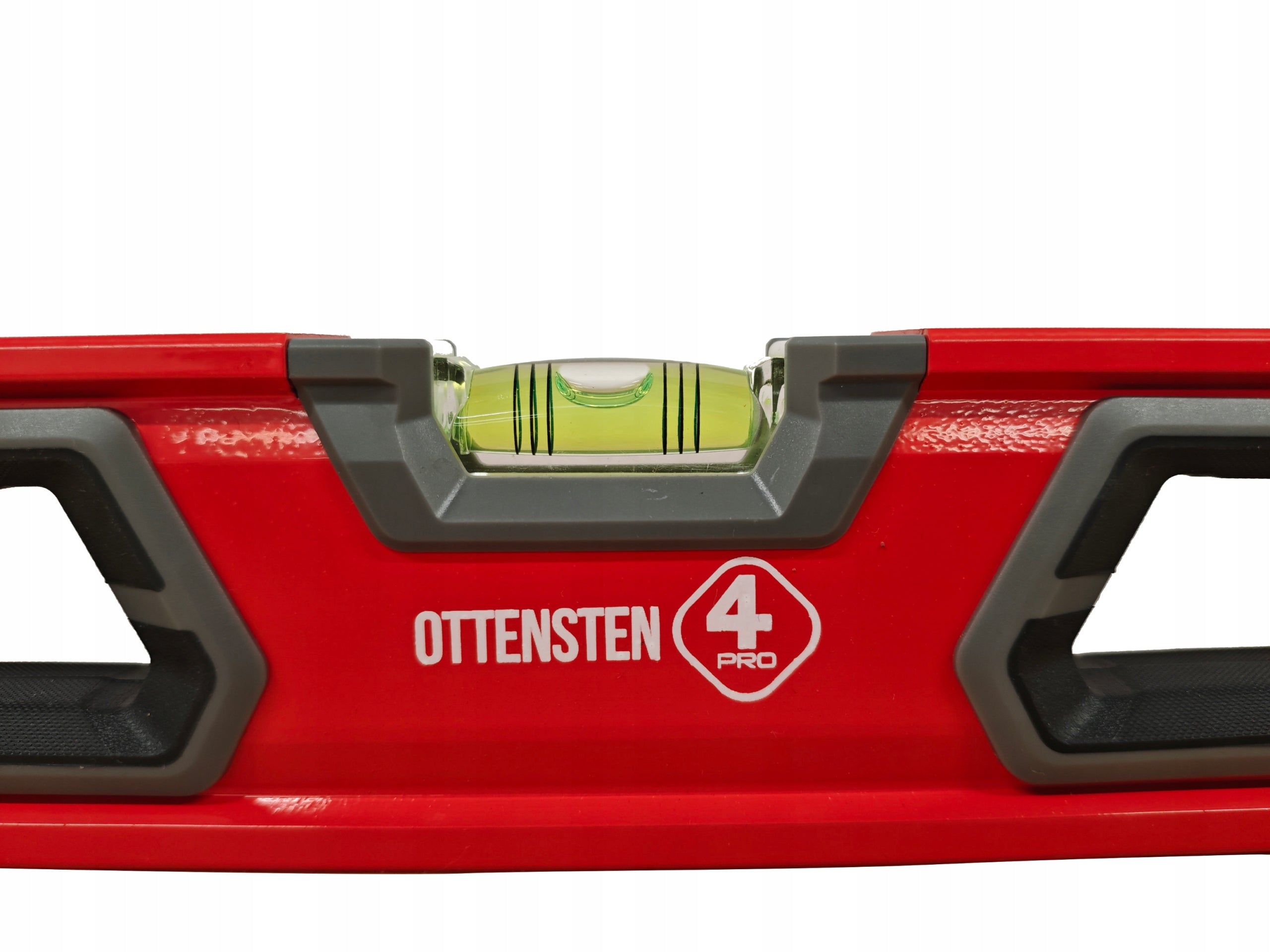

• The tool is equipped with three libells (vials): horizontal (180°), vertical (90°) and angular (45°). Oval libella with triple lines facilitates quick and unambiguous reading.
• End caps made of TPR (plastic rubber) material effectively absorb drops and impacts, protecting the level profile from damage
• Non-slip, molded handle provides a secure and comfortable grip, even when working in harsh environments
• Libella 90° is equipped with an additional window (so-called. "plumb-site"), which allows for convenient reading of vertical measurement without the need for unnatural bending of the head.

Technical data:

• Length: 120cm
• Number of Libellas: 3(1x vertical, 1x level, 1x 45st)
• Accuracy: 0,5mm/m
• Material: Aluminum
• Resistance temp. -10°C - +50°C
• Manufacturer code: 4PROL600

Application:

• Assembly of GK boards – vertical positioning of the skeleton and plates.
• Tile laying – plane control when grouting.
• Painting work – leveling countertops, shelves, frame construction.
• Sanitary installations & HVAC – leveling of pipes thanks to V-groove and magnets.
• Construction and renovation – checking lintels, overflows and screeds.
• Assembly of shelves, cabinets and paintings.
• Setting household appliances (washing machines, refrigerators).
• Stacking tiles on smaller surfaces

Advantages:

✅ Does not scratch the surface – rubber fenders absorb impacts.

✅ Clear reading – enlarged libell eyelets with UV resistant liquid.

✅ Light but rigid – the profile with reinforcing ribs weighs only 700 g.

Proper use of the level is crucial for accurate measurements.

1. Place the tool with the entire milled surface on the test object. Make sure it adheres firmly and stably.
2. Look perpendicularly at the appropriate libella.
3. Use a horizontal libella (180°).
4. Use vertical libella (90°).
5. Use a libella set at an angle of 45°.
6. If the air bubble is exactly between the inner lines, it means that the object is perfectly leveled or upright. If the bubble is shifted, correct the position of the object until the bubble is in a central position.
7. To make sure that the level is working properly, place it on a fairly even surface and note the position of the bubble. Then turn it 180° horizontally and place it in the same place. The bladder should be in the same position. If this is not the case, the level can be calibrated.
8. If the measured area is longer than your level, use an even and simple patch (e.g. aluminum), put it on the object, then place the level on the patch.
9. Regularly clean the milled edges of the level. Dirt, dust or mortar residue can affect the accuracy of the measurement.
10. Store the level in a hanging or lying position on a flat surface. Avoid leaning it at an angle against the wall for long periods of time to prevent the body from bending.
11. If your level model has magnets, use them to attach the tool to metal components such as steel profiles or pipes. This ensures stability and frees your hands to work
