Trumpai apie prekę
Prekė: Lubų garsiakalbis Monacor EDL-62HQ baltas. Kategorija: Lubos.
- Gamintojas: Monacor
- Modelis: EDL-62HQ
- Spalva: white

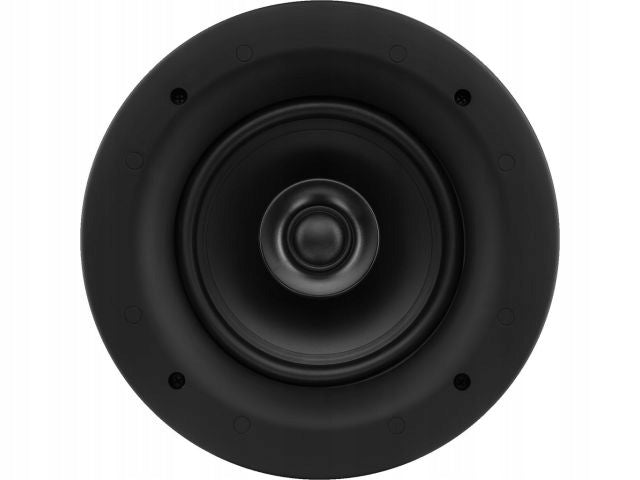

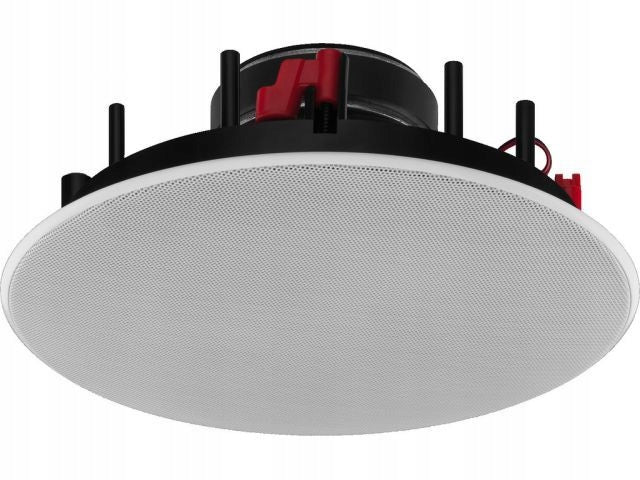

Monacor EDL-62HQ
HiFi and PA Ceiling Speaker, 30WRMS
- Technique 100V, audio transformer with 4 power detachments
- 2-way version with coaxial tweeter
- 16 cm (6½") bass speaker with waveguide and 25mm (1") tweeter with silk dome
- Very good sound characteristics
- Stylish metal grille with thin plastic frame, magnetically attached
- For ceilings from 6 to 35mm thick
Technical specification:
- Impedance (Z): -
- Technique: 100 V
- Frequency Response: 50-20000 Hz
- Resonant Frequency (fs): 60 Hz
- Zal. common. crossover (fmax) (12dB/oct. ): -
- RMS rated power: 30/16/8/4W
- Musical Power: -
- Sensitivity: 89 dB/W/m
- Max SPL: -
- Max Voltage: -
- Radiation angle horizontal: -
- Vertical Radiation Angle: -
- Vulnerability moss. Suspensions (Cms): -
- Mobile mass (Mms): -
- Mechanical Goodness (Qms): -
- Electrical Goodness (Qes): -
- Total goodness (Qts): -
- Equivalent volume (Vas): -
- Coil Resistance (Re): -
- BxL Ratio: -
- Coil Inductance (Le): -
- Coil Diameter: -
- Coil Body Material: -
- Linear tilt (X< SUB>MAX< /SUB>): -
- Pow. active meme. (Sd): -
- Magnet Weight: -
- Magnet Diameter: -

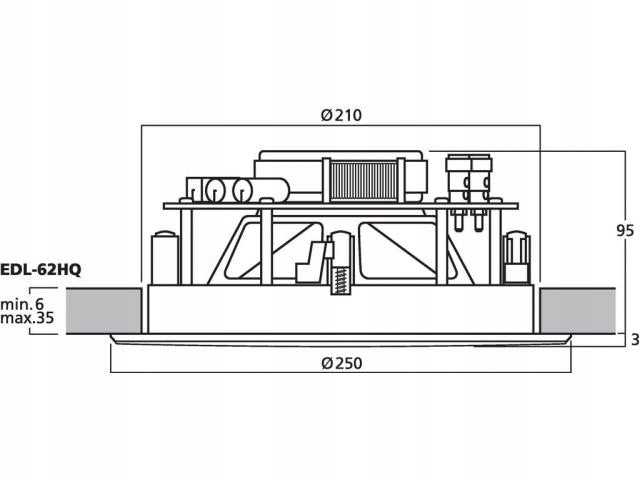

- Mounting hole: Ø210 mm
- Mounting depth: 95 mm
- Mounting hole diameter: -
- Hole spacing X: -
- Hole spacing Y: -
- Dimensions: Ø 250mm x 98mm
- Outside diameter: Ø250 mm
- Width: Ø250 mm
- Height: -
- Depth: 98 mm
- Leak-proof class: -
- Allow it. temp. Environment: -
- Weight: 1,82 kg
- Quantity: 1
- Speaker Type: 165
All Monacor products are made of the highest quality materials, with full care.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Monacor |
| Parametry | Type | ceiling speaker |
| Parametry | EAN (GTIN) | 4007754254686 |
| Parametry | Model | EDL-62HQ |
| Parametry | Manufacturer code | EDL-62HQ |
| Parametry | Product width | 25 cm |
| Parametry | Product height | 25 cm |
| Parametry | Product depth | 10 cm |
| Parametry | Color | white |
| Parametry | Product weight | 1820 g |
| Parametry | Rated RMS power | 30 W |
| Parametry | Frequency response | 50–20000 Hz |
| Parametry | Rated impedance | 8 Ω |
| Parametry | Mounting hole diameter | 21 cm |
| Parametry | Minimum mounting hole depth | 9.7 cm |
| Parametry | Number of items | 1 pcs |
| Parametry | Product weight with unit packaging | 3 kg |
| Parametry | Packaging status | original |
