LPG sąsaja Landi Renzo AEB OMEGAS KING PTftdi8

Trumpai apie prekę

Prekė: LPG sąsaja Landi Renzo AEB OMEGAS KING PTftdi8. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: PTftdi8

INTERFACE LPG USB FTDI - professional version 4m with protection and LED signal in the housing

interface model: PTftdi8

A THOROUGH READING OF THE DESCRIPTION OF THIS AUCTION, IN PARTICULAR THE PURPOSE OF THE INTERFACE, WILL AVOID MISUNDERSTANDINGS

PAID SOFTWARE IS NOT PART OF THE SET

BEFORE DECIDING TO PURCHASE, PLEASE ENSURE YOU:

1. CHECK CAREFULLY which installation model you have under the hood.
2. MAKE SURE this interface model supports your vehicle's LPG control unit (Be sure to REVIEW the supported controllers table below).
3. If you have a factory LandiRenzo installation (e.g., Omegas EVO) - check if the diagnostic connector is accessible and if the control unit can be reached.

Professional LPG and CNG diagnostic interface with one connector

USB 2.0 + 4m cable with screen + FTDI branded electronics + LED signaling + surge protection from WN installation (additional electronic circuits and double shielded cable)

4 meters of cable allows for convenient diagnostics directly from the vehicle cabin

The interface works with Windows 11 and all previous versions.

In this auction we offer an interface with 1 selected connector. made in Poland, the highest quality and durability, ready to work in vehicle maintenance workshops.

SIGNALING LED IN HOUSING:

• READY - the LED lights up only after the drivers are installed correctly
• IN - transmission signalling (transmits the vehicle)
• OUT - transmission signaling (gives an interface)

The capabilities of our device:

• reading the operating parameters of the gas system (gas and MAP pressure, temperature, gasoline and gas injection times, engine speed, etc. )
• reading and erasing diagnostic errors in the gas controller
• reading and modification of maps and multiplier
• auto-calibration
• change of installation parameters (after possible replacement, you can change the type of injectors, sensors, etc. so that the controller can control them more precisely)
• tests of implementing elements
• in newer drivers you can update the firmware
• modification of petrol injection
• modification of temperature and switching speed
• calibration of the gas level indicator in the tank
• deleting, enabling or completely disabling the service reminder (so-called. call for service for inspection)

And many others that you have done so far in the workshops.

NOTE: the scope and number of options depends on the type of your LPG installation, some drivers have a limited number of functions so the interface will only support those that are available in a given vehicle.

Connection 8

• A-MAX: King
• A.E.B.: ALFATRONIC PRIDE, EMMEGAS, GreenGas, KING (MP48) and new models with this connector
• BIGAS: SGisN, SGisN OBD
• ELPIGAZ: Stella, Maris, Polare and all new systems with this connector
• E.G.S. (Euro Gas Service): Eco Diesel
• EMER: Emer
• ENERGY REFORM: Energy Reform
• Gasitaly: GasItaly
• GI - F1, F3, F5
• JIEXING: JXECU-04, JXECU-06, JXECU-08
• LANDI RENZO: IGSYSTEM, LCS/2, LCSA1/05, LCSE, OMEGAS and new models
• MegaJET: MegaJet (A.E.B. System)
• NLP: Techno Eco, NLP CNG Otogaz
• OMVL: dream xxi-n/p, dream xxi-n/p eobd - models with this connector
• ULTRAGAS: MINT-XI UltraGAS, RSI+
• ROMANO: RIS , RIS N, ECU-PM48, ANTONIO
• TARTARINI: EVO 1
• VOGEL: VGI
• Zavoli: Alisei N

and many others...

TECHNICAL DATA

• Workshop purpose and for personal use
• interface electronics have been equipped with in protection systems against OVERVOLTAGE (m.in. from the WN system) and REVERSE POLARITY (e.g. connector error, which often happens in workshops)
• Built-in security, when connected, protect the USB port in the computer (when connected, the interface electronics protect the power line in the USB connector! ) and the entire communication path to the ECU in the vehicle
• 100% original FTDI converter - stable operation in any operating system
• Support FOR ALL gas controller functions - you will do the same as the workshop
• TTL/CMOS compliant (full 5V on lines, CMOS switching levels with hysteresis as another communication protection)
• 4 meters of solid cable (copper braid + alu screen) - length allows adjustment from the interior of the vehicle
• Reinforced tips (thermo shirts with glue)
• 3xLED in interface housing
• Production in SMD technology
• Current additional protection systems (overvoltage and reverse polarity resistance)
• possibility of expanding the interface through the included adapters
• Protection class IP4x
• tight and ergonomic housing protects electronics, cable flanges protect the cable and connections with PCB from breaking and tearing
• 5V power supply from USB socket, current during operation does not exceed 50mA (acceptable current for USB standard is 500mA, so there is a large supply)
• Product Polish (production in Silesia)

SET CONTENTS:

• New LPG interface with selected connector
• User manual in Polish (we send a printed version and allow downloading . pdf)
• Technical support and access to a free database of LPG control programs

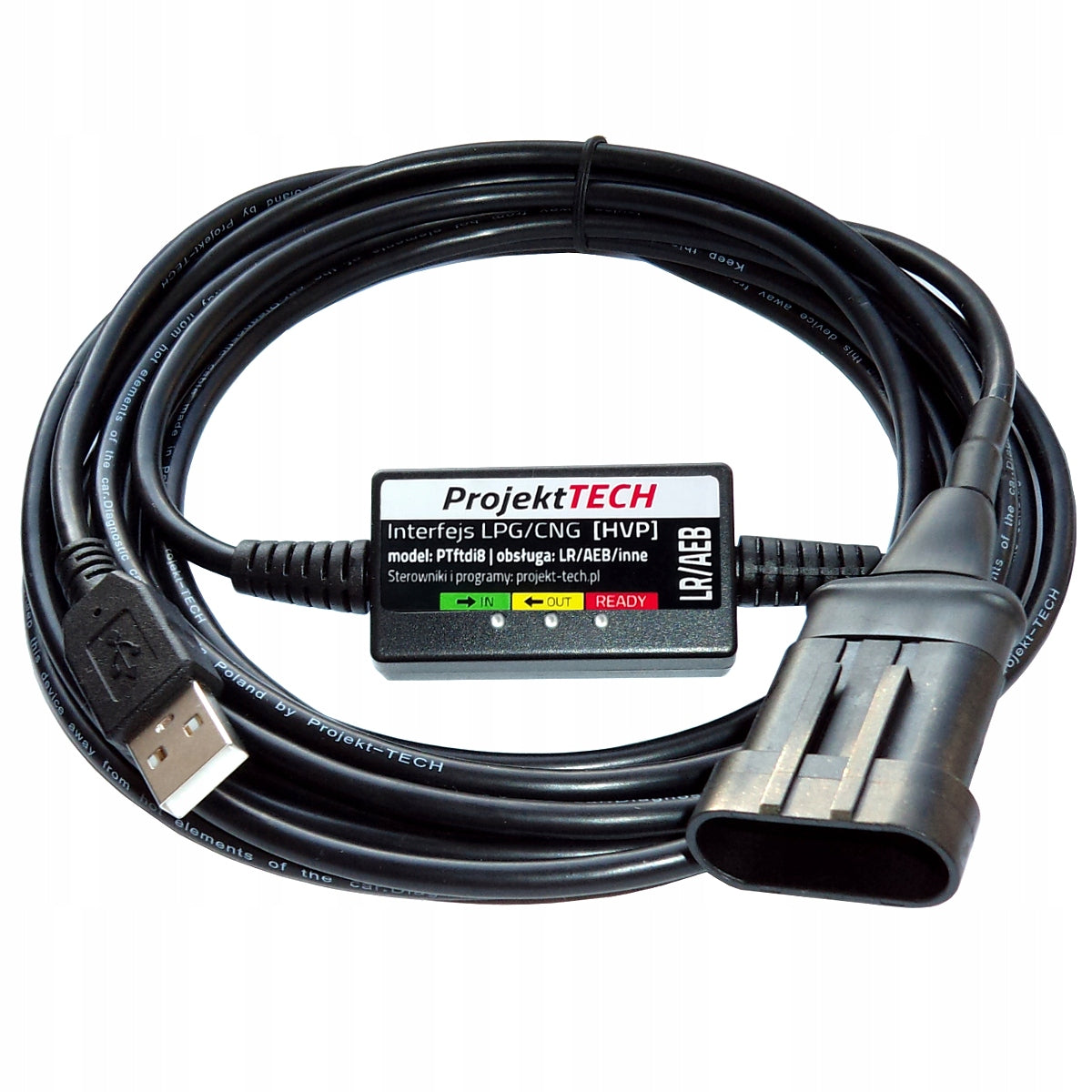

Actual photos

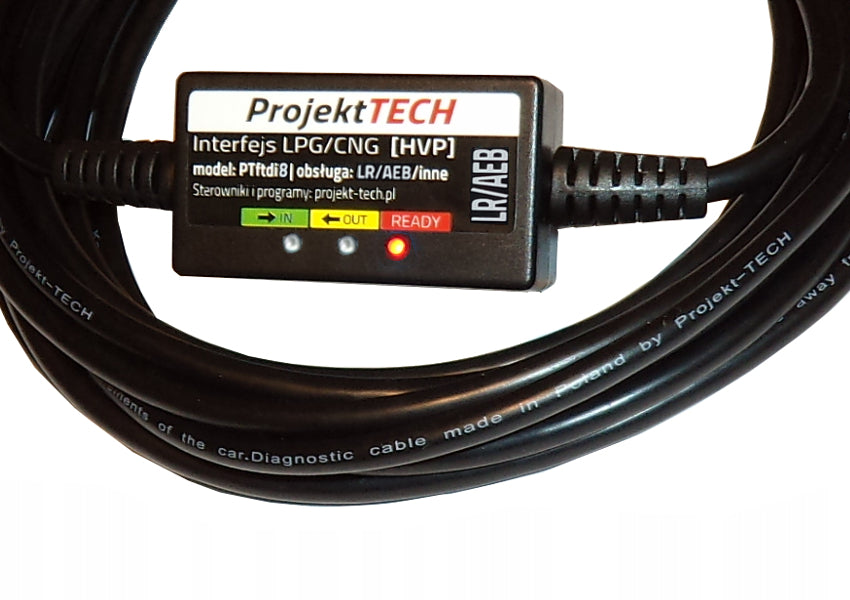

LED SIGNALLING

Specifications
