Trumpai apie prekę
Prekė: Litavimo lydmetalio išsiurbėjas ZD-915. Kategorija: Litavimo geležtės.
- Gamintojas: Xtreme
- Modelis: ZD-915
- Galia: 140 W
- Įtampa: 1 V

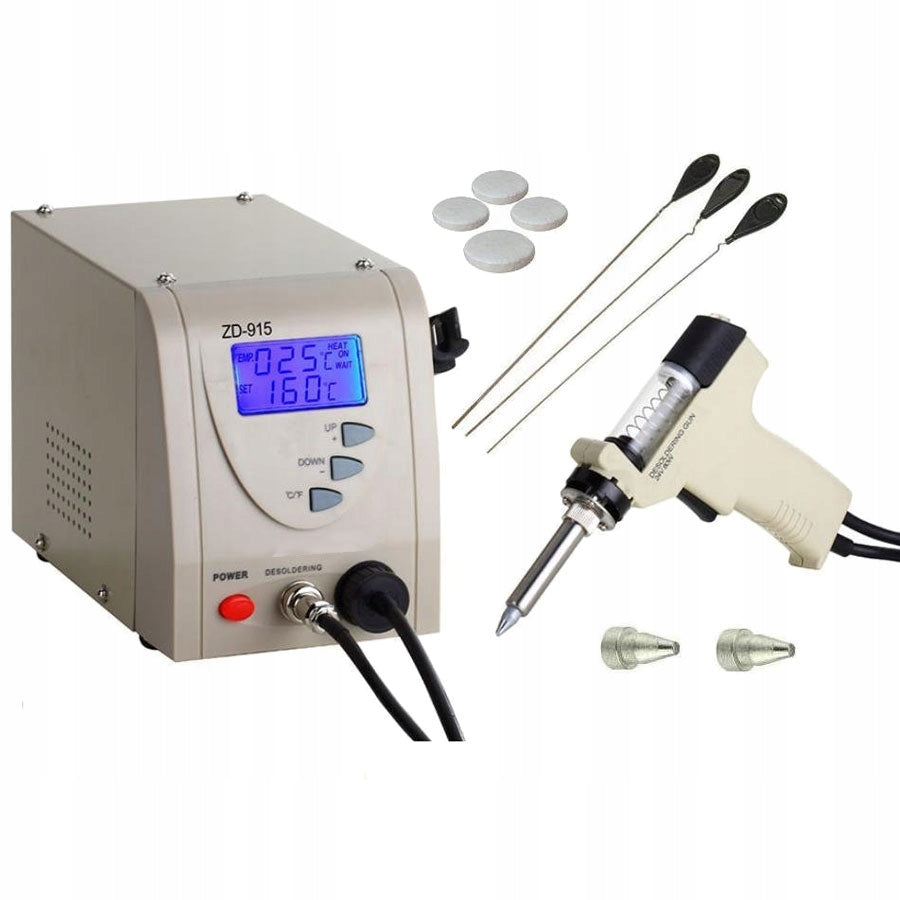

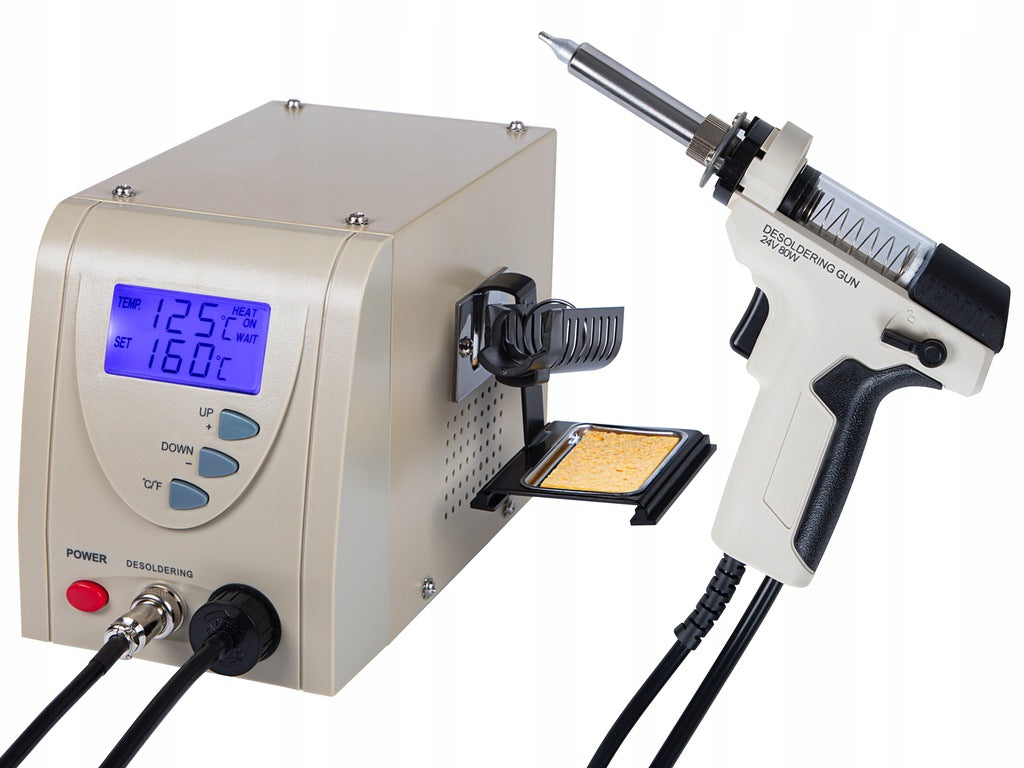

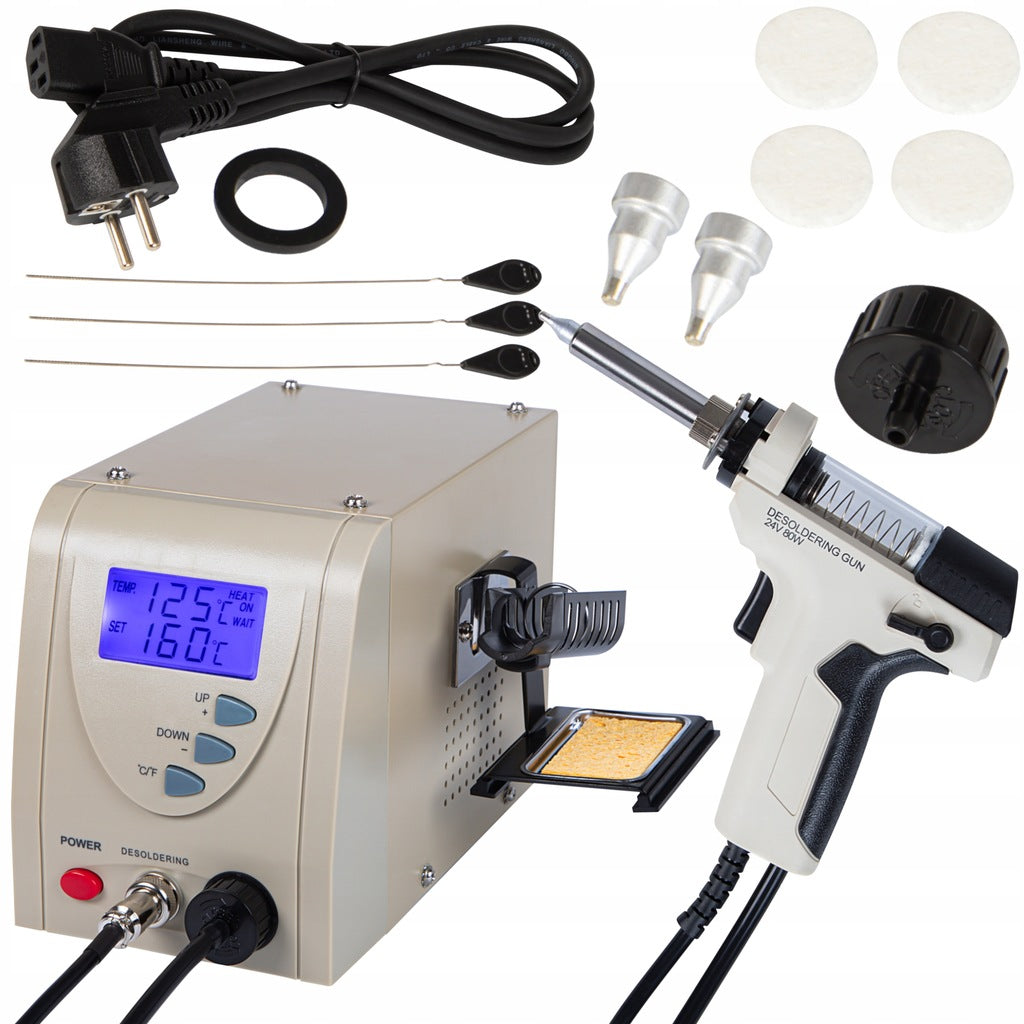

The ZD-915 desoldering station, manufactured by reputable company ZD Zhongdi, is a universal tool designed for professional soldering and desoldering of electronic components from PCB printed circuit boards. Thanks to its compact size, this model is ideal for both electronic services and hobby workshops.
The main advantage of ZD-915 is its multifunctionality. The device is equipped with an ergonomic pistol handle with desoldering function, which allows fast and precise removal of tin from one-sided and double-sided printed circuit boards.
The station offers a wide range of temperature control – from 160 °C to 480 °C, which allows you to adjust the settings to the type of solder and the specifics of the work performed. In addition, the PTC sensor in combination with the microprocessor control provides smooth and stable temperature control at the tip of the tip, which translates into greater precision and safety of use.
Technical parameters – desoldering station ZD-915
✔ Manufacturer: ZD Zhongdi
✔ Model: ZD-915
✔ Type: desoldering station / desoldering machine / electric extractor for tin
✔ Built-in compressor
✔ Pressing the trigger in the gun causes automatic start of the compressor and suction of molten tin
✔ Perfect for services – desoldering THT elements, multi-leg systems, displays
✔ Temperature control of the tip with buttons
✔ Smooth temperature control thanks to built-in sensor
✔ Temperature range: 160 – 480 °C
✔ Switch between °C and °F scale
✔ Power on/off switch located at the front of the station
✔ Total power: 140 W (temporarily up to 180 W)
✔ Pump power: 600 mm Hg
✔ Built-in LCD display with blue backlight
✔ Simultaneous display of set and current temperature
✔ Display of operating mode: waiting / warming up
✔ Replacement of the tip by unscrewing the sleeve
✔ Pistolet with tank for suctioned tin
✔ Replaceable filters to protect the compressor from dirt
✔ Includes soldering wheel ZD-533P
✔ Heater power in flask: 80 W
✔ Heater power supply: 24 V
✔ Heating element: ceramic heater
✔ Simple operation
✔ Compact sizes
✔ Dimensions: 290 × 220 × 190 mm
✔ Weight: 4,5 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Power | 140 W |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | Manufacturer code | CB-71533 |
| Parametry | EAN (GTIN) | 5900804007586 |
| Parametry | Maximum operating temperature | 480°C |
| Parametry | Brand | Xtreme |
| Parametry | Minimum operating temperature | 160°C |
| Parametry | Model | ZD-915 |
| Parametry | Supply voltage | 1 V |
| Parametry | Power supply | mains |
| Parametry | Kind | heater (resistance) |
| Parametry | Batteries included | no |
| Parametry | Certificates of conformity | CE,WEEE |
