Li-ion baterijos priedas Raspberry Pi, 5V išėjimas, SKU: 15141

Trumpai apie prekę

Prekė: Li-ion baterijos priedas Raspberry Pi, 5V išėjimas, SKU: 15141. Kategorija: Priedai.

• Gamintojas: no brand
• Modelis: Li-ion Battery HAT

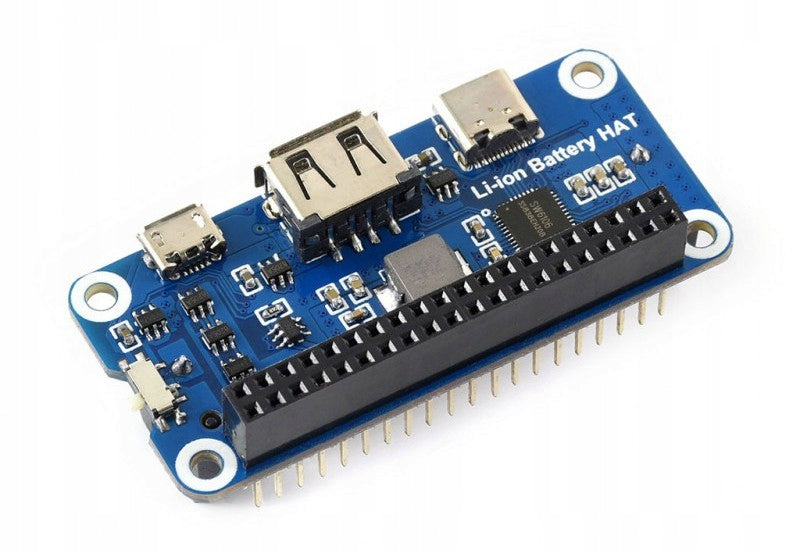

The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device. It will charge the battery as well, supports bi-directional quick charge. This module can be used as a universal mini power bank, also works with other 5V devices.

• The SW6106 chip supports two-way fast charging, and many charging protocols, such as: PD/QC/FCP/PE/SFCP
• Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection
• LEDs indicating: fast charging, warning against the reversed battery (erroneous polarity), battery charge level.

• Output Voltage: 5V
• Battery type: 3.7V 14500 lithium battery (4.2V when full charged)
• Dimensions: 65mm × 30mm
• Mounting holes, diameter: 3.0mm

Additional information: Wiki : www.waveshare.com/wiki/Li-ion_Battery_HAT

1. Raspberry Pi GPIO connector: for connecting Raspberry Pi
2. SW6106 power management chip
3. USB Type-C connector: battery charge/power output
4. USB Type-A connector: power output
5. Micro USB connector: battery charge
6. Raspberry Pi power switch
7. Battery warning indicator: on when the battery is reverse
8. Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
9. Quick charge indicator: on when quick charging

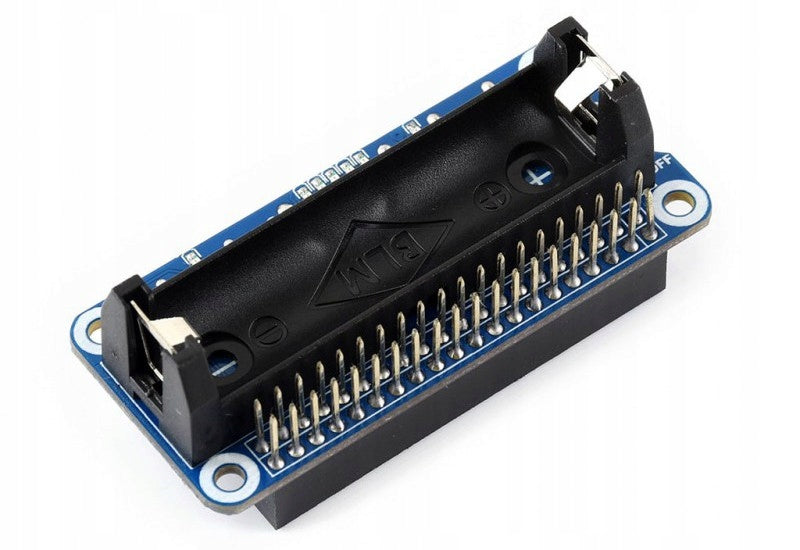

10. 14500 battery holder

Included:

1. Li-ion Battery HAT x1
2. RPi screws pack (2pcs) x1

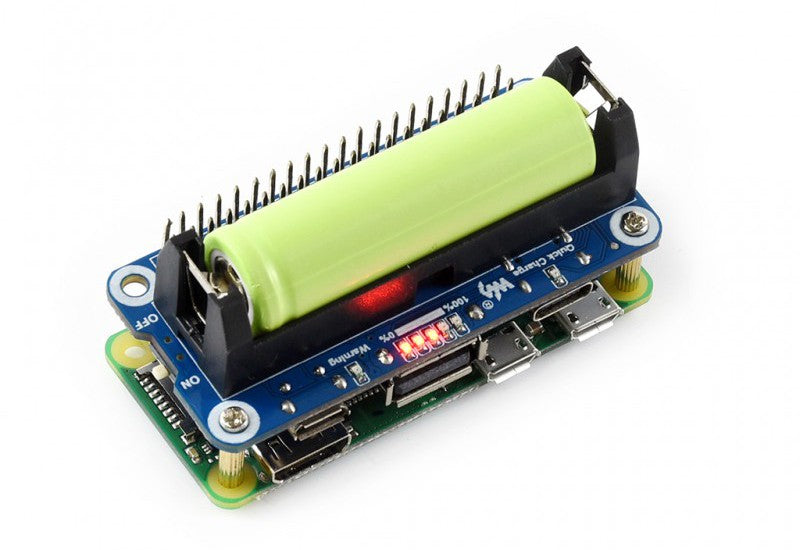

The battery and Rpi modules visible in the pictures are not included in the sold set.
