LCD jutiklinis ekranas 10,1'' IPS, 1280x800, HDMI, USB

Trumpai apie prekę

Prekė: LCD jutiklinis ekranas 10,1'' IPS, 1280x800, HDMI, USB. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 11769

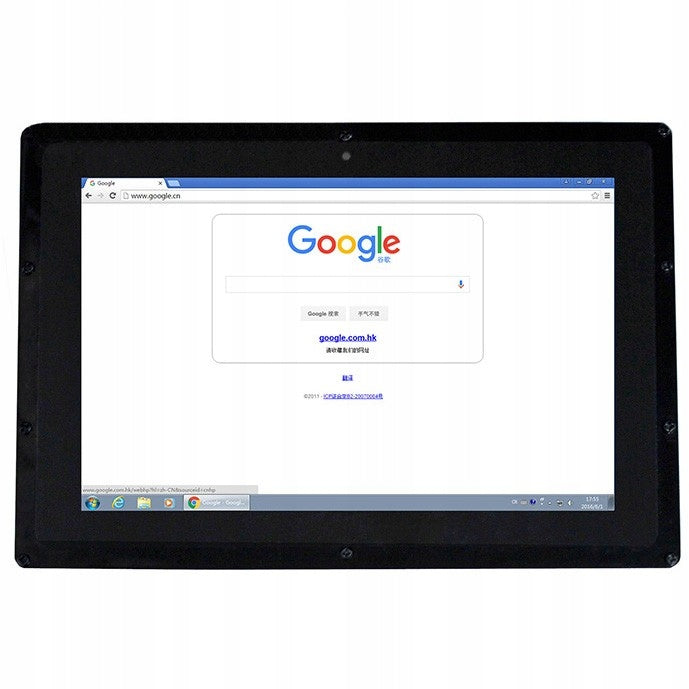

Screen with IPS matrix 10,1'' 1280 x 800 px from Waveshare. It has a capacitive touch panel. Works with Raspberry Pi version 4B, 3B+, 3B+ 2B, 1B+, 1B, 1A and Zero W via HDMI and USB cable. The set also includes a black case that houses a minicomputer with a screen attached.

Index: WSR-06803

Connection with Raspberry Pi

To start the screen, connect the device to the Raspberry Pi via the included HDMI and microUSB cables. HDMI connector transmits image, USB port receives touch interface data. In addition, additional power supply must be connected to the screen (the power supply is included).

Software

The screen works with the latest Raspbian system without the need to install drivers. However, in order for the screen to display the image correctly, you need to change the resolution in the configuration file. To do this, open the config.txt file with the command:

• sudo nano /boot/config.txt

and then at the end of it add the following instructions:

• max_usb_current=1
• hdmi_group=2
• hdmi_mode=1
• hdmi_mode=87
• hdmi_cvt 1280 800 60 6 0 0 0

After saving the file and restarting the raspberry, the image and touch function should work properly.

A detailed description of the connection can be found on the manufacturer's website.

Specification

• Type: touch screen, capacitive
• Diagonal: 10,1 "
• Resolution: 1280 x 800 px
• Works with:
• Rasbperry Pi version 4B, 3B+, 3B 2B and B+ (works directly with the system from the manufacturer)
• Beagle Bone Black
• Banana Pi / Banana Pro
• Windows version 7 / 8 / 8.1 / 10
• It also works with all HDMI devices (touch function is not available then)
• 4 mounting holes (screws are included)
• Screen dimensions: 135,60 x 216,96 mm
• External dimensions of the frame: 274,11 x 187 mm
• Housing in black
• Material: acrylic

Housing installation

The case allows you to mount the screen along with the Raspberry Pi minicomputer in the back.

Detailed installation instructions can be found on the manufacturer's website.

The set includes

• 10,1" touch screen,capacitive
• HDMI cable
• 5V 2A power supply for screen power
• Mounting Screws
• USB cable - microUSB for touch interface
• Housing for Raspberry and screen - black

The photo shown in the auction gallery comes from various exhibitors. Only the information and photos visible directly in the listing description show the product we offer.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	Waveshare 11769
Parametry	Manufacturer	WaveShare
Parametry	Kind	Display
Parametry	EAN (GTIN)	5904422375294
