Trumpai apie prekę
Prekė: Lazerinis nivelyras 12 linijų su imtuvu. Kategorija: Lazeriniai gulsčiukai.
- Gamintojas: Firecore
- Modelis: F93
- Ilgis: 24 cm
- Svoris: 2 kg

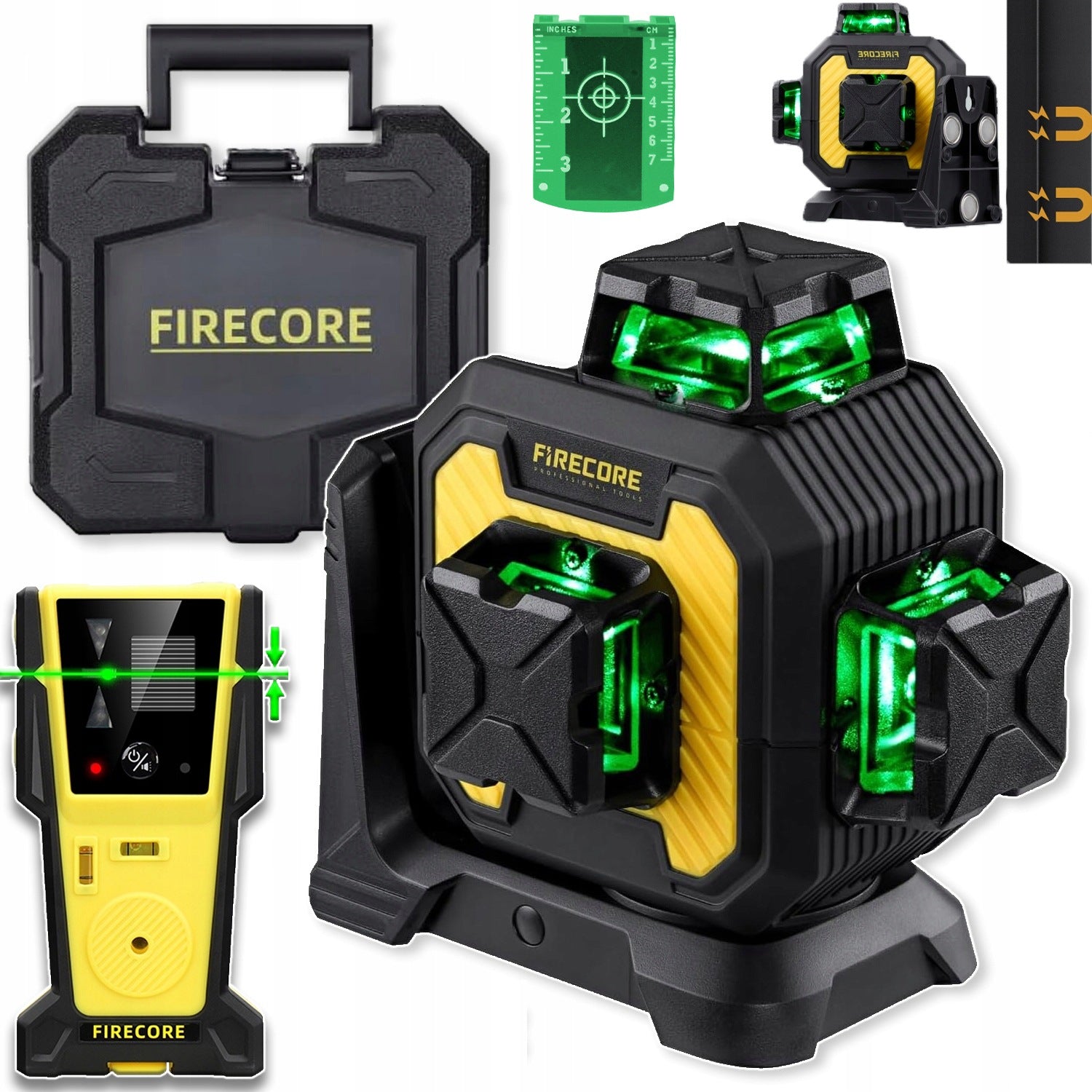

📦 Contents of the pack:
1X laser level
1X receiver
1X Carrying Case
1X Charger
1X Charging Cable
1X laser target
✅ TECHNICAL DATA:
Brand: FIRECORE
Model: F93
Laser beam color: green
Accuracy: +/- 2 mm/10m
Self-leveling tolerance: 3.5°
Pendulum stabilization time: < 4 s
Number of lines/crosses: 12 lines / 6 crosses
Battery: 3.7V 4400 mAh Li-Ion
Battery life: up to 8 hours
Charging time: up to 3 hours
Measuring range (diameter): 30 m (2 to 60 m with receiver)
Laser class: II, < 1 mW
Working with beam detector: Yes
Number of heads 360°: 3 (1 horizontal, 2 vertical)
Attachment: 1/4", 5/8"
Dimensions: 140 x 130 x 110 mm
Set weight: 1.5 kg
Packaging: suitcase
✅ Self-leveling mode:
When the instrument is turned on, when the angle of inclination exceeds 3.5°, the laser line will flicker twice per second so that it can be detected whether the instrument is flat or not.
✅ Manual mode:
Off state, press and hold the "*" key for about 3 seconds until a laser beam appears, the laser line will flash every 5 seconds without alarm. A short press of "V/H"can switch laser lines. And it can be operated at the selected angle. Long press the "*" key or turn off the power to turn off this mode.

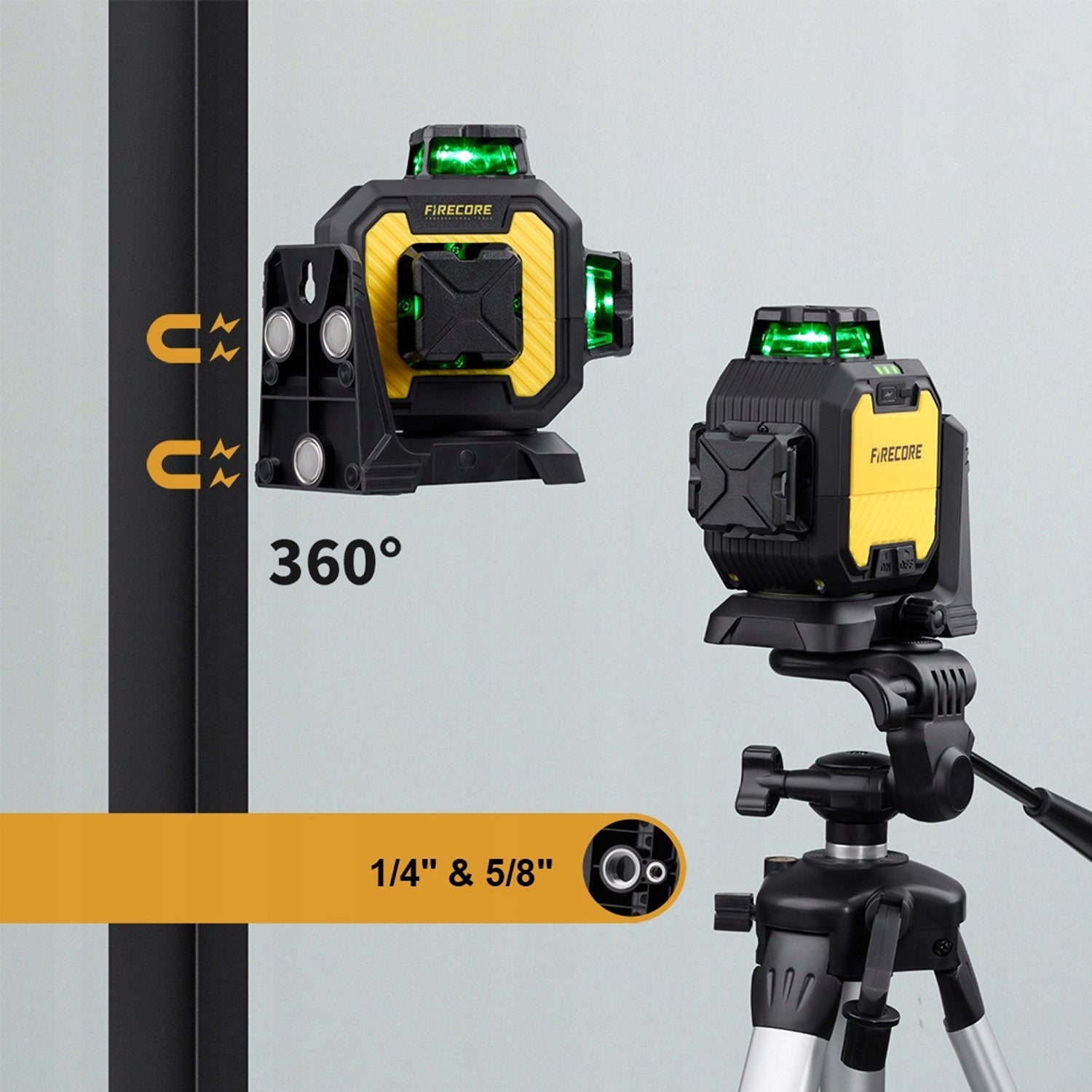

✅ Durable construction and integrated magnetic holder:
Robust construction with molded coating, ensuring resistance to water and dust in accordance with IP54. The 360° rotating base with micro-adjustment knob allows precise vertical line adjustment and vertical point setting for increased accuracy and precision. Multifunctional magnetic holder with built-in 1/4 and 5/8 threads and a hole for hanging – allows attachment to steel posts, wooden surfaces and tripod
✅ Pulse mode:
How to use the receiver with F93 laser level?
1: First turn on the laser level pulse mode——Turn on the state, press and hold the "receiver" button for about 3 seconds to enter pulse mode. Right receiver indicator light is constantly on; Press and hold again for 3 seconds to exit pulse mode
2: Secondly, turn on the receiver and search the laser lines.
Note: In combination with the FIRECORE receiver, it can be used up to a distance of 60 meters

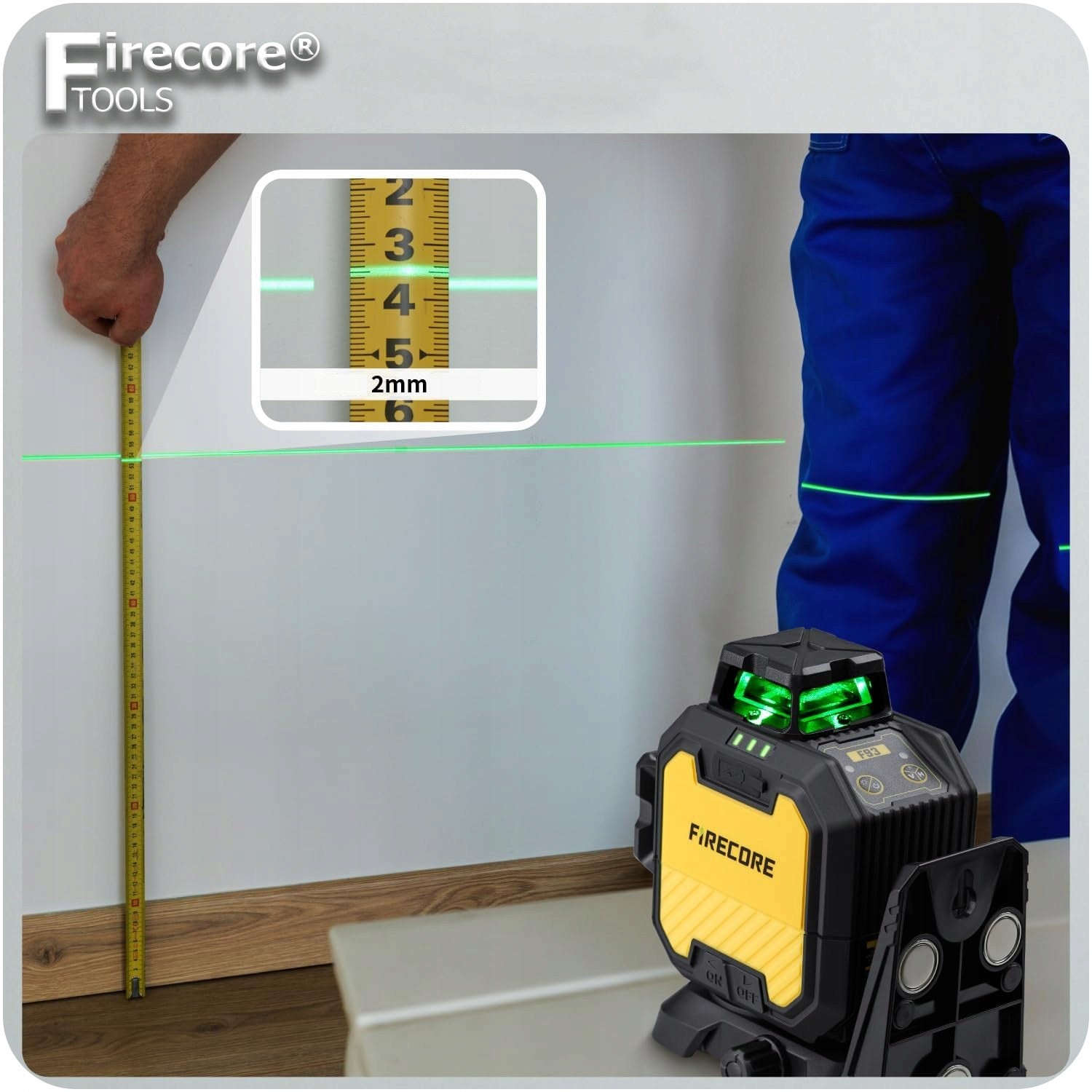

✅ 12 laser lines with full 360° range:
The Firecore three-plane self-leveling linear laser displays three planes with a range of 360°, including one 360° horizontal line and two 360° vertical lines, enabling precise and fast alignment, leveling, verticality and perpendicularity checking, allowing you to easily delineate large areas with a single tool. Safety class II, output power < 1 mW
✅ Continuous work:
This 360 laser tool, equipped with 4400 mAh lithium-ion batteries, provides up to 8 hours of continuous operation. Three indicators on the battery allow users to check the current level of charge, which guarantees uninterrupted implementation of all tasks related to determining. To further extend the working time, you can adjust the intensity of the laser line (100/75/50 percent), which has the added advantage of thinner laser lines
✅ Brightness Adjustment:
On state, short "*" button to switch brightness.
a.The default brightness at startup is 100% (left brightness indicator light is not on)
b.75% brightness (control lamp flashes slowly)
c.50% brightness (control lamp flashes fast)
✅ TECHNICAL DATA (RECEIVER):
Model: FD30
Thread: 1/4''
Horizontal operating range: 2 to 60 m
Accuracy: ±1.5 mm
Built-in spirit level: Yes (vertical, horizontal)
Visual indicator: Yes (on both sides)
Audible indicator: Yes (can be turned off)
Power Supply: 2 AAA batteries included
Dimensions: 170 x 85 x 90 mm
Set weight: 280 g
Accessories included: mounting, batteries, user manual
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Type | cross-line |
| Parametry | Brand | Firecore |
| Parametry | Model | F93 |
| Parametry | Power supply | rechargeable battery |
| Parametry | Maximum working range | 30 m |
| Parametry | Measurement accuracy (+/-) | 2 mm |
| Parametry | Number of laser beams | 12 |
| Parametry | Laser color | green |
| Parametry | Horizontal line display angle | 360° |
| Parametry | Vertical line display angle | 360° |
| Parametry | Protection rating | IP54 |
| Parametry | Product height | 26 cm |
| Parametry | Product width | 15 cm |
| Parametry | Length | 24 cm |
| Parametry | Weight | 2 kg |
| Parametry | Manufacturer code | F93 poziomica laserowa |
| Parametry | EAN (GTIN) | 747759310072 |
| Parametry | Packaging status | original |
| Parametry | Additional features | pendulum lock,360° laser,works below zero degrees Celsius,receiver included,cover included,self-leveling,target plate included |
| Parametry | Certificates of conformity | CE,WEEE |
