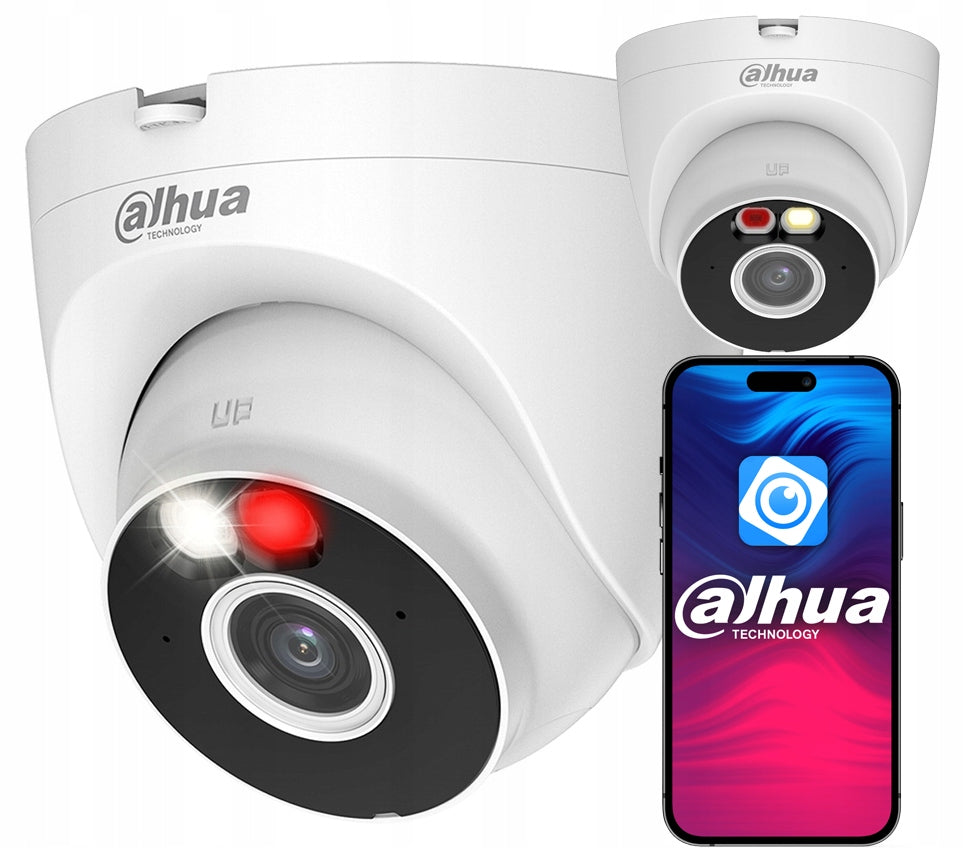

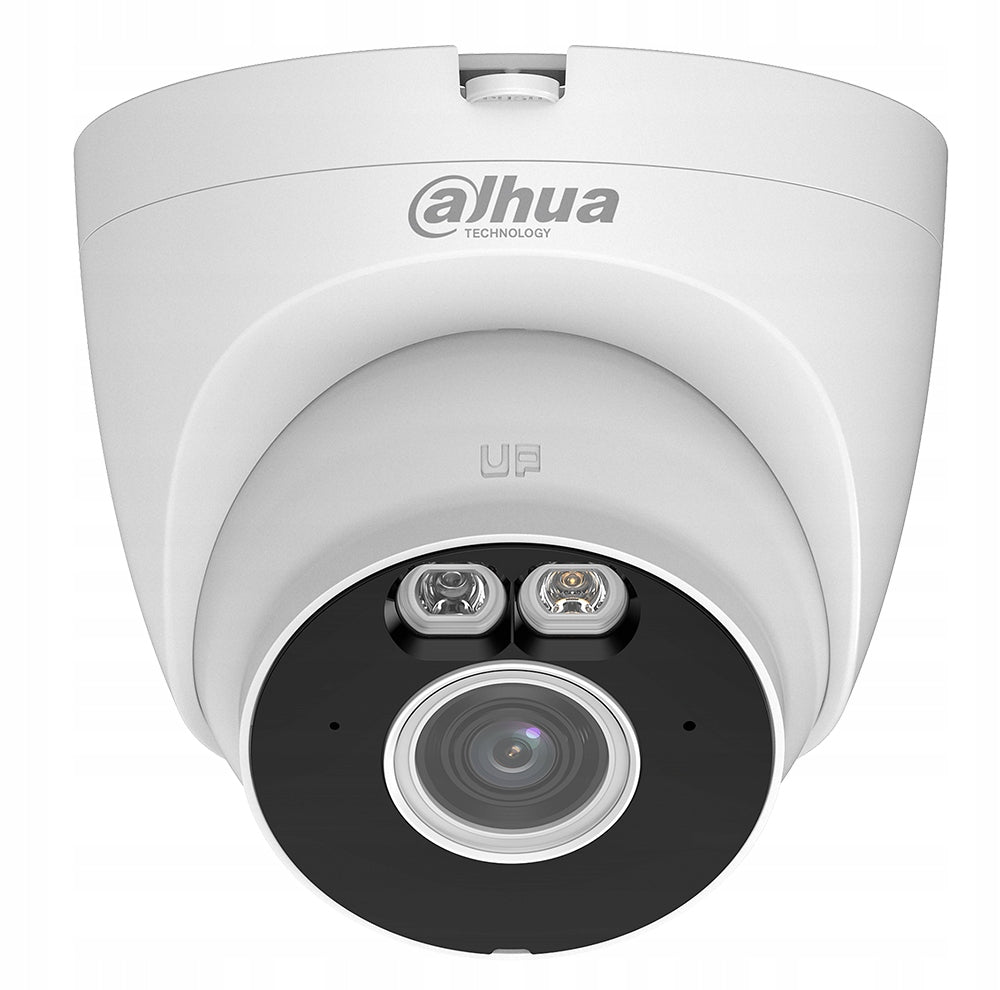

Lauko WiFi kamera Dahua T4A-PV, 4MPx, dvigubas apšvietimas, mikrofonas, garsiakalbis

Trumpai apie prekę

Prekė: Lauko WiFi kamera Dahua T4A-PV, 4MPx, dvigubas apšvietimas, mikrofonas, garsiakalbis. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: T4A-PV-0360B

The T4A-PV model by Dahua is a compact camera with a built-in WiFi module. The camera has a 2.8 mm fixed focal length lens and a 1/3” CMOS sensor that operates at a resolution of 2560×1440 (4Mpx) .

The device also has built-in IR and LED white light radiators with an operating range of up to 30m. It allows you to work in 3 illuminator modes - IR only, white light only or Smart mode - IR + white light. In addition, the device has the functions of BLC, HLC, DWDR, AWB, AGC, 3D NR which adjust the operation of the camera to the prevailing conditions and significantly improve the image quality.

The camera housing was created in the IP67 standard. The camera is powered by 12V DC.

Technical parameters:

• Transducer: 1/3" PS CMOS
• Resolution: 4Mpx (2560 x 1440)
• Lens: 2.8mm
• Viewing angle: H: 98°
• IR illuminator: Yes, range up to 30m
• White light illuminator: Yes, range up to 30m
• Built-in microphone: Yes
• Built-in speaker: Yes
• Built-in Wi-Fi module: IEEE802.11b/g/n 2.4 – 2.4835 GHz; 2.4 G
• Built-in SD slot: Yes, card up to 256GB
• Configuration and remote operation: VMS software (Smart PSS, DSS Express, DSS PRO), WEB browser, mobile applications
• Image compression: H.265+ / H.265 / H.264+ / H.264
• Examples of intelligent functions: human/vehicle object classification
• Active deterrence: Yes
• Smart Dual Light: Yes, dual illuminator
• Protection class: IP67
• Power supply: 12V DC
• Power consumption: < 6.9 W
• Dimensions: Φ109.9 mm × 102.2 mm
• Weight: 353g

The T4A-PV WiFi camera by Dahua has a double night mode - it allows you to record at night the image in shades of gray in infrared and in full color mode, using a white light illuminator. With this feature, you can easily recognize the colors of your intruder's clothes, even when they sneak in complete darkness. In addition to the deterrent function, the white light illuminator can also act as additional lighting for your property, activated by movement.

The Wifi T4A-PV dome camera has a intelligent motion detection algorithm, which can recognize the human figure. Thanks to this technology, the camera effectively reduces the number of false alarms caused by irrelevant objects (e.g. leaves of trees, insects).

In addition to precise detection of intruders, the camera can also effectively deter them - thanks to the built-in speaker and LED, the camera will effectively deter an unwanted guest when he enters the area protected by the camera.

• Converter: 1/3" CMOS
• Scanning system: Progressive
• Maximum resolution: 2560 x 1440
• Sensitivity: 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6(B/W, 30 IRE), 0 lux (Illuminator on)
• S/N ratio: >56dB
• Snapshot: 1/3 s–1/100000 s
• Lens: 2.8 mm
• Angle of view: 2.8 mm: Horizontal: 98 ° × Vertical: 55 ° × Diagonal: 115 °
• Infrared illuminator: IR 30m
• White light illuminator: LED 30m
• Display operating modes: IR only, LED only, Smart - IR + LED
• Infrared filter: Mechanical ICR
• Resolution: 4M (2560×1440); 3M (2304×1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720)
• Compression: H.264B/ H.264/ H.264H/ H.265
• Main stream speed: 2560 × 1440-(1 – 25/30 fps)
• AGC: Yes
• AWB (white balance): Auto/natural/street lamp/outdoor/manual/regional custom
• BLC: Yes
• HLC: Yes
• Wide dynamic range: Yes, DWDR
• Image adjustment functions: 3D NR; Mirror/flip (0°, 90°, 180°, 270°)
• Motion detection: 4 areas (adjustable: size, position, sensitivity, threshold)
• Built-in microphone: Yes
• Built-in speaker: Yes
• Built-in MicroSD slot: Yes, card up to 256GB
• Network connection: RJ-45 (10/100Base-T)
• Built-in WiFi module: Yes, IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G
• Protocols: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P
• Compatibility: ONVIF (Profile S; Profile G); CGI
• Mobile systems: iOS, android
• Remote support: Smart PSS; DSS; DMSS
• Perimeter protection: Active deterrence
• Support classification and accurate detection of vehicles and people: Yes
• Active deterrence: Yes
• Protection class: IP67
• Power Supply: 12V DC
• Power consumption: < 7.1W
• Working temperature: -40 °C to 60 °C
• Admissible humidity: ≤95%
• Housing material: Metal + plastic
• Dimensions: Φ109.9 mm × 102.2 mm
• Weight: 353g
