Lauko vaizdo stebėjimo kamera Reolink 4K, 12V, PoE, IP, juoda, kupolo formos

Trumpai apie prekę

Prekė: Lauko vaizdo stebėjimo kamera Reolink 4K, 12V, PoE, IP, juoda, kupolo formos. Kategorija: IP kameros.

• Gamintojas: no brand
• Modelis: RE_RLC820A_B

SKU: RE_RLC820A_B

Key Features

☑ Double PoE power and 12V: Instantly connect your camera at home with a single network cable or power it in your RV during the holidays.

☑ Convenient integration with Android TV: Quickly check who is ringing the doorbell by displaying crystalline live video directly on the big screen TV.

☑ Wide 178° viewing angle adjustment: Precisely crop the monitored area, completely eliminating dead zones in the yard or inside the house.

☑ Discrete design with built-in microphone: The camera will perfectly fit into the modern kitchen, allowing you to listen and monitor the behavior of pets.

Connectors for Home and Camper

The device will adapt to your lifestyle thanks to two independent ways of power supply:

• At home (PoE): Power over Ethernet technology transmits current and data with a single cable, which simplifies installation on the facade as much as possible.
• On the go (12V): Native support for 12V power allows you to connect them directly in your caravan.

Smart Home and Android TV

Connect home surveillance to a smart environment and control it by voice. Now you no longer have to constantly reach for your smartphone – just a simple command to display the image from the live camera directly on the Android TV screen.

Find out who’s at the gate while you’re cooking dinner or relaxing on the couch.

Freedom of Regulation

Sturdy and stylish – despite high weather resistance, the minimalist design of the device fits perfectly into home interiors.

Comprehensive application – placed e.g. In the kitchen, it allows you to remotely view animals from the office or record family cooking in time-lapse mode.

Full monitoring without blind spots – a well-thought-out handle with 178° rotation allows you to perfectly crop the image and cover the entire room.

Full Functionality

The system operates with no hidden costs. Intelligent image analytics and notifications are processed directly on the device — completely free of charge.

With the ability to save video to a local drive or your own server, you save money and gain an ironclad guarantee of privacy. Your family's data remains for your eyes only.

Specification

Contents of the set:

• RLC-820A camera (1 pc. )
• network cable 1 m (1 pc. )

Image and sound parameters:

• Image sensor: CMOS 1/2.7"
• video resolution: 3840 × 2160 px, 8.0 MP, at 25 fps. /s
• resolution: 4K Ultra HD
• lens: f=4.0 mm, fixed, F=2.0, with IR-cut filter
• video compression: H.265/H.264
• Horizontal field of view: 87°
• Vertical field of view: 44°
• day/night mode: IR-cut filter with automatic switching
• Night mode: black and white with 3D-DNR technology (noise reduction)
• night vision: up to 30 m / 100 feet
• IR LEDs: 18 pcs, 14 miles, 850 nm
• audio: built-in microphone, audio recording

Intelligent functions and detection:

• detection of objects: persons, vehicles, animals
• Intelligent alarm: motion, person, vehicle and animal detection
• Recording modes: 24/7 continuous, motion triggered, scheduled (schedule)
• Default recording mode: motion-induced recording
• Additional Features: Time Lapse, Customizable Traffic Zones

Power supply and connectivity:

• Power supply: PoE (Power over Ethernet) and 12V DC
• PoE: IEEE 802.3af, 48V active
• DC power supply: DC 12.0V ⎓ 1A, < 12W
• transmission: data and power transmitted by one network cable (in PoE mode)
• Ethernet port: 1 × 10M/100Mbps RJ45
• Power port: DC
• interface: DC power port, RJ45 Ethernet port

Data recording:

• Memory card support: microSD slot up to 256 GB (not included)
• alternative recording methods: Reolink NVR, FTP server

Software Features:

• frame rate
• main stream: 2 fps - 25 fps (default 25 fps)
• frame rate - substream: 4 fps - 15 fps (default 10 fps)
• encoding speed - main stream: 4096 Kbps - 8192 Kbps (default 6144 Kbps)
• encoding speed - substream: 64 Kbps - 512 Kbps (default 256 Kbps)
• supported browsers: Edge, Chrome, Firefox, Safari
• supported PC operating systems: Windows, Mac OS
• supported mobile systems: iOS, Android
• Protocols and standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
• maximum user access: 20 users (1 administrator account and 19 user accounts)
• simultaneous video streams: up to 12 streams (10 substreams and 2 main streams)

Construction and assembly:

• Protection class: IP67
• waterproof: IP67
• resistance to working conditions: for external use
• handle adjustment: 178° rotation
• housing: metal, aluminium
• elements of the structure: mounting bracket, HD f=4.0 mm lens, 18 IR LEDs, daylight sensor, built-in microphone
• reset button: yes

Working environment:

• Operating temperature: -10°C ~ +55°C
• Operating temperature: 14°F ~ 131°F
• working humidity: 10%~90%

Dimensions and weight:

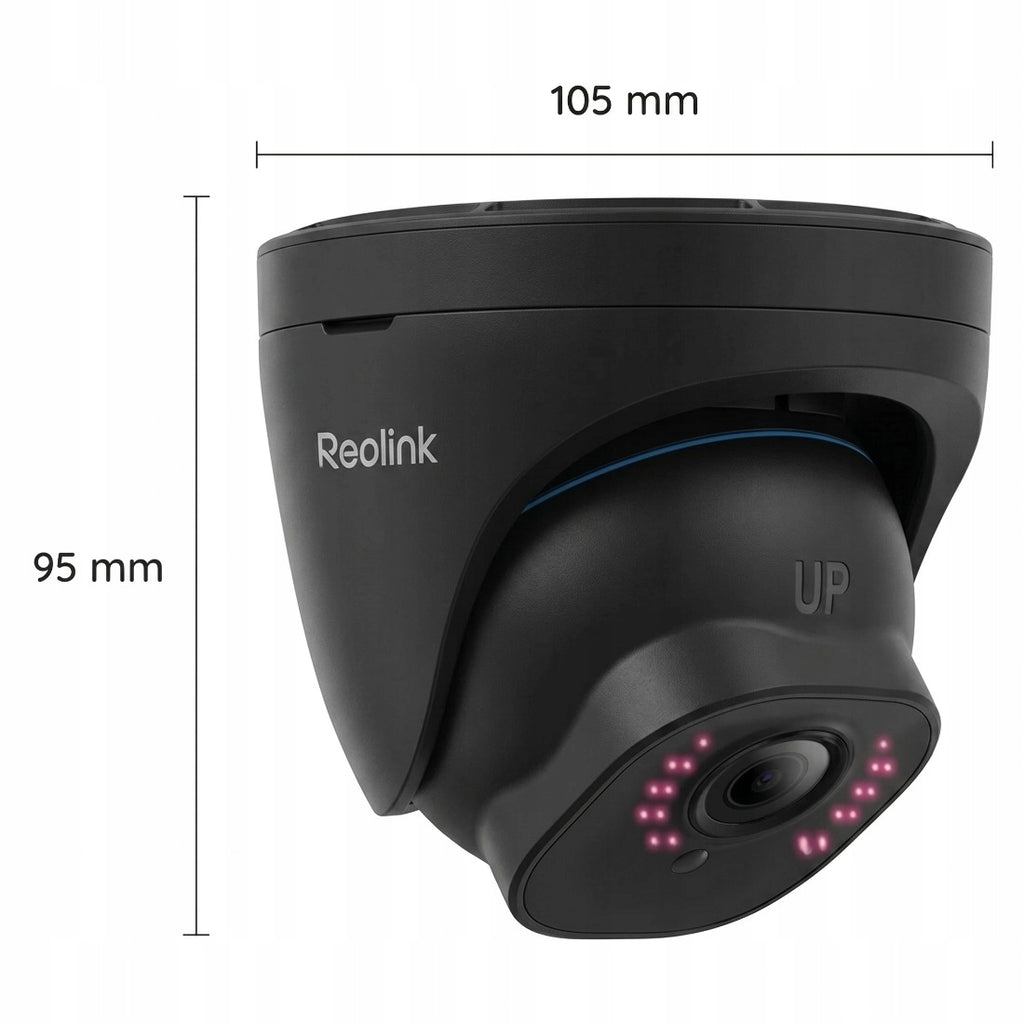

• dimensions: Φ105 × 95 mm
• Weight: 467,5 g

Compatibility:

• Smart Home: Google Assistant
• integration with voice assistants and Android TV

Applications:

• external monitoring of single-family houses and property
• Safety systems in motorhomes and caravans
• discreet indoor surveillance, e.g. in the kitchen or living room
• monitoring the behaviour of domestic animals in the absence of household members

FAQ

I have a 256 GB card. How many days of continuous recording from this camera is that enough for me before it starts overwriting old files?

A 256 GB card is enough for about 4 days (exactly 97 hours) of continuous recording in the highest quality. When the media is full, the RLC-820A will automatically overwrite the oldest recordings. If you need a longer history, consider connecting a Reolink NVR.

I want to mount this camera on the plot, but I don't have a PoE switch. Can it be powered by a regular power supply to an outlet?

Yes, the unit also supports standard 12V power supply. Simply plug the appropriate power supply into the socket, and use the network cable only for data transmission. Please note, however, that the 12V power supply is not included in the factory kit.

Will this camera record in color at night, or will the image from the yard be black and white?

This model captures night vision in black and white mode. It uses advanced 3D-DNR noise reduction, which makes the details of the face or license plates sharp and clear even in complete darkness. If you care about night recordings in color, cameras with built-in LED headlights will be a better choice.

I have an Android TV in my living room. Can I watch what the dog is doing in the kitchen live on it?

Yes, integration with the Smart Home ecosystem allows you to display live video directly on your Android TV screen. Simply issue the appropriate voice command to the Google Assistant to access the video stream from the Reolink camera. This solution requires connecting both devices to the same network with Internet access.

I see the camera recording sound, but can I shout to the courier through it to leave the package at the door?

No, the RLC-820A has a built-in microphone to record ambient sound, but no built-in speaker. This means that you will hear what is happening on the property, however, two-way communication in this particular device is not possible.

What happens to notifications and recordings if the home suddenly lacks internet from the provider?

In the event of an internet connection failure, the camera will continue to record the image to a microSD card or local NVR as long as they are connected and powered. However, you will lose the ability to view live through the app outside your home and will not receive notifications on your phone until the network is restored. The intelligent motion detection system itself works independently of access to the cloud.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	6975253987658
Parametry	Manufacturer code	RE_RLC820A_B
Parametry	Brand	no brand
Parametry	Model	RE_RLC820A_B
Parametry	Packaging status	original
Parametry	Kind	external
Parametry	Batteries included	no
