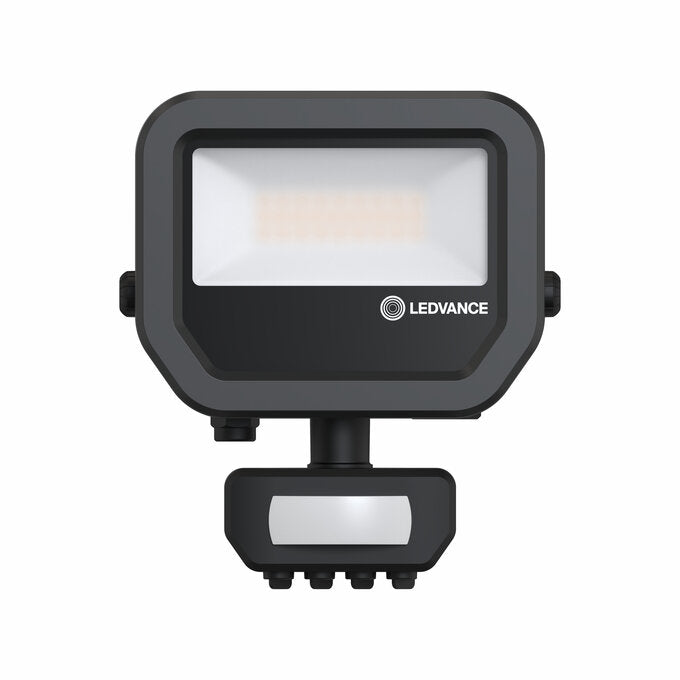

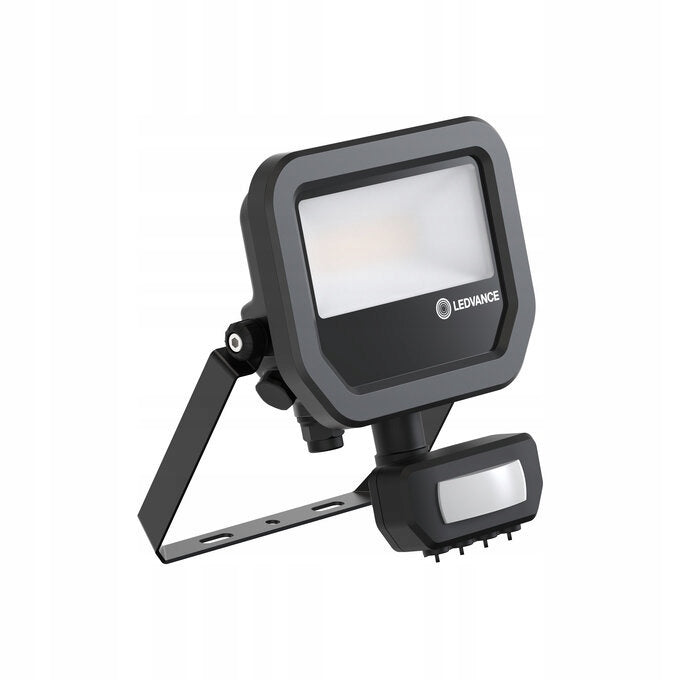

Lauko prožektorius Ledvance Floodlight Sensor 8W 4000K 1200lm IP65 juodas

Trumpai apie prekę

Prekė: Lauko prožektorius Ledvance Floodlight Sensor 8W 4000K 1200lm IP65 juodas. Kategorija: Halogeniniai ir prožektoriai.

• Gamintojas: Ledvance
• Modelis: 4099854306808
• Galia: 8 W
• Ilgis: 13.6 cm
• Spalva: black

4th generation

LED illuminator of the renowned brand LEDVANCE is a modern lighting, which is characterized by very good quality of emitted light, high durability, resistance to harsh weather conditions and mechanical damage. Compact dimensions and light weight allow for easy installation in place of old, worn-out and power-hungry traditional halogens.

The LEDVANCE LED light is equipped with an energy-saving LED light source with a power of 8W. The lamp emits a warm light with a color temperature of 3000K, which allows you to achieve a luminous flux of up to 1100lm. Tempered frosted glass ensures even light distribution. Halogen LED LEDVANCE is an innovative device that has its application outside, it is best suited as lighting garages, building facades or driveways.

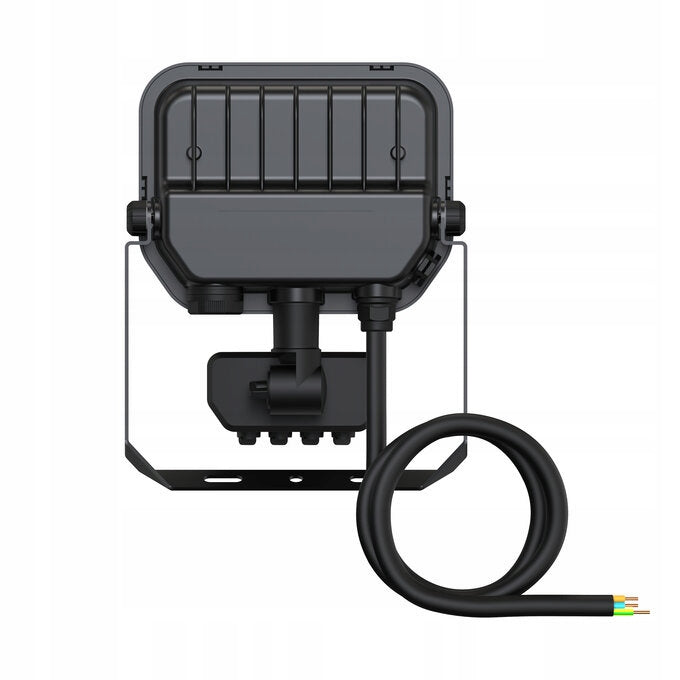

The floodlight has a flexible cable with a length of 1m.

The Multi Lumen feature allows the user to easily adjust the brightness of the light to their current needs using a switch placed directly on the housing. This makes it possible to quickly and intuitively switch between different power levels depending on lighting conditions or preferences. The Multi Lumen feature provides greater flexibility in use, allowing you to make optimal use of your lighting in a variety of situations, from soft light to full power for maximum illumination of your space.

ELECTRICAL DATA

• Nominal power: 8 W / 6 W
• Rated voltage: 220...240 V
• Network frequency: 50...60 Hz
• Rated current: 40/30 mA
• Initial inrush current: 8,9 A
• Starting current, time T: 52,2 µs
• Max. number of luminaires in one circuit B16 A: 84
• Max. number of fixtures in one circuit C10 A: 67
• Max. number of luminaires per overcurrent circuit breaker C16: 107
• Power factor λ: > 0,90
• Total harmonic distortion: < 20 %
• Protection class: I
• Impact voltage resistance (L-N): 4 kV
• Resistance to nap. stroke (L/N-ground): 6 kV
• Working mode: Integrated LED driver

Photometric data

• Luminous flux: 1200 lm / 800 lm
• Light efficiency: 133 lm/W
• Color temperature: 4000 K
• Light colour (designation): Neutral white
• General color rendering index Ra: 80
• Standard color matching deviation: 5 sdcm
• SVM strobe effect value: ≤0.9
• Photobiological hazard group EN62778: RG1
• Photobiological hazard group EN62471: RG1
• Light distribution angle: 100° x 100°

MATERIALS AND COLOURS

• Product color: Black
• Housing color: Black
• Material: Aluminium
• Cover material: Glass
• Light-emitting surface material: Glass
• Flammability test according to IEC 60695-2-12: 650 °C
• Mercury content: 0.0 mg

ADDITIONAL INFORMATION

• Additional features: MULTI SELECT

DIMENSIONS AND WEIGHT

• Length: 136,00 mm
• Height: 170,00 mm
• Width: 56,5 mm
• Product weight: 478,00 g
• Cable length: 1000 mm

APPLICATION AND INSTALLATION

• Ambient temperature range: -30...+50 °C
• Storage temperature range: -40...+70 °C
• Connection type: Cable, 3-field
• Security type: IP65
• IK class (impact resistance) [PIM]: IK05
• Corrosion resistance class acc. to EN 12944: C4
• Darkenable: No
• Type of mounting: Surface
• Assembly location: Wall, Ceiling, Floor
• Area of application: Outdoor
• Adjustable: Yes
• With light source: Yes

SENSOR

• Sensor type: Motion, Light
• Sensor technology: Passive infrared (PIR) sensor
• Detection angle: 40°...160°
• Sensor controlled switching time: 10 s...12 min
• Motion sensor detection range: 2...12 m
• Light sensor detection threshold: 10...2000 lx
• IP sensor protection rating: IP65

• Parking
• Public areas
• Garage
• Facade of Buildings
• Construction site
• Gardens and balconies

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Length	13.6 cm
Parametry	Brand	Ledvance
Parametry	Product width	5.7 cm
Parametry	Product height	17 cm
Parametry	Rated power	8 W
Parametry	Color temperature	4000 K
Parametry	Brightness	1200 lm
Parametry	Light color	white neutral
Parametry	Color	black
Parametry	IP protection class	IP65
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Manufacturer code	4099854306808
Parametry	Durability	75000 h
Parametry	Light source	halogen
Parametry	Kind	floodlight
Parametry	Energy efficiency class	E
Parametry	EAN (GTIN)	4099854306808
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Additional information	motion sensor,twilight sensor,hermetic luminaire,light angle adjustment,light source included
Parametry	Certificates of conformity	CE,WEEE
