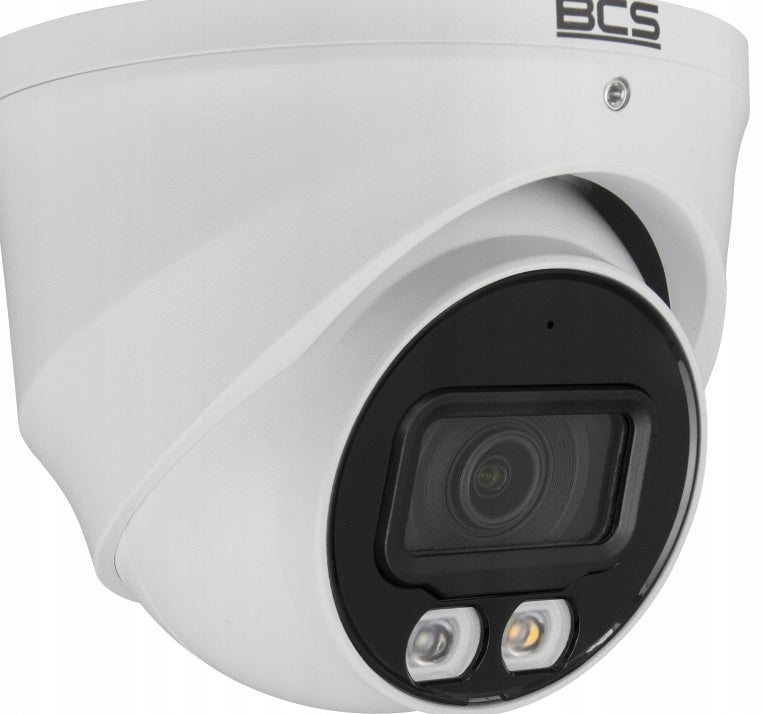

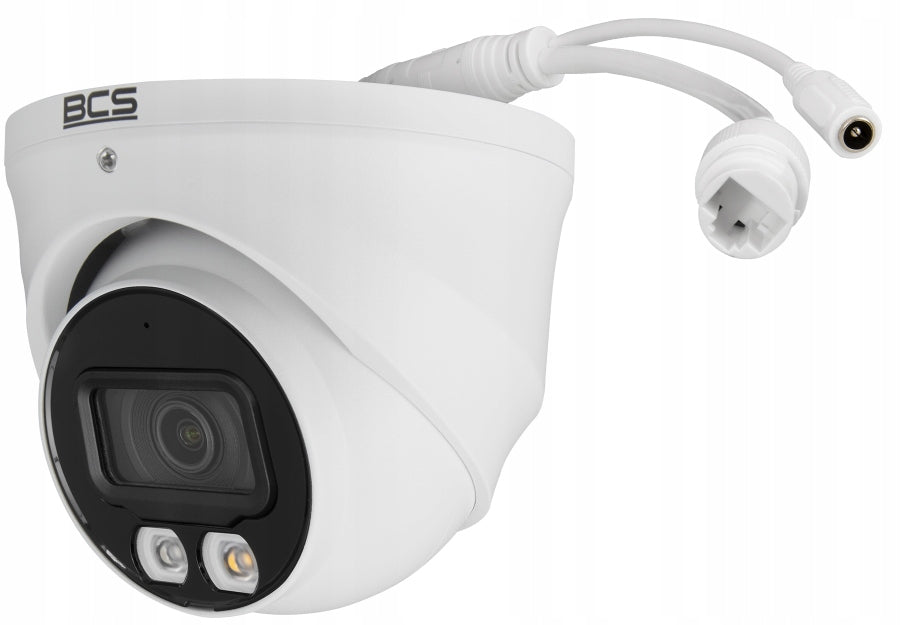

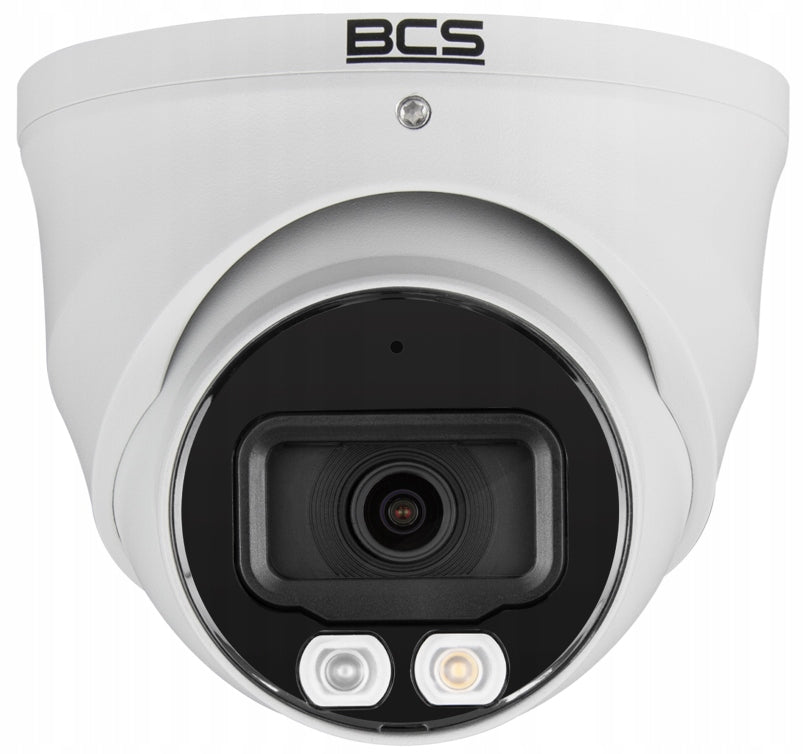

Lauko kupolinė IP kamera BCS-L-EIP14FSR3L3, 4MP, su mikrofonu, IR LED, IP67

Trumpai apie prekę

Prekė: Lauko kupolinė IP kamera BCS-L-EIP14FSR3L3, 4MP, su mikrofonu, IR LED, IP67. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: 1169h

BCS

4Mpx Dome IP Camera

Series: BCS Line

Model: BCS-L-EIP14FSR3L3

IP camera BCS-L-EIP14FSR3L3 – reliable monitoring in all conditions

BCS-L-EIP14FSR3L3 is a compact, dome IP camera with a resolution of 4 Mpx, designed for external and internal monitoring. It is perfect for both home security systems and professional supervision of company facilities.

The device combines high image quality, advanced night mode functions (IR and WhiteLight up to 30 m), as well as a built-in microphone that allows you to record audio without the need for additional accessories.

Key features and functions

• Resolution 4 Mpx (2560×1440) – provides a clear, detailed image, allowing accurate recognition of faces or license plates.
• 2.8 mm wide-angle lens (111° viewing angle) – covers a large monitoring area, ideal for monitoring entrances, parking lots or halls.
• SkyLight technology – guarantees realistic color reproduction and great image quality, even in low light.
• Double night light: IR + WhiteLight (up to 30 m) – infrared and white light mode allows you to adjust the camera to the conditions and provides visibility even in complete darkness.
• Built-in microphone – allows you to record audio, which increases security and facilitates the analysis of recordings.
• Advanced WDR 120 dB (Wide Dynamic Range) – balances image exposure in difficult lighting conditions, e.g. at entrances with strong daylight.
• Resistant to weather conditions (IP67 class) – will work in all weather conditions: rain, snow or strong sunlight do not interfere with the camera.
• PoE (Power over Ethernet) power supply – simplified installation via one cable – image transmission and power supply in one.
• H.265+ compression – reduces file size while maintaining high-quality recordings, which saves disk space and network transfer.
• Wide compatibility and remote access – thanks to ONVIF support and the mobile application, you can have a preview from the camera from anywhere.

Technical specification

Basic information about the device

• Model: BCS-L-EIP14FSR3L3
• Type: Dome IP Camera
• Product line: BCS LINE
• Converter: 1/2.9" CMOS PS (Progressive Scan)
• Resolution: 4 Mpx (2560×1440 pixels)
• RAM/ROM: 128 MB / 128 MB
• Housing color: White
• Dimensions / weight: Ø106 × 94 mm / 0,33 kg

Lens and field of view

• Lens: Fixed 2.8 mm
• Aperture: F1.6 (more light, better low light image)
• Digital Zoo: 16×
• Angle of view:

  Levels: 94°

  Vertical: 52°

  Diagonal: 111°

• Detection range (DORI):

  Detection: 64 m

  Observation: 25 m

  Recognition: 13 m

  Identification: 6 m

Day/night mode and lighting

• Day/Night Mode: ICR – Mechanical Infrared Filter
• Lighting type: IR LED and white light (WhiteLight)
• Night range: Up to 30 meters in IR and WhiteLight mode
• Sensitivity:

  0.006 Lux (colour, F1.6)

  0.0006 Lux (B/W, F1.6)

  0 Lux with IR enabled

Audio and video functions

• Built-in microphone: Yes
• Audio compression: G.711A / G.711Mu / G.726 / PCM
• Video compression: H.265, H.265+, H.264, H.264+, MJPEG
• Bitrate:

  H.265: 12 to 4096 kbps

  H.264: 32 to 4096 kbps

• Stress: 2 streams (e.g. main – 2560×1440, second – 704×576)
• Image enhancement features:

  3D DNR – noise reduction

  BLC / HLC – reverse light/floodlight compensation

  WDR 120 dB – contrast improvement in strong and low light

  RoI – quality priority in the selected image area

  Mirror, Flip – image rotation

Interfaces, network and communication

• Network port: RJ-45 10/100 Mbps
• Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTSP, FTP, SMTP and others
• Standard ONVIF: Profile S and T – wide compatibility with DVRs and VMSes
• Remote access:

  Web Service

  Applications: CMS BCS Manager (Windows/Linux/macOS), Mobile App (iOS/Android)

Data storage and storage

• The camera does not have a microSD card slot – recording carried out by an NVR.

Power supply and operating conditions

• Power supply: 12V DC or PoE (IEEE 802.3af – power supply via mains cable)
• Power consumption: Maximum 5.7 W
• Working temperature: From –40°C to +60°C
• Moisture: Up to 95% (non-condensing)
• Resistance: IP67 – full resistance to dust and water

Optional accessories

• Handles and adapters (sold separately):

  BCS-ADMM – ceiling mount

  BCS-AT135, BCS-AT48 – pole/wall mount adapters

  BCS-UD2, BCS-UD3 – installation boxes

1/12.9" PS CMOS converter

Detailed image in 4 Mpx resolution and high sensitivity

A high-quality 1/2.9" progressive scan CMOS image sensor was used to build the camera. Thanks to it, it is able to generate detailed and full of vivid colors video material. The maximum available image resolution is 2560 x 1440 (30 fps @ 4 Mpx max). Video material in 4 Mpx resolution correctly reproduces the small details of the observed plan and allows you to make an effective digital zoom. The effective detection, observation, recognition and identification distance for the camera is:

• Detection - 64 m
• Observation - 25 m
• Recognition - 13 m
• Identification - 6 m

An additional advantage of the transducer is high sensitivity. Thanks to it, the camera can capture clear and colorful images even in low light conditions. For the BCS-L-EIP14FSR3L3, the minimum lighting level is only 0.006 lux.

Lens 2.8 mm

Angle of view: 94° horizontal / 52° vertical

The camera is also equipped with a fixed focal length lens with a focal width of 2.8 mm (F1.6). It provides a relatively wide viewing angle (94° horizontal / 52° vertical), thanks to which the camera is universal and works great in the implementation of the general preview function. For example, placed in a corner of a relatively small room, it should be able to observe them whole. An additional advantage of cameras with fixed-focal lenses is usually better image quality, compared to their counterparts with adjustable lenses.

Network interface

Remote camera capability

The camera has a built-in WEB Server and a fast ethernet network interface, thanks to which you can establish a remote connection with it. A remote user can e.g. View the image from the camera "live" or play recordings saved on the microSD card. If it has system administrator privileges, it can also remotely change the camera operating parameters. The available functionality during remote work depends on how the connection is compiled, which can be implemented using:

• Web browser, from which the user has access to full functionality and can freely configure the camera operating parameters
• Dedicated software BCS Manager, used to build an advanced monitoring system management center from a computer
• Applications for mobile devices (iOS / Android), which gives access to basic functionality

Characteristics of the BCS Manager software include:

• Support up to 1000 connections
• Live view of 256 channels (max. 64 windows on the card)
• Creation of alarm schemes
• Synchronous playback of recordings from up to 36 cameras simultaneously (remotely and locally)
• Remote device configuration, device group creation and management
• Control of PTZ cameras
• Audio support
• Support for TV WALL

An additional advantage of the camera is the support of the network standard ONVIF (S profile / G profile / T profile). Thanks to it, it can cooperate with registrars from other manufacturers that also support this standard.

PoE 802.3af

Alternative power supply

The camera supports Power over Ethernet technology, which enables data and electricity transmission over the same UTP cable. Thanks to it, the power supply of the camera can be realized directly from the PoE switch - for example from the switch built into the NVR. The biggest advantages of Power over Ethernet technology include:

• Increases installation flexibility and allows cameras to be mounted in places where standard power supplies cannot be brought
• Reduces the number of wires needed for proper installation, which can speed up installation and reduce its cost
• No configuration required - when you connect the camera to the PoE switch, it will automatically power it

WDR 120 dB

Effective observation of a strongly contrasting scene

A big advantage of the BCS-L-EIP14FSR3L3 camera is the hardware implementation of the function of a wide dynamic range WDR 120 dB. It provides a large tonal span, allowing you to observe the plan on which light and dark objects are located at the same time. Thanks to the WDR function, the camera can effectively observe objects placed on a very bright background or objects in the shade when the rest of the plans are well lit.

For example, a camera with a WDR of 120 dB can be mounted inside the room and turned towards the glass entrance. Even during sunny days, the faces of people entering the facility will not be darkened and their identification will be possible.

Basic functions of the BCS-L-EIP14FSR3L3 camera:

• Day/night - Adjusts camera operation depending on the time of day, so as to maintain the best image quality during the day and the highest sensitivity at night in low light
• DNR -Noise reduction for improved overall image quality in low light conditions
• AWB - Automatic white balance for accurate color reproduction
• AGC - Automatically amplifies the output signal in case of a decrease in illuminance
• BLC - Background light compensation, enables effective observation of objects on a strongly lit background
• HLC - Compensation of headlights, increases the probability of e.g. correct detection of license plates at night when the car lights are on
• Privacy Zones - Programmable controls, allowing you to mask areas of the image that should not be observed (4 zones)
• Motion detection - Motion detection in the designated zone (4 zones)

IR illuminator and white light illuminator (dual light)

Color image at night, after human detection

A characteristic feature of the BCS-L-EIP14FSR3L3 camera is the built-in IR illuminator and LED illuminator. In standard operating mode, when the camera is operating in night mode, the IR illuminator is turned on. When the camera detects human movement, it activates the LED illuminator and generates a color image. Thanks to this, the video material at key moments of surveillance is of the highest quality, which can help identify the intruder. The user also has the option of setting the IR illuminator or LED illuminator permanently to work in night mode.

The effective range of IR illuminator and LED illuminator is up to 30 m.

The camera is also equipped with a mechanical sliding infrared filter (ICR). In day mode, it is active and reflects a significant part of infrared radiation. Thanks to this, the generated image retains high quality and natural colors. When the camera switches to night mode, the filter is automatically removed from the transducer. Sensitivity parameters are improved and it is possible to work with artificial IR lighting.

H.265+ compression and dual encoding stream

Effective remote viewing and high quality recordings at the same time

The camera uses advanced image compression H.265, which is the successor to the popular H.264 compression in CCTV systems. The newer version enables up to twice as much data compression, with virtually unchanged image quality. Thanks to this, it is possible to archive recordings from a longer period and further reduce the bandwidth requirements of the Internet connection. Supported Image Compression:

• H.265+
• H.265
• H.264+
• H.264
• MJPEG

The camera can be switched to H.264 compression at any time and connected to a DVR that does not support H.265.

The camera also supports 2 encoding streams, each of which can be independently configured by the user. Thanks to them, it is possible to set high-quality images for archiving and images with lower parameters for remote viewing. The transmission speed for each stream is:

• Main stream - 1 - 25/30 fps @ 2560 x 1440
• Second stream - 1 - 25 fps @ 704×576; 1 - 30 fps @ 704×480

IP67 enclosure

Specific outer casing

The camera is placed in a sealed outer housing (IP67), which guarantees almost complete resistance to weather conditions. Thanks to it, the camera can be mounted outside, without fear that bad weather conditions will damage it. Housing in IP67 protection class provides protection against:

• Pollination and getting into its interior of small dirt
• Precipitation and splashing water from all sides
• Extremely low and high temperatures in the range of -40...+60 °C

Bet on quality and reliability – choose BCS-L-EIP14FSR3L3

The BCS-L-EIP14FSR3L3 camera is a combination of high resolution, two night lighting modes, advanced image processing functions and compact, durable construction. Thanks to it, you will create an effective monitoring system – both at home and in the company.

Trust the proven brand BCS – monitor without compromise.
