Lauko IP vaizdo kamera TP-LINK VIGI C440, 3MP, 2.8 mm, PoE, balta, 2 vnt.

Trumpai apie prekę

Prekė: Lauko IP vaizdo kamera TP-LINK VIGI C440, 3MP, 2.8 mm, PoE, balta, 2 vnt.. Kategorija: IP kameros.

• Gamintojas: Tp-Link
• Modelis: VIGI C440(2.8MM)

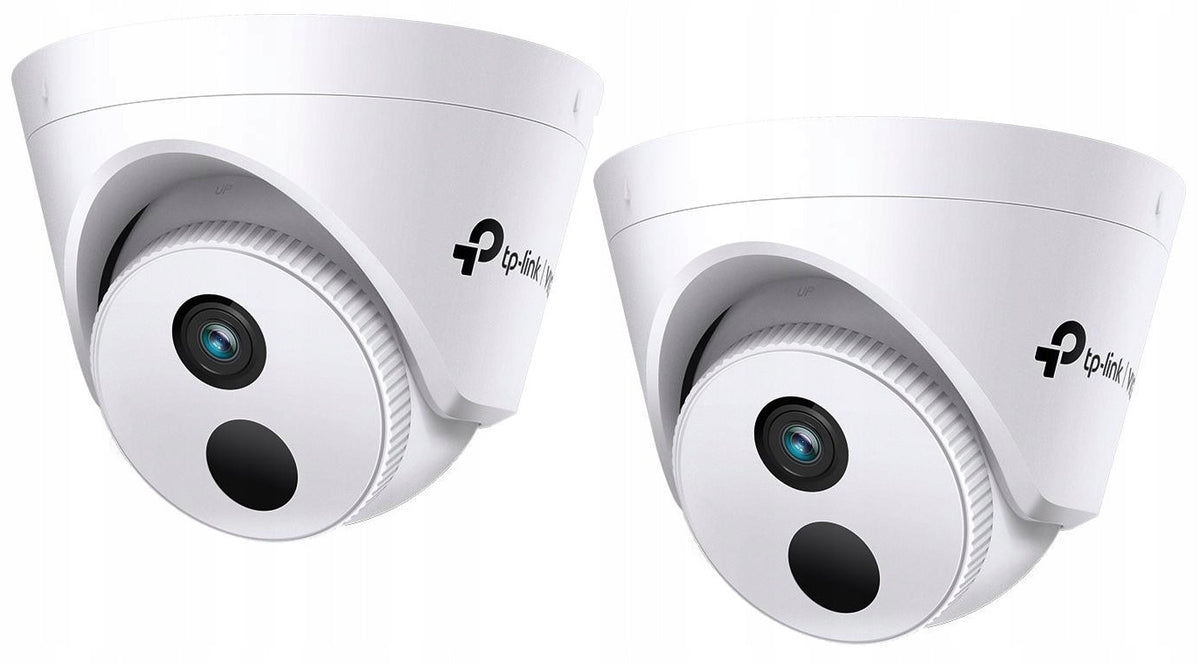

2x IP Camera TP-LINK VIGI C440 (2.8mm) 3MP PoE Outdoor Dome White

Key features:

• 3MP resolution: image 2304 × 1296 allows you to capture details important during daily monitoring.
• 2.8 mm object: 105° wide horizontal field of view works well in small rooms, corridors and entrances.
• IR night mode: infrared LEDs with a range of up to 30 m allow monitoring after dark.
• Intelligent detection: motion detection, line crossing, area intrusion and sabotage helps you respond to events faster.
• Notifications: The VIGI application allows you to remotely view and inform the user about events.
• Smart IR: function helps to reduce x-rays of close objects and underexposure of further elements of the scene.
• WDR and 3D DNR: technologies improve image readability and reduce noise in harsh environments.
• PoE or 12V DC: two power supply methods make it easy to perform a wired installation.
• ONVIF: ONVIF support makes it easy to integrate with a compatible recorder or monitoring system.
• Contents of the set: 2x (VIGI network camera, quick installation instructions, screws and anchors, mounting template. )

TP-Link VIGI C400HP 2.8mm is a Turret type network camera, designed for monitoring the home, office, store, hallway, backroom, small room or selected zone inside the building. The product will work where you need a detailed 3MP image, wide viewing angle, intelligent event detection, IR night mode and convenient PoE or 12V DC power supply. The camera allows you to create a practical surveillance system that works around the clock and allows remote viewing through the VIGI application.

The model with the 2.8 mm lens provides a wide field of view of 105° horizontally and 56° vertically. This makes it well suited for monitoring entrances, corridors, sales counters, reception, facilities, small rooms and spaces where it is important to cover a larger part of the scene with one camera.

The camera records in 3MP, 2304 × 1296 resolution, which allows you to capture more details than in basic Full HD cameras. This image quality helps to more easily recognize events, direction of movement, silhouettes of people and elements of the environment that may be important when analyzing recordings.

intelligent event detection helps you respond faster to situations that need attention. The camera supports motion detection, crossing the designated line, intrusion into the area and camera sabotage. Once an event is detected, the user can receive a notification and check the situation remotely.

Night mode with IR diode with a range of up to 30 m allows monitoring also after dark. The Smart IR function helps to reduce x-rays of objects close to the lens and under-lighting of more distant objects. This makes the night vision more readable and useful.

WDR, 3D DNR and BLC technologies improve image quality in harsh environments. WDR helps balance contrast in scenes with strong light and shadow, 3D DNR reduces noise, and BLC supports the visibility of objects with strong background light. This is especially important in entrances, corridors and rooms with a large lighting difference.

The compression of H.265 and H.264 allows you to adjust the way the image is transmitted to the system you are using. The camera also supports ONVIF, making it easy to integrate with compatible recorders and surveillance systems. The PoE 802.3af/at power supply allows data and power to be transmitted via a single Ethernet cable, while the alternative 12V DC power supply gives you more flexibility to install.

The camera can be managed remotely via the VIGI application, which allows you to view the image from anywhere through the cloud. The practical Turret installation allows you to guide the cable under the suspended ceiling or through the side camera output, which makes it easy to adjust the installation to a specific room.

FAQ - Frequently Asked Questions

• What model do the uploaded data describe? The transmitted data indicate TP-Link VIGI C400HP / VIGI C400 2.8mm, not VIGI C440.
• What is the resolution of the camera? The camera records in 3MP resolution, which is a maximum of 2304 × 1296.
• What is the viewing angle of the 2.8 mm version? The camera has a horizontal viewing angle of 105° and 56° vertical viewing.
• What is the best 2.8 mm lens for? The 2.8 mm lens is suitable for monitoring wider areas, small rooms, corridors, entrances, reception and facilities.
• Does the camera have night mode? Yes, the camera has a night mode with IR diode and a range of up to 30 m.
• Does the camera record in full color at night? The transmitted data for this model provides IR night mode, no full-color night mode is given, so I do not confirm full color at night.
• What events does the camera detect? The camera detects movement, crossing the designated line, intrusion into the area and sabotage of the camera.
• Does the camera send notifications to the phone? Yes, the data provides the VIGI application for smartphones and event notifications.
• Does the camera support PoE? Yes, the camera supports PoE 802.3af/at class 0 and 12 V DC power supply.
• Does the camera support ONVIF? Yes, the data provides the ONVIF API.
• Does the camera have a memory card slot? There is no memory card slot or microSD capacity in the provided data, so I do not confirm local storage on the card.
• Is compatible mounting adapters included with this camera? The provided data does not specify specific models of mounting adapters.

Step-by-step setup instructions:

• Choose a mounting location, taking into account the wide viewing angle of the 2.8 mm lens.
• Check if the camera is to include an entrance, hallway, reception, backroom, shop, office or other important place.
• Prepare an Ethernet cable and PoE power supply or 12 V DC power supply compliant with the camera requirements.
• Mount the camera using screws, anchors, and mounting template from the kit.
• Guide the cable under the suspended ceiling or through the side output of the camera, depending on the chosen wiring method.
• Connect the camera to a PoE switch, PoE NVR or to a 12 V DC power supply.
• Add the camera to the VIGI app or a compatible ONVIF-enabled DVR.
• Set the 3MP resolution and the corresponding video stream.
• Set up motion detection, line crossing, area intrusion, and camera sabotage.
• Enable notifications if you want to receive alerts when events are detected.
• Adjust image settings such as WDR, 3D DNR, BLC, exposure, brightness, contrast, and white balance.
• Check the daily image, IR night mode, notifications, connection stability and recording in the recorder you are using.

Do I need to purchase additional products? Yes, you need a PoE power supply or a 12 V DC power supply that meets the requirements of the camera. To record recordings, you will need a compatible NVR with a monitoring disk, because the provided data does not confirm the local recording on the memory card.

Gallery:

Specification:

• Product: TP-Link VIGI C400HP / VIGI C400 network camera, 2.8 mm
• Camera type: VIGI Turret network camera
• Resolution: 3MP
• Maximum resolution: 2304 × 1296
• Image sensor: 1/2.7" Progressive Scan CMOS
• Lens: 2.8 mm
• Available lens versions: 2.8 mm
• Aperture for 2.8mm: F2.0
• Aperture for 4mm: F2.4
• Lens mount: M12
• Viewing angle for 2.8mm: horizontal 105°, vertical 56°
• Viewing angle for 4mm: horizontal 92°, vertical 48°
• Night mode: yes, IR LED
• IR LED range: 30 m
• Sensitivity: Color 0.1 Lux @ F2.0, 0 Lux with IR
• Rotation range: 0°–360°
• Tilt range: 0°–85°
• Rotation range: 0°–360°
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• Image features: BLC, 3D DNR, infrared light overexposure prevention
• Image adjustment: Reflection, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance adjustable by client software
• Video compression: main stream H.265, H.264; substream H.265, H.264
• Supported resolutions: 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
• Number of frames: 1 class /s, 5th class /sec, 10 cl. /sec, 15 cl. /sec, 20 cl. /sec, 25 cl. /sec, 30 cl. /s
• Video bit rate: 64 Kbps to 6 Mbps
• Transmission security: password protection, HTTPS encryption, IP filtering, Digest authentication
• Supported protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• API: ONVIF
• Simultaneous live view: 4 main streams and 3 sub-streams or 3 main streams and 5 sub-streams
• Intelligent event detection: intrusion into a designated area, crossing a designated line
• Notifications and alerts: motion detection, camera tampering, login attempts
• Notification communication: ONVIF, HTTPS
• ROI: 1 area
• Network port: 1 RJ45 LAN port 10/100 Mbps
• Buttons: none
• Video output: none
• Alarms: none
• General Features: Dual video streams, mirror image flip, privacy zones, password reset via email
• Power supply: 12V DC ±5%, 5.5mm DC plug, PoE 802.3af/at class 0
• Certificates: CE, FCC, RCM, BSMI, VCCI, RoHS
• Dimensions: 123 × 123 × 83 mm
• Material: plastic
• Weight: 195 g
• Package contents: VIGI network camera, quick installation guide, screws and anchors, mounting template

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.6 kg
Parametry	EAN (GTIN)	4897098688649
Parametry	Manufacturer code	VIGI C440(2.8MM)
Parametry	Brand	Tp-Link
Parametry	Model	VIGI C440(2.8MM)
Parametry	Packaging status	original
Parametry	Kind	internal
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
