Lieferzeit in ganz Litauen: 5-10 Werktage
Lieferpreis an die angegebene Adresse: 3 Euro
Trumpai apie prekę

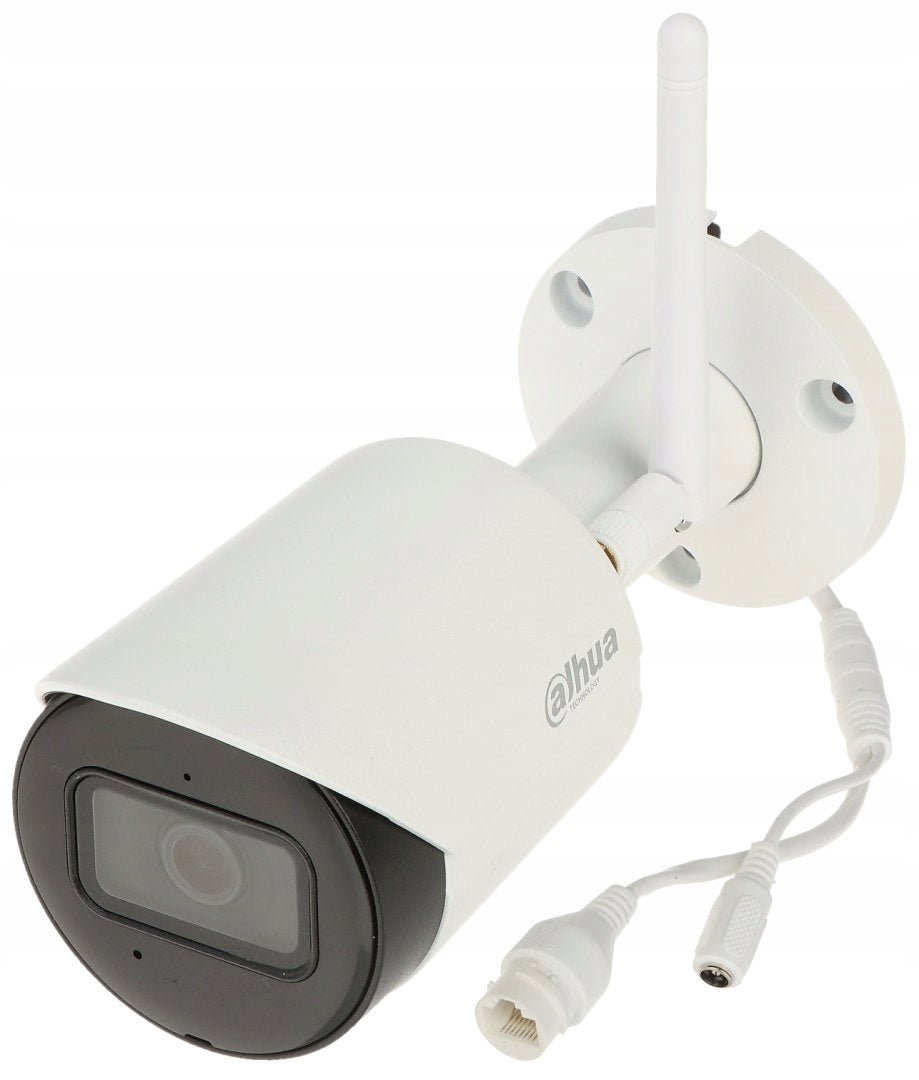

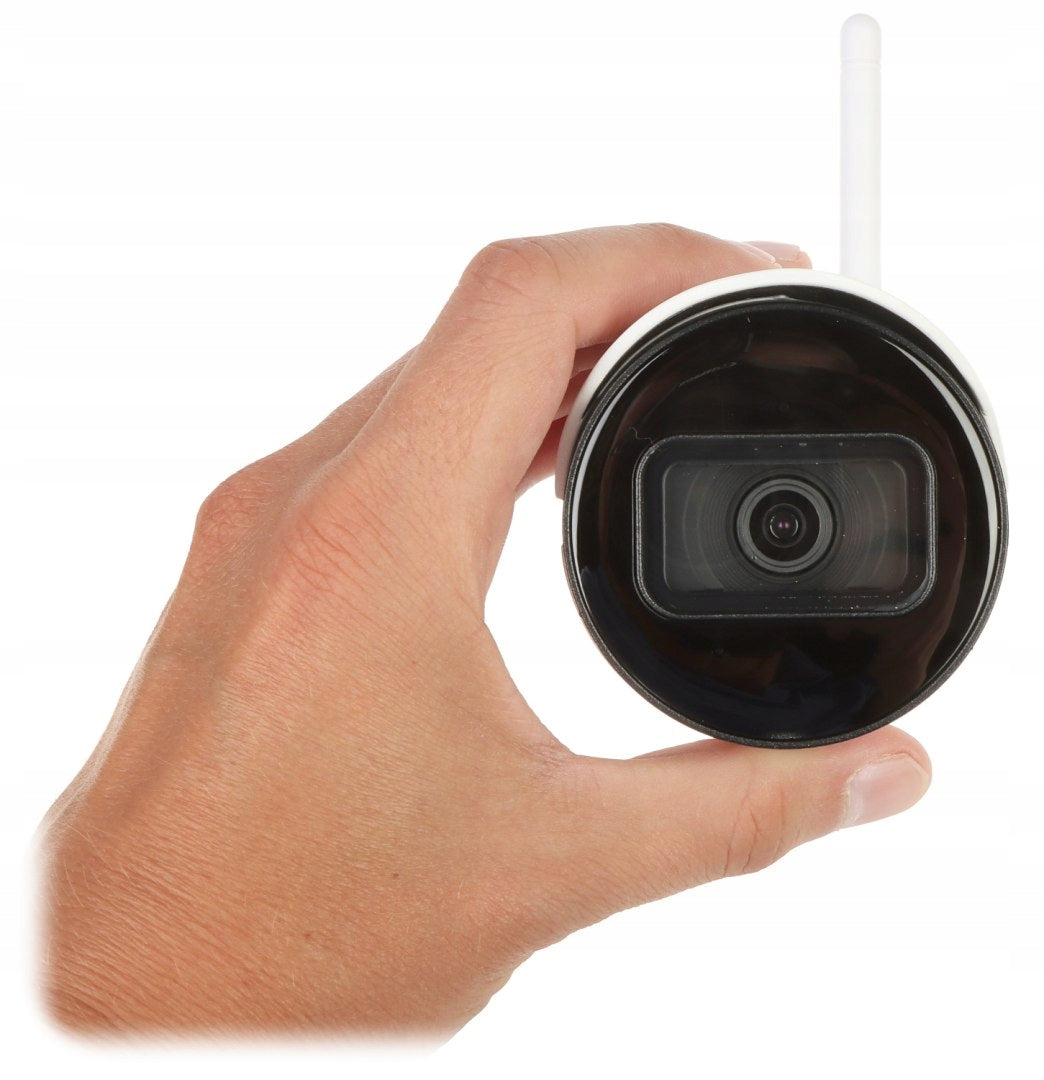

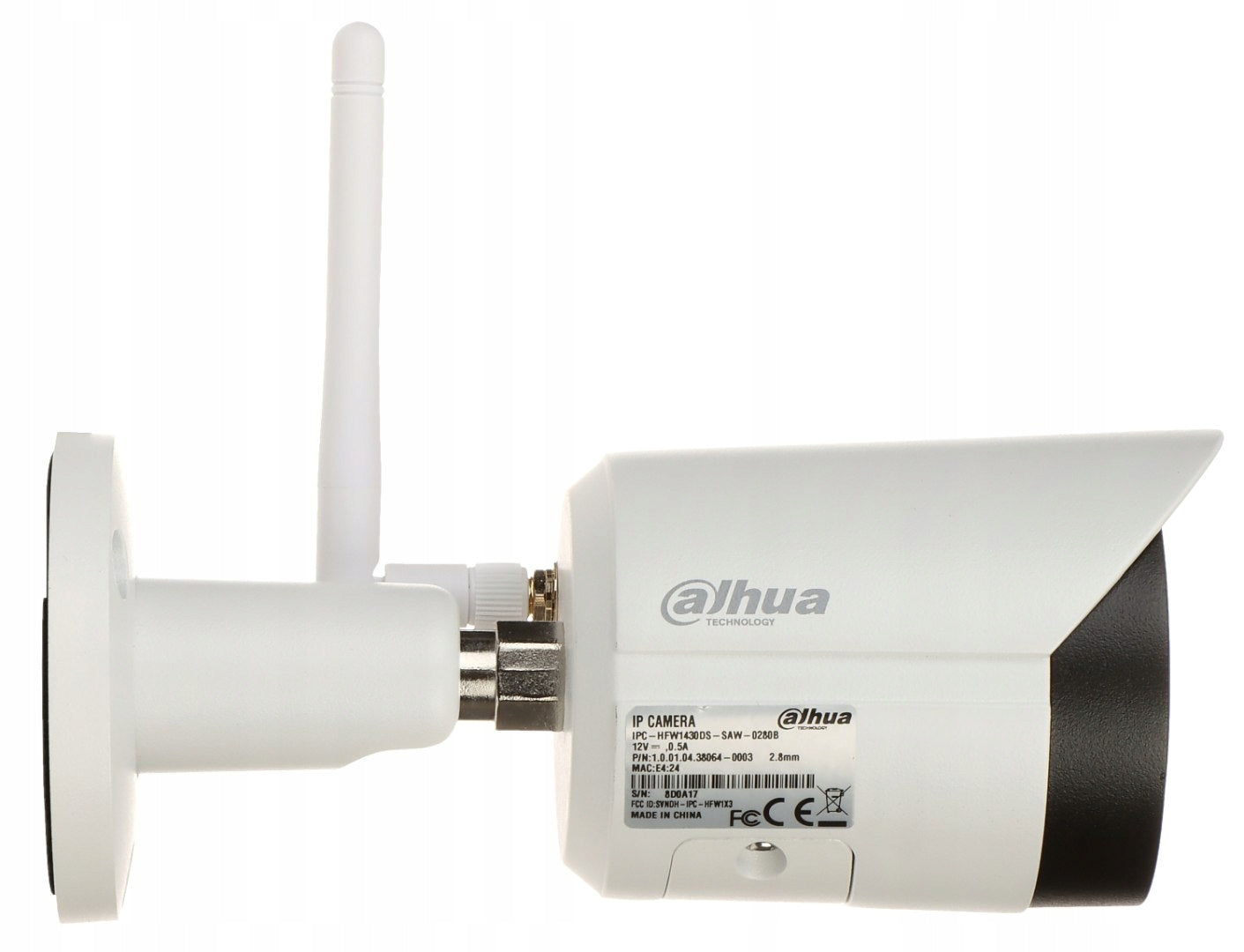

Prekė: Lauko IP vaizdo kamera DAHUA IPC-HFW1230DS-SAW-0280B, Wi-Fi, 2,8 mm, 1080p. Kategorija: IP kameros.
- Gamintojas: Dahua
- Modelis: IPC-HFW1230DS-SAW-0280B
286,38
IPC-HFW1230DS-SAW-02
IP camera with powerful H.265/H.264 image compression algorithm for clearer and smoother image transfer at maximum 1080p resolution
The Wi-Fi module allows remote communication with the camera to max. distance up to 80 m
The range of the illuminator given by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e. scene reflection coefficient)
The camera meets IP67 protection class
In order to achieve optimal performance of DAHUA Wi-FI series cameras, it is recommended to use Micro SD memory cards by DAHUA
Standard:
TCP/IP
Transducer:
1/2.8" Progressive Scan CMOS
Matrix size:
2.1 Mpx
Resolution:
1920 x 1080 - 1080p ,
1280 x 960 - 1.3 Mpx ,
1280 x 720 - 720p
Lens:
2.8 mm
Viewing angle:
- 100° (manufacturer's data)
- 95° (our tests)
IR illuminator range:
30 m
Memory card slot:
Micro SD card support up to 256GB (local storage possible)
Image compression method:
H.265+ / H.265 / H.264+ / H.264
Emergency Inputs/Outputs:
Audio:
- Built-in microphone
- Sound detection
- Audio transmission over the network
Main stream transmission speed: 25 fps @ 1080p Network interface:
- Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n,
- 10/100 Base-T (RJ-45)
Network protocols: IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, DHCP, DNS, NTP, Multicast WEB Server: Built-in ONVIF: 20.06 Mobile phone access:
- Access via cloud (P2P)
- Android: Free DMSS App
- iOS (iPhone): Free DMSS App
Default IP address:
DHCP
Default administrator login/password:
admin / -
Administrator password should be set at first startup
Access ports via www:
80, 37777
Access ports via PC app:
37777
Access port via mobile application:
37777
Port of ONVIF:
80
RTSP URL:
rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
Selected functions:
- Wi-Fi module, Range: 80 m (open space) ; Antenna - SMA socket
- D-WDR - Wide range of lighting dynamics
- 3D-DNR - Digital Noise Reduction in Images
- ROI - improving the quality of selected image fragments
- BLC - configurable reverse light compensation
- Automatic white balance
- AGC - Automatic image gain adjustment
- Day/night mode
- ICR - Mechanical Infrared Filter
- Mirror - Mirror image reflection
- Motion detection - max. 4 zones - Human detection
Power supply:
12 V DC / 350 mA (power supply included)
Power Consumption:
? 4.1 IN
Housing:
Compact - Metal
Color:
White
Leak-proof class:
IP67
Vandal-proof:
Operating Temperature:
-40 °C ... 60 °C
Weight:
0.47 kg
Dimensions:
166 x 70 x 129 mm
Supported languages:
English, Spanish, Russian
Manufacturer / Brand:
DAHUA
3
CE
Manufacturer's data sheet EN
Instruction EN
Quick start instructions EN
Mobile software manual EN
Data act
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 0.728 kg |
| Parametry | EAN (GTIN) | 6923172539892 |
| Parametry | Manufacturer code | DH-IPC-HFW1230DS-SAW-0280B |
| Parametry | Brand | Dahua |
| Parametry | Model | IPC-HFW1230DS-SAW-0280B |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
