Lauko IP kamera HiLook IPCAM-T2-P, 2 MP, FullHD, PoE

Trumpai apie prekę

Prekė: Lauko IP kamera HiLook IPCAM-T2-P, 2 MP, FullHD, PoE. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: IPCAM-T2-P + DS-1280ZS-XS

2Mpx / 2,8mm / IR20m / PoE / IP67 / P2P cloud

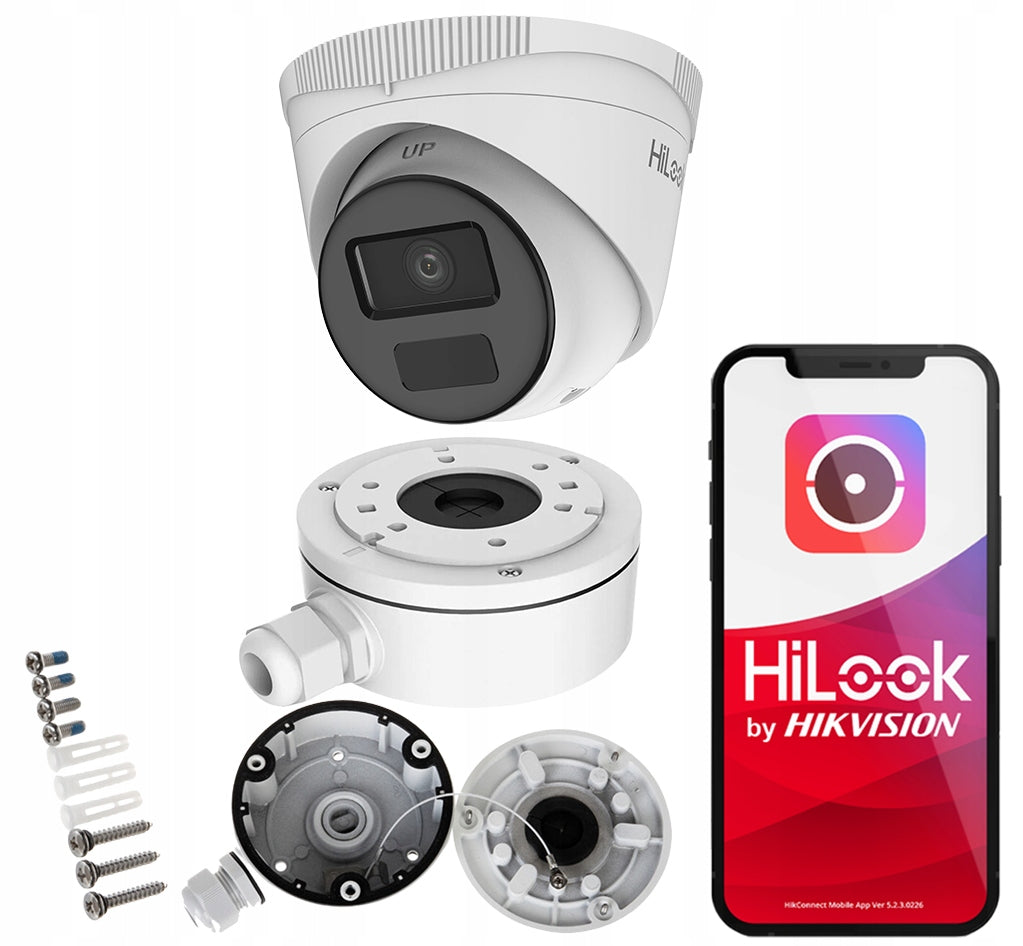

The IPCAM-T2-P HiLook dome camera is a universal model designed to work in small and medium-sized IP surveillance systems. The IPCAM-T2-P model is equipped with a 2-megapixel 1/2.7" CMOS PS sensor and a wide-angle, fixed 2.8mm lens, a also with IR (20m) infrared illuminator, using the EXIR technology.

The camera housing is made of durable plastic. Additionally, the housing has an IP67 tightness class, making it ideal for use in indoor and outdoor installations.

• Model: IPCAM-T2
• Converter: CMOS 1/2,7” 2MPx
• Image resolution: 1920x1080p @35fps
• Lens: wide-angle 2,8 mm
• Recording angle: ~98 degrees (wide-angle)
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: DWDR
• Digital Noise Cancellation: Yes - 3D DNR
• Other functions: ROI, BLC, Motion detection, Mirror, EXIR
• Infrared range: up to 20 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in the Hik-Connect mobile app: Yes
• Remote view: Hik-Connect, iVMS-4200, browser WEB, HiLook App
• Assembly: external or internal
• Housing: metal + plastic
• Power Supply: 12v or PoE
• Protection class: IP67

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

The adapter allows you to hide cable connections, protecting them from exposure to harsh weather conditions, such as humidity, temperature, and precipitation.

In addition, it protects cable connections from access by unauthorized persons to work with the installed camera.

• Colour: White
• Material: Aluminium
• Dimensions: Ø137×53,4mm
• Weight: 530g
• Maximum load capacity: 4.5kg
• Mounting: wall, ceiling
• Application: internal, external

Includes mounting screws and opening template.

HiLook monitoring systems can be controlled, configured and operated using the intuitive HiLook App mobile application for smartphones and tablets and the iVMS-4200 program for PC computers. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• create motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The presented model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard disk, which positively affects its lifespan.

The IPCAM-T2-P camera is equipped with automatic night mode - this means that when the lighting in the environment drops, the cameras go into black and white mode, supported by an infrared illuminator with a range of 20m. This function allows you to record images via 24/7 in any lighting conditions.

Camera

• Converter: 1/2.7" CMOS Progressive Scan
• Transmission standard: IP
• Maximum resolution: 2Mpx @1920x1080p
• Sensitivity: Colour: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
• Shutter speed: 1/3 s to 1/100,000 s
• Slow shutter mode: supported
• Lens: 2.8 mm
• Recording angle (horizontally): horizontal FOV 105°, vertical FOV 58°, diagonal FOV 1123°
• Head adjustment range: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

IR illuminator

• IR range: up to 20m
• IR wavelength: 850 nm

Image compression

• Video compression: Main stream: H.265/H.264Auxiliary stream: H.265/H.264/MJPEG
• H.264: Base Profile/ Main Profile/ High Profile
• H.264+: Main stream
• H.265: Main profile
• H.265+: Main stream
• Video Bitrate: 32 Kbps to 8 Mbps

Smart functions

• ROI: 1 fixed region for two streams


• Main stream - max. frame rate: 50 Hz: 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Auxiliary stream - max. frame rate: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
• Image functions: BLC, 3D-DNR
• Wide dynamic range: DWDR
• Image settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/night mode: automatic / manual switching

Network

• Network interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
• Compatibility: ONVIF (PROFILE S, PROFILE G), ISAPI
• Selected functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous preview: up to 6 channels
• Alarm trigger: Motion detection, video sabotage, unauthorized login
• Number of users/hosts: up to 32 users3 permission levels: Administrator, Operator, User
• Client Software: HiLookVision PC Client, HiLookVision App, iVMS-4200, HikConnect
• Supported browsers WEB: IE8+, Chrome 41.0-44+, Firefox 30.0-51, Safari 8.0-11

General

Power supply

• 12 VDC
• PoE (802.3af, Class 3)

Power consumption

• 12 VDC, 0.4A, Max: 3.5W

  PoE: (802.3af, 36V to 57V), 0.2A to 0.1A, Max: 4.5W

Material

metal + plastic

Class of tightness

IP67

Temp. work / Permissible humidity

• -30 °C to 60 °C
• < 95% (non-condensing)

Dimensions

Ø 112 mm × 81.4 mm

Weight

400g

Specifications
