Lauko IP kamera Hikvision DS-2CD3T86G2-4IS AcuSens, 8 Mpx, dienai ir nakčiai

Trumpai apie prekę

Prekė: Lauko IP kamera Hikvision DS-2CD3T86G2-4IS AcuSens, 8 Mpx, dienai ir nakčiai. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD3T86G2-4IS

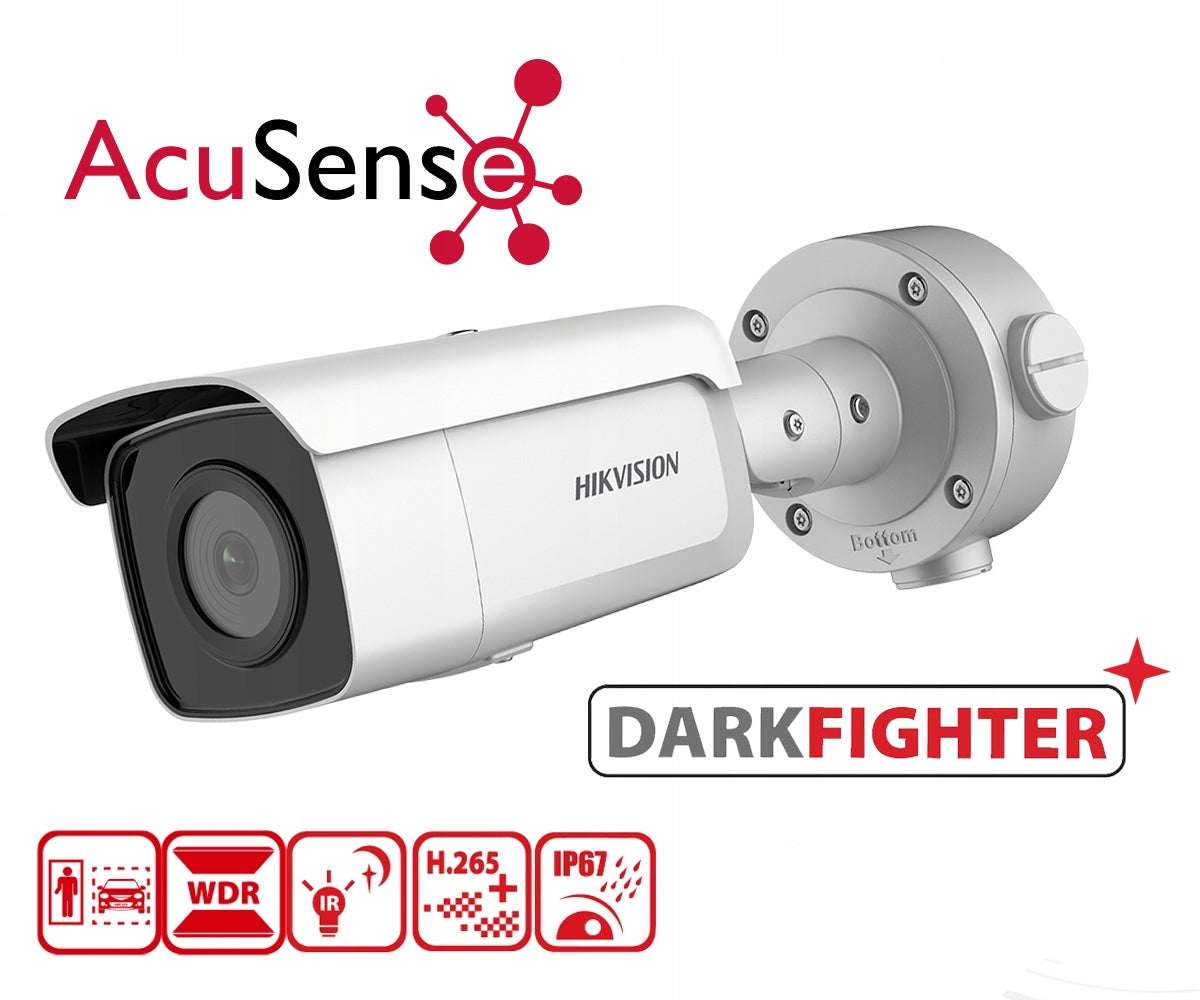

IP horn camera HIKVISION DS-2CD3T86G2-4IS ACUSENSE is an 8 megapixel 2.8 mm lens, DarkFighter technology (increasing the sensitivity of the camera at night), sealed, weather-resistant IP67 housing, POE power supply and with the ability to record to a microSD card

Modern IP camera Hikvision DS-2CD3T86G2-4IS with 8 MPx resolution, ideal for external and internal monitoring. Thanks to the two-way audio function, you can not only hear what is happening, but also speak through the camera – just connect the microphone and speaker.

This model uses AcuSense technology based on artificial intelligence, which effectively recognizes people and vehicles, minimizing the number of false alarms.

In addition, the DarkFighter technology ensures very good image quality even in low light – the camera also works great after dark.

Why choose this camera model?

1. records at a resolution of up to 8 Mpx (2688 x 1520) - is high quality guaranteeing a wide frame and high pixel density
2. has a 2.8 mm wide-angle lens with a viewing angle of 111°
3. camera has image archiving functions via microSD card - no need to install an additional recorder
4. has a remote live view in the manufacturer's app
5. AcuSense - allows you to distinguish objects appearing in the frame (human, car or small animal)
6. Darkfighter - camera has a very good sensitivity, dedicated to poor lighting conditions
7. motion detection - intelligent image analysis allows the camera to send instant notifications when an intruder's motion is detected
8. IR radiator with a range of 90m allow the camera to process good quality image in complete darkness
9. thanks to the IP67 protection class, it guarantees full resistance to strong water jets and dust - it can be installed outdoors
10. POE power supply - cameracan be powered by twisted pair (UTP) or from a 12V power supply.
11. gives you the freedom to mount inside or outside your home, thanks to the adjustable leg (can be mounted on the wall or in the instep).

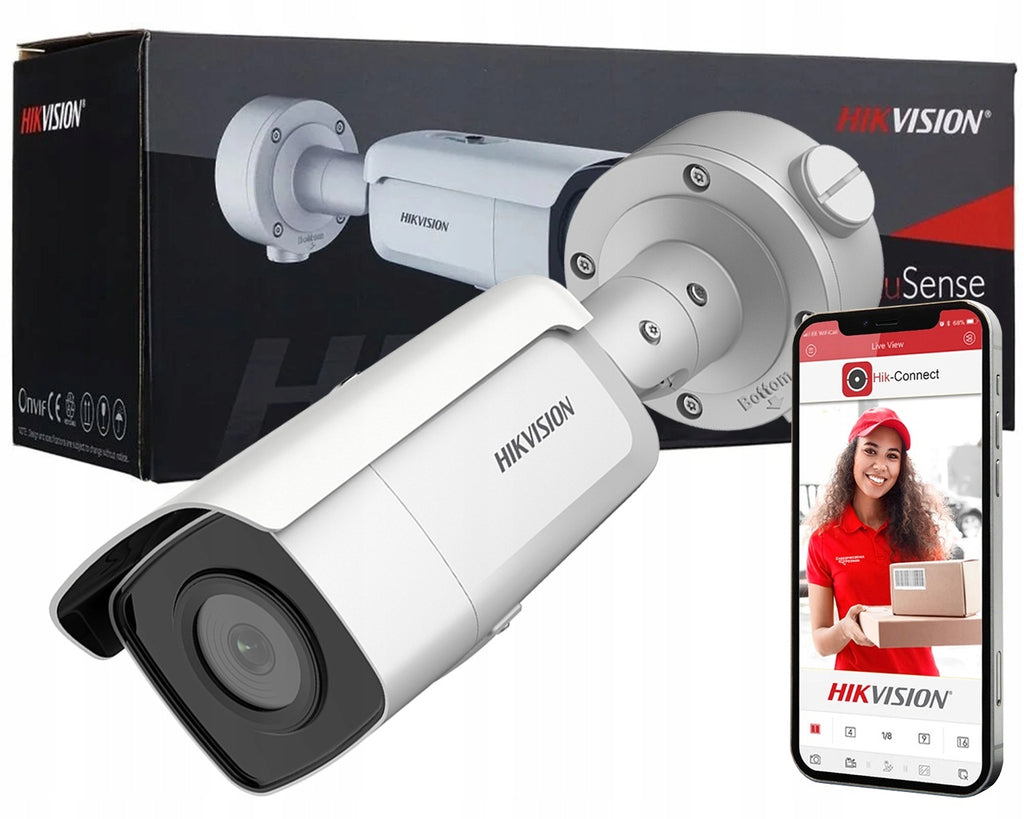

Remote viewing on mobile devices (Android, iOS)

The HikConnect application is a program designed to preview images from Hikvision cameras using mobile devices.

The program allows remote operation:

1. Sharing your device with other users
2. playback of video recordings
3. Real-time image capture
4. Remote control of cameras
5. handling of e-map

Filtering false positives and privacy masks

The camera uses Acusense technology that allows to distinguish objects appearing in the frame (human, car or small animal) and filter out false alarms. Small animals, leaf movement, rain or falling shadows do not raise an alarm about you only get important notifications on your phone.

With the privacy mask system, you can easily identify parts of the image to be excluded from video preview, giving you more control over your privacy and protecting your private sensitive areas (GDPR).

Intelligent image analysis

The cameras also offer various intelligent image analysis features, which allows you to create advanced recording scenarios. Thanks to them, the system can be adapted to individual customer requirements and the specificity of the facility. Some of the supported smart analytics features include:

1. Detection of crossing the virtual line
2. Detection of intrusion and exit of zone
3. Motion detection based on object classification
4. Face recognition

Effective night monitoring thanks to IR illuminator, Darkfighter technology and EXIR radiators

The HikvisionDS-2CD3T86G2-4IS camera is equipped with an IR infrared illuminator with a range of up to 90 m, which provides a clear image at night. Thanks to Darkfighter technology, the camera copes perfectly in very low light, capturing details even in complete darkness. EXIR radiators evenly illuminate the entire area, eliminating problems with underexposure of corners and x-ray of central points.

Improved image quality

D-WDR 120dB technology improves image quality by brightening dark areas and dimming too bright, which makes all elements highly visible, even in high contrast. Thanks to this, cameras with WDR capture a clear image both outside and inside, even in strong sunlight.

BLC/HLC function for reverse light control

This technology allows you to eliminate the effect created when the camera is directed towards a strong light source, i.e. when the foreground becomes dark and unreadable. Compensation consists in brightening the foreground, unfortunately, also at the expense of the background, which also becomes brighter.

Other digital image correction features and additional capabilities:

1. 3D-DNR - Digital noise reduction in the image
2. ROI - improving the quality of selected image fragments
3. EXIR - technology of highly effective infrared diodes that evenly illuminate the entire scene, both the central point and corners
4. AGC - automatic image gain adjustment
5. ANR - emergency recording in case of network failure
6. ICR - Mechanical infrared filter
7. Reset button
8. Ability to change resolution, quality and bandwidth
9. Day/night
10. Motion detection
11. Customizable privacy zones
12. Mirror - Mirror image
13. WB - White balance
14. Ability to change resolution, quality and bandwidth
15. Sharpness - Sharpening image contours
16. Anti-Flicker - Technology that eliminates the eye-tiring flickering effect of the image
17. Filtering false alarms based on recognition of persons and vehicles
18. Intelligent Image Analysis: intrusion, line crossing, area entry/exit detection, scene change, face detection, advanced face capture functions

IP67 Waterproof Housing

When choosing a camera, it's important to consider its waterproof rating. This indicates the camera's level of protection against external factors. Made from high-quality materials, the housing for the Hikvision DS-2CD3T86G2-4IS camera with an IP67 rating ensures reliable operation, fully protecting against dust ingress and strong water jets.

The camera's ability to operate within a wide temperature range (from -30 to 60°C) makes it ideal for both cold winter nights and hot summer days.

IP camera with memory card slot

The camera also has a slot for microSD cards up to 256 GB, so the camera does not require an additional recorder to record the image. When the memory limit is exceeded, the camera automatically overwrites the oldest recordings. The capacity of 256 GB is enough for approx. 7 days of continuous recording at 25 fps.

IP cameras with a memory card slot allow autonomous operation as a single-channel recorder, so it is possible to create a complete monitoring system based on only one device.

DS-2CD3T86G2-4IS Camera Lens

The lens with a focal length of 2,8 mm allows you to get a viewing angle of approx. 108º, thanks to which we can mount cameras above the door or in narrow passages, obtaining a wide field of view. In the photo below we can see how large an area our camera is able to capture. It is an ideal solution for monitoring an area requiring the highest image qualityon large outdoor surfaces.

Smart codec Hikvision H.265+

Encoding the signal using the H.265 algorithm allows you to optimize the basic functions of the camera. The H.265 codec algorithm enables better use of network bandwidth, significantly reduces interference and guarantees long archiving time without compromising image quality.

The use of the codec H.265+enables saving approx. 50% of space compared to the H.265 version, and more than 90% compared to the older version of the codec - H.264.

POE power supply

Power over Ethernet (PoE) is a solution enabling easy and fast installation of network devices and convenient operation and modernization of installation. Thanks to the PoE in the 802.3af standard, the IP camera can be connected using a regular UTP twisted pair cable, which greatly simplifies the monitoring system and allows the camera to be placed anywhere, regardless of the mains power source.

Benefits of Using PoE:

1. integration with existing Ethernet
2. automatic configuration
3. lower installation cost
4. Quick and easy installation

Technical specification DS-2CD3T86G2-4IS(2.8MM)(C)

• Converter: 1/1.8" 8.3 MPx Progressive Scan CMOS
• Resolution: 3840 x 2160 - 8.3 Mpx 4K UHD
• Interface: 10/100 Base-T (RJ-45)
• Compression: H.265+/ H.265/ H.264+/ H.264/ MJPEG
• Number of pixels: 8Mpx
• Sensitivity: 0.003 lux/F1.4 (AGC ON), 0 lux (IR LED ON)
• Lens: 2.8mm
• Lighting: IR LED Black Glass (range 80m)
• AWB, AGC, BLC, HLC, 3D DNR, WDR 120dB, ROI
• ICR Mechanical Infrared Filter
• Supports microSD/SDHC/SDXC cards up to 256GB
• Compliance with standards: ONVIF, ISAPI, SDK
• Filtering false alarms AcuSense
• Darkfighter is enough very dim lighting to get a clear color image
• AI functions: perimeter protection, face detection, object classification (human/vehicle)
• Power Supply: 12V DC or PoE 802.3af
• Housing: tightness class (IP67)
• Dimensions: Ø 105 x 290 mm
