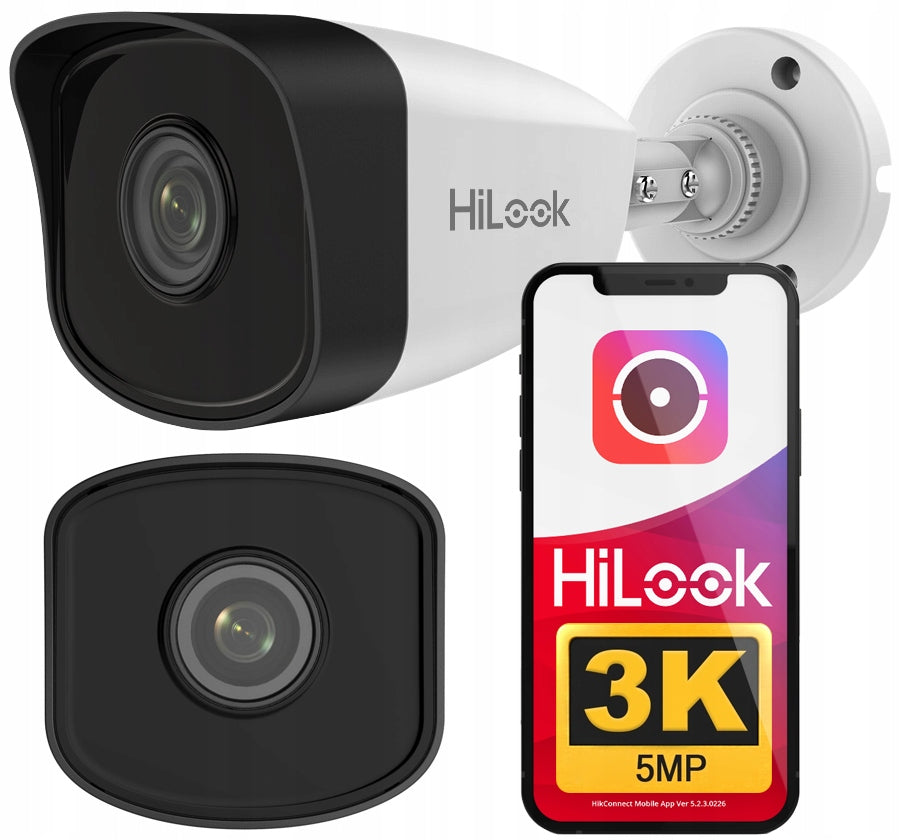

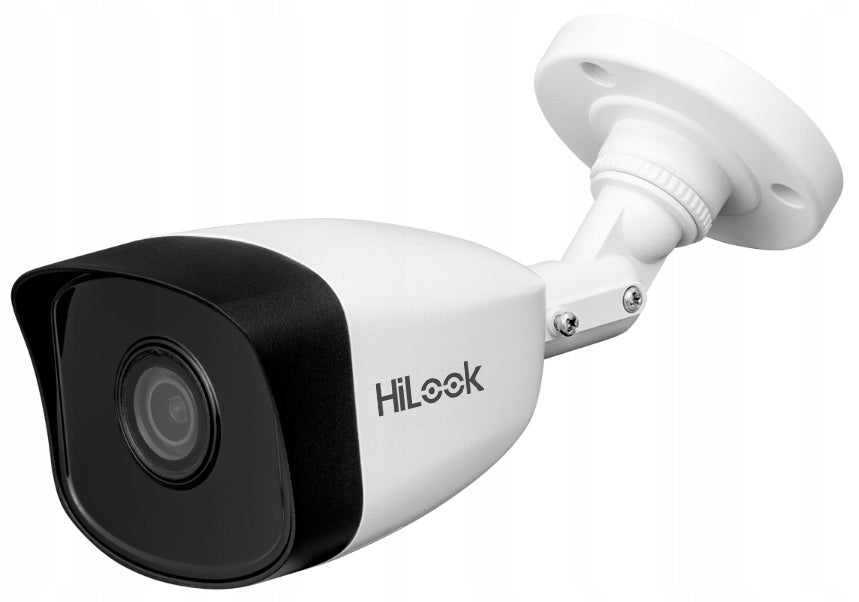

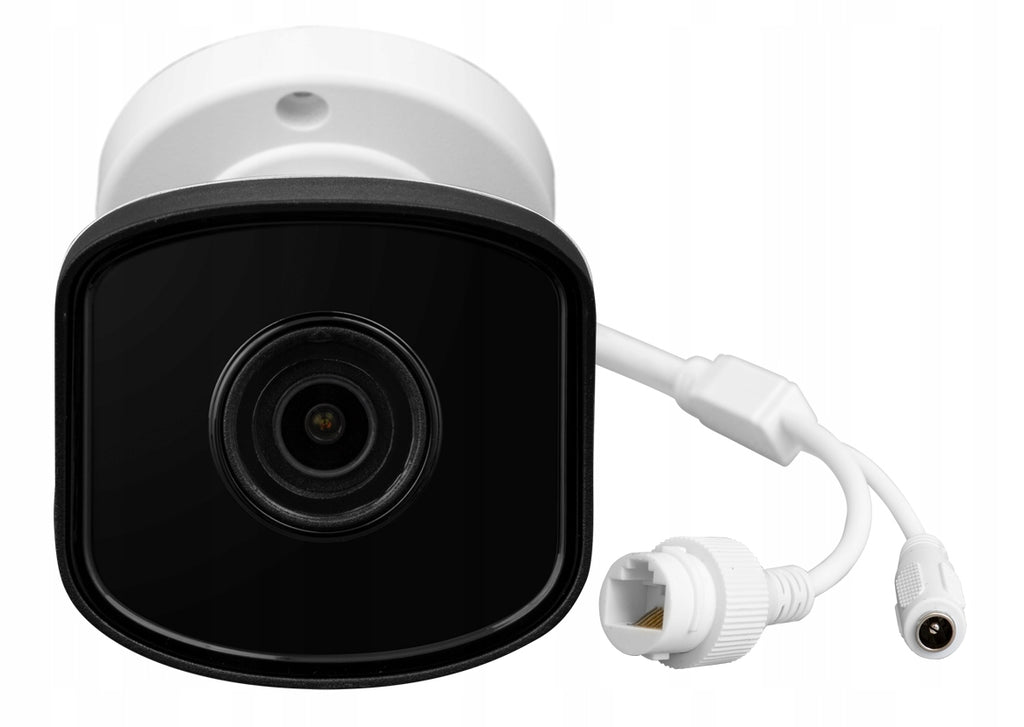

Lauko IP kamera 5MP, PoE, HiLook IPC-B150H, valdymas per Hikvision programėlę

Trumpai apie prekę

Prekė: Lauko IP kamera 5MP, PoE, HiLook IPC-B150H, valdymas per Hikvision programėlę. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: IPC-B150H

IP / 5Mpx / 2.8mm / IR30m / IP67 / H.265 / PoE

The most important features of the camera:

✅ High image resolution and wide recording angle - 2560 × 1920p (5Mpx) and ~100 degrees

✅ IR illuminator with a range of 30 meters, made in black glass technology

✅ Motion detection function, allowing for precise viewing of recordings and saving disk space

✅ H.265 compression standard, allowing for a long time recording of video material on disk

✅ Cooperation with IP systems Hikvision and others via ONVIF protocol

✅ Easy installation and operation from the web browser, iVMS-4200 or smartphone app

✅ IP67 sealed housing, providing full protection against dust and moisture, allowing the camera to be mounted outdoors

• Converter: CMOS 1/2.7” 5MPx
• Image resolution: 2560 × 1920p
• Lens: wide-angle 2,8 mm
• Recording angle: ~98 degrees
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: WDR 120dB
• Digital Noise Cancellation: Yes - 3D DNR
• Infrared range: up to 30 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in mobile application: Yes
• Remote view: iVMS-4200, HiLook App, WEB Interface
• Assembly: external or internal
• Power Supply: 12v or PoE
• Leak-proof class: IP67

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

HiLook monitoring systems can be controlled, configured and operated using the intuitive HiLook App mobile application for smartphones and tablets and the iVMS-4200 program for PC computers. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The IPC-B150H is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 30m.

This function allows you to record images via 24/7 in any lighting conditions.

This model has a built-in motion detection algorithm - when detect moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard disk, which positively affects its lifespan.

Camera

• Converter: 1/2.7" CMOS Progressive Scan
• Transmission standard: IP
• Maximum resolution: 5Mpx @2560x1920
• Sensitivity: 0.01 Lux (colour, AGC ON), 0 Lux at IR
• Shutter speed: 1/3 s to 1/100,000 s
• Slow shutter mode: supported
• Lens: 2.8 mm
• Recording angle (horizontally): horizontal FOV 100°, vertical FOV 74°, diagonal FOV 130°
• Head adjustment range: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

IR illuminator

• IR range: IR wavelength
• up to 30m: 850nm

Image compression

• Video compression: Main stream: H.265/ H.264 Auxiliary stream: H.265/H.264/MJPEG
• Video Bitrate: 32 Kbps to 8 Mbps


• Main stream - max. frame rate: 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440) ), 30fps (2304×1296, 1920×1280, 1280×720)
• Auxiliary stream - max. frame rate: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image functions: BLC, 3D-DNR, AGC
• Wide dynamic range: WDR 120dB
• Image settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/night mode: automatic / manual switching

Network

• Network interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
• Compatibility: ONVIF, ISAPI
• Selected functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous preview: up to 6 channels
• Alarm trigger: Motion detection, video sabotage, unauthorized login
• Number of users/hosts: up to 32 users3 permission levels: Administrator, Operator, User
• Client Software: HiLookVision PC Client, HiLook App
• Supported browsers WEB: IE10+, Chrome 57.0+, Firefox 52.0+

General

• Power consumption: 12 VDC, 0.4A, Max: 5W, PoE: (802.3af, 36V to 57V), 0.2A to 0.15A, Max: 6.5W
• Protection class: IP67
• Dimensions: Ø 70 mm × 191.3 mm
• Weight: 300g
