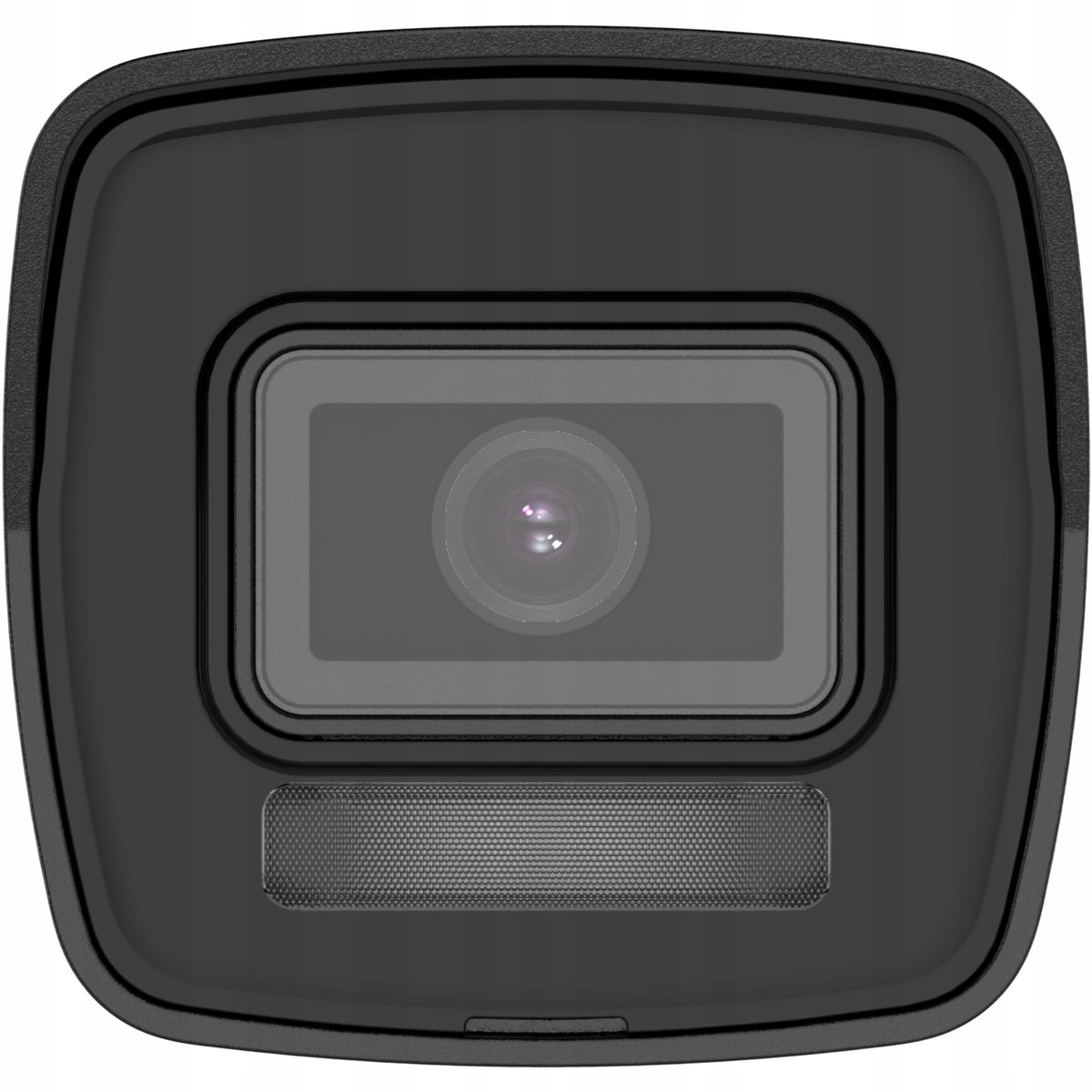

Lauko IP kamera 4K 8 Mpx PoE HiLook IPC-B180HA-LU, 4x priartinimas, su mikrofonu, valdymas programėle

Trumpai apie prekę

Prekė: Lauko IP kamera 4K 8 Mpx PoE HiLook IPC-B180HA-LU, 4x priartinimas, su mikrofonu, valdymas programėle. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: IPC-B180HA-LU HiLook by Hikvision

✅ 8Mpx ✅ PoE ✅ App ✅ Microphone

Contents of the pack:

• 4x 8Mpx horn camera - HiLook by Hikvision IPC-B180HA-LU
• Documentation - User manual, warranty card, regulations
• Template - Small size template with camera mounting holes
• Screws and mounting pins - Everything you need to mount your camera
• Waterproof set - Set of accessories to protect camera connectors from moisture

HiLook by Hikvision products are devices that focus on ease of use, literally everyone can cope with their assembly and configuration thanks to the instructions included.

Features of the HiLook by Hikvision

✅ High-quality image with 8MPx resolution

✅ Support for detection of people and vehicles

✅ Smart Dual-Light: Intelligent white and infrared light

✅ Built-in microphone

✅ Water and dust resistance (IP67)

✅ Efficient H.265+ compression technology

Remote access from your phone and desktop computer

It enables configuration, control and preview using the Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with Internet access. The above programs allow you to:

• Access video previews and play back saved footage
• Save fragments of the film to the memory of the smartphone
• Configure time frames for motion detection
• Receive notifications from motion detection or other events
• Share your devices on other smartphones with the mobile app, e.g. family members or employees

Hik-Connect - Free app for iOS and Android smartphones

iVMS-4200 - Free desktop application

Detection of people and vehicles

Motion detection with recognition of the silhouettes of people and vehicles in surveillance cameras is an advanced feature that allows you to increase the precision and efficiency of surveillance systems. Thanks to it, the camera has the ability to classify notifications depending on the type of detected figure. At the same time, providing more detailed information, but also completely filtering those irrelevant such as: Moving trees and shrubs.

Colourful image in total darkness

Hybrid lighting combines the advantages of LED and infrared lighting, which allows for effective monitoring both day and night. Thanks to this technology, cameras can capture clear images at low lighting levels without visible light sources, which minimizes the risk of detection by intruders. In addition, hybrid lighting enables color recognition, which is crucial when identifying details such as the color of the car or the clothes of the intruder, increasing the efficiency and reliability of the monitoring system.

Video and audio recording

The audio recording function allows you to record sounds along with the video image, which significantly increases the capabilities and efficiency of surveillance systems. The most important advantages of this solution are: Comprehensive surveillance: Audio recording allows you to collect more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people. Situation Analysis: Sound can provide additional information that is not visible in the image, such as conversations, background noises, or other sounds, which may be important for understanding the context of the event. Increased monitoring efficiency: Integrating audio into your visual monitoring system enhances the overall performance of your system, enabling you to respond to events faster and more accurately.

Technical specifications:

• Camera: IPC-B180HA-LU
• Image sensor: 1/2.7" progressive scan CMOS
• Max Resolution: 3840 x 2160
• Minimum Illumination: Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter speed: 1/3 s to 1/100,000 s
• Day and Night: IR Cut Filter
• Angle adjustment: swivel: 0° to 360°, tilt: 0° to 90°, roll: 0° to 360°
• Lens:
• Lens type: 2.8mm prime
• Focal length and field of view: 2.8 mm, horizontal field of view 113°, vertical field of view 62°, diagonal 134°
• Lens mount: M12
• Aperture type: Fixed
• Aperture: F2.0
• DORI:
• DORI: 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
• Backlight:
• Additional light type: IR, White light
• Additional light range: Up to 30m
• Smart backlight: Yes
• IR wavelength: 850nm
• Video:
• Main Stream: 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Substream: 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub Stream: H.265/H.264/MJPEG
• Video bitrate: 32 Kbps to 16 Mbps
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bitrate control: CBR, VBR
• Scalable video compression: H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed area for the main stream
• Audio:
• Audio type: Mono
• Ambient noise filtration: Yes
• Sampling rate: 8 kHz/16 kHz
• Audio compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio bit rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Network:
• Security: Password protection, complex password, watermark, basic and complex authentication for HTTP, WSSE and complex authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous live viewing: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
• User/Host: Up to 32 users
• User Levels: Administrator, Operator, User
• Client: Hik-Connect, iVMS-4200
• Web Browser: Plug-in required for live view: IE 10, IE 11, Local Service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Picture:
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image enhancement: BLC, HLC, 3D DNR
• Image Settings: Rotation Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance, adjustable via client software or web browser
• Privacy Mask: 4 programmable polygon masks
• Interface:
• Ethernet interface: 1 RJ45 port 10M/100M self-adaptive
• Built-in microphone: Yes
• Events:
• Basic Events: Motion Detection (supports alarm triggering by specific target types - people and vehicles), Tamper Alarm, Exception
• Connection: FTP upload, email sending, monitoring center notification, capture
• General:
• Power supply: 12 VDC ± 25%, 0.41 A, max. 5W, Ø5.5mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material: Metal and plastic
• Dimensions: 184.1mm x 66mm x 69.1mm (7.3" x 2.6" x 2.7")
• Package dimensions: 216mm x 121mm x 118mm (8.5" x 4.8" x 4.6")
• Weight: Approximately 270 g (0.6 lb.)
• Weight with packaging: Approx. 481 g (1.1 lb.)
• Storage conditions: -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
• Start-up and operating conditions: -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
• Polish Polish
• General Features: Heartbeat, anti-banding, mirror, password protection, password reset via email
• Approvals:
• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
• Safety: CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No. 1907/2006
• Protection: IP67: IEC 60529-2013
