Trumpai apie prekę
Prekė: Lauko Ethernet ir PoE ilginimo adapteris SPT-POE/2G-POE-OUTDOOR. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Delta
- Modelis: SPT-POE/2G-POE-OUTDOOR
70,74
SPT-POE/2G-POE-OUTDOOR

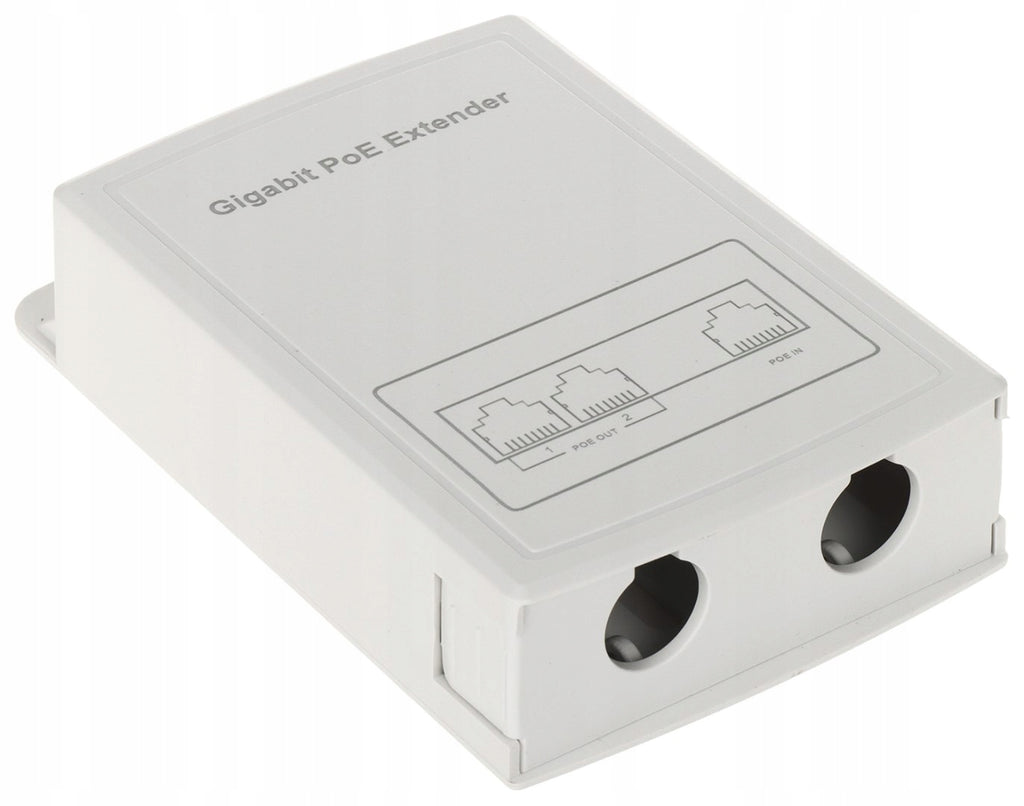

The SPT-POE/2G-POE-OUTDOOR extender is a device designed to increase the transmission distance of PoE power and Ethernet data using UTP cat twisted pair cable. 5/5e/6 for another 100 m
The device is powered from a PoE switch or other device compliant with this standard
Suitable for external installation on the wall - installation under the roof is recommended.
Number of inputs:
1 pc. - RJ-45 socket
Number of outputs:
2 pcs. - RJ-45 socket
Power supply:
PoE compliant (802.3af/at) : 44 V ... 57 V DC
Output voltage:
Compatible with power supply voltage
Input current:
0.68 A (max)
Output power:
30 W (max)
Input Power Pairs PoE IN:
PoE power supply : ("+": pins 1, 2 / 4, 5; "-": pins 3, 6 / 7, 8)
Output PoE OUT Power Pairs:
PoE power supply : ("+": pins 1, 2 / 4, 5; "-": pins 3, 6 / 7, 8)
Ethernet interface:
10 / 100 / 1000 Mbps
Security:
Indication of working status:
LEDs: Link/Act, PoE
Selected features:
- Possibility of cascade connection - max. 3 devices
- Can be mounted on the wall
Housing:
Plastic - Splashproof housing
Operating temperature:
-10 °C ... 60 °C
Weight:
0.12 kg
Dimensions:
86 x 140 x 33 mm
2
CE
Instructions PL
Instruction EN
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Delta |
| Parametry | Product weight with unit packaging | 0.15 kg |
| Parametry | Number of ports | 3 |
| Parametry | Number of LAN (RJ-45) ports | 3 |
| Parametry | LAN port operating standard | 10/100/1000 Mbps |
| Parametry | EAN (GTIN) | 5902887092251 |
| Parametry | Manufacturer code | SPT-POE/2G-POE-OUTDOOR |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
