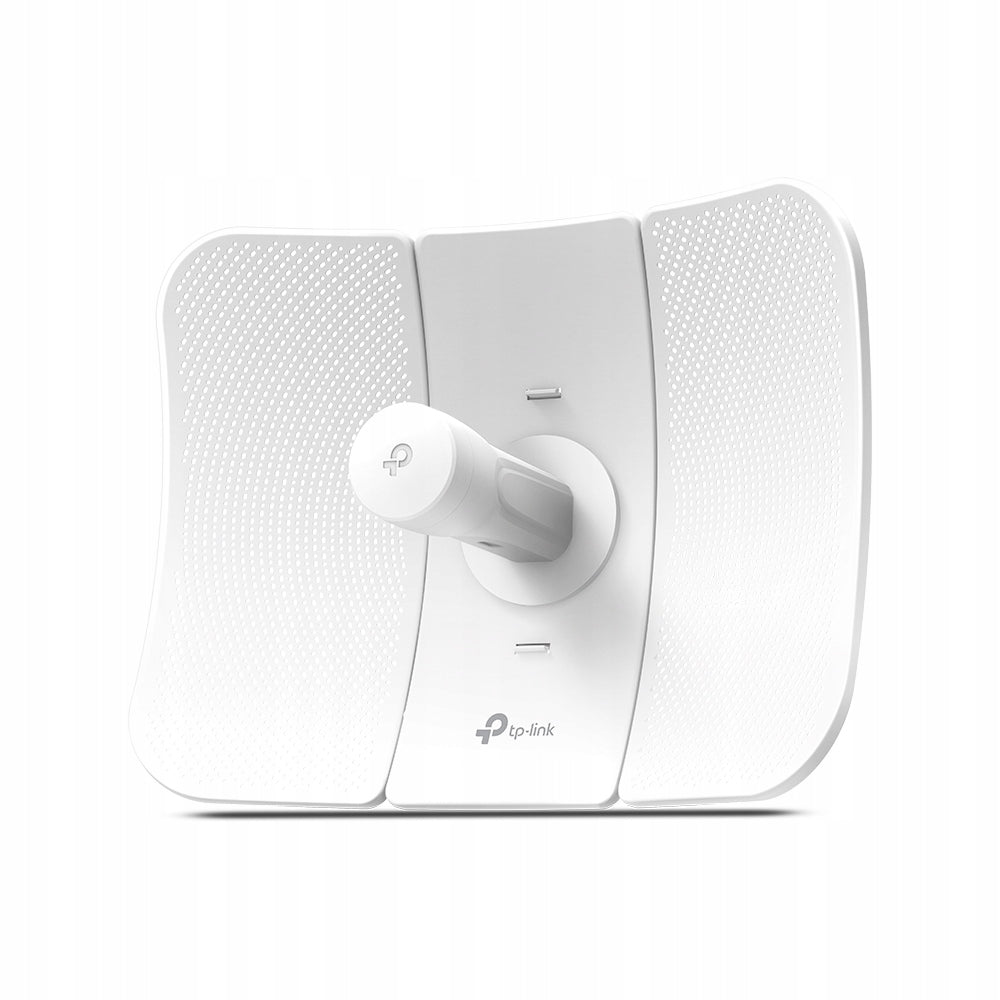

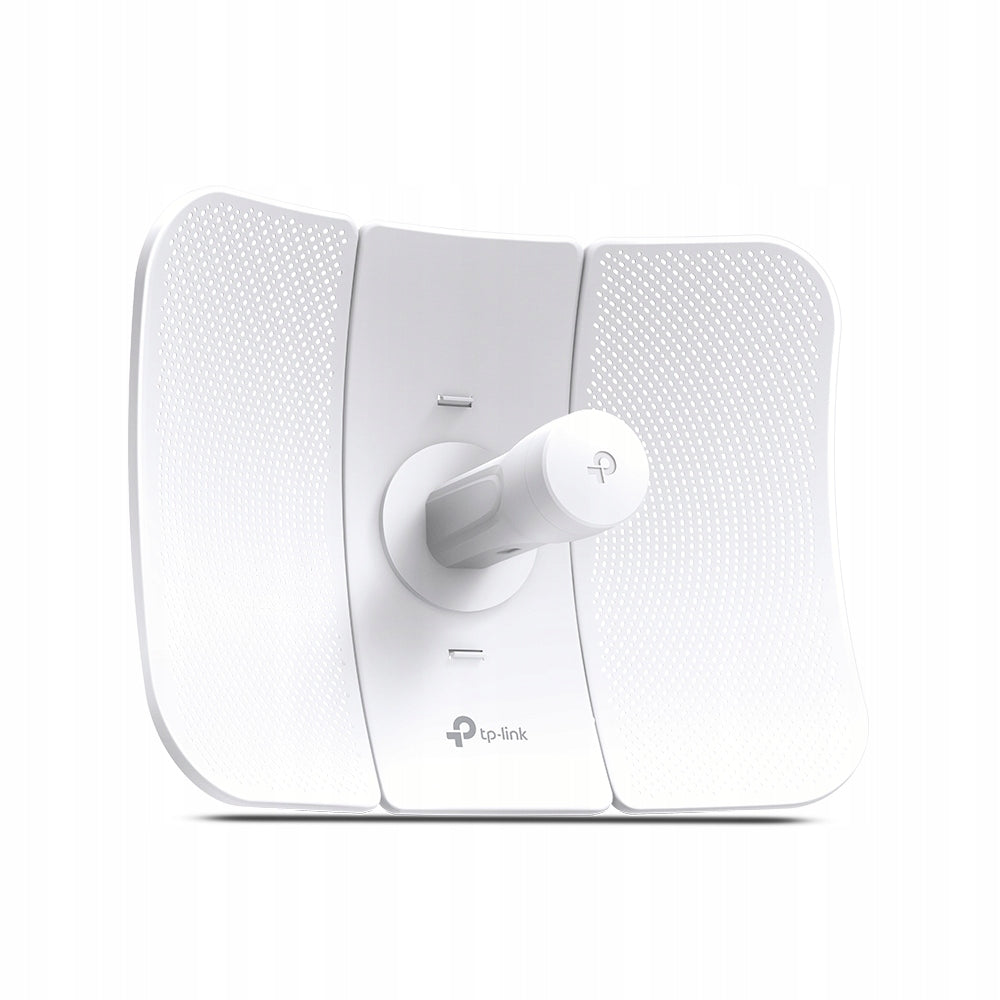

Lauko belaidis įrenginys TP-LINK CPE710, 23 dBi

Trumpai apie prekę

Prekė: Lauko belaidis įrenginys TP-LINK CPE710, 23 dBi. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: CPE710
• Plotis: 86 mm
• Aukštis: 30 mm

External CPE device 23 dBi, 5 GHz, 867 Mbps

P/N : CPE710

Key Features :

• The 802.11ac standard provides wireless transmission speeds of up to 867 Mbps in the 5 GHz band.
• 2×2 MIMO directional antenna with a high gain of 23 dBi, ideal for long-distance transmission.
• Precise beam guidance, lower latency and reduced interference.
• Innovative snap elements facilitate installation, strong construction ensures the stability of the device even in strong winds.
• The IP65-certified environmental-resistant housing, 15 kV electrostatic discharge protection and 6 kV weather discharge protection ensure that the device can be used in all weather conditions.
• Free access to Pharos Control allows you to manage all your devices from one place.
• Passive PoE support gives you the freedom to choose the location for your device and ensures its convenient installation.

Instant transmission without delay

The combination of 256 QAM modulation and 80 MHz wide channel increases the available speeds to 867 Mbps, which is 3 times higher than the 802.11n standard.

Advanced 23 dBi directional antenna for long-distance wireless transmission

With a 23 dBi high-gain Cassegrain directional antenna and a special metal reflector, the CPE ensures precise beam direction, lower latency and less interference. Impressive performance and simple operation make the CPE710 an excellent device for outdoor use, providing long-distance wireless transmission.

Compact and lightweight packaging

Small, light weight packaging makes it easy to ship the product, logistics activities related to delivery and retail.

Pharos Control – central management system

Pharos Control is software that allows you to manage all CPE710 devices on the network from a single computer. The system gives great options for personalizing settings and offers many features, including device detection, status monitoring, software updates and network maintenance. The intuitive interface of PharOS is easy to read for laymen and professionals alike.

*The wireless network speeds given are maximum values, in accordance with the IEEE 802.11 standard specification. The declared signal strength, range and maximum number of connected devices are based on the results of tests carried out under normal conditions of use. Actual data transfer speed and network coverage may vary depending on 1) environmental factors,such as the building materials used, the presence of certain objects or obstacles,2) network conditions, such as local interference,traffic volume, location of the device, network infrastructure,network load and 3) customer restrictions,such as rated performance, current location,quality of connections and construction and condition of the customer.

*Protection against atmospheric discharges and electrostatic discharges can ensure proper product positioning, electrical network grounding and shielding of wires. Read the instruction manual and consult a specialist. IT to get help setting up this product.

*The distance from the power source was determined on the basis of the results of tests carried out under normal conditions of use. The actual distance from the power source may vary depending on 1) the state of the access point, including transmitting power, connected devices and network traffic, 2) cable properties, i.a. of their type and structure, 3) environmental conditions such as temperature and humidity.

HARDWARE FEATURES

Processor

Qualcomm 750 MHz Processor, MIPS 74Kc

Memory

128 MB DDR2 RAM, 16 MB flash memory

Ports

1 shielded Ethernet port 10/100/1000 Mbps (LAN/PoE)

1 Reset button

Power supply

Passive PoE over LAN (+4,5-pin; -7,8-pin)

Voltage: 16-27 V DC

Dimensions (S x G x W)

366 x 280 x 207 mm (14.4 x 11.0 x 8.1 inches)

Antenna gain

23 dBi

Antenna beam width

9° (azimuth), 7° (elevation)

Security

Protection against electrostatic discharge 15 kV

Protection against 6 kV atmospheric discharges

Case

Material: resistant PC plastic for outdoor use

IP65 certified for water and dust resistance

WIRELESS TRANSMISSION PROPERTIES

Wireless standards

IEEE 802.11a/n/ac

Wireless network speed

Up to 867 Mbps (80 MHz, dynamic)

Up to 400 Mbps (40 MHz, dynamic)

Up to 173,4 Mbps (20 MHz, dynamic)

Frequency of work

5.15 to 5.85 GHz

EIRP

Max. 27 dBm (possibility to change power with an accuracy of 1 dBm)

SOFTWARE FUNCTIONS

Network configuration

WAN: Static/Dynamic/PPPoE

LAN: Static/Dynamic/DHCP

Redirecting: ALG/UPnP/Virtual Server/Port Trigger

Security: SPI firewall/Ping packet retention/DOS protection

Access control

Static routing

Bandwidth control

Binding IP and MAC addresses

Wireless network configuration

Selectable channel width: 20/40/80 MHz

Automatic channel selection

Transmission force control

Dynamic Frequency Selection (DFS)

Enabling/Disabling WDS

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP),

Enabling/Disabling SSID broadcasting

Multi-SSID with VLAN tagging (AP mode only)

Distance/ACK Timeout settings

Filtering by MAC addresses

Advanced Wi-Fi settings:

Beacon Interval/RTS Threshold/Fragmentation Threshold/ DTIM Interval /AP Isolation/Short GI/Multimedia Wi-Fi

Long Range PtP

Management

Detect and manage remote devices with Pharos Control

Web management via HTTP/HTTPS

System logs

SNMP Agent (v2c)

Ping Watch Dog

Dynamic DDNS

SSH server

System tools

Wireless Signal Quality Indicators:

Signal strength/Noise/CCQ transmission/Processor/Memory

Monitoring: Bandwidth/Stations/Interfaces/ARP/Routes/WAN/DHCP

Spectrum analysis

Speed test

Ping

traceroute

Setting up the antenna

System Optimization

IGMP Snooping/Proxy optimized for multicast applications

PROPERTIES OF THE POE ADAPTER

Dimensions (S x G x W)

85,8 × 43,9 × 29,7 mm

Ports

1 AC Jack with Earth Ground

1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)

1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Buttons

Remote Reset Button

State of diodes

Green

Entry

100-240 V AC, 50/60 Hz

Exit

Max. 24 V DC, 0,5 A

+4, 5-pin; -7, 8-pin. (Support up to 60 m PoE power supply)

Efficiency

>84.29%

Certificates

CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHER

Certificates

CE, FCC, RoHS, IP65, IC

Content of packaging

External device CPE710

Passive PoE Adapter 24 V 0,5 A

Strips for mounting

Power cord

Quick installation instructions

System requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: Recommended browsers: Google Chrome, Safari, and Firefox. It is not recommended to use the IE browser.

Working environment

Permissible operating temperature: -40℃~70℃ (-40℉~158℉)

Permissible storage temperature: -40℃~70 (-40℉~158℉)

Permissible air humidity: 10%~90%, non-condensing

Permissible storage humidity: 5%~95%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Mode of operation	Access Point
Parametry	Band	5 GHz
Parametry	Internal modem	no modem
Parametry	Management	app
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	built-in
Parametry	Width	86 mm
Parametry	Height	30 mm
Parametry	Depth	44 mm
Parametry	EAN (GTIN)	6935364089702
Parametry	Manufacturer code	CPE710
Parametry	Model	CPE710
Parametry	The highest standard supported	802.11ac (Wi-Fi 5)
Parametry	Wireless operation standard	802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11a
