Kryžminis lazeris Powermat PM-PLK-4DM1, 40 m

Trumpai apie prekę

Prekė: Kryžminis lazeris Powermat PM-PLK-4DM1, 40 m. Kategorija: Lazeriniai lygiai.

• Gamintojas: Powermat
• Modelis: PM-PLK-4DM1
• Ilgis: 13 cm
• Svoris: 0.7 kg

16 lines 360° | ACCURACY ±1 MM/10 M | 40 M RANGE | GREEN LASER 532 NM | COVER

Model: PM-PLK-4DM1

4D laser level with green laser, which sets 16 360° lines for precise leveling and verticalization. Facilitates installation, development and finishing works. You gain faster operation, high accuracy ±1 mm/10 m, good visibility and stability thanks to self-leveling and IP54 resistance and a range of 40 m.

⚫ DOES THE JOB BEFORE YOU START

▪ You set and have a clear reference point: 4D laser with 16 lines and full 360°.

▪ Green laser carries out assembly and finishing, and self-leveling ensures the setting during operation.

▪ IP54 and 40 m range support the work in various conditions, without combining with the equipment.

🔸 YOU WORK FASTER AND MORE CONFIDENTLY

The 4D laser level displays a set of lines around you, so you don’t waste time constantly rearranging the tool. One setting gives you full control over the level and vertical, which really reduces assembly time and eliminates corrections.

🔸 YOU SEE MORE, YOU DON'T GUESS

The green laser is clear and legible even in inferior lighting, so the lines are visible where others disappear. Thanks to this, you can work smoothly, without guessing the course of the line.

🔸 YOU HAVE PEACE OF MIND DURING EACH IMPLEMENTATION

Self-leveling keeps the correct setting for you, and high accuracy protects against errors. You focus on the work, not on constantly checking the tool.

🟠 WHAT DISTINGUISHES OUR LEVEL?

🔸 FULL 360° IN ONE SETTING

The 4D laser creates a set of lines around, so you work faster without moving the device. You gain convenience and consistent reference across the entire surface.

🔸 ACCURACY THAT PROTECTS AGAINST CORRECTIONS

The precision of ±1 mm by 10 meters allows you to maintain perfect lines even at longer distances. Your installations are even and aesthetically pleasing the first time.

🔸 READY FOR REAL WORKING CONDITIONS

The IP54 housing and working range of up to 40 meters are suitable for indoor and outdoor use. The tool keeps up with your work, not the other way around.

🟠 4D LASER SYSTEM WITH 16 LINES

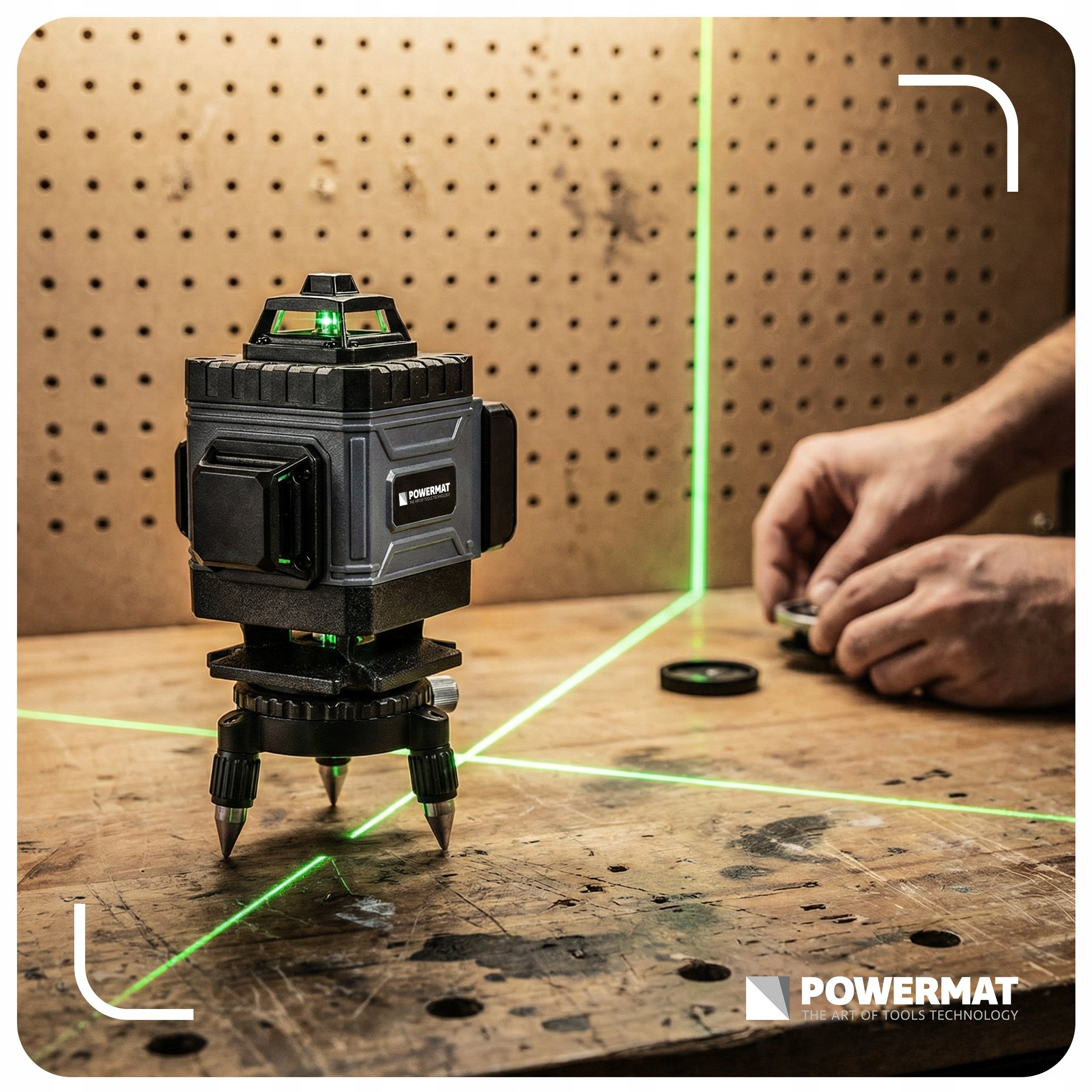

The 4D laser generates 16 lines covering the full 360°, which allows you to simultaneously control the level and vertical throughout the room. You do not need to rearrange the device, because the lines include walls, ceiling and floor.

You gain a consistent reference point when installing bodies, tiles, structures and finishing elements.

🟠 HIGH VISIBILITY GREEN LASER

A green laser with a wavelength of 532 nm provides better visibility than standard red beams.

The lines are legible even in bright lighting and on larger surfaces. You work more smoothly, without having to turn off the light or change the conditions. This is a real help in assembly and routing.

🟠 SELF-LEVELING WITH LOCK

Self-leveling mechanism automatically sets the lines in the correct position in the range of ±3°.

You do not have to manually adjust the settings, because the device monitors the level for you. Self-leveling lock allows you to set lines at your own angle.

⚫ PRECISION YOU CAN RELY ON

You work on accuracy ±1 mm/10 m, 16 lines and full 360°, which gives you a reliable reference point over the entire surface.

🟠 TECHNICAL DATA

• Number of laser lines: 16
• Laser Type: 4D
• Laser Color: Green
• Laser wavelength: 532 nm
• Laser emission angle: 360°
• Laser accuracy: ±1 mm / 10 m
• Working range: 40 m
• Self-leveling range: ±3°
• Laser class: II
• Protection class: IP54
• Power supply: Lithium-ion battery 4,2 V
• Battery capacity: 2400 mAh
• Tripod connection diameter: 1/4”
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +60°C

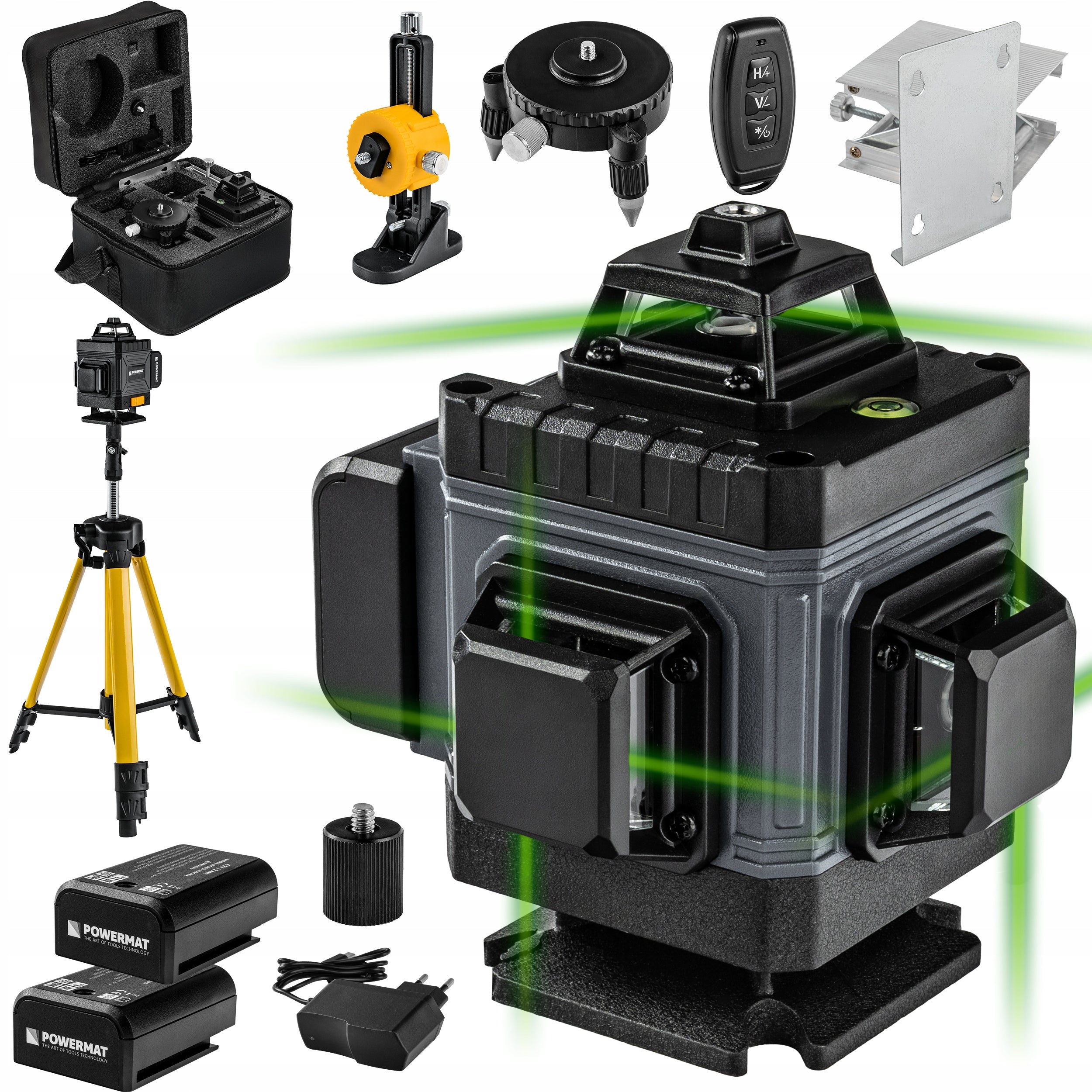

🟠 CONTENTS OF THE SET

• Laser level PM-PLK-4DM1
• 2x 4,2-Volt Lithium-Ion Battery
• Charger
• Round platofrma
• Square platform
• Wall rail
• Remote control
• Cover
• Tripod adapter

⚫ TECHNOLOGY CREATED FOR REAL WORK

High visibility green laser and IP54 housing allow you to work indoors and outdoors. Li-Ion battery provides stable operation without frequent interruptions.

🟠 ACCURACY THAT PROTECTS AGAINST CORRECTIONS

Accuracy of ±1 mm by 10 meters allows you to maintain even lines even over longer distances.

Elements are assembled correctly the first time, without any subsequent adjustments. You reduce material loss that results from inaccurate measurements.

🟠 40 M RANGE AND IP54 HOUSING

Working range up to 40 meters allows you to work in larger rooms and open spaces.

You don't have to get close to keep the lines readable. IP54 housing protects against dust and splashes.

⚫ LOOK AND WORK LIKE A PRO

When you turn on the 4D laser, you have full control over the space and each assembly looks even and clean. Your work gains the precision that you can see from the first glance.

🟠 LI-ION BATTERY POWER SUPPLY

The 4,2 V lithium-ion battery provides stable operation without power drops.

You are not limited by the cable, which makes it easier to work in different places.

🟠 REMOTE CONTROL

Remote control enables to operate the laser at a distance without having to approach the device.

You turn the lines on and off and change the settings while staying at the assembly site. You save time because you don't stop working every time you adjust settings.

⚫ EQUIPMENT TO BE A TOOL, NOT A TOPIC

▪ You set the cross laser 4D and focus on assembly, because the lines hold self-leveling.

▪ Green laser guides you at work, and IP54 helps you when conditions are not ideal.

▪ You have a stable base: 16 lines, 360° and 40 m for everyday finishing tasks.

⚫ FAQ

▪ HOW MANY LINES AND WHAT TYPE OF LASER DOES THE DEVICE HAVE?

The device has 16 lines and it is a laser 4D with 360° emission.

▪ WHAT IS THE WORKING RANGE AND MEASUREMENT ACCURACY?

The working range is 40 m and the laser accuracy is ±1 mm/10 m.

▪ DOES THE LASER LEVEL ITSELF AND WHAT IS ITS RANGE?

Yes, the device has self-leveling in the range of ±3°. When the tilt is larger, the lines begin to flash and an audible signal appears.

▪ WHAT POWER SUPPLY DOES IT HAVE AND HOW WILL I CHECK THE CHARGE LEVEL?

The level is powered by a lithium-ion battery 4,2 V 2400 mAh. The charge level shows the LCD display.

▪ CAN IT BE MOUNTED ON A TRIPOD?

Yes, the device has a tripod connection 1/4”. The tripod is not the basic equipment of the set.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Powermat
Parametry	Model	PM-PLK-4DM1
Parametry	Power supply	rechargeable battery
Parametry	Maximum working range	40 m
Parametry	Measurement accuracy (+/-)	1 mm
Parametry	Number of laser beams	16
Parametry	Laser color	green
Parametry	Horizontal line display angle	360°
Parametry	Vertical line display angle	360°
Parametry	Protection rating	IP54
Parametry	Product height	14 cm
Parametry	Product width	9 cm
Parametry	Length	13 cm
Parametry	Weight	0.7 kg
Parametry	Manufacturer code	PM1492
Parametry	EAN (GTIN)	5900748403055
Parametry	Product weight with unit packaging	1.75 kg
Parametry	Batteries included	yes
Parametry	Additional features	pendulum lock,360° laser,works below zero degrees Celsius,cover included,self-leveling
Parametry	Certificates of conformity	CE,WEEE
