Kryžminis lazeris 4D, 16 linijų, elektroninis savaiminio išsilyginimo, žalias

Trumpai apie prekę

Prekė: Kryžminis lazeris 4D, 16 linijų, elektroninis savaiminio išsilyginimo, žalias. Kategorija: Lazeriniai nivelyrai.

• Gamintojas: Firecore
• Modelis: F94 EL Poziomica Laserowa
• Ilgis: 14.5 cm
• Svoris: 0.9 kg

🏆FIRECORE 2026 - THE LATEST FLAGSHIP MODEL

✅ ELECTRONIC SELF-LEVELING

✅ 4D 360° line range

✅ Accuracy 0,15 MM/M

✅ Class IP64 – shock, dust and water resistance

✅ Slanted mode

✅ Adjustable magnetic holder

✅ High visibility green beam

✅ Working range up to 30 meters

✅ Work with detector (up to 60 meters)

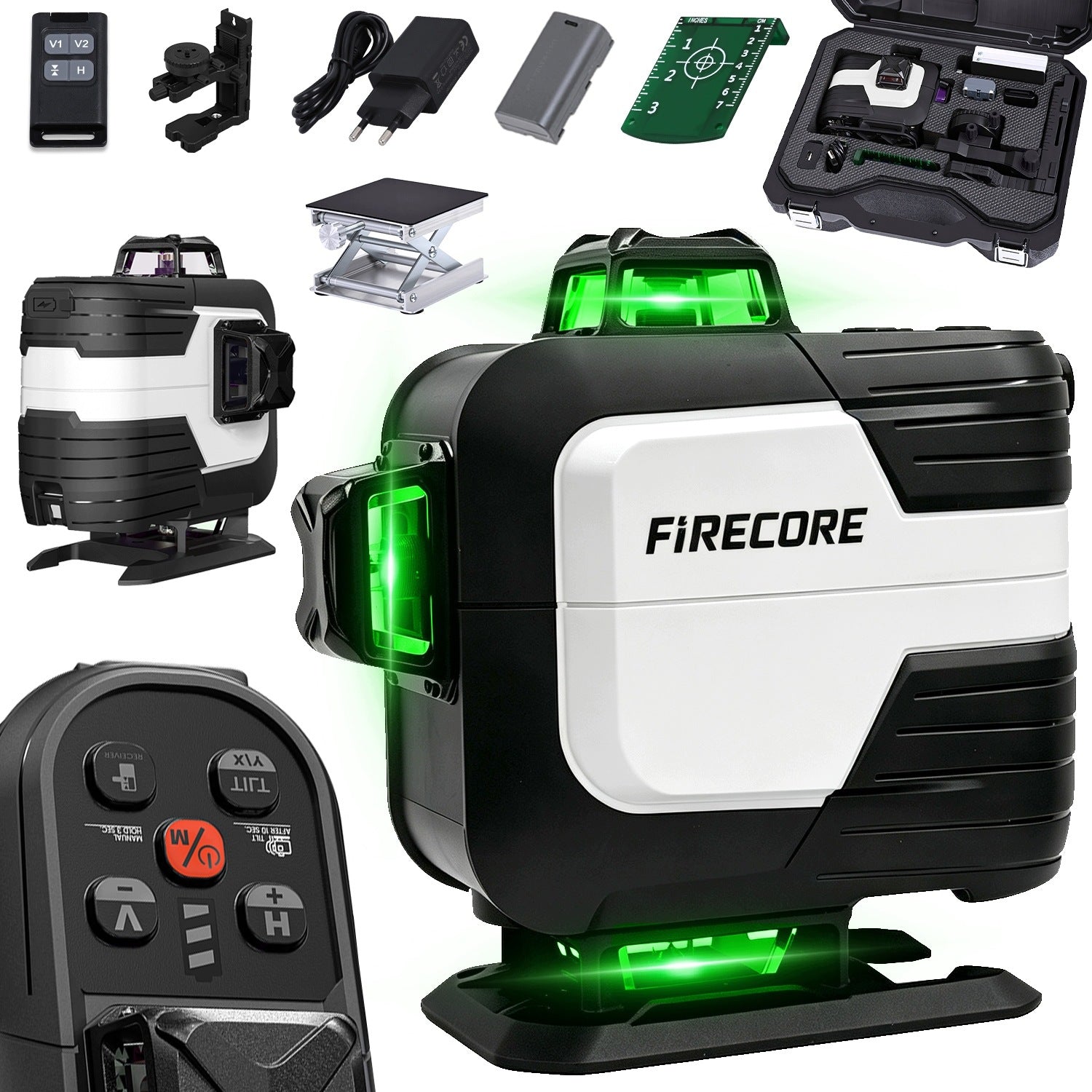

📦 CONTENTS OF THE PACK:

1× Laser level 16 lines

1× 7,4V 2600mAh battery

1× Multifunctional magnetic holder

1× Remote control

1× Charger

1× Targeting Shield

1× Suitcase

1× User Manual

✅ TECHNICAL PARAMETERS:

• Model: F94 EL
• Leveling type: Electronic self-leveling (servo motor system)
• Accuracy (vertical / horizontal): ±1,5 mm / 10 m
• Self-leveling range: ±3,5°
• Protection class: IP64
• Laser class: Class 2 (IEC/EN 60825-1:2014), < 1 mW
• Laser wavelength: 505–520 nm (green beam)
• Mounting thread: 1/4" and 5/8"
• Working time (all beams included): approx. 5 hours
• Working range (radius): 30 m / (up to 60 m with FD30 detector)
• Power Supply: Lithium battery 7,4 V 2600 mAh (rechargeable)

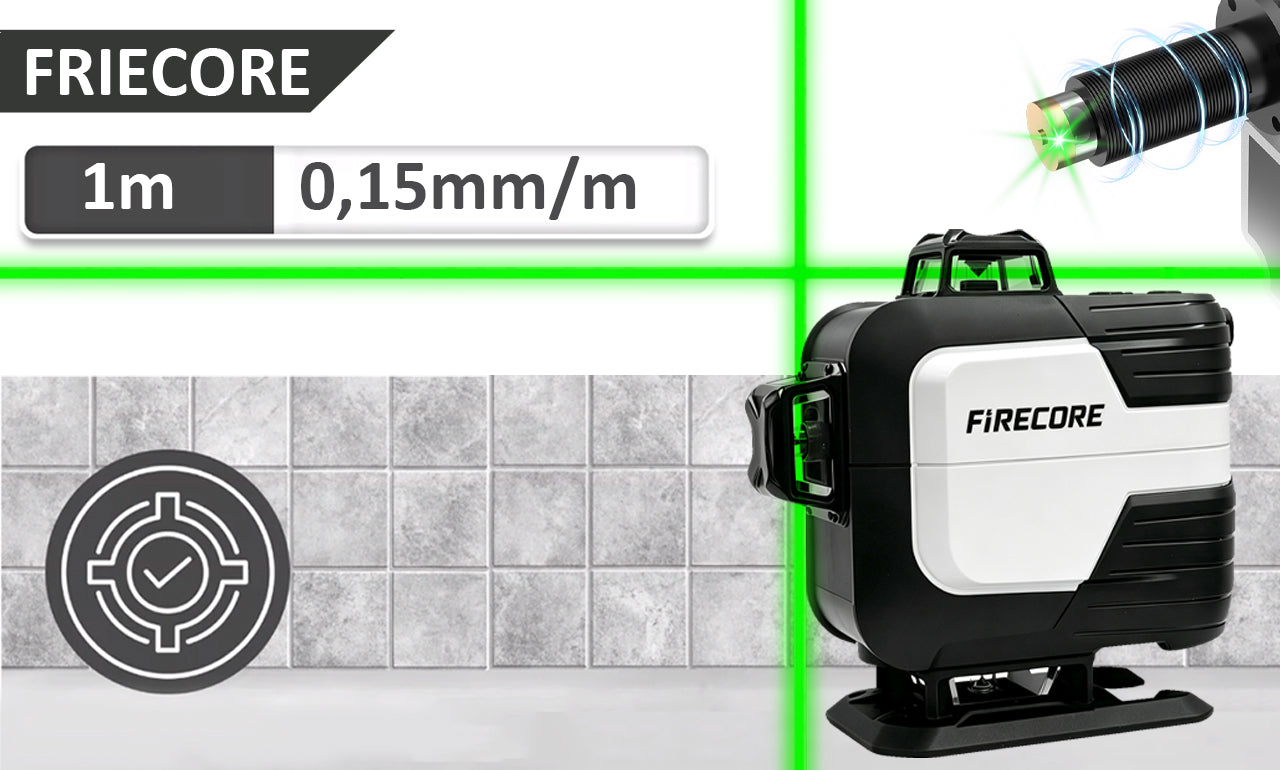

✅ ACCURACY 0.15 MM/M — PRECISION THAT LEAVES NO ROOM FOR GUESSWORK

0.15 mm per meter might sound small, but in practice, it makes a huge difference. This is a deviation less than the thickness of a piece of paper spread over 1 meter. In other words: the line is so straight that walls, tiles, or built-in units will "hold their geometry" from start to finish.

The result in practice:

• Tiles meet perfectly without any "steps,"
• Cabinets hang straight, without needing wedges or shims,
• Profiles, trims, and built-in elements don't "drift" over their length.

✅ “SOMEHOW IT WILL BE”? NOT HERE! ELECTRONIC SELF-LEVELING ELIMINATES HUMAN ERROR ON YOUR CONSTRUCTION SITE.

You know that feeling when you apply a traditional level, the bubble is “almost” in the middle, so you find it okay? This is the trap of “human error.” On the short section you can not see it, but when you come with tiles to the corner of the bathroom, suddenly it turns out that the last strip has a 2 cm difference!

🤔 Effect?

Peeling tiles again, wasted material and unnecessary stress.

⚙ Electronic self-leveling (Servomotors): Instead of relying on a traditional gravitational pendulum, the equipment uses precise electronic sensors. When a deviation from the level is detected, the system immediately activates micro-servomotors, which actively correct the position of the lasers until an ideal, uncompromising level is achieved.

🔔 Intelligent auto-calibration with alarm (±3.5°): Electronic sensors automatically eliminate unevenness up to 3.5° in just 3 seconds. If the slope exceeds this range, the device will immediately alert you with the flashing of a laser beam.

✅ 60 M RANGE? IT’S LIKE A 20-STORY BUILDING IN THE LASER’S SIGHT — YOU DON’T MULTIPLY MEASUREMENTS, YOU DON’T MULTIPLY ERRORS.

Range up to 60 meters (with detector) is one continuous line covering the entire working surface

• from the foundation to the roof or from one end of the square to the other. You set the laser once and you have one fixed reference for the entire order.

Why is this so important?

• When you have to move the laser every few meters, each setting change introduces a new benchmark — and a new risk of discrepancies.
• A small error at the first setting multiplies at the next, and at the third it becomes visible as a crooked hole, a shifted profile or uneven grout. It’s not a theory — it’s everyday life on a construction site where “millimeters” accumulate into an expensive fix.

⚙ 4 OPERATING MODES:

🎯 Self-leveling mode

✋ Manual mode

🛡 Anti-shock mode

📡 Detector mode

⚙ PROFESSIONAL MANUAL MODE

After turning on and leveling the device, hold [M] for approx. 3 seconds. The indicator will start flashing. In this mode, the laser works at any angle (without alarm). To exit, hold [M] again.

Drop adjustment (X/Y axis):

Press briefly [TILT X/Y] to enable the double drop function (useful for drainage, terraces and slope work).

⚡ Fast LED flashing: Hold [H+] or [V-] to adjust the angle of the Y axis.

🐢 Slow flashing diode: Hold [:H+] or [V-] to adjust the angle of the X axis.

🛡 ANTI-SHOCK / TILT MODE

After turning on and automatically leveling the device, press [TILT X/Y]. When the LED stops flashing, the mode will be activated. To exit, press [TILT X/Y] again.

Principle of operation:

In this mode, any vibration, tilt or shift of the equipment will cause the beam and diode to flash continuously. This protects against measurement errors caused, e.g. wind or vibrations on the construction site.

ℹ Note: In this mode, you can use the detector (receiver) mode in parallel.

🛡 IP64 TIGHTNESS CLASS

• Full dust protection and splash and rain resistance from any direction. Ideal equipment for harsh conditions on the construction site.
• Housing designed for special tasks – effectively protects sensitive optics from construction dust and unexpected rain, which significantly extends the life of the device.

🟪 MAXIMUM BRIGHTNESS AND RANGE THANKS TO OPTICAL COATING

The purple anti-reflective coating on the laser windows better focuses the diode beam, increasing the range and improving its visibility in difficult lighting conditions.

💡 LACK OF ELECTRICITY? NO PROBLEM — BATTERY WITH TYPE-C PORT AND ENERGY INDICATOR

⚡ Direct USB-C charging: You charge from a network, car charger or powerbank. The lack of active electrical installation on the construction site ceases to be an obstacle, and you do not lose the rhythm of work.

🔋 Precise charge level indicator: Thanks to it, you can control the battery status at any time and plan the working time. You avoid unexpected equipment discharge and unnecessary downtime.

✅ Simplicity and convenience: One universal USB-C cable instead of a tangle of chargers means order and more space in the toolbox.

✅ PRECISION IN 360° SPACE — 16 LINES / 4D AND 4 INDEPENDENT SYSTEM HEADS. IT'S LIKE FOUR LEVELS IN ONE TOOL!

Four independent laser modules form 16 lines (4D) simultaneously — a full physical reference grid in 4 planes around the entire room.

Instead of folding the measuring sections and measuring “in installments”, you work on a ready-made geometric grid. Simple equation: more fixed reference points = zero cumulative errors.

Why does this change the rules of the game?

📐 Full space control: You can see risers and levels on each side at the same time, eliminating any guesswork during assembly.

🎯 No accumulation of errors: One starting point for the entire room means zero overlapping deviations.

🏢 Confidence in large projects: Efficient installation of frames, G-K bodies, large format boards and suspended ceilings – you can be sure that everything fits together perfectly the first time.

Firecore is a brand created for both DIY enthusiasts and professionals working on construction sites on a daily basis. We focus on high comfort of use of equipment, which in addition to modern design is characterized by exceptional durability. For years, we have been providing reliable tools that streamline your work, save your time and meet the highest quality standards – often exceeding the expectations of users.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Type	cross-line
Parametry	Brand	Firecore
Parametry	Model	F94 EL Poziomica Laserowa
Parametry	Power supply	rechargeable battery
Parametry	Maximum working range	30 m
Parametry	Measurement accuracy (+/-)	0.2 mm
Parametry	Number of laser beams	16
Parametry	Laser color	green
Parametry	Horizontal line display angle	360°
Parametry	Vertical line display angle	360°
Parametry	Protection rating	IP65
Parametry	Product height	10 cm
Parametry	Product width	16 cm
Parametry	Length	14.5 cm
Parametry	Weight	0.9 kg
Parametry	Manufacturer code	F94 EL Laser Krzyżowy
Parametry	EAN (GTIN)	781239069678
Parametry	Product weight with unit packaging	3 kg
Parametry	Batteries included	yes
Parametry	Packaging status	original
Parametry	Additional features	pendulum lock,360° laser,works below zero degrees Celsius,touchpad,cover included,self-leveling,target plate included,handle included
Parametry	Certificates of conformity	CE,WEEE
