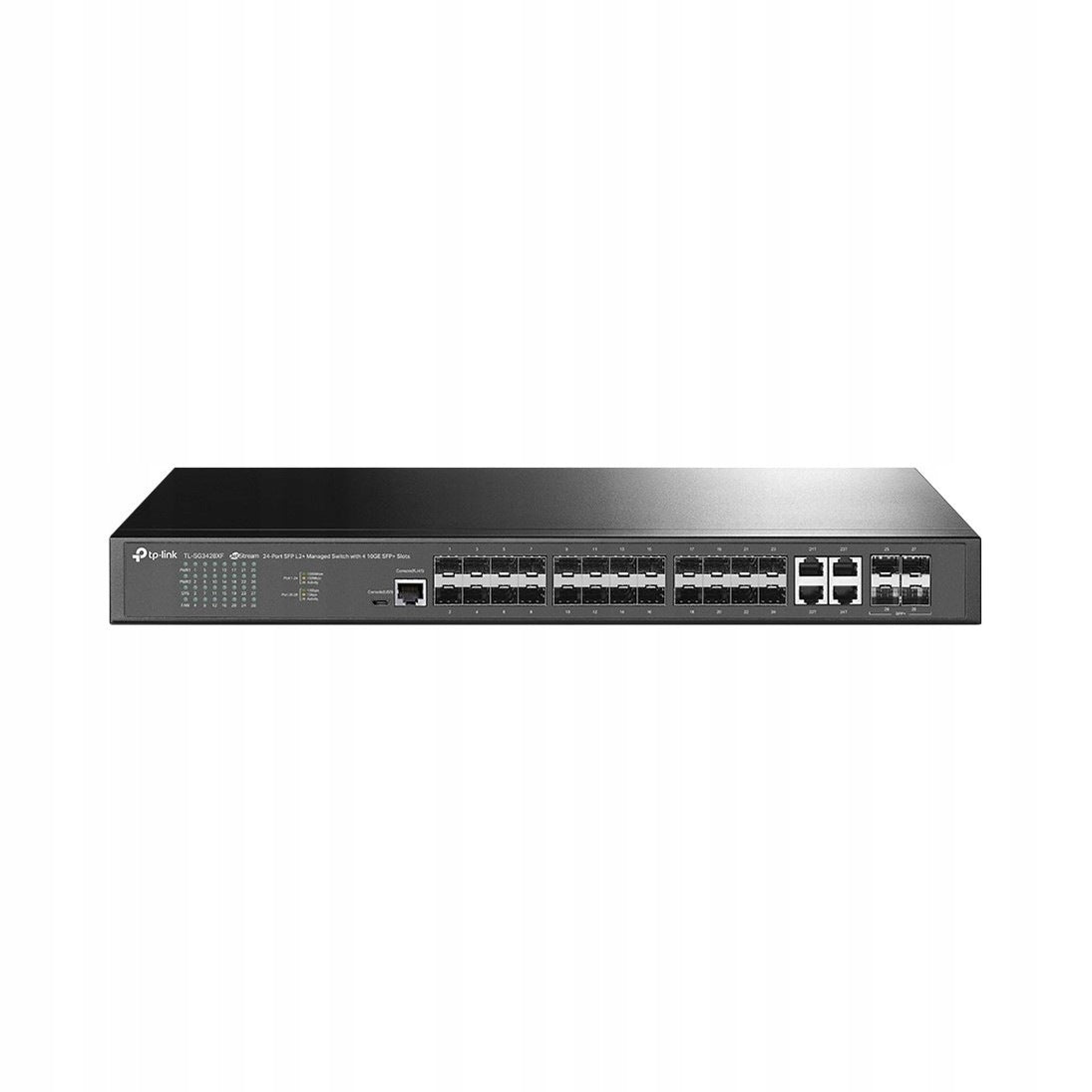

Komutatorius TP-Link TL-SG3428XF, 24 SFP, 4 10G SFP+, valdomas

Trumpai apie prekę

Prekė: Komutatorius TP-Link TL-SG3428XF, 24 SFP, 4 10G SFP+, valdomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SG3428XF

Construction

• LED Indicators: Yes
• Form Factor: 1U
• Product Color: Black

Power

• Number of Power Units: 2
• Power Supply Included: Yes
• Redundant Power Supply (RPS) Support: Yes
• Power Consumption (max): 35.7 W
• Power Source: AC

Weight and Dimensions

• Product Depth: 220 mm
• Product Height: 44 mm
• Product Width: 440 mm

Security

• Access Control List (ACL): Yes
• SSH/SSL Support: Yes
• IGMP Snooping: Yes
• DHCP Features: DHCP relay, DHCP server, DHCP client
• Queue Scheduling Algorithms: WRR+SP, Weighted Round Robin (WRR), SP
• BPDU Filtering / Protection: Yes
• IP-MAC-Port Binding: Yes
• Loop Prevention: Yes
• IGMP Proxy: Yes
• MAC Address Filtering: Yes
• Password Protection: Yes

Management Features

• Multi-layer Switch: L2+
• MIB Support: Yes
• Switch Type: Managed
• Location Configuration (CLI): Yes
• Cloud Managed: Yes
• ARP Inspection: Yes
• System Event Log: Yes
• Quality of Service (QoS) Support: Yes

Operating Conditions

• Storage Temperature Range: -40 - 70 °C
• Relative Humidity Range: 10 - 90%
• Operating Temperature Range: 0 - 45 °C
• Allowable Relative Humidity: 5 - 90%

Network

• Port Mirroring: Yes
• Routing Table Size: 512
• Traffic Control: Yes
• Flow Control Support: Yes
• IP Routing: Yes
• Rate Limiting: Yes
• Link Aggregation: Yes
• Spanning Tree Protocol: Yes
• Head-of-Line (HOL) Blocking: Yes
• Active Connection Discovery: Yes
• VLAN Features: Tagged VLAN
• Policy-based Routing: Yes
• 10G Support: Yes
• Communication Standards: IEEE 802.11d, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab
• Ethernet LAN Data Rate: 10, 100, 1000, 10000 Mbit/s
• VLAN Support: Yes

Package Details

• Rack Mounting Kit: Yes
• Cables: AC
• User Manual: Yes

Ports and Interfaces

• Number of SFP+ Module Slots: 4
• Number of Combo SFP Ports: 4
• Console Port: RJ-45/Micro-USB
• Power Connector: AC Input Socket
• Basic Switching RJ-45 Ethernet Ports Type: None
• Fiber Optic Connector: SFP, SFP+
• Number of Ports: 20

Data Transfer

• Packet Buffer memory: 12 MB
• Forwarding Rate: 95.23 Mpps
• Jumbo Frames Extension: 9
• Static Route: Yes
• Routing/Switching Capacity: 128 Gbit/s
• Jumbo Frames Support: Yes
• MAC Address Table Size: 16000 entries

Power over Ethernet (PoE)

• PoE Support: No

Multicast Features

• Multicast Support: Yes

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	5 kg
Parametry	Number of ports	28
Parametry	Number of LAN (RJ-45) ports	20
Parametry	EAN (GTIN)	4897098688212
Parametry	Manufacturer code	TL-SG3428XF
Parametry	Certificates of conformity	CE,WEEE
